194 Controls in detailAutomatic climate control*Rear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the auto-
matic climate control panel (
page 183).
The air vents for the rear passenger
compartment are located in the rear
center console.1Left center air vent
2Thumbwheel for air volume control for
center air vents
3Right center air ventAdjusting air distribution
Push the slide for the left center
vent1 or right center vent3 to the
left, right, up, or down.
The air flow is directed in the
corresponding direction.
Adjusting air volume
Turn thumbwheel2 up or down.
The air volume is increased or
decreased.
iThe temperature at the center air vents
for the rear passenger
compartment1 and3 i s t h e s a m e a s
at the dashboard center air vents.
iFor draft-free ventilation, push
slides1 and3 upward.

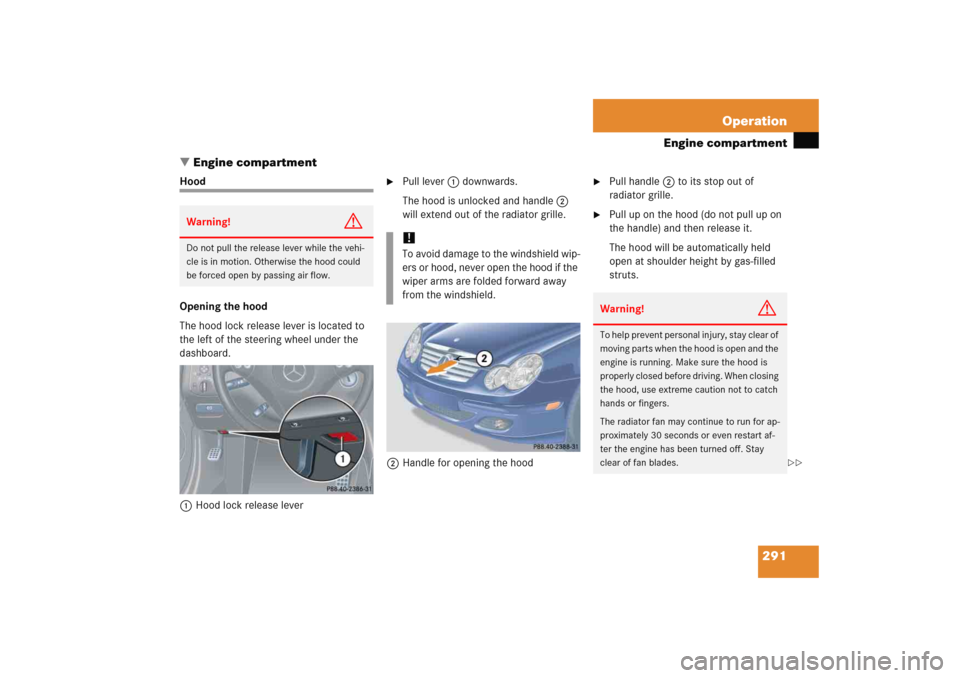

291 Operation
Engine compartment
Engine compartment
Hood
Opening the hood
The hood lock release lever is located to
the left of the steering wheel under the
dashboard.
1Hood lock release lever
Pull lever1 downwards.
The hood is unlocked and handle2
will extend out of the radiator grille.
2Handle for opening the hood
Pull handle2 to its stop out of
radiator grille.
Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height by gas-filled
struts.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.
