Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel Door control panel

23
At a glance
Cockpit
Item
Page
1
Cruise control lever
247
2
Multifunction steering
wheel
26
124
3
Horn
4
Instrument cluster
24
119
5
Overhead control panel
29
6
Glove box lid release
254
Item
Page
7
Glove box lock
254
8
Center console
27
9
Starter switch
33
a
Hood lock release
291
b
Steering wheel adjustment
handle (manual)
41
c
Steering wheel adjustment
stalk (electrical)*
41
d
Parking brake pedal
50, 56
e
Door control panel
30
Item
Page
f
Parking brake release
50
g
Combination switch

Turn signals
52


High beam
52


Windshield wipers
53
h
Exterior lamp switch
51
110
j
Exterior rear view mirror
adjustment
42
k
Headlamp washer switch*
167

24 At a glanceInstrument cluster

25
At a glance

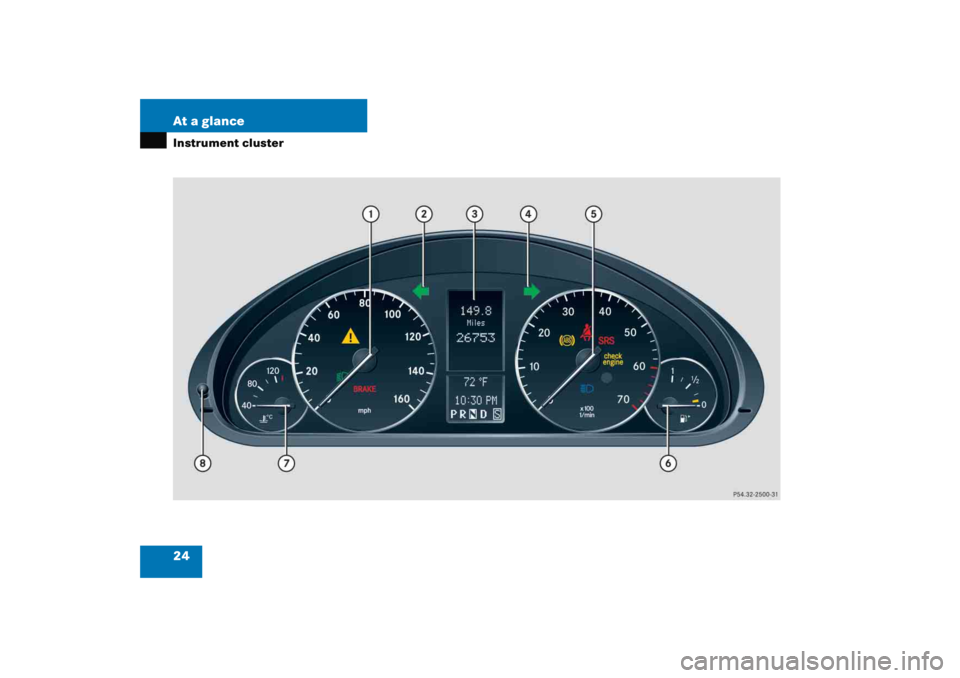

Instrument cluster
Item
Page
1
Speedometer with:v
Electronic Stability
Program (ESP)
warning lamp
83
343
; Brake warning lamp,
USA only
50
56
341
3 Brake warning lamp,
Canada only
50
56
341
B Low beam headlamp
indicator lamp
51
110
2
L Left turn signal
indicator lamp
52
3
Multifunction display with:Trip odometer
121
Main odometer
123
Gear selector lever position
49
162
Item
Page
Program mode
164
Status indicator
(outside temperature/ digital
speedometer)
121
138
Digital clock
123
139
4
K Right turn signal
indicator lamp
52
5
Tachometer with:-Antilock Brake
System (ABS)
indicator lamp
81
340
< Seat belt telltale
66
344
1 Supplemental
restraint system
indicator lamp
60
344
A High beam headlamp
indicator lamp
51
114
Item
Page
ú Engine malfunction
indicator lamp,
USA only
342
±Engine malfunction
indicator lamp,
Canada only
342
6
Fuel gauge with:Fuel reserve warning lamp
344
4Fuel filler cap location
indicator: The fuel
filler cap is on the rear
right-hand side.
7
Coolant temperature gauge
120
8
Reset button for:

Resetting trip odometer
121


Resetting individual
settings
135


Instrument cluster
illumination
119

33
Getting started
Unlocking
Starter switch positions
Starter switch0
For removing SmartKey
The steering is locked when the Smart-
Key is removed from the starter switch.
If necessary, move steering wheel
slightly to allow the locking mechanism
to engage.
1 Power supply to some electrical con-
sumers, such as seat adjustment 2
Ignition (power supply for all electrical
consumers) and driving position. All
lamps (except low beam headlamp in-
dicator lamp, high beam headlamp indi-
cator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 340).
3 Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
