2005 MAZDA MODEL 6 Owners Manual (in English)

Black plate (17,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
CAUTION
When returning a rear-reclined seatback
to its upright position, make sure you
support the seatback while operating
the seatback lever. If the seatback is not
supported, it will flip forward suddenly
and could cause injury.
Essential Safety Equipment
Seats
2-3
Mazda6_8T56-EC-04G_Edition2 Page17
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

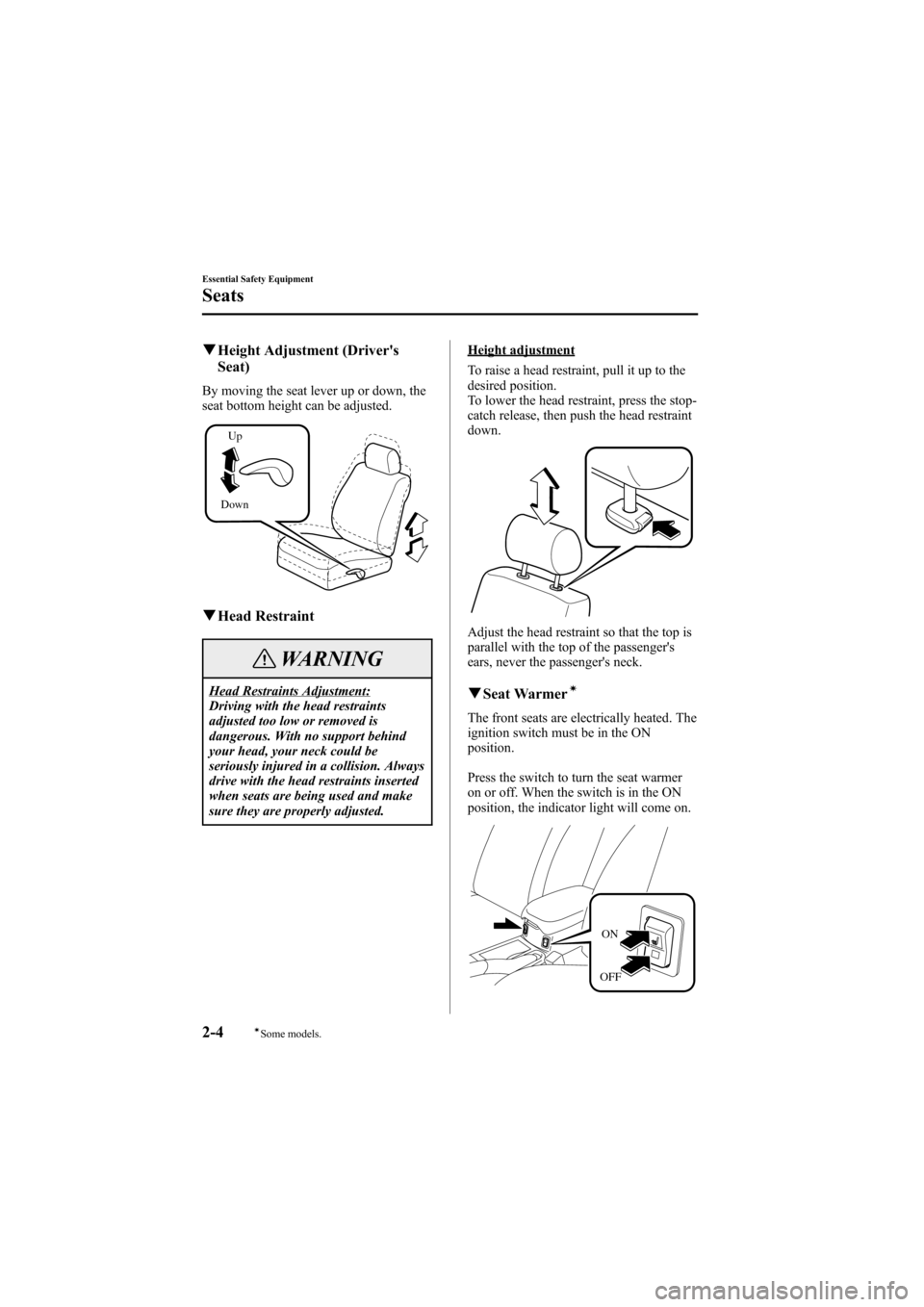

Black plate (18,1)
qHeight Adjustment (Driver's
Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qHead Restraint
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.
Height adjustment
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger's
ears, never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
2-4
Essential Safety Equipment
íSome models.
Seats
Mazda6_8T56-EC-04G_Edition2 Page18
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (19,1)
NOTE
The thermostat regulates seat
temperature by turning the current on
and off.
Front Seats (Electrically
Operated Seats)
WARNING
Modification of the Front Seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Damaged Front Seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag components.
If there was a subsequent collision, the
air bag may not deploy which could
lead to injuries. Always have an
Authorized Mazda Dealer inspect the
front seats, front seat belt
pretensioners and air bags after a
collision.
Essential Safety Equipment
Seats
2-5
Mazda6_8T56-EC-04G_Edition2 Page19
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (20,1)
CAUTION
lThe seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.
lTo prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electric power.
lDon't use the switch to make more
than one adjustment at a time.
qSeat Slide (Driver's Seat)
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline (Driver's Seat)
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
2-6
Essential Safety Equipment
Seats
Mazda6_8T56-EC-04G_Edition2 Page20
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (21,1)
qHeight Adjustment (Driver's
Seat)
Front height adjustment
To adjust the front height of the seat-
bottom, raise or lower the front of the
slide lifter switch on the left side of the
seat.
Rear height adjustment
Raise or lower the back of the switch to
adjust the rear height of the seat-bottom.
Height adjustment
Raise the seat-bottom by pulling up on the
center of the switch. Release the switch at
the desired position.Lower the seat-bottom by pressing down
on the center of the switch. Release the
switch at the desired position.
qLumbar Support Adjustment
(Driver's Seat)
To adjust the lumbar support, pull the
lever forward.
Essential Safety Equipment
Seats
2-7
Mazda6_8T56-EC-04G_Edition2 Page21
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (22,1)
qHead Restraint
WARNING
Head Restraints Adjustment:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision. Always
drive with the head restraints inserted
when seats are being used and make
sure they are properly adjusted.
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
parallel with the top of the passenger's
ears, never the passenger's neck.
qSeat Warmerí
The front seats are electrically heated. The
ignition switch must be in the ON
position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
ON
OFF
NOTE
The thermostat regulates seat
temperature by turning the current on
and off.
2-8
Essential Safety Equipment
íSome models.
Seats
Mazda6_8T56-EC-04G_Edition2 Page22
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

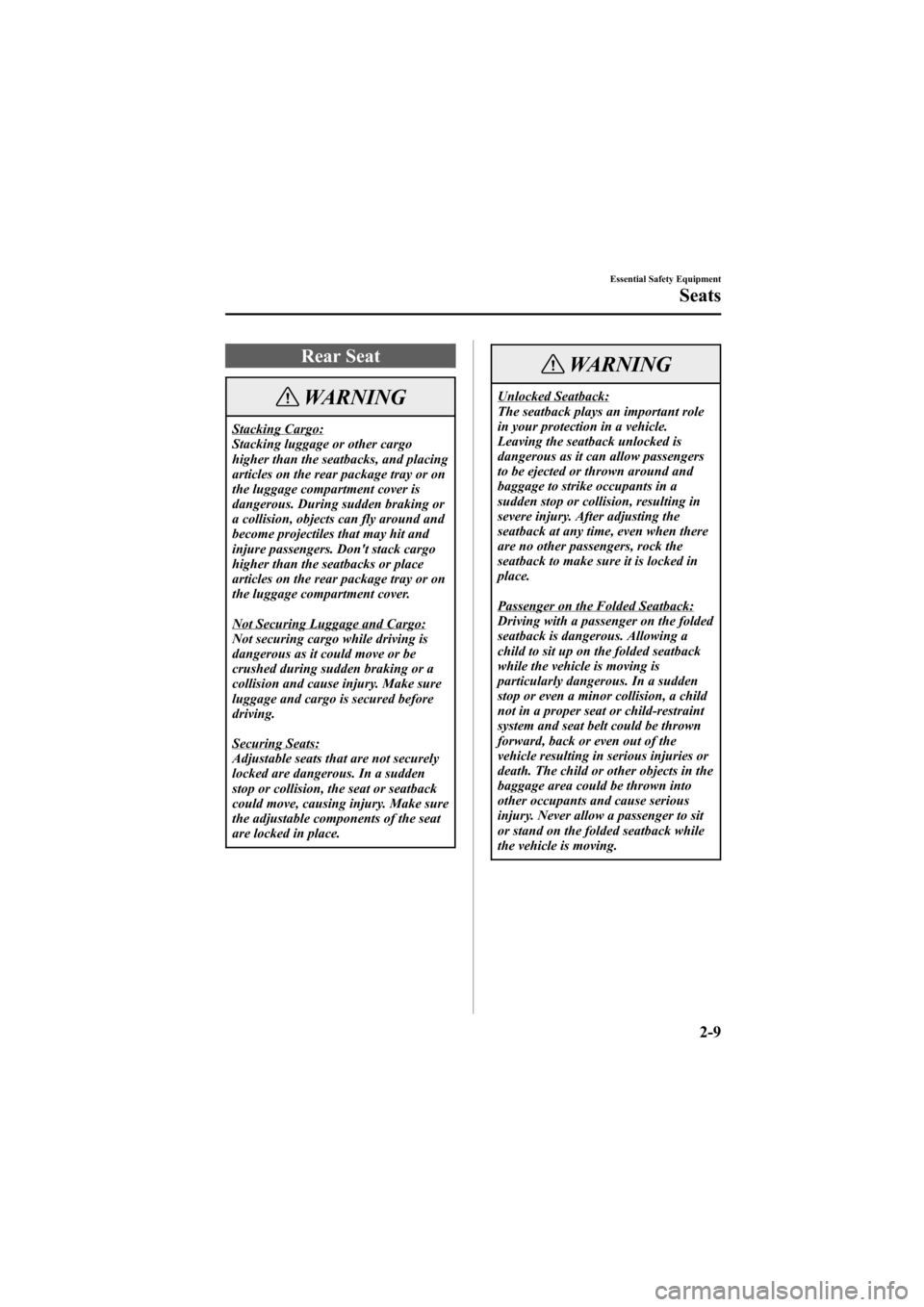

Black plate (23,1)
Rear Seat
WARNING
Stacking Cargo:
Stacking luggage or other cargo
higher than the seatbacks, and placing
articles on the rear package tray or on
the luggage compartment cover is
dangerous. During sudden braking or
a collision, objects can fly around and
become projectiles that may hit and
injure passengers. Don't stack cargo
higher than the seatbacks or place
articles on the rear package tray or on
the luggage compartment cover.
Not Securing Luggage and Cargo:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury. Make sure
luggage and cargo is secured before
driving.
Securing Seats:
Adjustable seats that are not securely
locked are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury. Make sure
the adjustable components of the seat
are locked in place.
WARNING
Unlocked Seatback:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when there
are no other passengers, rock the
seatback to make sure it is locked in
place.
Passenger on the Folded Seatback:
Driving with a passenger on the folded
seatback is dangerous. Allowing a
child to sit up on the folded seatback
while the vehicle is moving is
particularly dangerous. In a sudden
stop or even a minor collision, a child
not in a proper seat or child-restraint
system and seat belt could be thrown
forward, back or even out of the
vehicle resulting in serious injuries or
death. The child or other objects in the
baggage area could be thrown into
other occupants and cause serious
injury. Never allow a passenger to sit
or stand on the folded seatback while
the vehicle is moving.
Essential Safety Equipment
Seats
2-9
Mazda6_8T56-EC-04G_Edition2 Page23
Monday, November 15 2004 4:32 PM
Form No.8T56-EC-04G

Black plate (24,1)
WARNING
Children and the Folding Rear Seats:
Playing with the folding rear seats is
dangerous. Once the seats are back
up, a child in the trunk would not be
able to get out the way they had
entered. If you have small children,
keep the seatbacks locked (sedan). Do
not give the car keys to children and
do not allow them to play in the
vehicle.
NOTE
When returning a rear seat to its
original position, also replace the seat
belt to its normal position. Verify that
the seat belt pulls and retracts.
qSplit-Folding Rear Seatback
(Sedan)
The seatbacks can be folded down to
provide more space in the trunk.
To fold the seatbacks
WARNING
Operating the Remote Handle LeversWhile a Rear-Facing Child-RestraintSystem is in the Rear Seat:
Operating the remote handle levers
while a rear-facing child-restraint
system is in the rear seat is dangerous.
It could cause injury to a child seated
in the child-restraint system when the
seatback suddenly flips forward.
Always remove the child-restraint
system from the rear seat before
operating the remote handle levers for
the rear seat.
Folding Seatbacks with RemoteHandle Levers:
Not checking the rear seat area for
persons before folding the seatbacks
with the remote handle levers is
dangerous. The rear seat area is
difficult to see from the rear of the
vehicle. Operating the remote handle
levers without checking could cause
injury to a person when a seatback
suddenly flips forward. Make sure
there is nobody in the rear seat area
before operating the remote handle
levers.
