2005 MAZDA MODEL 6 Owners Manual (in English)

Black plate (145,1)
qTCS Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS is
operating, the indicator light flashes.
If the light stays on, the TCS may have a
malfunction and it may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.
NOTE
lIn addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This indicates
that the TCS is operating properly.
lOn slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the TCS is
on.
qTCS OFF Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position.
It also comes on when the TCS OFF
switch is pressed and TCS is switched off.If the light stays on when the TCS is not
switched off, take your vehicle to an
Authorized Mazda Dealer. The TCS may
have a malfunction.
NOTE
After starting the engine when the
coolant temperature is extremely low,
the TCS is automatically turned off. At
this time, the TCS OFF indicator light
will remain on, but this does not
indicate an abnormality. After the
engine has warmed, TCS will resume
normal operation and the indicator light
will go out.
qTCS OFF Switch
Press the TCS OFF switch to turn off the
TCS. The TCS OFF indicator light will
illuminate.
Press the switch again to turn the TCS
back on. The TCS OFF indicator light
will go out.
Driving Your Mazda
Starting and Driving
5-21
Mazda6_8T56-EC-04G_Edition2 Page145
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (146,1)
NOTE
lWhen TCS is on and you attempt to
free the vehicle when it is stuck, or
drive it out of freshly fallen snow,
the TCS will activate. Depressing the
accelerator will not increase engine
power and freeing the vehicle may
be difficult. When this happens, turn
off the TCS.
lIf the TCS is off when the engine is
turned off, it automatically activates
when the ignition switch is turned
on.
lLeaving the TCS on will provide the
best traction.
5-22
Driving Your Mazda
Starting and Driving
Mazda6_8T56-EC-04G_Edition2 Page146
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (147,1)
Meters and Gauges
(Black-out meter)
When the ignition switch is in the ON position, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-24
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-24
Tachometer ........................................................................................................ page 5-25
Engine Coolant Temperature Gauge .................................................................. page 5-25
Fuel Gauge ........................................................................................................ page 5-26
Driving Your Mazda
Instrument Cluster and Indicators
5-23
Mazda6_8T56-EC-04G_Edition2 Page147
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (148,1)
qSpeedometer
The speedometer indicates the speed of
the vehicle.
qOdometer, Trip Meter and Trip
Meter Selector
The display mode can be changed
between trip meter A and trip meter B by
pressing the selector while one of them is
displayed. The selected mode will be
displayed.
Trip meterOdometer
Selector
Trip meter B
Press the selector Press the selector Trip meter AOdometer
Odometer
NOTE
(Standard meter)
The odometer and trip meter can be
displayed as follows even when the
ignition switch is in the ACC or LOCK
position.
The headlight switch must be in the
orposition to see the display.
lDisplays for 10 minutes after the
ignition switch is turned to the ACC
or LOCK position from the ON
position.
lDisplays for 10 minutes after any
door is opened.
Odometer
The odometer records the total distance
the vehicle has been driven.
Trip meter
The trip meter can record the total
distance of two trips. One is recorded in
trip meter A, and the other is recorded in
trip meter B.
For instance, trip meter A can record the
distance from the point of origin, and trip
meter B can record the distance from
where the fuel tank is filled.
When trip meter A is selected, pressing
the selector again within one second will
change to trip meter B mode.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
5-24
Driving Your Mazda
Instrument Cluster and Indicators
Mazda6_8T56-EC-04G_Edition2 Page148
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (149,1)
The trip meter records the total distance
the vehicle is driven until the meter is
again reset. Return it to“0.0”by holding
the selector depressed for more than 1
second. Use this meter to measure trip
distances and to compute fuel
consumption.
NOTE
lOnly the trip meters record tenths of
kilometers (miles).
lThe trip record will be erased when:
lThe power supply is interrupted
(blown fuse or the battery is
disconnected).
lThe vehicle is driven over 999.9
km (mile).
qTachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
Red zone
CAUTION
Don't run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.
qEngine Coolant Temperature
Gauge
The engine coolant temperature gauge
shows the temperature of the engine
coolant.
If the needle exceeds normal range toward
H, it indicates overheating.
CAUTION
Driving with an overheated engine can
cause serious engine damage (page
7-14).
Driving Your Mazda
Instrument Cluster and Indicators
5-25
Mazda6_8T56-EC-04G_Edition2 Page149
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (150,1)

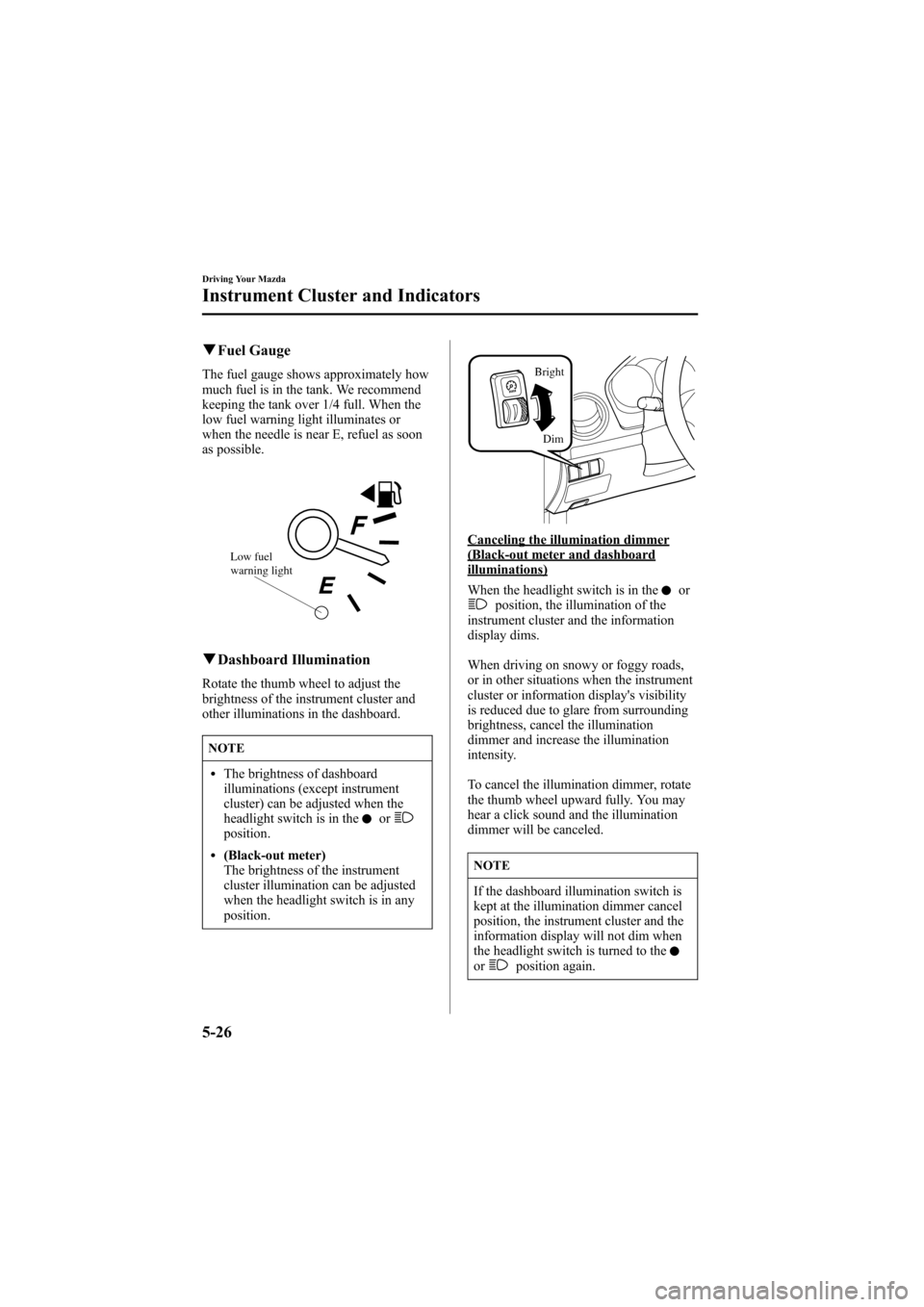

qFuel Gauge
The fuel gauge shows approximately how
much fuel is in the tank. We recommend
keeping the tank over 1/4 full. When the
low fuel warning light illuminates or
when the needle is near E, refuel as soon
as possible.
Low fuel
warning light
qDashboard Illumination
Rotate the thumb wheel to adjust the
brightness of the instrument cluster and
other illuminations in the dashboard.
NOTE
lThe brightness of dashboard
illuminations (except instrument
cluster) can be adjusted when the
headlight switch is in the
orposition.
l(Black-out meter)
The brightness of the instrument
cluster illumination can be adjusted
when the headlight switch is in any
position.
Dim Bright
Canceling the illumination dimmer(Black-out meter and dashboardilluminations)
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, rotate
the thumb wheel upward fully. You may
hear a click sound and the illumination
dimmer will be canceled.
NOTE
If the dashboard illumination switch is
kept at the illumination dimmer cancel
position, the instrument cluster and the
information display will not dim when
the headlight switch is turned to the
orposition again.
5-26
Driving Your Mazda
Instrument Cluster and Indicators
Mazda6_8T56-EC-04G_Edition2 Page150
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (151,1)
Warning/Indicator Lights
Warning/Indicator lights will appear in any of the highlighted areas
Signal Warning/Indicator Lights Page
Brake System Warning Light 5-29
Charging System Warning Light 5-30
Engine Oil Pressure Warning Light 5-30
Check Engine Light 5-30
ABS Warning Light 5-31
Air Bag/Front Seat Belt Pretensioner System Warning Light 5-31
Low Fuel Warning Light 5-32
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-27
Mazda6_8T56-EC-04G_Edition2 Page151
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G

Black plate (152,1)
Signal Warning/Indicator Lights Page
Seat Belt Warning Light/Beep 5-32
Door-Ajar Warning Light 5-33
Low Washer Fluid Level Warning Light 5-33
Automatic Transaxle Warning Light 5-33
Security Indicator Light 5-34
Headlight High-Beam Indicator Light 5-34
Shift Position Indicator Light 5-34
TCS Indicator Light 5-35
TCS OFF Indicator Light 5-35
Cruise Main Indicator Light 5-35
Cruise Set Indicator Light 5-36
Light-On Indicator Light 5-36
Turn-Signal/Hazard Warning Indicator Lights 5-36
5-28
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda6_8T56-EC-04G_Edition2 Page152
Monday, November 15 2004 4:33 PM
Form No.8T56-EC-04G
