2005 LOTUS ELISE engine

Oil FilterThe canister type oil filter is vertically mounted at the front
of the engine, and is accessible from beneath after removal of
the engine bay undertray. The filter should be renewed along
with the engine oil, at intervals specified in the Maintenance
Schedule.
WARNING:
• Engine oil is hazardous to your health and may be fatal
if swallowed.
• Take all suitable precautions to guard against scalding
from the hot oil.
• Prolonged and repeated contact with used engine oil may cause serious skin disorders, including dermatitis

and cancer.
• Use protective gloves to avoid contact with skin as far
as possible and wash thoroughly after any contact.
• Keep out of reach of children.
Remove the filter by turning in a counterclockwise direction,
if necessary using an oil filter wrench, and dispose of safely
(see ‘Used Engine Oil’). Ensure that only a Lotus specified filter is fitted, as parts with
identical outward appearance can contain different internal
features. Before fitting a new filter, clean the mating face on the engine, and smear the new seal on the filter with clean oil. Add
ohs129
ohs135
SUMP DRAIN PLUG
OIL FILTER
Servicing & Maintenance
102

oh_croft_InD.indd 10220/05/2004 07:59:06ProCarManuals.com

oh48e
a small amount of clean engine oil into the filter, screw onto its
spigot and tighten BY HAND sufficiently to make a secure seal,
typically 2/3 to 3/4 of a turn after the sealing faces have made
contact. Overtightening using a filter wrench may damage the
canister and/or complicate subsequent removal. Before refitting the undertray, start the engine and check for
oil leaks. Re-check the security of the filter, further tightening
by hand if necessary. Check the oil level (see above) when the
engine is fully warm.
Used Engine Oil NOTICE: PROTECT THE ENVIRONMENT: Do not pollute
drains, water courses or land with oil. Use only authorised waste
collection facilities, including civic amenity sites and garages providing facilities for disposal of used oil and used oil filters. If
in doubt, contact your local authority for advice on disposal.
Transmission Oil The transmission should be checked for oil leaks, for the cor
-
rect oil level, and the oil renewed, at intervals specified in the
Maintenance Schedule.
To check the oil level:
- A garage lift or inspection pit must be used.
- Remove the engine bay undertray.
- Wipe clean the area around the socket headed level plug on
the front face of the transmission end casing.
Servicing & Maintenance
103

oh_croft_InD.indd 10320/05/2004 07:59:06ProCarManuals.com

- Remove the plug, and check that the oil is level with the bottom of the hole. Note that the release of oil trapped
by the plug, should not be confused with an indication of

correct oil level.
- If necessary, add only the specified lubricant (see ‘Recom
-
mended Lubricants’) via the level plug hole until the oil level
stabilises at the bottom of the plug hole.
- Refit the level plug with a new sealing washer, and tighten securely. Refit the undertray.
To renew transmission oil:
WARNING:
• Engine oil is hazardous to your health and may be fatal
if swallowed.
• Take all suitable precautions to guard against scalding
from the hot oil.
• Prolonged and repeated contact with used engine oil may cause serious skin disorders, including dermatitis and
cancer.
• Use protective gloves to avoid contact with skin as far as possible and wash thoroughly after any contact.
• Keep out of reach of children.
Servicing & Maintenance
104

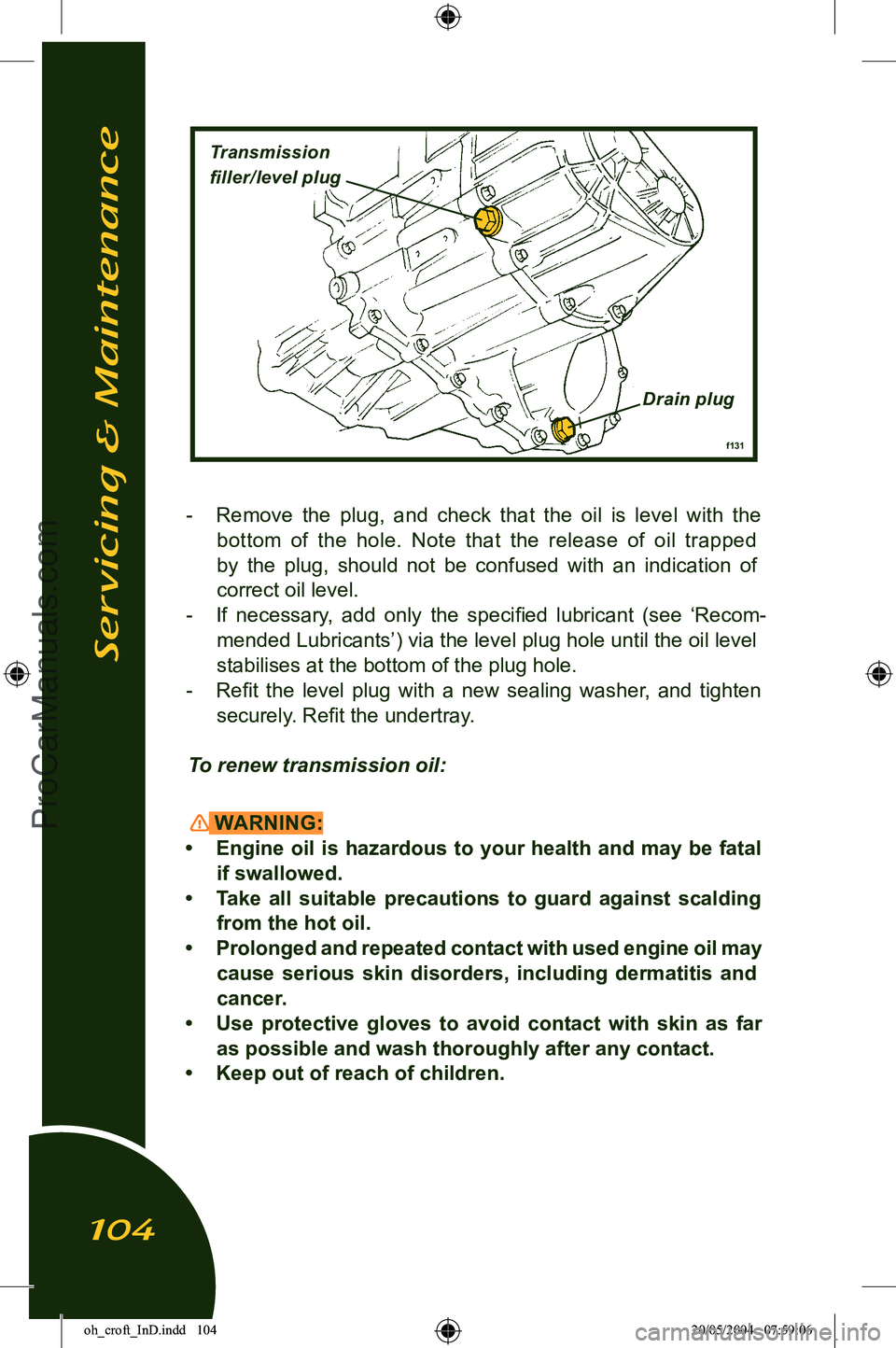

f131
Transmission
filler/level plug
Drain plug

oh_croft_InD.indd 10420/05/2004 07:59:06ProCarManuals.com

Cooling SystemThe engine cooling system uses a header tank to ensure that
the system remains completely filled, and also to accommodate
expansion of the coolant with increasing engine temperature.
The tank is mounted at the left hand side of the engine bay, and is fitted with a 108 kPa (15 psi) pressure cap to raise the boiling point of the coolant to over 120°C (250°F).
WARNING:
• Do NOT attempt to remove the pressure cap or air bleed plug from the header tank when the engine is warm
as serious scalding could result from boiling water

and/or steam.
• Coolant is hazardous to your health and may be fatal

if swallowed.
• Keep coolant out of reach of children.
• Coolant is hazardous to animals and may be fatal if

swallowed. Clean up spilled coolant and do not leave in
open containers.
The level of coolant in the translucent header tank will rise
as the engine warms up, and fall as it cools down, and under
normal circumstances it should not be necessary to add any
coolant to the system between services. If overfilled, the excess
coolant will be ejected when the engine is warm. If under filled, overheating may result.
Servicing & Maintenance
106
ohs130
Air bleed plugCoolant header tank cap

oh_croft_InD.indd 10620/05/2004 07:59:07ProCarManuals.com

As a precaution, every week when the engine is completely
COLD, and without disturbing the filler cap, check that the level of coolant in the translucent tank is between the ‘FULL’
and ‘LOW’ marks moulded on the front of the tank. If topping
up is required, wait until the coolant has fully cooled before
turning the cap a quarter turn counterclockwise and allowing any remaining pressure to escape. Only then may the cap be
completely unscrewed. In order to maintain protection from freezing damage and
metal corrosion, use only an approved coolant mixture (see below) to top up the tank to the ‘FULL’ mark. Refit the cap, and
turn clockwise until the leg on the cap locates in the slot at the
front of the tank.
NOTICE: If the cap is removed when the engine is warm, the coolant may boil and a small coolant loss may occur. The com
-
pletely cold header tank level should be checked at the first subsequent opportunity.
Cooling Fans
: Two cooling fans are fitted below the radiator in
the air intake duct. The fans are energised at high coolant tem
-
peratures, or when the air conditioning (if fitted) is selected. The
fans will also run if certain types of engine fault are detected, and
may operate during a 20 minute period following ignition switch off to prevent ‘hot soak’ boiling. An electric coolant circulation pump may also be heard running during this period.
WARNING: Keep hands, tools and clothing away from the radiator
cooling fan area, as personal injury could result from the
fans starting up without warning.
At service intervals, the air duct and matrices of the engine
cooling radiator, a.c. condenser and oil coolers, should be
checked externally for clogging by insects, leaves or other debris,
and if necessary, a water jet used to clear the finning. Take care not to damage or distort the delicate finning of the radiator or
the cooling performance will be degraded.
Anti-Freeze/Corrosion Inhibitor It is most important that the correct coolant specification is
used in order to inhibit boiling and protect the engine and heat
Servicing & Maintenance
107

oh_croft_InD.indd 10720/05/2004 07:59:07ProCarManuals.com

exchangers from both frost damage, and metal corrosion. The
Elise is factory filled with a 50% concentration of Havoline XLC
Extended Life Coolant, which contains Organic Acid Technology
(OAT) based corrosion inhibitors to provide long coolant change intervals combined with freedom from environmentally damaging phosphates, silicates and nitrites.
NOTICE: No other type of coolant should be mixed with this
OAT coolant.
Havoline XLC may be identified by its orange colouration, and
by a label around the header tank filler neck. The 50% concen
-
tration provides freezing protection down to - 40°F (- 40°C), and is recommended to be maintained throughout the life of the car.
Stronger concentrations should not be used. In an emergency, if an OAT coolant is not available, the
cooling system should be topped up using water only, but the reduction in freezing protection should be recognised, and the
concentration corrected promptly. In areas where the tap water is extremely hard (exceeding 250 parts per million), distilled, de-ionised or filtered rain water should be used for the water
content of the coolant mix. The effective level of ethylene glycol (anti-freeze) in the sys
-
tem may be measured by your dealer using a hydrometer, but in order to ensure that the required level of corrosion protection is
maintained, the coolant should be renewed every 4 years. For coolant capacity, refer to ‘Recommended Lubricants‘
and ‘Technical Data’.
NOTICE: Using an incorrect coolant mixture may result in ex
-
pensive damage to your engine and/or other car parts caused by overheating, freezing or corrosion effects. This damage would
not be covered by your new car warranty.
Coolant Drain /Refill Procedure The cooling system of the Lotus Elise has been carefully
optimised to allow the required cooling performance using the
minimum volume of coolant. This provides for high cooling sys
-
tem efficiency, with quick engine warm up and interior heating. When refilling the cooling system, it is vital to ensure that
the correct bleeding procedure is followed, and that no air pockets remain. This operation should be entrusted to your
Lotus dealer.
Servicing & Maintenance
108

oh_croft_InD.indd 10820/05/2004 07:59:07ProCarManuals.com

Washer ReservoirThe windscreen washer reservoir is situated at the left hand
rear of the engine bay, and should be kept topped up with clean
water and a suitable proprietary solvent.
NOTICE:
Do NOT use radiator antifreeze in the reservoir as
this could seriously damage the paintwork and/or some plastic components.
The washer jets are mounted each side of the wiper spindle,
and may, if necessary, be cleared or adjusted using a suitable pin.
Wiper Blade To replace the single wiper blade, lift the arm away from the
‘screen, swing the blade through 90°, depress the retaining tab and slide the blade down the arm to unhook and release.
When refitting, ensure that the retaining clip is re-engaged
in the wiper arm slot.
ohs36a
ohs130
WASHER RESERVOIR CAPWIPER BLADE FITMENT
Servicing & Maintenance
109
Retaining tab
Wiper arm

oh_croft_InD.indd 10920/05/2004 07:59:08ProCarManuals.com

Air Cleaner ElementThe air filter should be inspected at intervals dependent on
the operating conditions. When the car is operated in a relatively
clean environment, the element should be renewed at intervals
specified in the Maintenance Schedule, but where a dusty or
smog laden atmosphere prevails, or other factors contribute to
filter contamination, more frequent replacement will be required
dependent on the level of pollution. A disposable folded paper type air cleaner element is fitted in
a housing at the left hand front of the engine bay. For access to
the element, the left hand rear wheel and wheelarch liner must
first be removed so this operation is best entrusted to your dealer.
Before opening the air cleaner housing, the wheelarch area
should be cleaned to reduce the possibility of filter or housing contamination with road dirt. To open the filter housing, release the two spring clips at the
outboard end of the housing, and hinge open sufficiently to allow
the element to be removed. If necessary, remove the air intake scroll for improved access. Clean the inside of the housing, including the joint faces,
taking care not to contaminate the ‘clean’ engine side of the as
-
sembly. Fit the new filter element into position with the shallow
side towards the engine, and taking care to ensure that the two
hinges of the filter housing are properly mated, and that the filter
is seated correctly, close the housing and secure with the two
spring clips. Refit the wheelarch liner and rear wheel.
ohs146
AIR CLEANER ELEMENT
Servicing & Maintenance
