2005 KIA CERATO Owners Manual

83
1 23456789
Specifications
*¹Refer to the recommended SAE viscosity numbers on the page 7-61.
Lubricant Volume Classification
3.3 l
(3.5 US qt.) API Service SJ, SL or above,
4.0 l ILSAC GF-3 or above
(4.2 US qt.)
5.3 l API Service CH-4 or above,
(5.6 US qt.) ACEA B4 or above
5.9 l API Service CF-4 or above,
(6.2 US qt.) ACEA B4 or above
2.15 l
(2.27 US qt.) API Service GL-4
2.10 l SAE 75W-85 (fill for-life)
(2.22 US qt.)
Automatic transaxle fluid 7.8
l
DIAMOND ATF SP-III, SK ATF SP-III
(8.2 US qt.)
Power steering 0.8
l
PSF-III
(0.8 US qt.)
Coolant 8.14
l Ethylene glycol base for
(8.6 US qt.) aluminum radiator
Brake/Clutch fluid 0.7~0.8
l
FMVSS116 DOT-3 or DOT-4
(0.7~0.8 US qt.)
Fuel 55
l
-
(14.5 US gal)
Engine oil *1
(with filter change)
Manual transaxle fluid
Gasoline
Engine
Gasoline Engine
Diesel
Engine
Diesel Engine1.6L
2.0L
2.0L 1.5L
Capacities

Specifications
4
8
1 23456789
Light Bulb 4 Door 5 Door
Headlights (Low/High) 55/60 55/60
Front turn signal lights 21 21
Position lights 5 5
Side repeater lights (if equipped) 5 5
Front fog lights Gasoline Engine 27 51
(if equipped) Diesel Engine 51 Stop and tail lights For Europe
21/5 21/5
Except Europe28/8 28/8
Rear turn signal lights 21 21
Back-up lights 16 16
Rear fog lights (if equipped) 21 21
High mounted stop light 21 or LED* 1
LED*1
License plate lights 5 5
Front map lamp 10 10
Centre dome lamp 10 10
Door courtesy lamps 5 5
Trunk room lamp 5 5
Glove box lamp 5 5
Light bulbs
Wattage
*¹ LED : Light-emitting diode

1 23456789
Index

Index
2
9
1 23456789
Air cleaner ····································································7-37
Air conditioner air filter··············································7-39
Airbags-supplemental restraint system ·····················3-56
Antenna ·······································································3-100
Automatic climate control system ······························4-66
Automatic transaxle ·············································4-8, 7-32
Battery···········································································7-43
Before driving·································································5-5
Brake system ································································4-15
Brakes and clutch ························································7-25
Bulb replacement ·························································7-53
Cruise control system ··················································4-25
Defroster ·······································································4-55
Door locks ·······································································3-8
Drive belts ·····································································7-27
Electrical circuit protection ··········································6-7
Emergency starting························································6-4 Emission control system ················································5-3
Engine compartment ···················································7-16
Engine cooling system ·················································7-22
Engine oil and oil filter················································7-19
Exterior care·································································7-62
Exterior overview···························································2-2
Fuel filler lid ·································································3-79
Fuel filter ······································································7-36
Fuel requirements ··························································5-2
Gauges ···········································································4-34
Hazard warning flasher ··············································4-56
Hood ··············································································3-77
How to use this manual ·················································1-2
If you have a flat tyre ··················································6-19
Ignition switch ································································4-2
Immobilizer system ························································3-7
Instrument cluster ·······················································4-33
Instrument panel overview ···········································2-5
Interior care··································································7-66
A
B
C
D
E
F
G
H
I

93
1 23456789
Index
Interior features ···························································3-91
Interior lights ·······························································3-86
Interior overview····························································2-4
Keys ·················································································3-2
Label information ························································5-23
Lighting ·········································································4-46
Loading your vehicle ···················································5-22
Lubricant specifications ··············································7-60
Lubricants and fluids ··················································7-35
Luggage net ··································································3-99
Maintenance services ·····················································7-3
Maintenance under severe usage conditions ·············7-11
Manual climate control system···································4-57
Manual transaxle ··················································4-7, 7-30
Mirrors ··········································································3-82
Normal maintenance schedule······································7-5Overheating ····································································6-3
Overloading ··································································5-21
Owner maintenance ·····················································7-13
Parking brake·······························································7-26
Power steering ······························································7-28
Remote keyless entry ·····················································3-4
Road warning ·································································6-2
Safety belts····································································3-30
Seats···············································································3-16
Special driving conditions ·············································5-7
Specifications ··································································8-2
Starting the engine ·························································4-4
Steering wheel ·····················································4-22, 7-29
Storage compartment ··················································3-88
Suggestions for economical operation··························5-6
Sunroof ··········································································3-96
K
L
M
N
O
P
R
S

Index
4
9

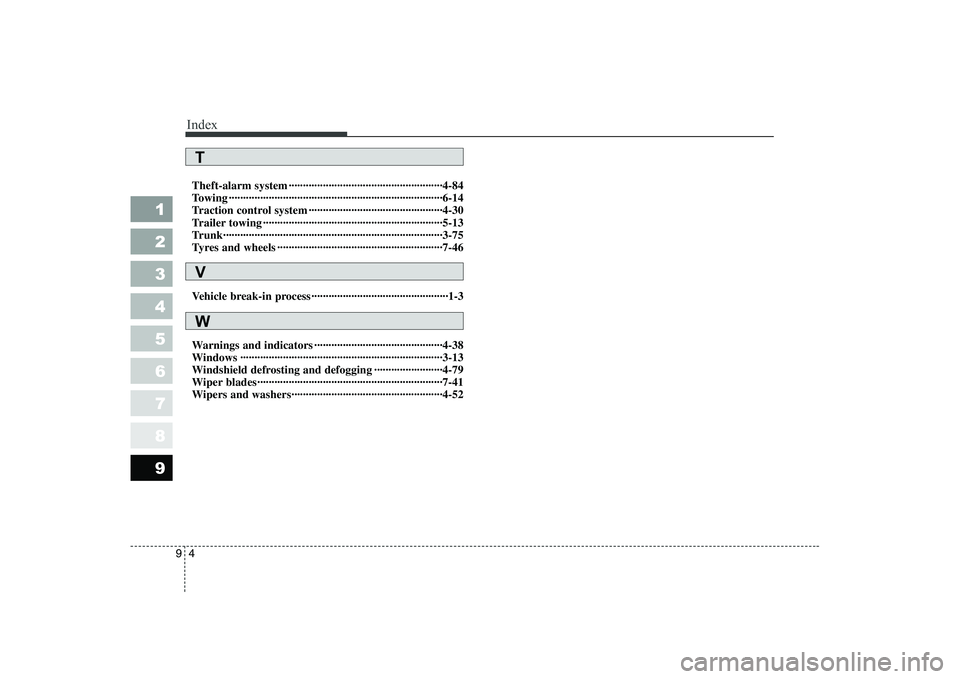

1 23456789
Theft-alarm system ······················································4-84
Towing ···········································································6-14
Traction control system ···············································4-30
Trailer towing ·······························································5-13
Trunk·············································································3-75
Tyres and wheels ··························································7-46
Vehicle break-in process ················································1-3
Warnings and indicators ·············································4-38
Windows ·······································································3-13
Windshield defrosting and defogging ························4-79
Wiper blades·································································7-41
Wipers and washers·····················································4-52
V
W
T
