2005 JAGUAR S TYPE Starter

Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, relays, fuses, grounds,
control modules and control module pins.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit conn
ections made and all
components connected and fitted. The following abbreviations are used to represent values for Control Module Pin-Out data
I Input
O Output
B+ Battery Voltage PG Power Ground
SS Sensor / Signal Supply V
SG Sensor / Signal GroundC CAN Network
S SCP Network
D2 D2B Network D Serial and Encoded Data
V Voltage (DC)
PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to ai d the user in understanding circuit operation. THIS INFORMATION SH OULD BE USED FOR
REFERENCE ONLY.DATE OF ISSUE: May 2004
Fig. 03.5
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT. COMPONENTS
Component Connector(s) Connector Description LocationAPP SENSOR CA88 6-WAY / BLACK TOP OF ACCELERATOR PEDAL
BRAKE ON / OFF SWITCH CA37 2-WAY / GREEN TOP OF BRAKE PEDAL
CKP SENSOR PI21 2-WAY / BLACK ENGINE UNDER SIDE, FORWARD OF BELL HOUSING
CMP SENSOR 1 PI23 2-WAY / BLACK BANK 1 (RH) CAMSHAFT COVER, FRONT
CMP SENSOR 2 PI22 2-WAY / BLACK BANK 2 (LH) CAMSHAFT COVER, FRONT
ECT SENSOR PI25 2-WAY / BLACK ENGINE VEE, COOLANT OUTLET CASTING
EFT SENSOR PI27 2-WAY / BLACK FUEL RAIL, RH REAR
EGR VALVE PI15 6-WAY / BLACK INTAKE MANIFOLD, REAR
ENGINE CONTROL MODULE PI1 134-WAY / BLACK FRONT BULKHEAD, P ASSENGER SIDE
EOT SENSOR PI24 2-WAY / BLACK ADJACENT TO OIL FILTER
EVAP CANISTER CLOSE VALVE CA270 2-WAY / BLACK ABOVE REAR AXLE (FUEL TANK COMPONENTS)
EVAP CANISTER PURGE VALVE FH111 2-WAY / BLACK ENGINE COMPARTMENT, LH SIDE, ADJACENT TO SUSPENSION TURRET
FRONT POWER DISTRIBUTION FUSE BOX — — ENGINE COMPARTMENT, RH SIDE
FTP SENSOR FP1 3-WAY / BLACK FUEL TANK PIPING, LH SIDE (UNDER ACCESS PLATE)
HO2 SENSOR DOWNSTREAM 1/2 PI11 4-WAY / BLACK RH EXHAUST, TOP OF CATALYST
HO2 SENSOR DOWNSTREAM 2/2 PI13 4-WAY / BLACK LH EXHAUST, TOP OF CATALYST
HO2 SENSOR UPSTREAM 1/1 PI10 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
HO2 SENSOR UPSTREAM 2/1 PI12 4-WAY / BLACK RH EXHAUST, CATALYST CENTER
IAT SENSOR 2 PI43 2-WAY / BLACK INTAKE MANIFOLD, RH SIDE, REAR
IP SENSOR PI28 3-WAY / BLACK FUEL RAIL, LH REAR
KNOCK SENSOR 1 PI20 2-WAY / BLACK ENGINE VEE, BANK 1
KNOCK SENSOR 2 PI19 2-WAY / BLACK ENGINE VEE, BANK 2
MAF SENSOR PI14 5-WAY / BLACK ENGINE AIR INTAKE, ADJACENT TO AIR CLEANER
MAP SENSOR PI29 4-WAY / BLACK INTAKE MANIFOLD, REAR, BELOW THROTTLE ASSEMBLY
THROTTLE MOTOR PI18 2-WAY / BLACK ENGINE AIR INTAKE, REAR
THROTTLE MOTOR RELAY — — FRONT POWER DISTRIBUTION FUSE BOX – R5
TP SENSOR PI26 4-WAY / BLACK THROTTLE BODY, THROTTLE SHAFTHARNESS IN-LINE CONNECTORS
Connector Connector Description / Location LocationFC12 14-WAY / GREY / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, PASSENGER SIDE
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
FH1 20-WAY / BLACK / CABIN HARNESS TO FRONT HARNESS RH ‘A’ POST, LOWER
FH3 16-WAY / BLUE / CABIN HARNESS TO FRONT HARNESS LH ‘A’ POST
FP2 8-WAY / BLACK / CABIN HARNESS TO FUEL PUMP HARNESS TOP OF FUEL TANK, RH SIDE
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDEGROUNDS
Ground LocationPI40 (LHD) ENGINE COMPARTMENT, BEHIND RH WHEEL ARCH LINER
PI40 (RHD) ENGINE COMPARTMENT, BEHIND LH WHEEL ARCH LINER
NOTE: Refer to the Appendix at the rear of this book for Network Messages. Engine Control Module
Pin Description and CharacteristicO PI1–1 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
O PI1–2 HO2 SENSOR HEATER CONTROL – 1/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
PG PI1–4 POWER GROUND 1: GROUND
PG PI1–5 POWER GROUND 2: GROUND
I PI1–6 ENGINE CRANK: B+
I PI1–7 IGNITION ON: B+
I PI1–8 BRAKE ON / OFF SWITCH: NORMALLY OPEN / B+ WHEN ACTIVATED
I PI1–10 INERTIA SWITCH: NORMALLY CLOSED / OPEN CIRCUIT WHEN ACTIVATED
SS PI1–12 SENSOR POWER SUPPLY 1: NOMINAL 5 V
SS PI1–13 SENSOR POWER SUPPLY 2: NOMINAL 5 V
SG PI1–17 SMALL SIGNAL GROUND 1: GROUND
SG PI1–18 SMALL SIGNAL GROUND 2: GROUND
SG PI1–19 SENSOR GROUND 1: GROUND
SG PI1–20 SENSOR GROUND 2: GROUND
B+ PI1–22 BATTERY POWER SUPPLY: B+
B+ PI1–23 EMS SWITCHED POWER SUPPLY 1: B+
B+ PI1–24 EMS SWITCHED POWER SUPPLY 2: B+
SG PI1–29 HO2 SENSOR HEATER GROUND – 1/1: GROUND
SG PI1–30 HO2 SENSOR HEATER GROUND – 1/1: GROUND
I PI1–31 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED MANUAL, ROW – PARK / NEUTRAL SIGNAL: B+ WHEN IGNITION CRANK (III)
MANUAL, NAS – CLUTCH PEDAL SAFETY SWITCH (PARK / NEUTRAL SIGNAL): B+ WHEN ACTIVATED
I PI1–36 CRANKSHAFT SENSOR SIGNAL: PULSED SIGNAL, 70 PULSES PER ENGINE CYCLE
SG PI1–37 CRANKSHAFT SENSOR SIGNAL GROUND: GROUND
O PI1–40 EMS CONTROL RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
O PI1–41 STARTER RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1–43 TP AND APP SIGNALS SHIELD: GROUND
I PI1–44 MASS AIR FLOW SENSOR SIGNAL: NOMINAL 0 – 5 V BY ENGINE OPERATING CONDITION
SG PI1–45 MASS AIR FLOW SENSOR GROUND: GROUND
SG PI1–46 MASS AIR FLOW SENSOR GROUND: GROUND
I PI1–50 ENGINE FUEL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
O PI1–52 THROTTLE MOTOR RELAY DRIVE: TO ACTIVATE, ECM SWITCHES CIRCUIT TO GROUND
SG PI1–54 THROTTLE MOTOR GROUND: GROUND
O PI1–55 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
O PI1–56 HO2 SENSOR HEATER CONTROL – 2/1: PWM, 1 CYCLE PER 128 mS, VARIABLE DUTY CYCLE
O PI1–57 EGR DRIVE 1: B+; EGR DRIVE 1, 2, 3 AND 4 ARE OPERATED IN TURN
O PI1–58 EGR DRIVE 2: B+; EGR DRIVE 1, 2, 3 AND 4 ARE OPERATED IN TURN
O PI1–59 EGR DRIVE 3: B+; EGR DRIVE 1, 2, 3 AND 4 ARE OPERATED IN TURN
O PI1–60 EGR DRIVE 4: B+; EGR DRIVE 1, 2, 3 AND 4 ARE OPERATED IN TURN
O PI1–66 EVAP CANISTER PURGE VALVE DRIVE: PWM, 10 Hz, POSITIVE DUTY CYCLE RANGE 7% – 100%
O PI1–67 EVAP CANISTER CLOSE VALVE DRIVE: TO CLOSE, ECM SWITCHES CIRCUIT TO GROUND
I PI1–68 BANK 2 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1–69 BANK 2 CAMSHAFT SENSOR GROUND: GROUND
I PI1–70 ENGINE COOLANT TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
I PI1–71 INTAKE AIR TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
I PI1–72 INTAKE AIR TEMPERATURE SENSOR 2 SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
I PI1–73 INJECTION PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: POTENTIOMETER – VOLTAGE INCREASES AS PRESSURE INCREASES
I PI1–75 THROTTLE POSITION SENSOR 1 SIGNAL: IDLE = 0.60 V; FULL THROTTLE = 4.30 V
I PI1–76 THROTTLE POSITION SENSOR 2 SIGNAL: IDLE = 1.48 V; FULL THROTTLE = 4.40 V
I PI1–78 ENGINE OIL TEMPERATURE SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
I PI1–79 GENERATOR FAULT; CHARGE WARNING
O PI1–80 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
SG PI1–81 HO2 SENSOR HEATER GROUND – 2/1: GROUND
SG PI1–82 HO2 SENSOR HEATER GROUND – 2/1: GROUND
I PI1–83 HO2 SENSOR 1/1 SIGNAL: VARIABLE CURRENT
I PI1–84 HO2 SENSOR 1/1 SIGNAL: CONSTANT CURRENT
SG PI1–91 HO2 SENSOR HEATERS 1/2, 2/2 GROUND: GROUND
O PI1–92 HO2 SENSOR HEATER CONTROL – 1/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
O PI1–93 HO2 SENSOR HEATER CONTROL – 2/2: PWM, 1 CYCLE PER 256 mS, POSITIVE DUTY CYCLE RANGE 0 mS = 0%, 77 mS = 30%, 256 mS = 100%
I PI1–94 BANK 1 CAMSHAFT SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
SG PI1–95 BANK 1 CAMSHAFT SENSOR GROUND: GROUND
I PI1–98 BANK 1 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
I PI1–99 BANK 2 KNOCK SENSOR SIGNAL: VARIABLE VOLTAGE DEPENDENT ON ENGINE VIBRATION
SG PI1–100 SENSOR SHIELD: GROUND
I PI1–102 ACCELERATOR PEDAL POSITION SENSOR 1 SIGNAL: FOOT OFF = 0.75 V; FULLY DEPRESSED = 3.40 V (AUTO) 3.20 V (MAN)
I PI1–103 ACCELERATOR PEDAL POSITION SENSOR 2 SIGNAL: FOOT OFF = 3.38 V; FULLY DEPRESSED = 2.05 V (AUTO) 2.14 V (MAN)
I PI1–104 FUEL TANK PRESSURE SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS PRESSURE INCREASES
D PI1–105 SERIAL DATA LINK: SERIAL COMMUNICATION
O PI1–106 THROTTLE MOTOR DRIVE: B+ TO ACTIVATE MOTOR
I PI1–107 HO2 SENSOR 2/1 SIGNAL: VARIABLE CURRENT
I PI1–108 HO2 SENSOR 2/1 SIGNAL: CONSTANT CURRENT
SG PI1–111 FUEL INJECTORS 2, 3, 5, 8 GROUND: GROUND
SG PI1–116 FUEL INJECTORS 1, 4, 6, 7 GROUND: GROUND
C PI1–123 CAN –
C PI1–124 CAN +
I PI1–127 MAP SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCREASES AS MANIFOLD ABSOLUTE PRESSURE INCREASES
I PI1–128 HO2 SENSOR 1/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
I PI1–129 HO2 SENSOR 2/2 SIGNAL, NOMINAL 1 V SWING: 0.1 – 0.9 V SWING
SG PI1–130 HO2 SENSORS SHIELD: GROUND
B+ PI1–134 THROTTLE MOTOR POWER SUPPLY: B+ WHEN RELAY ACTIVATED

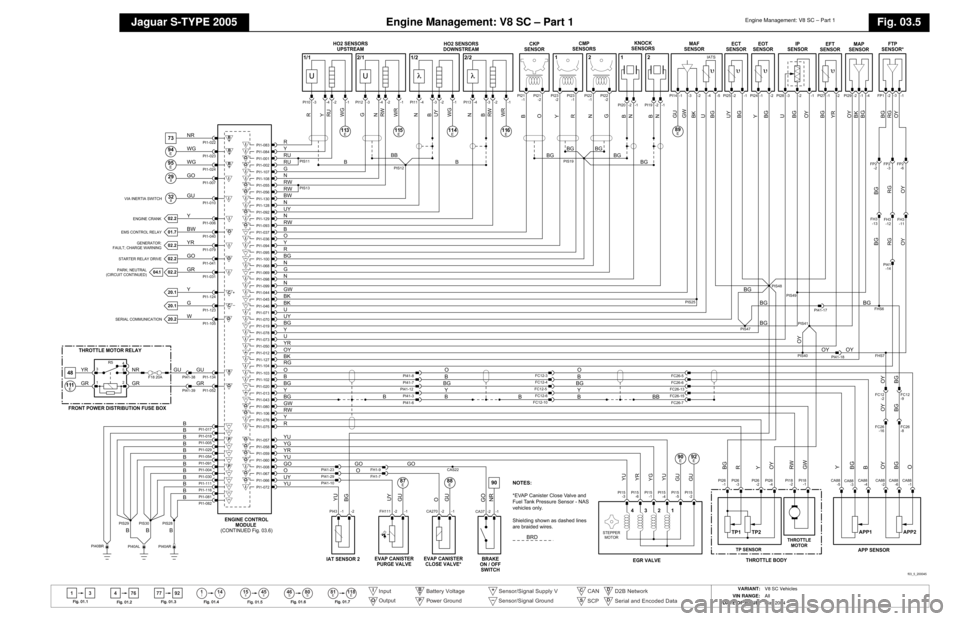

Engine Management: V8 SC – Part 1
Jaguar S-TYPE 2005
Engine Management: V8 SC – Part 1
Fig. 03.5
13 4114
46 80
76 77 92
ll
15 45ll ll SS
81 118EE
Fig .01.1
Fig .01 .2 F
ig .01.3
Fig .01 .4
Fig . 01.5 F
ig . 01.6 F
ig .01 .7
Input
OutputI
O
B
P+Battery VoltagePower Ground Sensor/Signal Supply V
Sensor/Signal Ground Serial and Encoded Data
CAN
+
SCPC
S DD
–
D2B Network2
f03_5_200045
PIS29
PI40BR
BBBBBBBBBB
PI1-116PI1-111PI1-091PI1-054PI1-030PI1-029PI1-018PI1-017PI1-004PI1-005
PIS30B
B
PIS28B
BB
PI1-082PI1-081
RWNGYRBWRURU
PI10 PI12 -3 -4 -1 -2 -3 -4 -1 -2
2/1
1/1
PI11 PI13-4 -3 -1 -2 -4 -3 -1 -2
2/2
1/2
R
Y
RU
WG
G
N
RW
WR
N
B
UY
WG
N
B
RW
WR
NUYNRWRW
PIS12
PIS13PIS11
PI1-008PI1-080PI1-106PI1-127PI1-012PI1-103PI1-102PI1-037PI1-036PI1-094PI1-095PI1-100PI1-068PI1-069PI1-098PI1-093PI1-056PI1-128PI1-092PI1-129PI1-001PI1-002PI1-130PI1-083PI1-084PI1-107PI1-108PI1-055PI1-044PI1-045PI1-046PI1-071PI1-019PI1-070PI1-078PI1-073PI1-050PI1-104PI1-020PI1-013PI1-043PI1-076PI1-075PI1-067PI1-066PI1-057PI1-058
PI20 -1
PI21
-1
PI23-2 PI22
-1
2
1
B
O
Y
R
N
G
B
N
PI21
-2 PI23
-1 PI22
-2
-2
BG
BG
BG BG
PIS19
PI19 -1B
N-2
B
O
Y
R
BG
N
G
N
GW
BK
PI1-099
N
BG
PI14 -1 -3 -2 PI25 -2 -1
-5
-4
PI24 -1 -2
GW
BK
U
BG
GU
PIS48
E89
PI28 -3 -2 -1
UY
BG
Y
BG
U
BG
OY
YR
BGPI27 -1 -2 -2 PI29 -2 -1 -4
RGOY BG
OY
BK
BG
PIS40
BG
FHS6
BG
BG BG
PI41-18
OY OYPI41-17
FP2
-3
PI41 -14RG
RG
FP2
-2 FP2
-6
OY
OY
BK
U
UY
BG
Y
U
YR
OY
RG BK
O
B
BG
Y
PIS25
FHS7
TP1
PI18
-1
PI18
-2
PI26
-1
TP2
BG
BG
FC26
-8
FC26
-16
OY
OY
APP1
APP2
O
B
BG
Y
FC26-5
FC26-6
FC12-3
FC12-4
B O
B
FC12-10
B
FC26-7FC26-13
FC12-5FC26-15
FC12-6
Y
BG
R
Y
RW
GW
BB
OY
BG
B
BG
GW
RW
Y
R
GO
OY
BGFC12
-9
FC12
-2
PI41-8
PI41-7PI41-6PI41-12
PI41-3
O
BBBGY
CA88 -4 CA88
-2 CA88
-6 CA88
-1
PI26
-3 PI26
-2 PI26
-4
CA270 -2 -1
FH111 -2 -1
UY
GU
O GU
E88
E87
PI41-29PI41-10
O
FH1-7 FH1-9
PI41-23
GO
NR
CAS22
GO GO
O
UY YU
YG
PI1-059PI1-060
YR
YU
PI43 -1 -2
PI1-072
YU
YU
BG
YU
YR
YG
YU
PI15 -4
PI15-1
PI15
-6
PI15
-3
GU GU
PI15-2
PI15
-5E90
E92
PI1-006PI1-007PI1-010
GU GO
Y
PI1-123
G
PI1-124
Y
PI1-105
W
PI1-134GUPI1-052GR
PI41-38
PI41-39
NR
GR
48
YR
GR
20.120.120.2
PI1-031PI1-079PI1-041
GR GO YR
02.229II02.202.202.2
PI1-022
NR
73
PI1-040
BW
01.7
PI1-024
WG
PI1-023
WG
E111
32IIE94E95
3
1 5
2
R5
4
F18 20A
GU
E113
E115
E114
E116
90
04.1
PIS47BG
PIS49
BG
PIS41OY
B
BB
B
1
2
3
4
1
2
VIA INERTIA SWITCH
ENGINE CRANK
EMS CONTROL RELAY GENERATOR:
FAULT; CHARGE WARNING
STARTER RELAY DRIVE
PARK; NEUTRAL
(CIRCUIT CONTINUED)
SERIAL COMMUNICATION
THROTTLE MOTOR RELAY
FRONT POWER DISTRIBUTION FUSE BOX
ENGINE CONTROLMODULE
(CONTINUED Fig. 03.6) HO2 SENSORS
UPSTREAM HO2 SENSORS
DOWNSTREAM CKP
SENSOR CMP
SENSORS KNOCK
SENSORS MAF
SENSOR ECT
SENSOR EOT
SENSOR IP
SENSOR EFT
SENSOR MAP
SENSOR FTP
SENSOR*
IAT SENSOR 2 EVAP CANISTER
PURGE VALVE EVAP CANISTER
CLOSE VALVE* BRAKE
ON / OFF SWITCH
NOTES:
*EVAP Canister Close Valve and
Fuel Tank Pressure Sensor - NAS
vehicles only.
Shielding shown as dashed lines
are braided wires.
BRD
STEPPER
MOTOR
EGR VALVE THROTTLE BODY
TP SENSORTHROTTLE
MOTOR
APP SENSOR
IATS
PI40AR
PI40AL FP1
-3
-1
FH3 -11
FH3
-13 FH3
-12
CA88 -5 CA88
-3
CA37 -2 -1
OOOOOOOOOIIIII
B+B+B+DC–C+OIIIIIOOPPB+
IIIOIOIIIIIIIIIIIIIIIIOOIO
VARIANT: V8 SC Vehicles
VIN RANGE: All
DATE OF ISSUE: May 2004

Refer to the front of this book for detailed information and illustrations regarding the location and identification of harnesses, relays, fuses, grounds,
control modules and control module pins.
NOTE: The values listed are approximately those that can be expected at the control module connector pins with all circuit conn
ections made and all
components connected and fitted. The following abbreviations are used to represent values for Control Module Pin-Out data
I Input
O Output
B+ Battery Voltage PG Power Ground
SS Sensor / Signal Supply V
SG Sensor / Signal GroundC CAN Network
S SCP Network
D2 D2B Network D Serial and Encoded Data
V Voltage (DC)
PWM Pulse Width Modulated
CAUTION: The information on this data page is furnished to ai d the user in understanding circuit operation. THIS INFORMATION SH OULD BE USED FOR
REFERENCE ONLY.DATE OF ISSUE: May 2004
Fig. 03.7
FOR CONTROL MODULE PIN-OUT INFORMATION, UNFOLD PAGE TO LEFT. COMPONENTS
Component Connector(s) Connector Description LocationACT SENSOR C69 2-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
APP SENSOR CA88 6-WAY / BLACK TOP OF ACCELERATOR PEDAL
BRAKE ON / OFF SWITCH CA37 2-WAY / BLACK TOP OF BRAKE PEDAL
CKP SENSOR C77 3-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
CMP SENSOR C25 3-WAY / GREY REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
ECT SENSOR C34 2-WAY / GREY REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
EFT SENSOR C35 2-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
EGR VALVE 1 C70 6-WAY / GREY REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
EGR VALVE 2 C71 6-WAY / GREY REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
EOT SENSOR C28 3-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
FRP SENSOR C30 3-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
INLET PORT DEACTIVATION SOLENOID C36 4-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
KNOCK SENSOR 1 C87 2-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
KNOCK SENSOR 2 C88 2-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
MAF SENSOR 1 FH14 4-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
MAF SENSOR 2 FH15 4-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
MAP SENSOR C31 3-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
POWERTRAIN CONTROL MODULE C98 48-WAY / BROWN FRONT BULKHEAD, PASSENGER SIDE C99 48-WAY / GREY
FH13 48-WAY / BLACK
ROTARY ELECTRONIC ACTUATOR 1 C40 5-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
ROTARY ELECTRONIC ACTUATOR 2 C41 5-WAY / BLACK REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33
EGR THROTTLE BODY C39 6-WAY / GREY REFER TO SENSORS AND ACTUATORS, PAGE 32 OR 33HARNESS IN-LINE CONNECTORS
Connector Connector Description / Location LocationFC12 14-WAY / GREY / FASCIA HARNESS TO FRONT HARNESS BEHIND INSTRUMENT PANEL, PASSENGER SIDE
FC26 16-WAY / BLUE / CABIN HARNESS TO FASCIA HARNESS BEHIND INSTRUMENT PANEL, DRIVER SIDE
PI41 42-WAY / BLACK / ENGINE HARNESS TO VEHICLE HARNESSES ENGINE COMPARTMENT, BULKHEAD, PASSENGER SIDEGROUNDS
Ground LocationFH4 ENGINE COMPARTMENT, REARWARD OF RH WHEEL ARCH
NOTE: SG* indicates shared-signal grounds, (sharing sensors shown in parentheses).
NOTE: Refer to the Appendix at the rear of this book for Network Messages. Powertrain Control Module Pin Description and CharacteristicC C98–A3 CAN +
C C98–A4 CAN –
I C98–C4 KNOCK SENSOR 2 SIGNAL: DIFFERENTIAL –ve. VOLTAGE DEPENDENT ON ENGINE VIBRATION
I C98–D1 FRP SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCR EASES AS PRESSURE INCREASES
I C98–D3 KNOCK SENSOR 2 SIGNAL: DIFFERENTIAL +ve. VOLTAGE DEPENDENT ON ENGINE VIBRATION
I C98–D4 KNOCK SENSOR 1 SIGNAL: DIFFERENTIAL –ve. VOLTAGE DEPENDENT ON ENGINE VIBRATION
I C98–E1 EGR THROTTLE POSITION SENSOR SIGNAL: NOMINAL 0 – 5 V
I C98–E4 KNOCK SENSOR 1 SIGNAL: DIFFERENTIAL +ve. VOLTAGE DEPENDENT ON ENGINE VIBRATION
I C98–F3 INERTIA SWITCH: NORMALLY CLOSED / OPEN CIRCUIT WHEN ACTIVATED
O C98–H3 ROTARY ELECTRONIC ACTUATOR 1, VARIABLE VANE TURBO: PWM, 300 Hz
O C98–H4 ROTARY ELECTRONIC ACTUATOR 2, VARIABLE VANE TURBO: PWM, 300 Hz
O C98–K4 INLET PORT DEACTIVATION SOLENOID: PWM, 250 Hz
SG C98–C3 CAN SHIELD: GROUND
SG C98–E2 FRP SENSOR GROUND: GROUND
SG C98–F2 EGR THROTTLE POSITION SENSOR GROUND: GROUND
SS C98–D2 FRP SENSOR POWER SUPPLY: NOMINAL 5 V
SS C98–F1 EGR THROTTLE POSITION SENSOR POWER SUPPLY: NOMINAL 5 V
I C99–A2 EGR VALVE POSITION SENSOR 2: NOMINAL 0 – 5 V
I C99–A3 EGR VALVE POSITION SENSOR 1: NOMINAL 0 – 5 V
I C99–B1 ACT SENSOR SIGNAL: NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECR EASES AS TEMPERATURE INCREASES
I C99–B2 EFT SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECRE ASES AS TEMPERATURE INCREASES
I C99–C1 MAP SENSOR SIGNAL, NOMINAL 0 – 5 V: VOLTAGE INCR EASES AS MANIFOLD ABSOLUTE PRESSURE INCREASES
I C99–C2 ECT SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECR EASES AS TEMPERATURE INCREASES
I C99–E1 EOT SENSOR SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECRE ASES AS TEMPERATURE INCREASES
I C99–F1 CKP SENSOR SIGNAL: PULSED SIGNAL, 70 PUL SES PER ENGINE CYCLE
I C99–F2 GENERATOR FAULT; CHARGE WARNING
I C99–G4 CMP SENSOR SIGNAL: PULSED SIGNAL, 4 PULSES PER ENGINE CYCLE
O C99–H1 EGR VALVE 1: +ve PWM
O C99–H2 EGR VALVE 1: –ve PWM
O C99–J1 EGR VALVE 2: +ve PWM
O C99–J4 EGR THROTTLE MOTOR DRIVE: +ve PWM
O C99–K1 EGR VALVE 2: –ve PWM
O C99–K4 EGR THROTTLE MOTOR DRIVE: –ve PWM
SG C99–G2 CKP SENSOR SIGNAL GROUND: GROUND
SG C99–H3 CMP SENSOR GROUND: GROUND
SG* C99–D2 EGR VALVE POSITION SENSOR 1 GROUND (EOT SENSOR): GROUND
SG* C99–D2 EOT SENSOR GROUND (EGR VALVE POSITION SENSOR 1): GROUND
SG* C99–E2 ECT SENSOR GROUND (MAP SENSOR): GROUND
SG* C99–E2 MAP SENSOR GROUND (ECT SENSOR): GROUND
SG* C99–G3 ACT SENSOR GROUND (EGR VALVE 2, EFT SENSOR): GROUND
SG* C99–G3 EGR VALVE POSITION SENSOR 2 GROUND (ACT SENSOR, EFT SENSOR): GROUND
SG* C99–G3 EFT SENSOR GROUND (ACT SENSOR, EGR VALVE POSITION SENSOR 2): GROUND
SS C99–C3 EGR VALVE POSITION SENSORS POWER SUPPLY: NOMINAL 5 V
SS C99–C3 EOT SENSOR POWER SUPPLY: NOMINAL 5 V
SS C99–D1 MAP SENSOR POWER SUPPLY: NOMINAL 5 V
SS C99–G1 CKP SENSOR POWER SUPPLY: NOMINAL 5 V
SS C99–H4 CMP SENSOR POWER SUPPLY: NOMINAL 5 V
SG FH13–A2 APP SENSOR SHIELD: GROUND
O FH13–B1 STARTER RELAY DRIVE: TO ACTIVATE, PCM SWITCHES CIRCUIT TO GROUND
SG FH13–B2 APP SENSOR 2 GROUND: GROUND
I FH13–B4 SPEED CONTROL SWITCHES SIGNAL GROUND: GROUND
SG FH13–C1 APP SENSOR 1 GROUND: GROUND
I FH13–C2 APP SENSOR 2 SIGNAL: NEGATIVE-GOING VOLTAGE SLOPE, TYPICAL IDLE VOLTAGE = 3. 445V TO 3.305V; TYPICAL FULL PEDAL VOLTAGE = 2.05 V
SS FH13–C4 SPEED CONTROL SWITCH REQUEST: STEPPED RESISTANCE
I FH13–D1 APP SENSOR 1 SIGNAL: POSITIVE-GOING VOLTAGE SLOPE, TYPICAL IDLE VOLTAGE = 0.61V TO 0.89V; TYPICAL FULL PEDAL VOLTAGE = 3 .4 V
SS FH13–D2 APP SENSOR 2 POWER SUPPLY: NOMINAL 5 V
I FH13–D4 AUTOMATIC – PARK / NEUTRAL SIGNAL: B+ WHEN ACTIVATED
SS FH13–E1 APP SENSOR 1 POWER SUPPLY: NOMINAL 5 V
I FH13–E3 BRAKE CANCEL SWITCH: NORMALLY CLOSED / GROUND WHEN ACTIVATED
I FH13–F1 IAT SENSOR (INTEGRAL TO MAF SENSOR) SIGNAL, NOMINAL 0 – 5 V: NTC SENSOR – VOLTAGE DECREASES AS TEMPERATURE INCREASES
I FH13–F3 ENGINE CRANK: B+
I FH13–F4 MAF SENSOR 1 SIGNAL: TIME PERIOD (FREQUENCY) SIGNAL, PROPORTIONAL TO AIR FLOW
I FH13–G2 BRAKE ON / OFF SWITCH: NORMALLY OPEN / B+ WHEN ACTIVATED
I FH13–G4 MAF SENSOR 2 SIGNAL: TIME PERIOD (FREQUENCY) SIGNAL, PROPORTIONAL TO AIR FLOW
O FH13–J3 EMS CONTROL RELAY DRIVE: TO ACTIVATE, PCM SWITCHES CIRCUIT TO GROUND
O FH13–K2 COOLING FAN MODULE CONTROL: PWM, 140 Hz, POSITIVE DUTY CYCLE RANGE 7% – 95%
B+ FH13–K3 IGNITION SWITCHED POWER (RUN): PJB, F4, 5A
B+ FH13–K4 BATTERY POWER SUPPLY: B+
B+ FH13–L1 EMS SWITCHED POWER SUPPLY 1: FPDB, F20, 30A
B+ FH13–L2 EMS SWITCHED POWER SUPPLY 2: FPDB, F20, 30A
B+ FH13–L3 EMS SWITCHED POWER SUPPLY 3: FPDB, F20, 30A
SG FH13–L4 MAF (INTEGRAL IAT) SENSORS GROUND: GROUND
PG FH13–M1 POWER GROUND: GROUND
PG FH13–M2 POWER GROUND: GROUND
PG FH13–M3 POWER GROUND: GROUND
PG FH13–M4 POWER GROUND: GROUND

Engine Management: Diesel 2.7V6 – Part 1
Jaguar S-TYPE 2005
Engine Management: Diesel 2.7V6 – Part 1
Fig. 03.7
13 4114
46 80
76 77 92
ll
15 45ll ll SS
81 118EE
Fig .01.1
Fig .01 .2 F
ig .01.3
Fig .01 .4
Fig . 01.5 F
ig . 01.6 F
ig .01 .7
Input
OutputI
O
B
P+Battery VoltagePower Ground Sensor/Signal Supply V
Sensor/Signal Ground Serial and Encoded Data
CAN
+
SCPC
S DD
–
D2B Network2
C88
-1 C88
-2
C25-2 C25
-3
C25
-1 C87
-1 C87
-2
H
f03_7_200045
BBBB
FH13-M4FH13-M1FH13-M3FH13-M2
C98-H4FH13-C2FH13-D2FH13-D1C99-E1C99-D2C99-C3C99-B1C99-G3C99-B2C99-D1C99-C1C99-E2FH13-F4FH13-G4FH13-L4C99-C2C99-G4C98-E4FH13-F1C99-H3C99-H4C98-D4C98-D3C98-C4C98-E2C98-D1C98-D2C98-E1C98-F2C98-F1C99-K4C99-J4FH13-B2FH13-C1FH13-E1FH13-A2C98-H3C99-H1C99-H2
WRYR
WR
N R
YP
WP
NW
NR
WB NY
W
NR
YP
WP
NWWB
NY
WR
NR
WU
WPWRBW
NRNR
YR
W
NR
WU
YG
WG
NG
WG
FH14 -4 -1 -3 -2
WU
B
WP
NR
W
N
NU
WU
YG
WG
NG
YG
WU
YU
NU
BO
GRBG
OY OYB
BG
Y
BG
OY
APP1
APP2
B
O
BGY
FC26-5FC26-8
FC26-6
FC12-3
FC12-9FC12-2
FC12-4
O BBG
FC12-10
B
FC26-7FC26-13
FC12-5FC26-15
FC12-6
Y
BG
OYB
BBGY
BGB
BG
BU
BU
NR
RU
BU
BG RU
NR
RB
NR NR
CA88 -4 CA88
-2 CA88
-6 CA88
-1
GOBU
BU
BU
BU
RU
RU
NR
GU
BU
FH13-G2C98-K4
GO
BR
BU
GU
WR
NR
YR
FH13-F3FH13-L3FH13-K3
GOWGY
C98-A4
G
C98-A3
Y
20.120.1
FH13-D4C99-F2FH13-B1
GR GO YR
02.302.302.302.3
FH13-K4
NR
FH13-J3
BW
01.8
FH13-L2
WG
FH13-L1
WG
90
BR RB
04.1
1
2
ENGINE CRANK
EMS CONTROL RELAY GENERATOR:
FAULT; CHARGE WARNING
STARTER RELAY DRIVE
PARK; NEUTRAL
(CIRCUIT CONTINUED)
POWERTRAIN CONTROL MODULE (CONTINUED Fig. 03.8) CMP
SENSOR KNOCK
SENSORS MAF
SENSOR 1 ECT
SENSOR
W
N
EOT
SENSOR ACT
SENSOR
W
N
Y
EFT
SENSOR MAP
SENSOR FRP
SENSOR
BRAKE ON / OFF SWITCH
NOTE:
Shielding shown as dashed lines are
braided wires.
BRD
EGR VALVE 1
ROTARY ELECTRONIC ACTUATORS INLET PORT
DEACTIVATION SOLENOID
BU
GU
WR
NR
YR
EGR VALVE 2 EGR THROTTLE
BODY
APP SENSOR
IATS
CA88 -5 CA88
-3
CA37 -2
-2 -1
OO
C99-A3
WR
C99-J1C99-K1
GU
BU
OOOO
C99-A2
WR
I
C99-F1
I
YR
WR
C99-G2C99-G1
IIIIOIIO
B
+B+B+B+B+C–
C98-C3
C+OIIIOP
P
P
P
IIIIIIIIIIIIIO
NG
YG WG
GR BO NU YU WU
FH15 -4 -1 -3
WR B
NR
MAF
SENSOR 2
IATS
01.8
FPDB
F2 (5A)
01.5
PJB
F4 (5A)
FH4
FHS18
FPDB
F20 (30A)
01.8
C98-F3
RB
32II
VIA INERTIA SWITCH
I
FHS13
CKP
SENSOR
C77
-1 C77
-2 C77
-3
H
FC26-16
TP
C69-1
C28
-1
C34
-1 C34
-2 C28
-2 C28
-3 C69
-2 C35
-1 C35
-2 C31 -1 -2 -3
C30
-2 C39
-2 C39
-6 C39
-1 C39
-4 C39
-3
C30
-1
C30-3
C40-1 C40
-2 C40
-4
C41-1 C41
-2 C41
-4 C36 -1 C70
-4 C70
-3 C70
-2 C70
-6 C70
-1 C71
-4 C71
-3 C71-
2 C71
-6 C71
-1
01.8
FPDB
F37 (15A)
S5
S7
PI41
-3FH4
FH1-9
CAS22
S6
S3
S1
S4
FHS8
PI41-1
1 2
VARIANT:Diesel 2.7V6
VIN RANGE: All
DATE OF ISSUE: May 2004

DATE OF ISSUE: May 20045
Component IndexJaguar S-TYPE 2005
POWERTRAIN CONTROL MODULE (DIESEL 2.7V6) . . . . . Fig. 01.8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 04.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 20.1
PRESSURE CONTROL VALVE – FUEL PUMP
(DIESEL 2.7V6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.8
PRIMARY JUNCTION FUSE BOX . . . . . . . . . . . . . . . . . . . . Fig. 01.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 09.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 19.1
R
RAIN SENSING MODULE. . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 13.1
RAIN SENSING UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 13.1
REAR ELECTRONIC MODULE . . . . . . . . . . . . . . . . . . . . . . Fig. 01.6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 05.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 07.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 09.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 10.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 10.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 14.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 20.2
REAR POWER DISTRIBUTION FUSE BOX . . . . . . . . . . . . . Fig. 01.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 03.8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 06.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 10.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 19.1
REAR POWER DISTRIBUTION FUSE BOX MEGAFUSE . . Fig. 01.1
REMOTE KEYLESS ENTRY MODULE . . . . . . . . . . . . . . . . Fig. 12.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.3
RESTRAINTS CONTROL MODULE . . . . . . . . . . . . . . . . . . . Fig. 17.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 17.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 20.2
REVERSE SWITCH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 04.2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.3
RIDE HEIGHT SENSORS . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.5 ROOF CONSOLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 09.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 09.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 14.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 19.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 20.2
ROTARY ELECTRONIC ACTUATORS (DIESEL 2.7V6) . . . . Fig. 03.7
S
SAFETY BELT TENSION SENSOR. . . . . . . . . . . . . . . . . . . . Fig. 17.2
SEAT BACK HEATERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.6
SEAT BELT PRETENSIONER IGNITERS . . . . . . . . . . . . . . . Fig. 17.1
SEAT BELT SWITCHES . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 17.1
SEAT CUSHION HEATERS . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.6
SEAT HEATER MODULES . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.6
SEAT MOTORS AND POSITION SENSORS – DRIVER. . . . Fig. 11.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.3
SEAT MOTORS AND POSITION SENSORS –
PASSENGER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.5
SEAT MOTORS – PASSENGER . . . . . . . . . . . . . . . . . . . . . . Fig. 11.4
SEAT SWITCH PACK – DRIVER . . . . . . . . . . . . . . . . . . . . . . Fig. 11.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.3
SEAT SWITCH PACK – PASSENGER . . . . . . . . . . . . . . . . . Fig. 11.4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 11.5
SECURITY INDICATOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 12.3
SIDE MARKER LAMPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.4
SIDE MARKERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 08.2
SLIDING ROOF CONTROL MODULE . . . . . . . . . . . . . . . . . . Fig. 14.1
SPATIAL SENSORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 17.2
SPEAKERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 15.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 15.2
SPEED CONTROL MODULE. . . . . . . . . . . . . . . . . . . . . . . . . Fig. 05.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 20.1
SPEED CONTROL SENSOR . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 05.3
STARTER MEGAFUSE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 01.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.3
STARTER MOTOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.3
STARTER RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 02.3
STEERING ANGLE SENSOR . . . . . . . . . . . . . . . . . . . . . . . . Fig. 05.1
STEERING COLUMN LOCK MODULE . . . . . . . . . . . . . . . . . Fig. 12.3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 20.2
STEERING COLUMN MOTOR, SOLENOIDS
AND POSITION SENSORS . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 10.1
STEERING WHEEL AUDIO SWITCHES . . . . . . . . . . . . . . . . Fig. 15.1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 15.2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Fig. 16.5
STEERING WHEEL HORN SWITCH . . . . . . . . . . . . . . . . . . . Fig. 19.1
