AT-104
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: October 20052005 QX56
DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006
DescriptionECS00CF3

The park/neutral position (PNP) switch includes a transmission position switch.

The transmission range switch detects the selector lever position and sends a signal to the TCM.
CONSULT-II Reference ValueECS00CF4
On Board Diagnosis LogicECS00CF5

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-II is detected under the following condi-
tions.
–When TCM does not receive the correct voltage signal from the PNP switch 1, 2, 3, 4 based on the gear
position.
–When no other position but “P” position is detected from “N” positions.
Possible CauseECS00CF6

Harness or connectors
[The park/neutral position (PNP) switch 1, 2, 3, 4 and TCM circuit is open or shorted.]

Park/neutral position (PNP) switch 1, 2, 3, 4
DTC Confirmation ProcedureECS00CF7
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine.
4. Drive vehicle and maintain the following conditions for at least 2
consecutive seconds.
THRTL POS SEN: More than 1.2V
5. If DTC is detected, go to AT-106, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Item name Condition Display value
SLCTLVR POSI Selector lever in “N”,“P” positions. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
Selector lever in “4” position. 4
Selector lever in “3” position. 3
Selector lever in “2” position. 2
Selector lever in “1” position. 1
BCIA0030E

AT-106
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: October 20052005 QX56
Diagnostic ProcedureECS00CF9
1. CHECK PNP SW CIRCUIT
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode
for “A/T” with CONSULT-II.
3. Check if correct selector lever position (N/P, R or D) is displayed
as selector lever is moved into each position.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Perform TCM power supply and ground circuit. Refer to AT-168, "
MAIN POWER SUPPLY AND GROUND
CIRCUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item name Condition Display value
SLCTLVR POSISelector lever in “N”,“P” positions. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
Selector lever in “4” position. 4
Selector lever in “3” position. 3
Selector lever in “2” position. 2
Selector lever in “1” position. 1
PCIA0034E

AT-108
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Revision: October 20052005 QX56
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionECS00CFA
The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal.
The pulse signal is sent to the TCM which converts it into vehicle speed.
CONSULT-II Reference ValueECS00CFB
On Board Diagnosis LogicECS00CFC

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0720 VEH SPD SEN/CIR AT” with CONSULT-II is detected under the following
conditions.
–When TCM does not receive the proper voltage signal from the sensor.
–After ignition switch is turned “ON”, irregular signal input from vehicle speed sensor MTR before the vehi-
cle starts moving.
Possible CauseECS00CFD

Harness or connectors
(The sensor circuit is open or shorted.)

Revolution sensor

Vehicle speed sensor MTR
DTC Confirmation ProcedureECS00CFE
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle and check for an increase of “VHCL/S SE·A/T”
value in response to “VHCL/S SE·MTR” value.
If the check result is NG, go to AT- 111 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
4. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
5. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more
THRTL POS SEN: More than 1.0/8
Selector lever: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 111 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
6. Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
THRTL POS SEN: More than 1.0/8
Selector lever: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 111 , "
Diagnostic Procedure" .
Item name Condition Display value (km/h)
VHCL/S SE·A/T During driving Approximately matches the speedometer reading.
BCIA0030E

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-111
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56
Diagnostic ProcedureECS00CFG
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Start the engine.
4. Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 8 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT"
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
Item name Condition Display value (km/h)
VHCL/S SE·A/T During driving Approximately matches the
speedometer reading.
SCIA2148E

DTC P0725 ENGINE SPEED SIGNAL
AT-113
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56

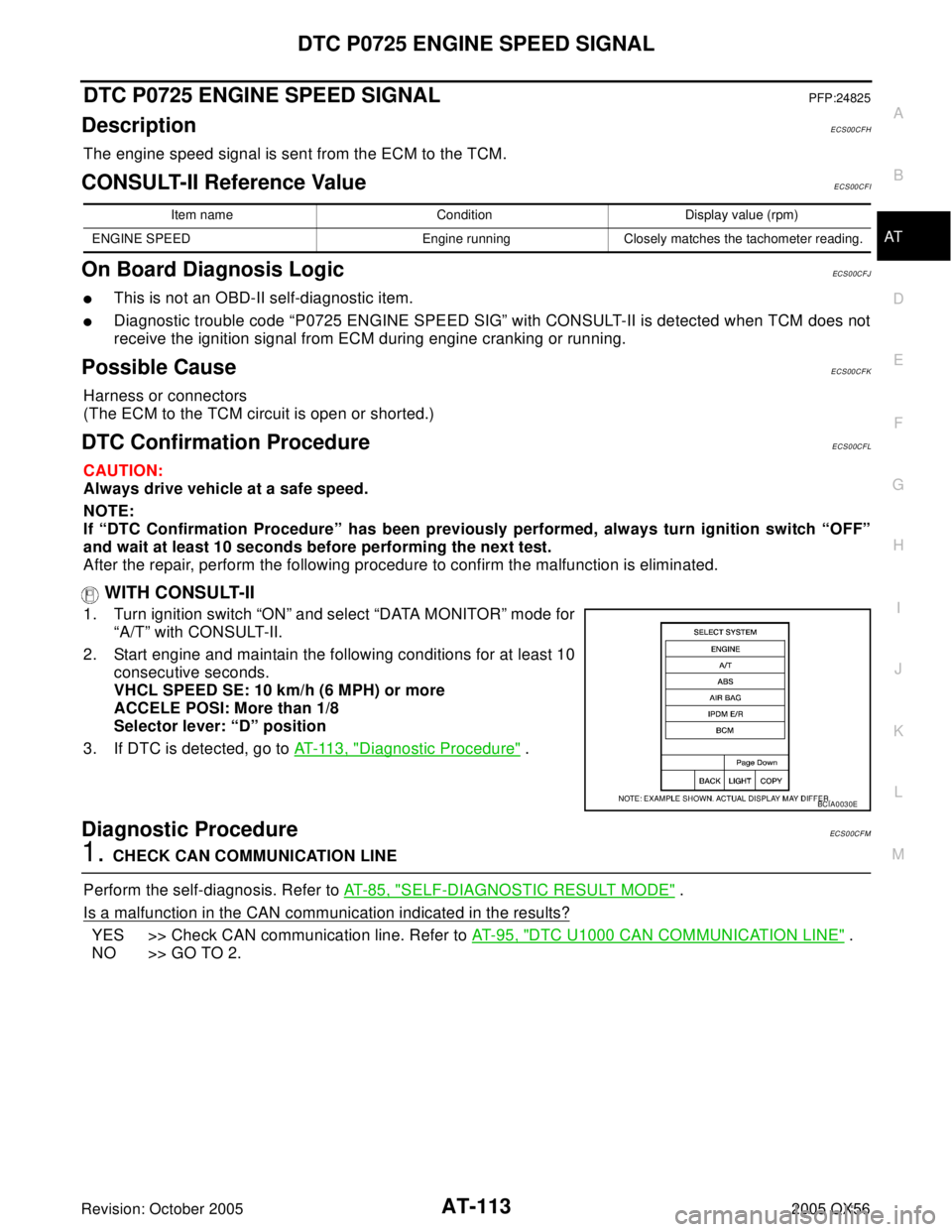

DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionECS00CFH
The engine speed signal is sent from the ECM to the TCM.
CONSULT-II Reference ValueECS00CFI
On Board Diagnosis LogicECS0 0CF J

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P0725 ENGINE SPEED SIG” with CONSULT-II is detected when TCM does not
receive the ignition signal from ECM during engine cranking or running.
Possible CauseECS00CFK
Harness or connectors
(The ECM to the TCM circuit is open or shorted.)
DTC Confirmation ProcedureECS00CFL
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
ACCELE POSI: More than 1/8
Selector lever: “D” position
3. If DTC is detected, go to AT - 11 3 , "
Diagnostic Procedure" .
Diagnostic ProcedureECS0 0CF M
1. CHECK CAN COMMUNICATION LINE
Perform the self-diagnosis. Refer to AT - 8 5 , "
SELF-DIAGNOSTIC RESULT MODE" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 9 5 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
Item name Condition Display value (rpm)
ENGINE SPEED Engine running Closely matches the tachometer reading.
BCIA0030E

AT-114
DTC P0725 ENGINE SPEED SIGNAL
Revision: October 20052005 QX56
2. CHECK DTC WITH TCM
With CONSULT-II
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. While monitoring engine speed, check for engine speed change
corresponding to wide-open throttle position signal.
OK or NG
OK >> GO TO 3.
NG >> Check the ignition signal circuit.

Refer to EC-619, "IGNITION SIGNAL" .
3. CHECK DTC
Perform "DTC Confirmation Procedure".

Refer to AT-113, "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 4.
4. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 8 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT-231, "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
Item name Condition Display value (rpm)
ENGINE SPEED Engine running Closely matches the tachometer reading.
PCIA0041E

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-115
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: October 20052005 QX56

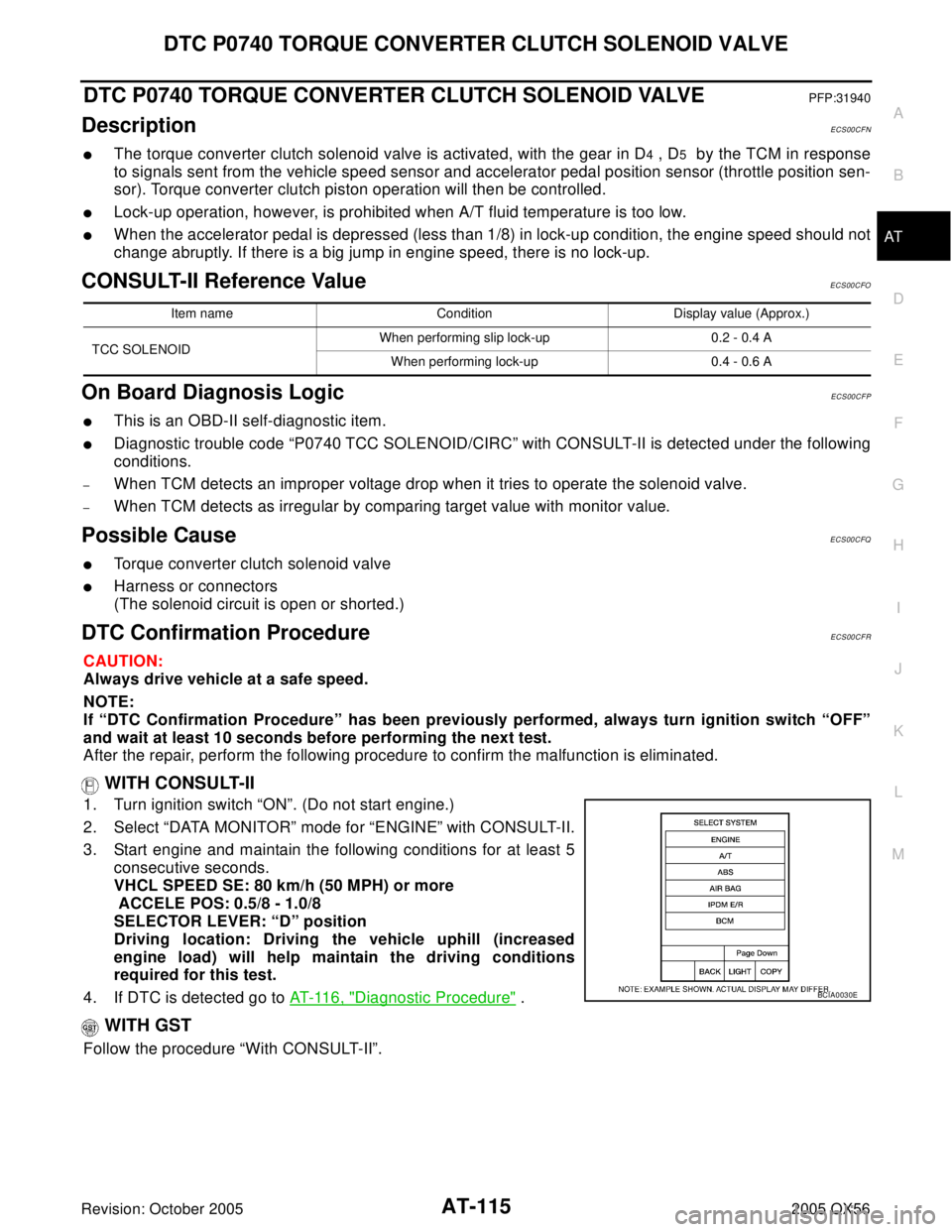

DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS00CFN

The torque converter clutch solenoid valve is activated, with the gear in D4 , D5 by the TCM in response
to signals sent from the vehicle speed sensor and accelerator pedal position sensor (throttle position sen-
sor). Torque converter clutch piston operation will then be controlled.

Lock-up operation, however, is prohibited when A/T fluid temperature is too low.

When the accelerator pedal is depressed (less than 1/8) in lock-up condition, the engine speed should not
change abruptly. If there is a big jump in engine speed, there is no lock-up.
CONSULT-II Reference ValueECS00CFO
On Board Diagnosis LogicECS00CFP

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0740 TCC SOLENOID/CIRC” with CONSULT-II is detected under the following
conditions.
–When TCM detects an improper voltage drop when it tries to operate the solenoid valve.
–When TCM detects as irregular by comparing target value with monitor value.
Possible CauseECS00CFQ

Torque converter clutch solenoid valve

Harness or connectors
(The solenoid circuit is open or shorted.)
DTC Confirmation ProcedureECS00CFR
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 80 km/h (50 MPH) or more
ACCELE POS: 0.5/8 - 1.0/8
SELECTOR LEVER: “D” position
Driving location: Driving the vehicle uphill (increased
engine load) will help maintain the driving conditions
required for this test.
4. If DTC is detected go to AT- 11 6 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Item name Condition Display value (Approx.)
TCC SOLENOIDWhen performing slip lock-up 0.2 - 0.4 A
When performing lock-up 0.4 - 0.6 A
BCIA0030E

AT-116
DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE
Revision: October 20052005 QX56
Diagnostic ProcedureECS00CFS
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T”
with CONSULT-II.
3. Start engine.
4. Read out the value of “TCC SOLENOID” while driving.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
2. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to AT- 1 6 8 , "
MAIN POWER SUPPLY AND GROUND CIR-
CUIT" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. DETECT MALFUNCTIONING ITEM
Check the following items:

The A/T assembly harness connector pin terminals for damage or loose connection with harness connec-
tor.
OK or NG
OK >> Replace the control valve with TCM. Refer to AT-231, "Control Valve With TCM and A/T Fluid
Temperature Sensor 2" .
NG >> Repair or replace damaged parts.
4. CHECK DTC
Perform “DTC Confirmation Procedure”.

Refer to AT-115, "DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
Item name Condition Display value (Approx.)
TCC SOLENOIDWhen performing slip lock-up 0.2 - 0.4 A
When performing lock-up 0.4 - 0.6 A
SCIA4793E
