HOW TO USE THIS MANUAL GI-21
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX

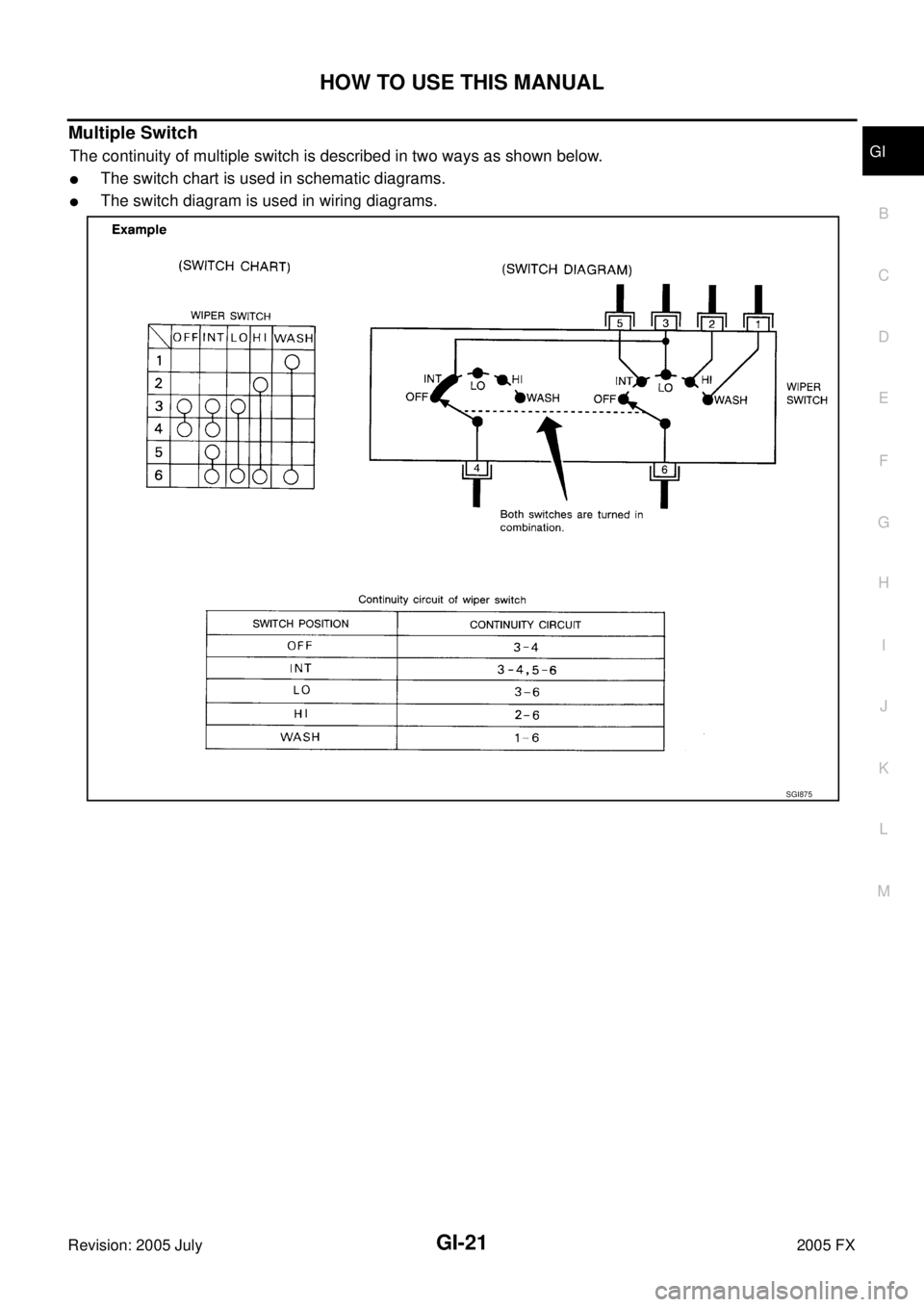

Multiple Switch
The continuity of multiple switch is described in two ways as shown below.

The switch chart is used in schematic diagrams.

The switch diagram is used in wiring diagrams.
SGI875

GI-22
HOW TO USE THIS MANUAL
Revision: 2005 July 2005 FX

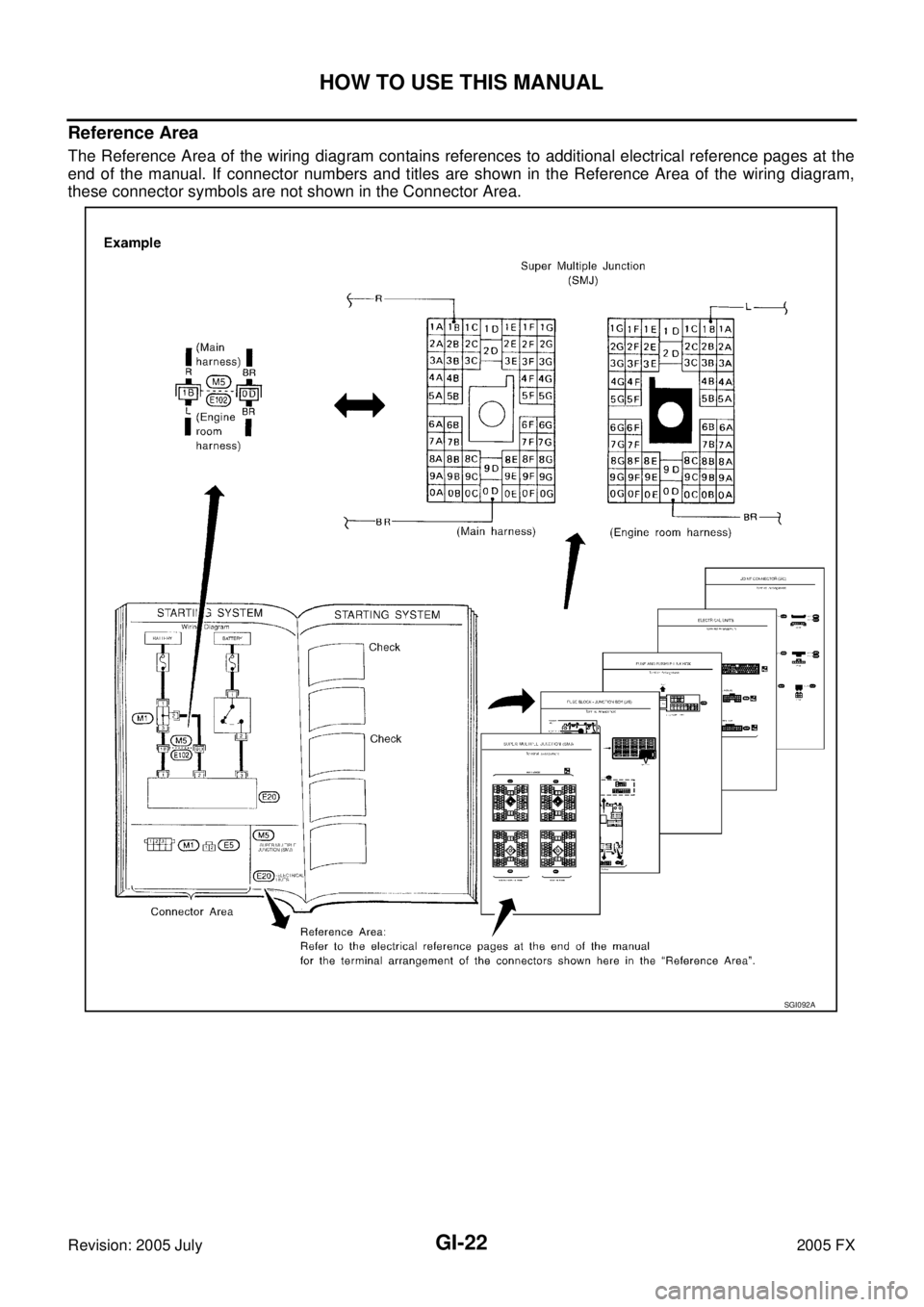

Reference Area
The Reference Area of the wiring diagram contains references to additional electrical reference pages at the
end of the manual. If connector numbers and titles are shown in the Reference Area of the wiring diagram,
these connector symbols are not shown in the Connector Area.
SGI092A

GI-28
SERVICE INFORMATION FOR ELECTRICAL INCIDENT
Revision: 2005 July 2005 FX

Freezing

Water intrusion

Electrical load

Cold or hot start up
Get a thorough description of the incident from the customer. It is important for simulating the conditions of the
problem.
Vehicle Vibration
The problem may occur or become worse while driving on a rough road or when engine is vibrating (idle with
A/C on). In such a case, you will want to check for a vibration related condition. Refer to the following illustra-
tion.
CONNECTORS & HARNESS
Determine which connectors and wiring harness would affect the electrical system you are inspecting. Gently
shake each connector and harness while monitoring the system for the incident you are trying to duplicate.
This test may indicate a loose or poor electrical connection.
HINT
Connectors can be exposed to moisture. It is possible to get a thin film of corrosion on the connector termi-
nals. A visual inspection may not reveal this without disconnecting the connector. If the problem occurs inter-
mittently, perhaps the problem is caused by corrosion. It is a good idea to disconnect, inspect and clean the
terminals on related connectors in the system.
SENSORS & RELAYS
Gently apply a slight vibration to sensors and relays in the system you are inspecting.
This test may indicate a loose or poorly mounted sensor or relay.
ENGINE COMPARTMENT
There are several reasons a vehicle or engine vibration could cause an electrical complaint. Some of the
things to check for are:

Connectors not fully seated.

Wiring harness not long enough and is being stressed due to engine vibrations or rocking.

Wires laying across brackets or moving components.

Loose, dirty or corroded ground wires.

Wires routed too close to hot components.
To inspect components under the hood, start by verifying the integrity of ground connections. (Refer to Ground
Inspection described later.) First check that the system is properly grounded. Then check for loose connection
by gently shaking the wiring or components as previously explained. Using the wiring diagrams inspect the
wiring for continuity.
BEHIND THE INSTRUMENT PANEL
An improperly routed or improperly clamped harness can become pinched during accessory installation. Vehi-
cle vibration can aggravate a harness which is routed along a bracket or near a screw.
SGI839

CONSULT-II CHECKING SYSTEM GI-39
C
D E
F
G H
I
J
K L
M B
GI
Revision: 2005 July 2005 FX
2. If necessary, turn on the ignition switch.
3. Touch “START (NISSAN BASED VHCL)” or “System Shortcut” (eg: ENGINE) on the screen.
CONSULT-II Data Link Connector (DLC) CircuitAAS000EC
INSPECTION PROCEDURE
If the CONSULT-II cannot diagnose the system properly, check the following items.
NOTE:
The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A
short in a DDL circuit connected to a control unit in one system may affect CONSULT-II access to other sys-
tems.
SAIA0450E
Symptom Check item
CONSULT-II cannot access
any system.

CONSULT-II DLC power supply circuit (Terminal 8) and ground circuit (Terminal 4) (For detailed
circuit, refer to “MIL & Data Link Connectors Wiring Diagram” in EC section.)

CONSULT-II DLC cable and CONSULT-II CONVERTER
CONSULT-II cannot access
individual system. (Other sys-
tems can be accessed.)

CONSULT-II program card (Check the appropriate CONSULT-II program card for the system.
Refer to "Checking Equipment".)

Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wir-
ing diagram for each system.)

Open or short circuit between the system and CONSULT-II DLC (For detailed circuit, refer to wiring
diagram for each system.)

Open or short circuit CAN communication line. Refer to LAN-5, "Precautions When Using CON-
SULT-II" .

GI-40
CONSULT-II CHECKING SYSTEM
Revision: 2005 July 2005 FX

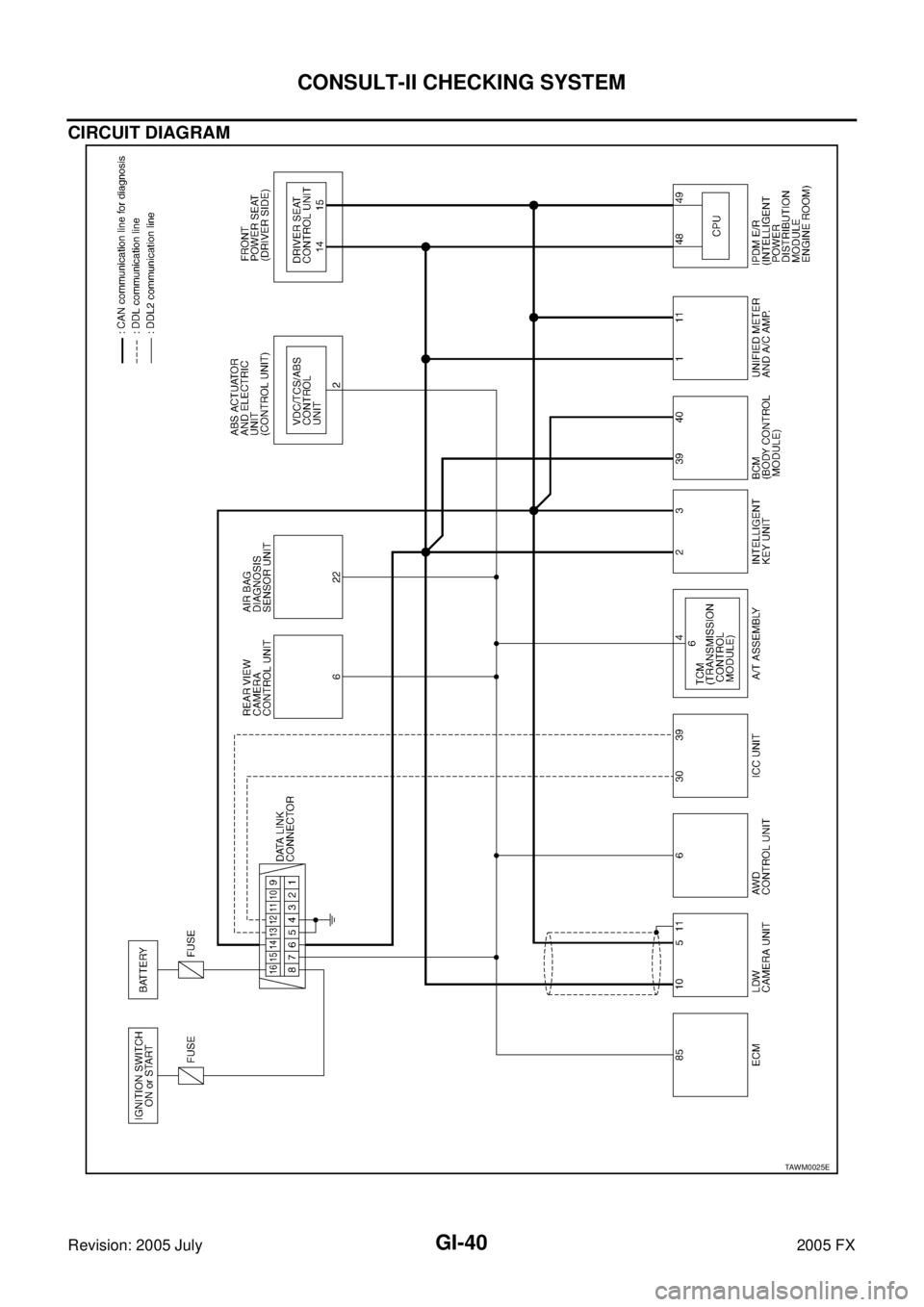

CIRCUIT DIAGRAM
TAWM0025E

GW-1
GLASSES, WINDOW SYSTEM & MIRRORS
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION GW
A
B
GW
Revision: 2005 July 2005 FX
GLASSES, WINDOW SYSTEM & MIRRORS
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 3
Precautions for Procedures without Cowl Top Cover ..... 3
Handling for Adhesive and Primer ...................... ..... 3
PREPARATION ...................................................... ..... 4
Special Service Tools .......................................... ..... 4
Commercial Service Tools ................................... ..... 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ........................................................... ..... 5
CUSTOMER INTERVIEW ................................ ..... 5
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 6
CHECK RELATED SERVICE BULLETINS ...... ..... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 6
REPAIR THE CAUSE ...................................... ..... 6
CONFIRM THE REPAIR .................................. ..... 7
Generic Squeak and Rattle Troubleshooting ...... ..... 7
INSTRUMENT PANEL ..................................... ..... 7
CENTER CONSOLE ........................................ ..... 7
DOORS ............................................................ ..... 7
TRUNK ............................................................. ..... 8
SUNROOF/HEADLINING ................................ ..... 8
SEATS .............................................................. ..... 8
UNDERHOOD .................................................. ..... 8
Diagnostic Worksheet ......................................... ..... 9
WINDSHIELD GLASS ........................................... ....11
Removal and Installation ..................................... .... 11
REMOVAL ........................................................ .... 11
INSTALLATION ................................................ ... 12
BACK DOOR WINDOW GLASS ........................... ... 13
Removal and Installation ..................................... ... 13
REMOVAL ........................................................ ... 13
INSTALLATION ................................................ ... 14
POWER WINDOW SYSTEM ................................. ... 15
Component Parts and Harness Connector Location ... 15
System Description ............................................. ... 16
WITH FRONT POWER WINDOW ANTI-PINCH
SYSTEM .......................................................... ... 16 WITH FRONT AND REAR WINDOW ANTI-
PINCH SYSTEM .............................................. ... 16
MANUAL OPERATION ..................................... ... 17
AUTO OPERATION .......................................... ... 19
POWER WINDOW SERIAL LINK .................... ... 20
POWER WINDOW LOCK ................................ ... 20
RETAINED POWER OPERATION ................... ... 21
ANTI-PINCH SYSTEM ..................................... ... 21
POWER WINDOW CONTROL BY THE KEY
CYLINDER SWITCH ........................................ ... 21
CAN Communication System Description ........... ... 22
CAN Communication Unit .................................... ... 22
Schematic/With Front Power Window Anti-Pinch
System ................................................................. ... 23
Wiring Diagram — WINDOW —/With Front Power
Window Anti-Pinch System ................................. ... 24
Terminal and Reference Value for BCM / With Front
Power Window Anti-Pinch System ...................... ... 28
Terminal and Reference Value for Power Window
Main Switch / With Front Power Window Anti-pinch
System ................................................................. ... 29
Terminal and Reference Value for Front Power Win-
dow Switch (Passenger Side) / With Front Power
Window Anti-pinch System .................................. ... 30
Schematic/With Front and Rear Power Window
Anti-Pinch System ............................................... ... 31
Wiring Diagram — WINDOW —/With Front and
Rear Power Window Anti-Pinch System ............. ... 32
Terminal and Reference Value for BCM / With Front
and Rear Power Window Anti-Pinch ................... ... 37
Terminal and Reference Value for Power Window
Main Switch / With Front and Rear Power Window
Anti-pinch System ................................................ ... 38
Terminal and Reference Value for (Front and Rear)
Power Window Switch / With Front and Rear Win-
dow Anti-pinch System ........................................ ... 39
CONSULT-II Function (BCM) .............................. ... 40
ACTIVE TEST .................................................. ... 41
WORK SUPPORT ............................................ ... 41
DATE MONITOR .............................................. ... 41

GW-2Revision: 2005 July 2005 FX
Work Flow ............................................................
... 42
Trouble Diagnosis Symptom Chart / With Front
Power Window Anti-Pinch System ...................... ... 42
Trouble Diagnosis Symptom Chart / With Front and
Rear Power Window Anti-Pinch System .............. ... 43
BCM Power Supply and Ground Circuit Check ... ... 45
Power Window Main Switch Power Supply Circuit
Check .................................................................. ... 46
Front Power Window Switch (Passenger Side)
Power Supply and Ground Circuit Check ............ ... 47
Rear Power Window Switch (LH or RH) Power Sup-
ply and Ground Circuit Check / With Front and Rear
Power Window Anti-pinch System ....................... ... 48
Front Power Window Motor (Driver Side) Circuit
Check .................................................................. ... 49
Front Power Window Motor (Passenger Side) Cir-
cuit Check ............................................................ ... 50
Rear Power Window Motor (LH) Circuit Check / With
Front Anti-Pinch Power Window System ............. ... 50
Rear Power Window Motor (RH) Circuit Check / With
Front Anti-pinch Power Window System ............. ... 53
Rear Power Window Motor (LH or RH) Circuit Check
/ With Front and Rear Power Window Anti-pinch
System ................................................................. ... 55
Limit Switch Circuit Check (Driver Side) .............. ... 56
Limit Switch Circuit Check (Passenger Side) ...... ... 57
Limit Switch Circuit Check (Rear LH or RH) / With
Front and Rear Anti-Pinch System ...................... ... 59
Encoder Circuit Check (Driver Side) .................... ... 61
Encoder Circuit Check (Passenger Side) ............ ... 63
Encoder Circuit Check (Rear LH or RH) / With Front
and Rear Power Window Anti-Pinch System ....... ... 65
Door Switch Check .............................................. ... 67
Front Door Key Cylinder Switch Check ............... ... 69
Power Window Serial Link Check (Passenger Side) ... 71
Power Window Serial Link Check (Rear LH or RH)
/ With Front and Rear Power Window Anti-pinch
System ................................................................. ... 73
Power Window Lock Switch Check ..................... ... 73
SIDE WINDOW GLASS ......................................... ... 74
Removal and Installation ..................................... ... 74
REMOVAL ........................................................ ... 74
INSTALLATION ................................................. ... 75
FRONT DOOR GLASS AND REGULATOR .......... ... 76
Removal and Installation ..................................... ... 76
DOOR GLASS .................................................. ... 76
REGULATOR ASSEMBLY ............................... ... 77
Disassembly and assembly ................................. ... 78
REGULATOR ASSEMBLY ............................... ... 78
Inspection after Installation .................................. ... 78
SETTING OF LIMIT SWITCH ........................... ... 78
FITTING INSPECTION ..................................... ... 78
REAR DOOR GLASS AND REGULATOR ............ ... 80
Removal and Installation ..................................... ... 80 DOOR GLASS ..................................................
... 80
REGULATOR ASSEMBLY ................................ ... 81
Disassembly and assembly ................................. ... 82
REGULATOR ASSEMBLY ................................ ... 82
Inspection after Installation .................................. ... 82
SETTING OF LIMIT SWITCH (WITH ANTI-
PINCH SYSTEM ONLY) ................................... ... 82
FITTING INSPECTION ..................................... ... 83
INSIDE MIRROR .................................................... ... 84
Wiring Diagram —I/MIRR— ................................. ... 84
Removal and Installation ...................................... ... 85
REMOVAL ......................................................... ... 85
INSTALLATION ................................................. ... 85
COMPASS ........................................................ ... 85
REAR WINDOW DEFOGGER ............................... ... 86
Component Parts and Harness Connector Location ... 86
System Description .............................................. ... 86
CAN Communication System Description ........... ... 88
CAN Communication Unit .................................... ... 88
Schematic ............................................................ ... 89
Wiring Diagram — DEF — ................................... ... 90
Terminal and Reference Value for BCM ............... ... 94
Terminal and Reference Value for IPDM E/R ....... ... 94
CONSULT-II Function (BCM) ............................... ... 95
DATA MONITOR ............................................... ... 96
ACTIVE TEST ................................................... ... 96
Work Flow ............................................................ ... 97
Trouble Diagnoses Symptom Chart ..................... ... 97
BCM Power Supply and Ground Circuit Check ... ... 98
Rear Window Defogger Switch Circuit Check ...... ... 99
Rear Window Defogger Power Supply Circuit
Check ................................................................... .100
Rear Window Defogger Circuit Check ................. .102
Door Mirror Defogger Power Supply Circuit Check .103
Driver Side Door Mirror Defogger Circuit Check .. .105
Passenger Side Door Mirror Defogger Circuit Check .106
Rear Window Defogger Signal Check ................. .106
Filament Check .................................................... .108
Filament Repair .................................................... .108
REPAIR EQUIPMENT ...................................... .108
REPAIRING PROCEDURE .............................. .109
DOOR MIRROR ...................................................... .110
Wiring Diagram — MIRROR —/Without Memory
Mirror .................................................................... .110
Wiring Diagram — MIRROR —/With Memory Mirror . 111
Trouble Diagnosis ................................................ .113
Removal and Installation ...................................... .114
REMOVAL ......................................................... .114
INSTALLATION ................................................. .114
Disassembly and Assembly ................................. .114
DISASSEMBLY ................................................. .114
ASSEMBLY ....................................................... .115

GW-24
POWER WINDOW SYSTEM
Revision: 2005 July 2005 FX
Wiring Diagram — WINDOW —/With Front Power Window Anti-Pinch SystemAIS004Q1
TIWH0051E
