NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING EM-171
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
Use the Chart Below to Help You Find the Cause of the Symptom.ABS006I5
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not related Location
of noise Ty p e o f
noise Operating condition of engine
Source of noise Check item Refer-
ence page
Before
warm- up After
warm- up When
start- ing When
idling When
racing While
driving
Top of
engine
Rocker
cover
Cylinder
head Ticking or
clicking C A — A B — Tappet noise Valve clearance
EM-219
Rattle C A — A B C Camshaft
bearing noise Camshaft journal oil
clearance
Camshaft runout EM-214EM-213
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil pan Slap or
knock —A—B B— Piston pin
noise Piston to piston pin oil
clearance
Connecting rod bush-
ing oil clearance EM-262
EM-264
Slap or
rap A——BBA Piston slap
noise Piston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion EM-266EM-263
EM-263
EM-264
Knock ABCBBB
Connecting
rod bearing
noise Connecting rod bush-
ing oil clearance
Connecting rod bear-
ing oil clearance EM-264EM-269
Knock A B — A B C
Main bearing
noise Main bearing oil clear-
ance
Crankshaft runout EM-270EM-268
Front of
engine
front cover Tapping or
ticking AA—BBB Timing chain
and chain
tensioner
noise Timing chain cracks
and wear
Timing chain tensioner
operation EM-205
EM-200
Front of
engine Squeak-
ing or fizz-
ing AB—B—C Drive belts
(Sticking or
slipping) Drive belts deflection
EM-173Creaking A B A B A B Drive belts
(Slipping) Idler pulley bearing
operation
Squall
Creak AB—BAB Water pump
noise Water pump operation CO-51,
"WATER
PUMP"

EM-172
[VK45DE]
ENGINE ROOM COVER
Revision: 2005 July 2005 FX
ENGINE ROOM COVERPFP:14049
ComponentsABS00DFK
Removal and InstallationABS006I6
REMOVAL
CAUTION:
Do not damage or scratch cover when installing or removing.

Major parts and inspection points under each cover are as follows; (numbered as in the figure)
INSTALLATION
Install in the reverse order of removal.
1. Engine cover 2. Battery cover 3. Air duct (inlet)
PBIC2754E
1 : Upper side of engine assembly and power steering reservoir tank
2 : Relay and battery
3 : Engine assembly front side, drive belts and cooling fan

DRIVE BELTS EM-173
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
DRIVE BELTSPFP:02117
ComponentsABS00DFL
Checking Drive BeltsABS006I7
WARNING:
Be sure to perform when engine is stopped.

Remove air duct (inlet) when inspecting drive belt for alternator, water pump and A/C compressor.

Remove front engine undercover with power tool when inspecting power steering oil pump belt.

Make sure that indicator (single line notch) of each auto tensioner is within the allowable working range
(between three line notches).
NOTE:

Check auto tensioner indication when engine is cold.

When new drive belt is installed, the range should be “A”.

The indicator notch is located on the moving side of auto tensioner for alternator, water pump and A/C
compressor belt, while it is found on the fixed side for power steering oil pump belt.

Visually check entire belt for wear, damage or cracks.

If the indicator is out of allowable working range or belt is damaged, replace belt.
Tension AdjustmentABS006I8
Belt tensioning is not necessary, as it is automatically adjusted by auto tensioner.
Removal and InstallationABS006I9
REMOVAL
Alternator, Water Pump and A/C Compressor Belt
1. Remove air duct (inlet). Refer to EM-176, "AIR CLEANER AND AIR DUCT" .
2. With box wrench, and while securely holding the hexagonal part in pulley center of auto tensioner, move wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:

Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.

Do not loosen the hexagonal part in center of drive belt
auto–tensioner pulley (Do not turn it clockwise). If turned
clockwise, the complete drive belt auto–tensioner must
be replaced as a unit, including the pulley.
PBIC2331E
PBIC2976E

EM-174
[VK45DE]
DRIVE BELTS
Revision: 2005 July 2005 FX
3. Under the above condition, insert a metallic bar of approximately 6 mm (0.24 in) in diameter (hexagonal
bar wrench shown as example in the figure) through the holding boss to lock auto tensioner pulley arm.

Leave auto tensioner pulley arm locked until belt is installed again.
4. Remove alternator, water pump and A/C compressor belt.
Power Steering Oil Pump Belt
1. Remove air duct (inlet). Refer to EM-176, "AIR CLEANER AND AIR DUCT" .
2. Remove front engine undercover with power tool
3. Remove alternator, water pump and A/C compressor belt. Refer to EM-173, "
Alternator, Water Pump and
A/C Compressor Belt" .
4. While securely holding the hexagonal protrusion part of auto tensioner pulley with box wrench, move wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:
Avoid placing hand in a location where pinching may occur
if holding tool accidentally comes off.
5. Under the above condition, insert a metallic bar of approximately 6 mm (0.24 in) in diameter (hexagonal bar wrench shown as
example in the figure) through the holding boss to lock auto ten-
sioner pulley arm.

Leave auto tensioner pulley arm locked until belt is installed
again.
6. Remove power steering oil pump belt.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:

Make sure belt is securely installed around all pulleys.

Make sure belt is correctly engaged with the pulley groove.

Check for engine oil and engine coolant are not adhered belt and pulley groove.

Check that belt tension is within the allowable working range, using indicator notch on auto ten-
sioner. Refer to EM-173, "
Checking Drive Belts" .
PBIC1543E

DRIVE BELTS EM-175
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
ComponentsABS00DFM
CAUTION:
The complete drive belt auto–tensioner must be replaced as a unit, including the pulley.
Drive Belt Auto Tensioner and Idler PulleyABS006IA
REMOVAL
1. Remove air duct (inlet). Refer to EM-176, "AIR CLEANER AND AIR DUCT" .
2. Remove front engine undercover with power tool.
3. Remove drive belts. Refer to EM-173, "
Removal and Installation" .

Keep auto tensioner pulley arm locked after belt is removed.
4. Remove auto tensioner and idler pulley with power tool.

Keep auto tensioner pulley arm locked to install or remove auto tensioner.
CAUTION:
Do not loosen the hexagonal part in center of drive belt auto–tensioner pulley (Do not turn it clock-
wise). If turned clockwise, the complete drive belt auto–tensioner must be replaced as a unit,
including the pulley.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Do not swap the pulley between new and old drive belt auto–tensioner.
1. Auto tensioner ( Used for alternator,
water pump and A/C compressor) 2. Idler pulley 3. Auto tensioner (Used for power
steering oil pump belt)
PBIC2788E

EM-182
[VK45DE]
EXHAUST MANIFOLD AND THREE WAY CATALYST
Revision: 2005 July 2005 FX
EXHAUST MANIFOLD AND THREE WAY CATALYSTPFP:14004
ComponentsABS00DFP
Removal and InstallationABS006ID
REMOVAL
WARNING:
Perform the work, when the exhaust and cooling system have completely cooled down.
1. Remove engine cover with power tool. Refer to EM-172, "
ENGINE ROOM COVER" .
2. Remove front and rear engine undercovers with power tool.
3. Remove air duct (inlet), air cleaner case and mass air flow sensor assembly, air duct and resonator assembly. Refer to EM-176, "
AIR CLEANER AND AIR DUCT" .
4. Remove front cross bar. Refer to FSU-6, "
FRONT SUSPENSION ASSEMBLY" .
5. Drain engine coolant from radiator. Refer to CO-37, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on drive belts.
6. Remove radiator. Refer to CO-41, "
RADIATOR" .
7. Remove drive belts. Refer to EM-173, "
DRIVE BELTS" .
8. Remove heated oxygen sensors as follows:
a. Disconnect harness connector of each heated oxygen sensors.

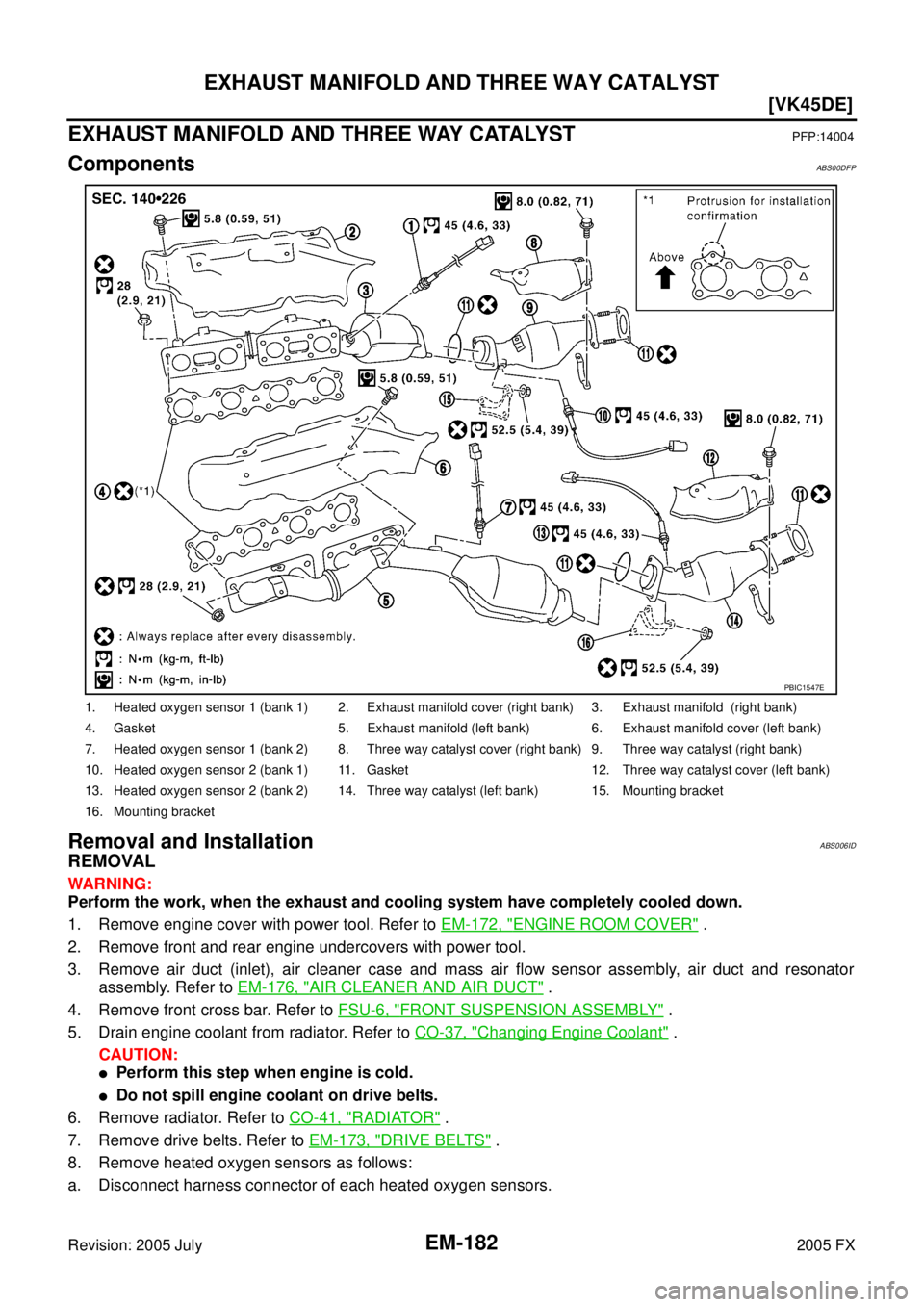

1. Heated oxygen sensor 1 (bank 1) 2. Exhaust manifold cover (right bank) 3. Exhaust manifold (right bank)
4. Gasket 5. Exhaust manifold (left bank) 6. Exhaust manifold cover (left bank)
7. Heated oxygen sensor 1 (bank 2) 8. Three way catalyst cover (right bank) 9. Three way catalyst (right bank)
10. Heated oxygen sensor 2 (bank 1) 11. Gasket 12. Three way catalyst cover (left bank)
13. Heated oxygen sensor 2 (bank 2) 14. Three way catalyst (left bank) 15. Mounting bracket
16. Mounting bracket
PBIC1547E

OIL PAN AND OIL STRAINER EM-185
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EM
Revision: 2005 July 2005 FX
OIL PAN AND OIL STRAINERP F P : 1111 0
ComponentsABS00DFQ
Removal and InstallationABS006IE
REMOVAL
WARNING:
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove front road wheels and tires.
2. Remove hood assembly. Refer to BL-13, "
HOOD" .
3. Remove engine cover with power tool. Refer to EM-172, "
ENGINE ROOM COVER" .
4. Remove front and rear engine undercovers with power tool.
5. Drain engine oil. Refer to LU-27, "
Changing Engine Oil" .
CAUTION:

Perform this step when engine is cold.

Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-37, "
Changing Engine Coolant" .
CAUTION:

Perform this step when engine is cold.
1. Oil pan 2. O-ring 3. Crankshaft position sensor (POS)
4. O-ring 5. Oil pressure switch 6. Gasket
7. Oil strainer 8. Drain plug 9. Drain plug washer
10. O-ring 11. Oil cooler 12. Connector bolt
13. Oil filter 14. O-ring 15. Axle pipe
16. O-ring 17. Rear plate cover 18. Relief valve
PBIC1552E

EM-186
[VK45DE]
OIL PAN AND OIL STRAINER
Revision: 2005 July 2005 FX

Do not spill engine coolant on drive belts.
7. Remove drive belts. Refer to EM-173, "
DRIVE BELTS" .
8. Remove auto tensioner of power steering oil pump belt. Refer to EM-175, "
Drive Belt Auto Tensioner and
Idler Pulley" .
9. Remove power steering oil pump with piping connected, and temporarily secure it aside with ropes or equivalent. Refer to PS-31, "
POWER STEERING OIL PUMP" .
10. Remove A/C compressor with piping connected, and temporarily secure it aside with ropes or equivalent. Refer to ATC-140, "
Components" .
11. Remove A/C compressor fitting bolts, and install A/C compressor temporarily on vehicle side with ropes or equivalent.
12. Remove harness of lower side of oil pan.
13. Remove crankshaft position sensor (POS) from transmission. CAUTION:

Handle carefully to avoid dropping and shocks.

Do not disassemble it.

Do not allow metal powder to adhere to magnetic part at sensor tip.

Do not place sensors in a location where they are exposed to magnetism.
14. Install engine slinger and hang engine assembly to secure position. Refer to EM-240, "
ENGINE ASSEM-
BLY" .
15. Remove front suspension member with power tool. Refer to FSU-17, "
FRONT SUSPENSION MEMBER" .
16. Remove front final drive assembly. Refer to FFD-12, "
FRONT FINAL DRIVE ASSEMBLY" .
17. Remove oil filter. Refer to LU-28, "
OIL FILTER" .
18. Disconnect oil cooler water hoses, and remove oil cooler water pipe and oil cooler. Refer to LU-29, "
OIL
COOLER" .
19. Remove oil pan as the follows:
a. Remove rear plate cover.
b. Remove transmission joint bolts which pierce oil pan. Refer to AT- 2 7 3 , "
Removal and Installation (AWD
Models)" .
c. Loosen mounting bolts with power tool in reverse order as shown in the figure.
NOTE:
Disregard the numerical order No. 11 and 17 in removal.
d. Insert seal cutter (SST) between oil pan and cylinder block. Slide seal cutter by tapping on the side of seal cutter with ham-
mer. Remove oil pan.
CAUTION:

Be careful not to damage the mating surfaces.

Do not insert screwdriver, this will damage the mating
surface.
e. Remove O-rings from bottom of oil pump and front cover.
20. As necessary, pull axle pipe from oil pan.

Hold pipes and pull them out to front drive shaft (left) installing side.
21. Remove oil strainer.
PBIC0194E
SEM365E
