2005 INFINITI FX35 headlamp

VEHICLE SECURITY (THEFT WARNING) SYSTEM BL-189
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
Canceling the Set Vehicle Security System
When one of the following operations is performed, the armed phase is canceled.
1. Unlock the doors with the key, key fob or Intelligent Key.
2. Turn ignition switch “ON” or “ACC” position.
Canceling the Alarm Operation of the Vehicle Security System
When unlock the door with the key, key fob or Intelligent Key the alarm operation is canceled.
Activating the Alarm Operation of the Vehicle Security System
Make sure the system is in the armed phase. (The security indicator lamp brinks every 2.4 seconds.)
When the following operation 1 or 2 is performed, the system sounds the horns and flashes the headlamps for
about 50 seconds.
1. Hood, back door or any door is opened during armed phase.
2. Disconnecting and connecting the battery connector before canceling armed phase.
POWER SUPPLY
Power is supplied at all times

through 10A fuse [No.19, located in the fuse block (J/B)]

to security indicator lamp terminal 1.

through 50A fusible link (letter M , located in the fuse and fusible link box)

to BCM terminal 55.

through 15A fuse [No.22, located in the fuse block (J/B)]

to BCM terminal 42.

through 15A fuse [No.34, located in the fuse and fusible link box]

to horn relay terminal 2.

through 10A fuse [No.71, located in the IPDM E/R]

to IPDM E/R internal CPU.

through 15A fuse [No.78, located in the IPDM E/R]

to IPDM E/R internal CPU.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 11.
INITIAL CONDITION TO ACTIVATE THE SYSTEM
The operation of the vehicle security system is controlled by the doors, hood and back door.
To activate the vehicle security system, BCM must receive signals indicating the doors, hood and back door
are closed and the doors are locked by key fob, Intelligent Key or ignition key.
When a door is open, BCM terminal 12 (passenger side door), 13 (rear RH door), 62 (driver side door), 63
(rear LH door) receives a ground signal from each door switch.
When front door LH is unlocked by power window main switch (door lock and unlock switch),
BCM terminal 22 receives a signal from terminal 14 of power window main switch with power window serial
link.
When front door RH is unlocked by front power window switch (passenger side) (door lock and unlock switch),
BCM terminal 22 receives a signal from terminal 16 of front power window switch (passenger side) with power
window serial link.
When the hood is open, IPDM E/R receives a ground signal

to IPDM E/R terminal 56

through hood switch terminal 2

through hood switch terminal 1

through body grounds E21, E50 and E51.
The IPDM E/R then sends a signal to the BCM through the CAN SYSTEM.
When the back door is open,

to BCM terminal 58

through back door closure motor terminal 7

BL-190
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2005 July 2005 FX

through back door closure motor terminal 8

through body grounds B15 and B45.
VEHICLE SECURITY SYSTEM ALARM OPERATION
The vehicle security system is triggered by

opening a door

opening the back door

opening the hood

detection of battery disconnect and connect.
The vehicle security system will be triggered once the system is in armed phase,
When BCM receives a ground signal at terminals 12 (passenger side door), 13 (rear RH door), 58 (back door),
62 (driver side door), 63 (rear LH door), or receives a signal from the IPDM E/R (hood switch).
When the vehicle security system is triggered,
ground is supplied intermittently from IPDM E/R terminals 38 and 60.
When headlamp high relay (with built-in IPDM E/R) and horn relay are energized and then power is supplied
to headlamps (LH and RH) and horns (HIGH and LOW).
The headlamps flash and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds, but will reactivate if the vehicle is tampered with again.
VEHICLE SECURITY SYSTEM DEACTIVATION
To deactivate the vehicle security system, a door or the back door must be unlocked with the key, key fob or
Intelligent Key.
When the key is used to unlock a door, BCM terminal 22 receives signal

from terminal 14 of the power window main switch (door lock and unlock switch).
When the BCM receives either one of these signals or unlock signal from key cylinder switch, key fob or Intel-
ligent Key, the vehicle security system is deactivated. (Disarmed phase)
PANIC ALARM OPERATION
Remote keyless entry system may or may not operate vehicle security system (horn and headlamps) as
required.
When the remote keyless entry system is triggered, ground is supplied intermittently from IPDM E/R terminals
38 and 60.
When headlamp relay (which built-in IPDM E/R) and horn relay are energized and then power is supplied to
headlamps (LH and RH) and horns (HIGH and LOW).
The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from key fob or Intelligent
Key.

VEHICLE SECURITY (THEFT WARNING) SYSTEM BL-199
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
Terminals and Reference Value for IPDM E/RAIS004OZ
Terminal Wire color Item Condition Voltage (V)
(Approx.)
20 LG Headlamp low (RH) Lighting switch 2ND position
ON → OFF Battery voltage
→ 0
27 BR Headlamp high (RH) Lighting switch HIGH or PASS position
ON → OFF Battery voltage
→ 0
28 SB Headlamp high (LH) Lighting switch HIGH or PASS position
ON → OFF Battery voltage
→ 0
30 GY Headlamp low (LH) Lighting switch 2ND position
ON → OFF Battery voltage
→ 0
38 B Ground (power) — 0
48 L CAN-H — —
49 R CAN-L — —
51 SB Horn relay control signal Panic alarm is operating 0
Other than above Battery voltage
56 LG Hood switch signal ON (Open) → OFF (closed) 0 → Battery voltage
60 B Ground (signal) — 0

BL-202
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2005 July 2005 FX
Active Test
Trouble DiagnosisAIS004P1

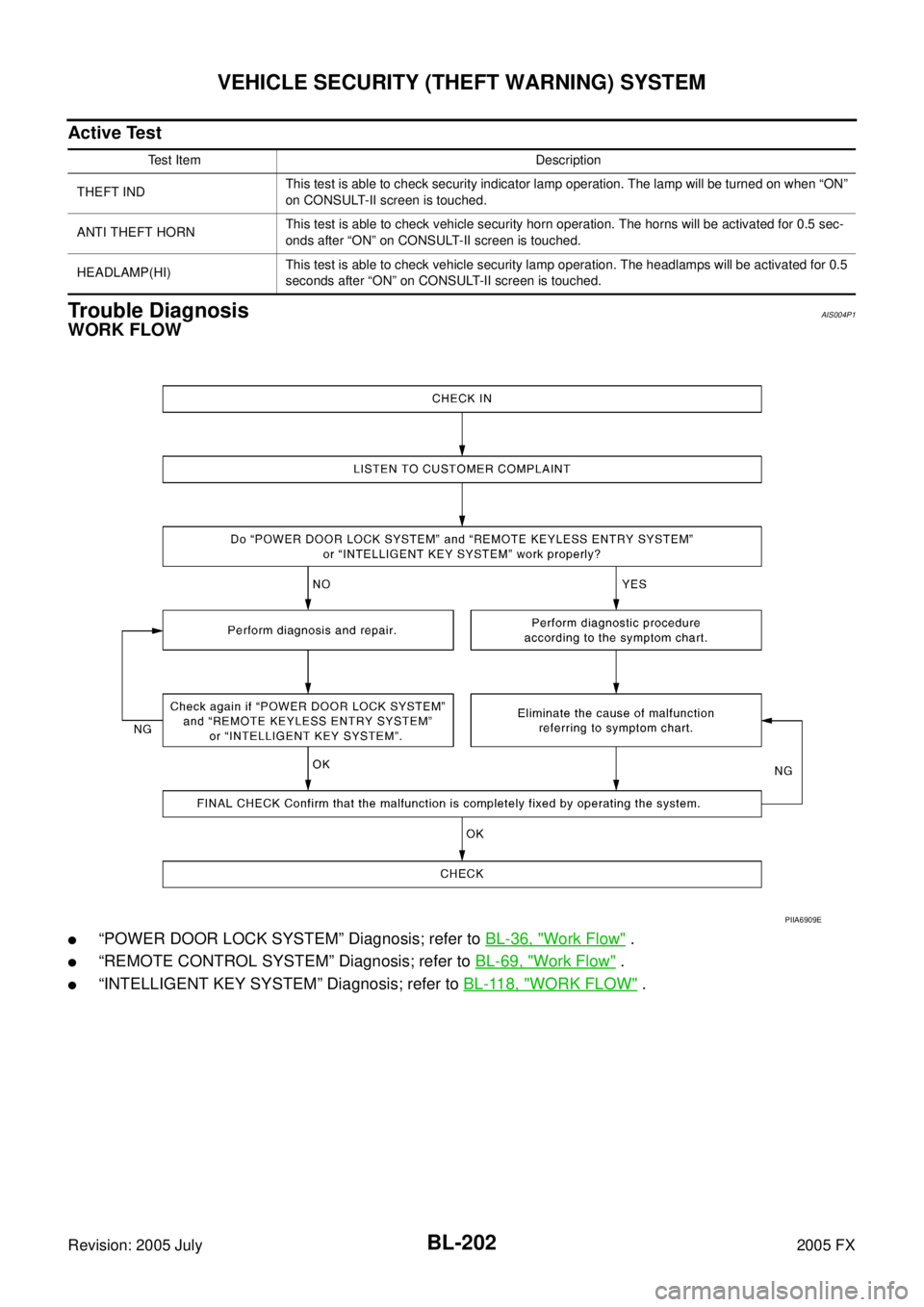

WORK FLOW

“POWER DOOR LOCK SYSTEM” Diagnosis; refer to BL-36, "Work Flow" .

“REMOTE CONTROL SYSTEM” Diagnosis; refer to BL-69, "Work Flow" .

“INTELLIGENT KEY SYSTEM” Diagnosis; refer to BL-118, "WORK FLOW" .
Test Item Description
THEFT IND This test is able to check security indicator lamp operation. The lamp will be turned on when “ON”
on CONSULT-II screen is touched.
ANTI THEFT HORN This test is able to check vehicle security horn operation. The horns will be activated for 0.5 sec-
onds after “ON” on CONSULT-II screen is touched.
HEADLAMP(HI) This test is able to check vehicle security lamp operation. The headlamps will be activated for 0.5
seconds after “ON” on CONSULT-II screen is touched.
PIIA6909E

BL-212
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2005 July 2005 FX
Diagnostic Procedure 3AIS004P6
FRONT DOOR KEY CYLINDER SWITCH CHECK
1. CHECK KEY CYLINDER SWITCH OPERATION
Check door key cylinder switch using key.
Do doors lock / unlock when using the key?
YES >> Front door key cylinder switch operation is OK.
NO >> Check door key cylinder switch circuit. Refer to GW-69, "
Front Door Key Cylinder Switch Check" .
Diagnostic Procedure 4AIS004P7
VEHICLE SECURITY HORN ALARM CHECK
1. CHECK HORN OPERATION
Check if horn sounds with horn switch.
Does horn operate?
YES >> Check harness for open or short between IPDM E/R and horn relay.
NO >> Check horn circuit. Refer to WW-59, "
HORN" .
Diagnostic Procedure 5AIS004P8
VEHICLE SECURITY HEADLAMP ALARM CHECK
1. CHECK HEADLAMP OPERATION
Check if headlamp operates by lighting switch.
Does headlamp come on when turning switch
“ON”?
YES >> Headlamp alarm circuit is OK.
NO >> Check headlamp system. Refer to LT- 7 , "
HEADLAMP - XENON TYPE -" or LT- 3 9 , "DAYTIME
LIGHT SYSTEM" .
Diagnostic Procedure 6AIS004P9
DOOR LOCK AND UNLOCK SWITCH CHECK
1. CHECK DOOR LOCK AND UNLOCK SWITCH INPUT SIGNAL
Check if power door lock operated by door lock and unlock switch.
Do doors lock / unlock when using each door lock and unlock switches?
YES >> Door lock and unlock switch is OK.
NO >> Check door lock and unlock switch. Refer to BL-48, "
Check Door Lock and Unlock Switch" .

TROUBLE DIAGNOSIS BRC-55
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2005 July 2005 FX
Symptom 4: The ABS Function Does Not OperateAFS001TA
CAUTION:
The ABS does not operate when the speed is 10 km/h (6 MPH) or less.
1. CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> GO TO symptom 1 “Step 2”. Refer to BRC-53, "Symptom 1: Excessive ABS Function Operation
Frequency" .
NG >> Perform self-diagnosis. Refer to BRC-27, "
SELF-DIAGNOSIS" .
Symptom 5: Pedal Vibration or ABS Operation Sound OccursAFS001TB
CAUTION:
Under the following conditions, when brake pedal is lightly depressed (just place a foot on it), ABS is
activated and vibration is felt. However, this is normal.

When shifting gears

When driving on slippery road

During cornering at high speed

When passing over bumps or grooves

When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]
1. SYMPTOM CHECK 1
Check if pedal vibration or operation sound occurs when engine is started.
OK or NG
OK >> Perform self-diagnosis. Refer to BRC-27, "SELF-DIAGNOSIS" .
NG >> GO TO 2.
2. SYMPTOM CHECK 2
Check symptom when electrical component (headlamps, etc.) switches are operated.
Does the symptom occur when the electrical component (head lamp, etc.) switches are operated?
YES >> Check if there is a radio, antenna, antenna lead wire, or wiring close to ABS actuator and electric unit (control unit) (or its wiring), and if there is, move it farther away.
NO >> GO TO symptom 1 “Step 2”. Refer to BRC-53, "
Symptom 1: Excessive ABS Function Operation
Frequency" .
Symptom 6: Vehicle Jerks During VDC/TCS/ABS ControlAFS001TC
1. CHECK ENGINE SPEED SIGNAL
Perform CONSULT-II “DATA MONITOR” to check engine speed.
Is engine speed at idle 400 rpm or higher?
YES >> GO TO 3.
NO >> GO TO 2.
2. ABS WARNING LAMP DISPLAY CHECK
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> System is normal.
NG >> GO TO 3.

WARNING CHIME DI-59
C
D E
F
G H
I
J
L
M A
B
DI
Revision: 2005 July 2005 FX
IGNITION KEY WARNING CHIME (WITH INTELLIGENT KEY)
When Mechanical Key Is Used
With the key inserted into the ignition switch, and the ignition switch LOCK or ACC, when driver's door is
opened, the warning chime will sound.
Power is supplied

through key switch and ignition knob switch terminal 4

to BCM terminal 37.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects key inserted into the ignition switch, and sends key warning signal to unified meter and A/C amp.
with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination meter
with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
When Intelligent Key Is Carried With The Driver
When the ignition knob is in LOCK (push switch ON) or ACC, when driver's door is opened, the warning chime
will sound.
Power is supplied

through key switch and ignition knob switch terminal 2

to Intelligent Key unit terminal 27.
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM sends front door switch signal to Intelligent Key unit with CAN communication line.
Intelligent Key unit detects ignition knob return is forgotten, and sends key warning signal to unified meter and
A/C amp. with CAN communication line. Unified meter and A/C amp. sends key warning signal to combination
meter with communication line between unified meter and A/C amp. and combination meter.
When combination meter receives key warning signal, it sounds warning chime.
LIGHT WARNING CHIME
With the key removed from the ignition switch or when the ignition knob is in LOCK (push switch OFF) [with
Intelligent Key], the driver's door is opened, and the lighting switch is in ON position, the warning chime will
sound. [Except when headlamp battery saver control operates (for 5 minutes after ignition switch is turned to
OFF or ACC position) and headlamps do not illuminate.]
Signal is supplied

from combination switch (lighting switch) terminals 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10

to BCM terminals 2, 3, 4, 5, 6, 32, 33, 34, 35 and 36.
NOTE:
BCM detected lighting switch in 1st or 2nd position, refer to BCS-3, "
COMBINATION SWITCH READING
FUNCTION" .
Ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1.
Front door switch (driver side) is case grounded.
BCM detects headlamps are illuminated, and sends light warning signal to unified meter and A/C amp. with
CAN communication line. Unified meter and A/C amp. sends light warning signal to combination meter with
communication line between unified meter and A/C amp. and combination meter.
When combination meter receives light warning signal, it sounds warning chime.
SEAT BELT WARNING CHIME
With ignition switch turned ON and seat belt unfastened [seat belt buckle switch (driver side) ON], warning
chime will sound for approximately 6 seconds.
Ground is supplied

EC-78
[VQ35DE]
BASIC SERVICE PROCEDURE
Revision: 2005 July 2005 FX
BASIC SERVICE PROCEDUREPFP:00018
Basic InspectionABS006KR
1. INSPECTION START
1. Check service records for any recent repairs that may indicate a related malfunction, or a current need for scheduled maintenance.
2. Open engine hood and check the following:
–Harness connectors for improper connections
–Wiring harness for improper connections, pinches and cut
–Vacuum hoses for splits, kinks and improper connections
–Hoses and ducts for leaks
–Air cleaner clogging
–Gasket
3. Confirm that electrical or mechanical loads are not applied.
–Headlamp switch is OFF.
–Air conditioner switch is OFF.
–Rear window defogger switch is OFF.
–Steering wheel is in the straight-ahead position, etc.
4. Start engine and warm it up until engine coolant temperature indicator points the middle of gauge.
Ensure engine stays below 1,000 rpm.
5. Run engine at about 2,000 rpm for about 2 minutes under no- load.
6. Make sure that no DTC is displayed with CONSULT-II or GST.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. REPAIR OR REPLACE
Repair or replace components as necessary according to corresponding Diagnostic Procedure.
>> GO TO 3.
SEF983U
SEF976U
SEF977U
