Removal and Installation AKS0079B

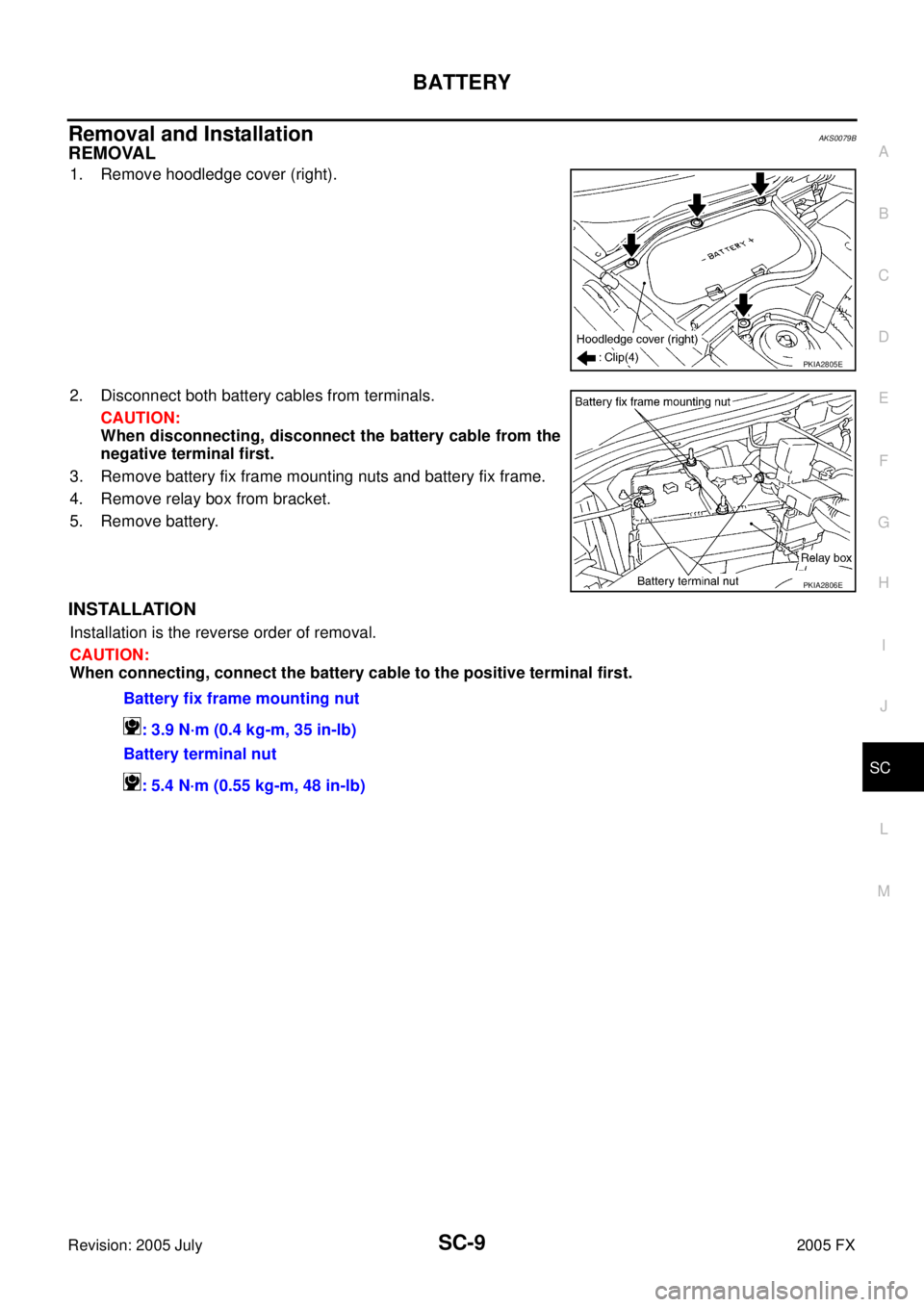

REMOVAL
1. Remove hoodledge cover (right).
2. Disconnect both battery cables from terminals. CAUTION:
When disconnecting, disconnect the battery cable from the
negative terminal first.
3. Remove battery fix frame mounting nuts and battery fix frame.
4. Remove relay box from bracket.
5. Remove battery.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
When connecting, connect the battery cable to the positive terminal first.
PKIA2805E
PKIA2806E
Battery fix frame mounting nut
: 3.9 N·m (0.4 kg-m, 35 in-lb)
Battery terminal nut
: 5.4 N·m (0.55 kg-m, 48 in-lb)

SC-10
STARTING SYSTEM
Revision: 2005 July 2005 FX
STARTING SYSTEMPFP:23300
System Description AKS0079C
Power is supplied at all times

through 40A fusible link (letter F, located in the fuse and fusible link block)

to ignition switch terminal 1,

through 15A fuse (No. 78, located in the IPDM E/R)

to CPU of IPDM E/R,

through 10A fuse (No. 71, located in the IPDM E/R)

to CPU of IPDM E/R.
When the selector lever in the P or N position, power is supplied

from TCM, and through A/T assembly terminal 9

to IPDM E/R terminal 53.
Ground is supplied

to IPDM E/R terminals 38, 50 and 60

from grounds E21, E50 and E51.
With the ignition switch in the START position, and provided that the IPDM E/R receives a starter relay ON sig-
nal from the CAN lines, the IPDM E/R is energized and power is supplied

from ignition switch terminal 5

to IPDM E/R terminal 4 and

through IPDM E/R terminal 3

to starter motor terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the
engine starts.

SC-16
STARTING SYSTEM
Revision: 2005 July 2005 FX
DIAGNOSTIC PROCEDURE 2
Check “S” Connector Circuit
1. CHECK POWER SUPPLY FOR STARTER MOTOR “S” TERMINAL
1. Remove fuel pump fuse.
2. Crank or start the engine (where possible) until the fuel pressure is released.
3. Turn ignition switch OFF.
4. Disconnect starter motor connector.
5. Check voltage between starter motor harness connector E312 (VK45DE) or F33 (VQ35DE) terminal 1 (B) and ground.
OK or NG
OK >> “S” connector circuit is OK. Further inspection neces- sary. Refer to SC-14, "
WORK FLOW" .
NG >> Check the following.

40A fusible link (letter F , located in fuse and fusible
link box)

Ignition switch

Starter relay (within the IPDM E/R)

Harness for open or short
MINIMUM SPECIFICATION OF CRANKING VOLTAGE REFERENCING COOLANT TEMPERA-
TURE
1 (B) – Ground
When ignition switch is in
START position : Battery voltage
PKIA2807E
Engine coolant temperature Voltage [V]
− 30 °C to −20 °C ( −22 °F to −4 °F) 8.4
− 19 °C to −10 °C ( −2 °F to 14 °F) 8.9
− 9 °C to 0 °C (16 °F to 32 °F) 9.3
More than 1 °C (More than 34 °F) 9.7
