2005 Hyundai Azera fuse box

1. Fuse Box
2. Instrument Cluster
3. Parking Brake Pedal
4. Brake Pedal
5. Accelerator Pedal
6. Multi-Function Light/Front Fog Light Switch
7. Audio Remote Control Switch (If Installed)
8. Horn and Driver's Airbag
9. Cruise Control Switch (If Installed)CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrumentcluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
! 10. Windshield Wiper/Washer Switch
11. Audio System (If Installed)
12. Passenger's Front Airbag (If Installed)
13. Heating/Air Conditioning Control Panel
14. Glove Box
15. Accessory Box
16. Shift Lever
17. Drink Holder
18. Center Console

1. Fuse Box
2. Instrument Cluster
3. Parking Brake Pedal
4. Accelerator Pedal
5. Brake Pedal
6. Multi-Function Light/Front Fog Light Switch
7. Cruise Control Switch (If Installed)
8. Horn and Driver's Airbag
9. Audio Remote Control Switch (If Installed)CAUTION:
When installing a container of liquid air freshener inside the vehicle, do not place it near the instrumentcluster nor on the instrument panel pad surface. If there is any leakage from the air freshener onto theseareas (instrument cluster, instrument panel pad or air ventilator), it may damage these parts. If the liquid from air freshener does leak onto these areas, wash them with water immediately.
! 10. Windshield Wiper/Washer Switch
11. Audio System (If Installed)
12. Passenger's Front Airbag (If Installed)
13. Heating/Air Conditioning Control Panel
14. Glove Box
15. Accessory Box
16. Shift Lever
17. Drink Holder
18. Center Console

6 DO-IT-YOURSELF MAINTENANCE
2
G010A01TG-GATENGINE COMPARTMENT
G010A01TG
CAUTION:
When inspecting or servic- ing the engine, you should handle tools and otherheavy objects carefully so that the plastic cover of the engine is not damaged.
!
1. Coolant reservoir cap
2. Engine oil filler cap
3. Air cleaner
4. Brake fluid reservoir 5. Fuse and relay box
6. Windshield washer fluid reservoir
7. Power steering fluid reservoir
8. Engine oil level dipstick 9. Automatic transaxle oil level dip-
stick
10. Radiator cap
11. Battery

6
DO-IT-YOURSELF MAINTENANCE
21
G190A02NF-GAT
Drive belts should be checked periodi-
cally for proper tension. At the same time, belts should be examined forcracks, wear, fraying or other evidence of deterioration and replaced if neces- sary.
When a new belt is replaced, the belt
should be located within the pulley offlat idler. Belt routing should also be checked
to be sure there is no interferencebetween the belts and other parts of the engine.
NOTE: Drive belt tension is adjusted auto-
matically by the auto tensioner. CHECKING DRIVE BELTS
G140D02NF
Power steeringCOMP
Water pump pully
Generator
Damper pulley
Auto tensioner
CHECKING AND REPLAC- ING FUSES
G200A01A-GAT
Replacing a Fusible Link
A fusible link will melt if the electrical circuits from the battery are ever over- loaded, thus preventing damage to the entire wiring harness. (This couldbe caused by a short in the system drawing too much current.) If this ever happens, have a Hyundai dealerdetermine the cause, repair the sys- tem and replace the fusible link. The fusible links are located in a relay boxfor easy inspection. HNF4004
The parking brake pedal should bechecked periodically for proper stroke.If you feel loose in the parking brake pedal when the parking brake is en- gaged, have your parking brake ad-justed by an authorized Hyundai dealer.CHECKING PARKING BRAKE PEDAL
G185A01TG-GAT
CAUTION:
If the parking brake pedal is not adjusted properly, the vehicle may roll backwards when parking on a steep hill.
!

6 DO-IT-YOURSELF MAINTENANCE
22
1. Turn off the ignition and all other
switches.
2. Open the fuse box and examine each fuse. Remove each fuse by pulling it toward you (a small "fusepuller" tool is contained in the relay and fuse box of the engine room to simplify this operation).
G200B02NF
3. Be sure to check all other fuses even if you find one that appears tohave burned out.G200B01NF-GAT Replacing Accessory Fuse
G200B01TG
The fuse box for the lights and other electrical accessories will be found in the left side of the crash pad. Insidethe box you will find a list showing the circuits protected by each fuse. If any of your car's lights or other electrical accessories stop working, a blown fuse could be the reason. If the fuse has burned out, you will see thatthe metal strip inside the fuse has burned through. If you suspect a blown fuse, follow this procedure:
CAUTION:
When replacing a fusible link, never
use anything but a new fusible link with the same or lower amper- age rating. Never use a piece ofwire or a higher-rated fusible link. This could result in serious dam- age and create a fire hazard.
!

6
DO-IT-YOURSELF MAINTENANCE

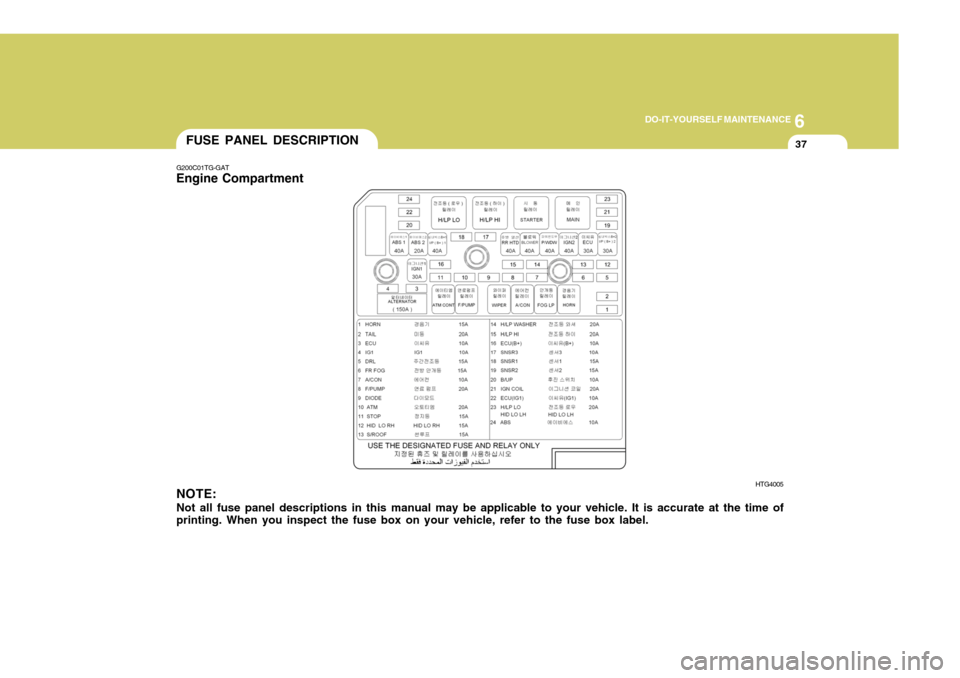

37FUSE PANEL DESCRIPTION
G200C01TG-GAT
Engine Compartment
NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. HTG4005

6 DO-IT-YOURSELF MAINTENANCE
40
PROTECTED COMPONENTS
Fuel lid opener & Trunk lid switch Front lumbar support switch, IMS Control module, Driver/Passenger seat manual switch ATM Key lock control module, Audio, IMS Switch, Accessory relay, Seat/Power outlet relay,
Digital clock & Passenger seat belt IND.
AudioTransaxle range switch, Burglar alarm relay Left front safety window module, Left rear power window switch Right front safety window module, Right rear power window switchRight rear ICM relay boxInstrument cluster, BCM, Rear curtain module, Rain sensor, IMS Control module, Power window main switchBack warning buzzerLeft/Right outside mirror & mirror folding motor, A/C Control module Key solenoid, Power window main switch Rear fog light relayInstrument clusterAir bag cut off switch, SRS Control module(Spare)Tilt & Telescopic module, Sport mode switch Front fog light relay, Left rear combination light, License plate light, Left headlight
FUSE RATING 20A 30A10A 15A 10A 30A30A30A10A15A 10A 20A15A10A15A10A15A 10A 10A
FUSE
T/LID
FR P/SEAT AUDIO-2 AUDIO-1
START
P/WDW LH
P/WDW RH RR P/SEAT MODULE-1
PEDAL ADJ
MIRR HTD KEY SOLRR FOG
A/BAG IND A/BAG
SPARE-2 TILT
TAIL LH
TAIL RHPROTECTED COMPONENTS
Fuel lid opener & Trunk lid switch Front lumbar support switch, IMS Control module, Driver/Passenger seat manual switch ATM Key lock control module, Audio, IMS Switch, Accessory relay, Seat/Power outlet relay,
Digital clock & Passenger seat belt IND.
AudioTransaxle range switch, Burglar alarm relay Left front safety window module, Left rear power window switch Right front safety window module, Right rear power window switchRight rear ICM relay boxInstrument cluster, BCM, Rear curtain module, Rain sensor, IMS Control module, Power window main switchBack warning buzzerLeft/Right outside mirror & mirror folding motor, A/C Control module Key solenoid, Power window main switch Rear fog light relayInstrument clusterAir bag cut off switch, SRS Control module(Spare)Tilt & Telescopic module, Sport mode switch Front fog light relay, Left rear combination light, License plate light, Left headlight Right rear combination light, License plate light, Right headlight
