6 DO-IT-YOURSELF MAINTENANCE
4MAINTENANCE PRECAU- TIONS
!
G020D01TG-GAT Improper or incomplete service may result in problems. This section gives instructions only for the maintenanceitems that are easy to perform.Several procedures should be done byan authorized Hyundai dealer. NOTE: Improper owner maintenance dur- ing the warranty period may affectwarranty coverage. WARNING:
o Performing maintenance work on a vehicle can be dangerous. Youcan be seriously injured while performing some maintenance procedures. If you lack sufficientknowledge and experience or the proper tools and equipment to do the work, have it done by anauthorized Hyundai dealer.
o Working under the hood with the engine running is dangerous. It becomes even more dangerous when you wear jewelry or looseclothing. These can become en- tangled in moving parts and re- sult ininjury. Therefore, if youmust run the engine while work- ing under the hood, make certain that you remove all jewelry (espe-cially rings, bracelets, watches, and necklaces) and all neckties, scarves, and similar loose cloth-ing before getting near the en- gine or cooling fans.
CHECKING THE ENGINE OIL
G030A02O-GAT
Recommended Oil
Engine oil is essential to the perfor-
mance and service of the engine. It is suggested that you check the oil level at least once a week in normal use and more often if you are on a trip ordriving in severe conditions.
The engine oil quality should meet
the following classification.

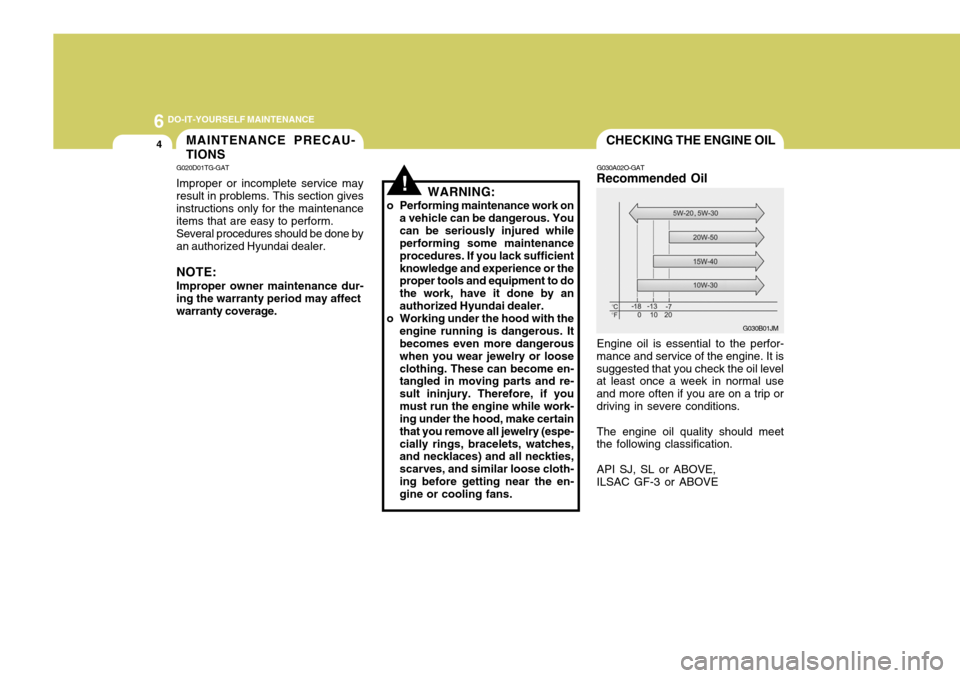

API SJ, SL or ABOVE, ILSAC GF-3 or ABOVE G030B01JM

6
DO-IT-YOURSELF MAINTENANCE
5
NOTE:
o For good fuel economy, SAE 5W-20 (5W-30), ILSAC GF-3 en- gine oil is preferred regardless of regional option and engine variation.
o If SAE 5W-20, ILSAC GF-3 en- gine oil is not available, second-ary recommended engine oil forcorresponding temperature range can be used.
Before checking the oil, warm up the
engine to the normal operating tem- perature and be sure your car is parked on level ground. Turn the en-gine off.
Wait about five minutes, then remove
the dipstick, wipe it off, fully reinsertthe dipstick and withdraw it again.Then note the highest level the oil has reached on the dipstick. It should be between the upper ("F") and lower("L") range.
G030C02JM-AAT

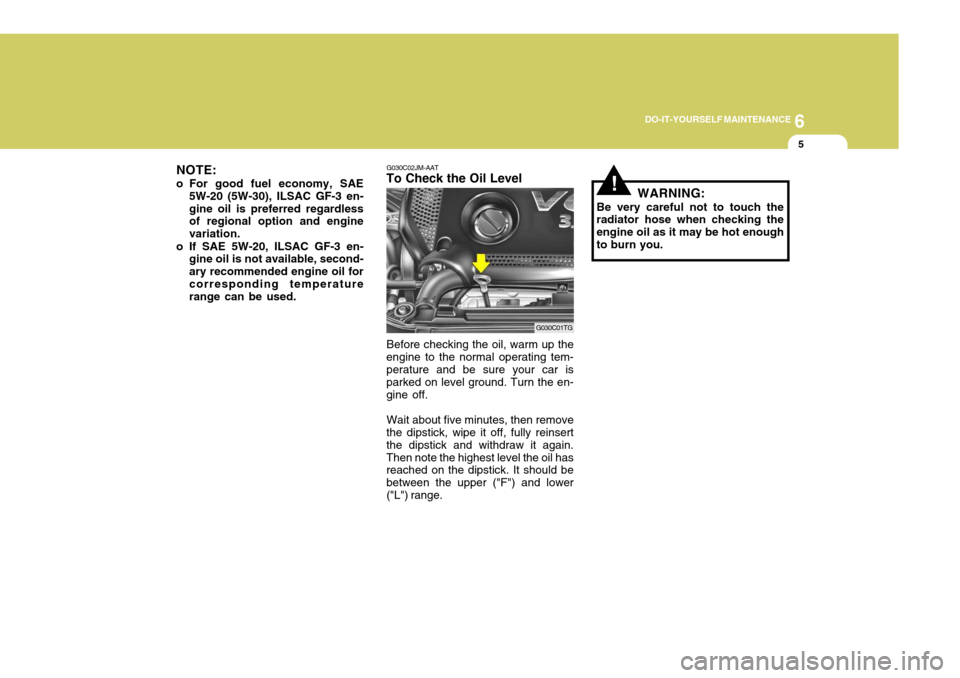

To Check the Oil Level
G030C01TGWARNING:
Be very careful not to touch the radiator hose when checking the engine oil as it may be hot enoughto burn you.
!

6 DO-IT-YOURSELF MAINTENANCE
6
!
!
CAUTION:
Slowly pour the recommended oil using by a funnel. Do not overfill not to damage engine.
WARNING:
Be very careful not to touch theradiator hose when adding the en- gine oil as it may be hot enough to burn you.! NOTE: Always dispose of used engine oil
in an environmentally acceptable manner. It is suggested that it be placed in a sealed container and taken to a service station for recla-mation. Do not pour the oil on the ground or put it into the household trash.
WARNING:
Used motor oil may cause irritationor cancer of the skin if left in contactwith the skin for prolonged periods of time. Wash your hands thoroughly with soap and warm water as soonas possible after handling used oil.
G030D01TG-GAT Adding Oil If the oil level is close to or below the "L" mark, add oil until it reaches the "F" mark. To add oil:
1. Remove the oil filler cap by turning it counterclockwise.
2. Add oil, then check the level again. Do not overfill.
3. Replace the cap by turning it clock- wise.
The distance between the "F" and "L" marks is equal to about 1 liter of oil. G030D01TG

6
DO-IT-YOURSELF MAINTENANCE
7
G350A01A-GAT
ENGINE OIL CONSUMPTION Function of Engine Oil
Engine oil has the primary function of lubricating and cooling the inside of the engine.
Engine oil consumption It is normal that an engine should consume some engine oil while nor- mal driving. The cause of oil con- sumption in a normal engine are asfollows;
o Engine oil is used to lubricate pis- tons, piston rings and cylinders. A thin film of oil is left on the cylinder wall when a piston moves downwards in the cylinder. High negative pressure generated dur-ing engine operation sucks some of the oil into the combustion cham- ber.This oil with some oil of the cylin-der wall is burned by the high tem-perature combustion gases during the combustion process. o The engine oil consumption is
strongly effected by the viscosity and quality of oil, engine rpm and driving condition etc. The engine oil is more consumed under severedriving conditions such as high speeds and frequent acceleration and deceleration than normal driv-ing condition.
!
CHECKING AND CHANGING THE ENGINE COOLANT
G050A01TG-AAT
WARNING:
Do not remove the radiator cap
when the engine is hot. When the engine is hot, the engine coolantis under pressure and may erupt through the opening if the cap is removed. You could be seriouslyburned if you do not observe this precaution. Do not remove the radiator cap until the radiator iscool to the touch.
NOTE: It is recommended that the engine coolant should be changed by an authorized Hyundai dealer.

6 DO-IT-YOURSELF MAINTENANCE
8
!

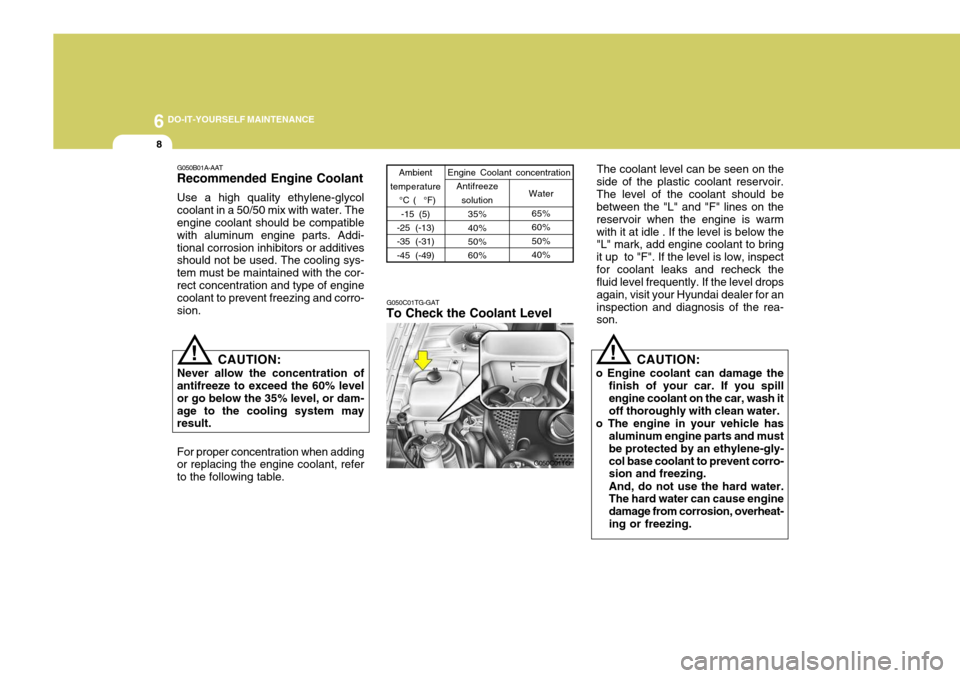

The coolant level can be seen on the
side of the plastic coolant reservoir. The level of the coolant should be between the "L" and "F" lines on the reservoir when the engine is warmwith it at idle . If the level is below the "L" mark, add engine coolant to bring it up to "F". If the level is low, inspectfor coolant leaks and recheck the fluid level frequently. If the level drops again, visit your Hyundai dealer for aninspection and diagnosis of the rea- son.
G050C01TG-GAT
To Check the Coolant Level
G050C01TG
Ambient
temperature °C ( °F)
-15 (5)
-25 (-13) -35 (-31)-45 (-49)
65% 60%50%40%
35%40% 50% 60% Water
Antifreeze
solution
Engine Coolant concentration
CAUTION:
o Engine coolant can damage the finish of your car. If you spill engine coolant on the car, wash it off thoroughly with clean water.
o The engine in your vehicle has aluminum engine parts and mustbe protected by an ethylene-gly-col base coolant to prevent corro- sion and freezing. And, do not use the hard water. The hard water can cause engine damage from corrosion, overheat-ing or freezing.
!
G050B01A-AAT
Recommended Engine Coolant
Use a high quality ethylene-glycol coolant in a 50/50 mix with water. The engine coolant should be compatible with aluminum engine parts. Addi-tional corrosion inhibitors or additives should not be used. The cooling sys- tem must be maintained with the cor-rect concentration and type of engine coolant to prevent freezing and corro- sion.
CAUTION:
Never allow the concentration of antifreeze to exceed the 60% level or go below the 35% level, or dam-age to the cooling system may result. For proper concentration when adding or replacing the engine coolant, refer to the following table.

6 DO-IT-YOURSELF MAINTENANCE
14
CAUTION:
o Radiator antifreeze (engine cool- ant) should not be used in the washer system because it will damage the car's finish.
o The washer lever should not be pulled and the washer shouldnot be operated if the washer reservoir is empty. This can dam-age the washer fluid pump.
!
CHECKING THE TRANSAXLE FLUID (AUTOMATIC)
G110A01E-AAT Transaxle fluid in the automatic
transaxle should be checked at those intervals specified in the vehicle main-tenance schedule in Section 5.
NOTE: Automatic transaxle fluid is basi-
cally red color. As driving distance increases, the fluid color turns dark-ish red gradually. It is a normal condition and you should not judge the need to replace based upon thechanging color.
You must replace the automatic
transaxle fluid in accordance withintervals specified in the vehicle maintenance schedule in section 5.
!WARNING:
o Windshield washer fluid agents contain some amounts of alco- hol and can be flammable under certain circumstances. Do notallow sparks or flame to contact the washer fluid or the washer fluid reservoir. Damage to thevehicle or its occupants could occur.
o Windshield washer fluid is poi- sonous to humans and animals. Do not drink windshield washerfluid. Serious injury or death could occur.

6
DO-IT-YOURSELF MAINTENANCE
15
!
1. Open the hood, being careful to
keep hands, long hair and clothing clear of any moving parts.

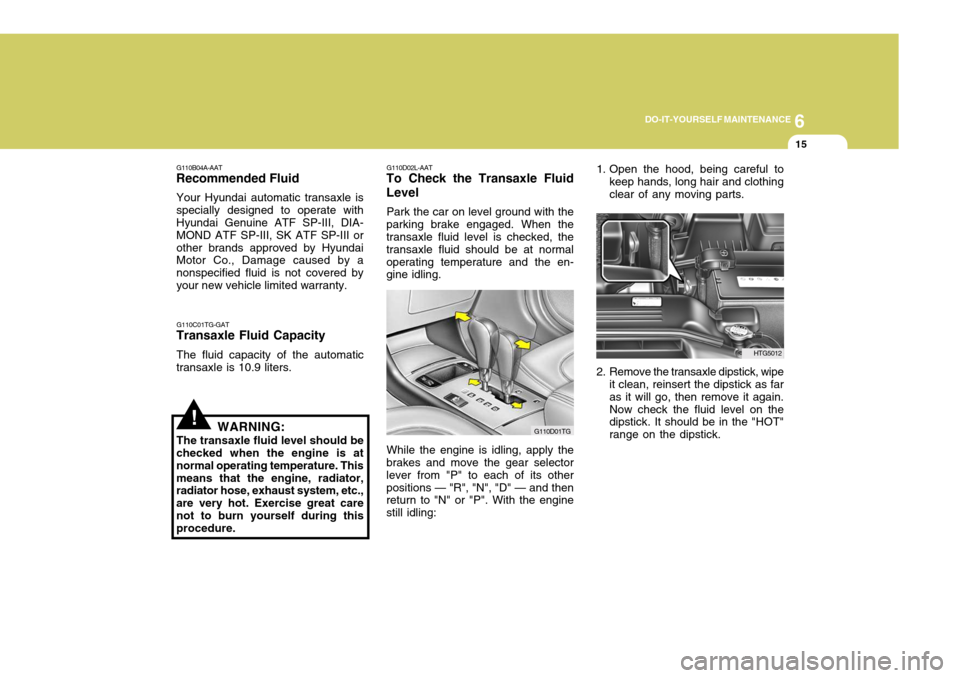

2. Remove the transaxle dipstick, wipe it clean, reinsert the dipstick as faras it will go, then remove it again.Now check the fluid level on the dipstick. It should be in the "HOT" range on the dipstick. HTG5012
G110C01TG-GAT
Transaxle Fluid Capacity
The fluid capacity of the automatic
transaxle is 10.9 liters.
WARNING:
The transaxle fluid level should be
checked when the engine is atnormal operating temperature. Thismeans that the engine, radiator, radiator hose, exhaust system, etc., are very hot. Exercise great carenot to burn yourself during this procedure. G110D02L-AAT
To Check the Transaxle Fluid Level
Park the car on level ground with the
parking brake engaged. When the transaxle fluid level is checked, the transaxle fluid should be at normaloperating temperature and the en- gine idling.
While the engine is idling, apply the
brakes and move the gear selector lever from "P" to each of its otherpositions — "R", "N", "D" — and then return to "N" or "P". With the engine still idling:
G110D01TG
G110B04A-AAT
Recommended Fluid
Your Hyundai automatic transaxle is specially designed to operate with Hyundai Genuine ATF SP-III, DIA- MOND ATF SP-III, SK ATF SP-III orother brands approved by Hyundai Motor Co., Damage caused by a nonspecified fluid is not covered byyour new vehicle limited warranty.

6 DO-IT-YOURSELF MAINTENANCE
16
!
!
G110D02NF

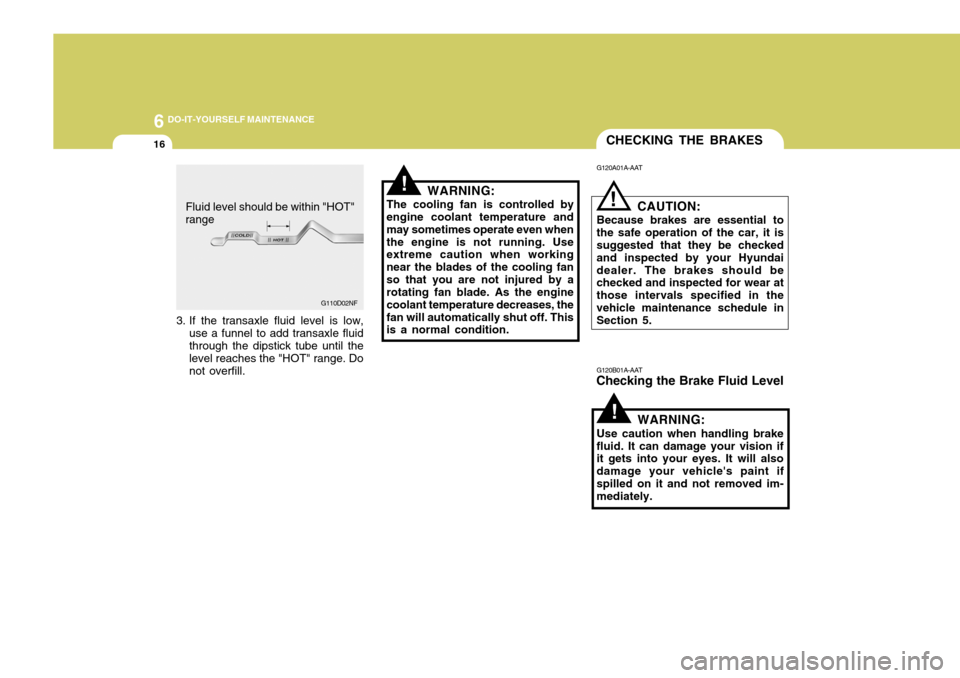

Fluid level should be within "HOT"
range WARNING:
The cooling fan is controlled by engine coolant temperature and may sometimes operate even whenthe engine is not running. Use extreme caution when working near the blades of the cooling fanso that you are not injured by a rotating fan blade. As the engine coolant temperature decreases, thefan will automatically shut off. This is a normal condition.
3. If the transaxle fluid level is low,
use a funnel to add transaxle fluid through the dipstick tube until the level reaches the "HOT" range. Do not overfill.
CHECKING THE BRAKES
G120A01A-AAT G120B01A-AAT
Checking the Brake Fluid Level
! CAUTION:
Because brakes are essential to the safe operation of the car, it is suggested that they be checked and inspected by your Hyundaidealer. The brakes should be checked and inspected for wear at those intervals specified in thevehicle maintenance schedule in Section 5.
WARNING:
Use caution when handling brake fluid. It can damage your vision if it gets into your eyes. It will also damage your vehicle's paint ifspilled on it and not removed im- mediately.
