2005 HONDA CR-V Owners Manual

µ
Ó
Ó
ÓÓ
µ
´
µ
´µ
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
To play the tape when a CD is
playing, insert a tape in the player. If
a tape is in the player, press the
TAPE button. Press the CD button
again to switch back to the CD
player.
To play the radio when a CD is
playing, press the AM or FM button.
Press the CD button again to switch
back to the CD player.
To load or play CDs, the ignition
switch must be in the ACCESSORY
(I) or the ON(II) position.
You operate the CD player with the
same controls used f or the radio. To
select the CD player, press the CD
button. The number of the track
playing is shown in the display. The
system will continuously play a CD
until you change modes.
Insert a CD into the CD slot. The
drive will pull the CD in the rest of
the way to play it. When the system
reaches the end of the disc, it will
return to the beginning and play the
disc again.
You can also play 3-inch (8-cm) discs
without using an adapter ring.
Each time you press and
release the skip button, the player
skips forward to the beginning of the
next track. Press and release the
skip button, to skip backward to the
beginning of the current track. Press
it again to skip to the beginning of
the previous track.
To move rapidly within a track, press
andholdthe or skipbutton.
To continuously replay
a track, press and release the RPT
button. You will see REPEAT in the
display. Press it again to turn it of f .
T o Play a CD T o Change or Select T racks
SK IP
REPEAT
Playing a Disc
110
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.

µ
µ
µ
´
This f eature plays the
tracks in random order. To activate
random play, press and release the
RDM button. You will see RDM in
the display. Press it again to return
to normal play.
The SCAN f unction
samples all the tracks on the disc in
the order they are recorded on the
CD. To activate it, press and hold the
SCAN button. You will see SCAN in
the display. You will get a 10 second
sampling of each track on the CD.
Press the SCAN button again to get
out of the system and play the last
track sampled.
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 10 seconds and put it in
pause mode. To begin playing, press
the CD button. Press the AM or FM button to
switch to the radio while a CD is
playing. To play the CD, press the
CD button.
If a tape is in the tape player, press
the TAPE button to switch to the
tape while a CD is playing. Press the
CD button again to switch back to
the CD player.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the disc will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f .
For inf ormation on how to handle
and protect discs, see page .
An optional six disc CD changer is
available f rom your dealer.
This disc changer uses the same
controls used f or the in-dash CD
player or the radio.
Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with it.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset 5
(DISC ) button to select the
previous disc, or the preset 6 (DISC
) button to select the next disc in
sequence. If you select an empty slot
in the magazine, the changer will
search for the next available CD to
load and play.
134
Playing a Disc
RANDOM
SCAN
T o Stop Playing a CD
Protecting Discs Operating Optional CD Changer
Features
111

If you see an error message in the
display while playing a CD, f ind the
cause in the chart to the right. If you
cannot clear the error message, take
the vehicle to your dealer.
Error
Message Cause Solution
Error
Message Cause Solution
High temperature
No CD in magazine
Focus Error
Mechanical Error
Will disappear when the temperature returns to
normal.
Insert CDs in magazine.
Press the CD eject button and pull out the CDs.
Check f or an error message, and insert the CDs
again. If the message does not disappear or the
CDs cannot be pulled out, see your dealer.
Mechanical Error
High temperature
Focus Error
Press the CD eject button and pull out the CD.
Check it for damage or deformation.
If the CD cannot be pulled out, or the error
message does not disappear after the CD is
ejected, see your dealer.
Will disappear when the temperature returns to
normal.
Press the eject button and pull out the CD.
Check if it is inserted correctly in the CD player.
Make sure the CD is not scratched or damaged.
Disc Player/Changer Error Messages
CD Player
CD Changer
112

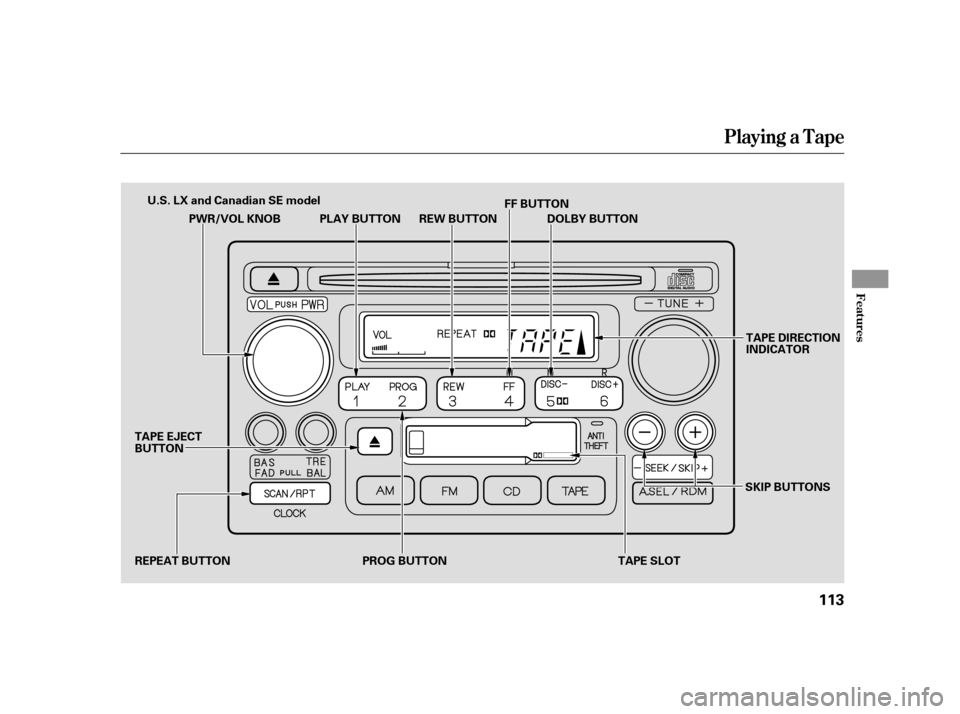

Playing a T ape
Features
113
FF BUTTON
TAPE SLOT
TAPE EJECT BUTTON
TAPE DIRECTION INDICATOR
REPEAT BUTTON
SKIP BUTTONS
DOLBY BUTTON REW BUTTONPLAY BUTTON
PROG BUTTON
PWR/VOL KNOB
U.S. LX and Canadian SE model

Î
Î
Û
µ
µÓ
Ó
µ
´
Dolby noise reduction is manuf actured under
license from Dolby Laboratories Licensing
Corporation. ‘‘DOLBY’’ and the double-D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.
Dolby noise reduction turns on
when you insert a tape. The
indicator will light in the
display. If the tape was not recorded
in Dolby, turn it of f by pressing the
button. Dolby remains of f until
you press the button again.
To remove the tape, press the eject
button. If you want to turn the player
off, press the PWR/VOL knob or
turn off the ignition. The tape will
remain in the drive. When you turn
the system back on, the tape will
begin playing where it lef t of f .
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Make sure the open side of
thetapeisfacingright,theninsert
thetapemostof thewayintotheslot.
Thesystemwillpullthetapeinthe
rest of the way and begin to play it.
Thetapedirectionindicatorinthe
display comes on to show you which
side of the tape is playing. The
indicates the side you inserted
upward is now playing. If you want to
play the other side, press the PROG
button. When the player reaches the
end of the tape, it will automatically
reverse direction and play the other
side.
To switch to the radio or CD player
while a tape is playing, press the AM,
FM, or CD button. To change back
to the tape player, press the TAPE
button.
To rewind the tape,
push the REW button. You will see
REW in the display. To fast forward
the tape, push the FF button. You
will see FF displayed. Press the FF,
REW, or PLAY button to take the
system out of rewind or f ast f orward.
Press the button to find
the beginning of the current song or
passage. Press the button to f ind
the beginning of the next song or
passage. When the system reaches
the beginning of a song or passage, it
begins to play it.
To Play a Tape
To Stop Playing a Tape
T ape Search Functions
FF/REW
SK IP
Playing a T ape
114

µ
Thetapeplayerpicksupdirtand
oxides f rom the tape. This
contamination builds up over time
and causes the sound quality to
degrade. To prevent this, you should
clean the player af ter every 30 hours
of use.
If you do not clean the tape player
regularly, it may eventually become
impossible to remove the
contamination with a normal
cleaning kit. Your dealer has a
cleaning kit available.
Use 100-minute or shorter tapes.
Tapes longer than that may break or
jam the drive.
Store tapes in their cases to protect
them f rom dust and moisture. Never
placetapeswheretheywillbe
exposed to direct sunlight, high heat,
or high humidity. If a tape is exposed
to extreme heat or cold, let it reach a
moderate temperature bef ore
inserting it into the player.
If the tape is loose, tighten it by
turning the hub with a pencil or your
f inger. If the label is peeling of f ,
remove it or it could cause the tape
to jam in the player. Never try to
insert a warped or damaged tape in
the player.
Never try to insert f oreign objects
into the tape player.
Press the RPT button
to continuously play a song or
passage. You will see REPEAT
displayed. The track will repeat until
you press the RPT button again.
The skip and repeat
f unctions use silent periods on the
tape to find the end of a song or
passage. These f eatures may not
work if there is almost no gap
between selections, a high noise
level, or a silent period in the middle
of a selection.
If you see the error message
‘‘ ’’ on the display, press the
tape eject button to remove the tape
from the unit. Make sure the tape is
not damaged. If the tape will not
eject or the error message stays on
after the tape ejects, take your
vehicle to your dealer.
Caring f or the T ape and Player REPEAT
Playing a T ape
Features
115
NOTE:

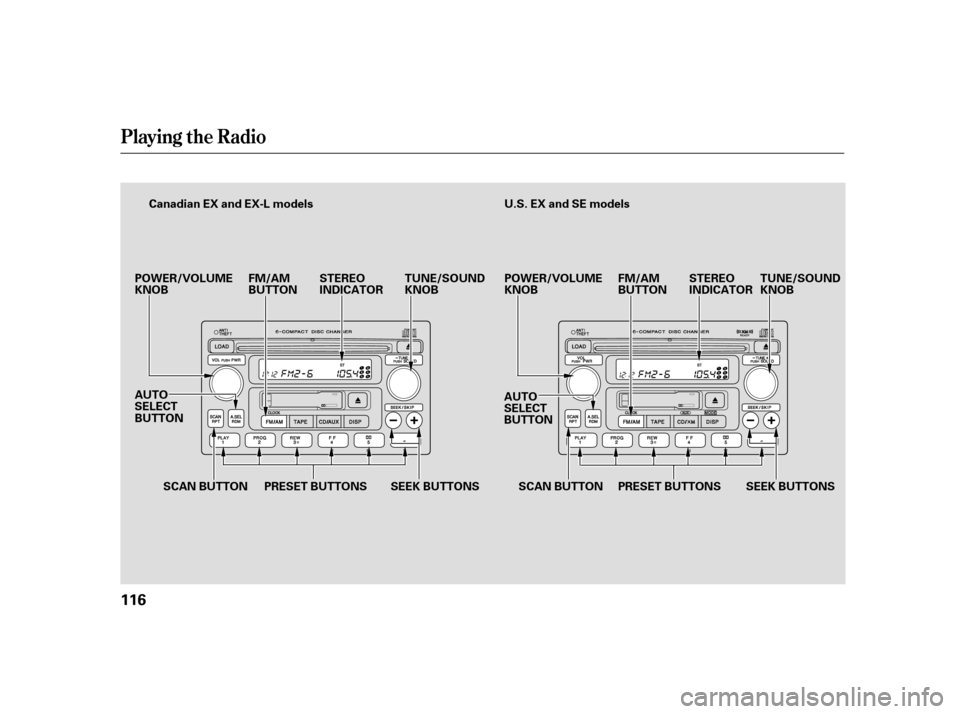

Playing the Radio
116
Canadian EX and EX-L models U.S. EX and SE models
SEEK BUTTONS
POWER/VOLUME KNOB FM/AM BUTTON STEREO INDICATOR TUNE/SOUND KNOB
AUTO SELECTBUTTON
POWER/VOLUME KNOB FM/AM BUTTON STEREO INDICATOR
AUTO SELECTBUTTON
SCAN BUTTON PRESET BUTTONS SEEK BUTTONS
TUNE/SOUND KNOB
PRESET BUTTONS SCAN BUTTON

µ
µ
µ ÓÓ
´µ
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station for about 5 seconds.
If you do nothing, the system will
scan f or the next strong station and
play it f or 5 seconds. When it plays a
station you want to listen to, press
the SCAN button again.
You can use any of f ive methods to
f ind radio stations on the selected
band:
the
preset buttons, and .
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency.
The SEEK f unction
searches up and down f rom the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button, then
release it.
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushingthePWR/VOLknoborthe
FM/AM button. Adjust the volume
by turning the PWR/VOL knob.
The band and f requency that the
radio was last tuned to is displayed.
To change bands, press the FM/AM
button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.
XM satellite radio inf ormation is
available on page .
120
Optional f or U.S. EX and SE models.
To Play the Radio SCAN
TUNE,SEEK,SCAN, AUTO SELECT
To Select a Station
TUNE
SEEK
Playing the Radio
Features
117
