2005 HONDA ACCORD COUPE Owners Manual

ÛÝ
The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
ON button. The indicator in the
button comes on when a f an speed
is selected.
Make sure the temperature
control dial or button is set to
maximum cool.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed. Press the A/C button, the Manual
Operation A/C screen will appear.
Select the ON icon on the display.
Select the desired temperature
and MODE selections. If the
outside air is humid, select the
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in Fresh Air mode.
Select .
When you select , the system
automatically switches to the
Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial.
Press the A/C button, the manual
operation of A/C screen will
appear.
Select the desired mode and f an
speed icons on the display.
Adjustforwarmthwiththe
temperature buttons ( or ). To cool the interior with MAX A/C:
Set the f an to the desired speed.
Select the MAX A/C mode.
The system automatically turns on
the A/C, selects and
switches to Recirculation mode.
Make sure the temperature
control dial is all the way to the left.
1. 2. 3. 4. 5.
1.2. 3. 1.2. 3.
1. 2. 3. 1.2. 3.
65
If the interior is very warm,
On all models except EX-L and EX-V6
Except EX-L and EX-V6 with Navigation
System Except EX-L and EX-V6 with Navigation SystemEX-L and EX-V6 with Navigation System
EX-L and EX-V6 with Navigation System
Using the Heater Using the A /C
Vents, Heating, and A/C
Features
111
——y

y
(y

y

Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.Turn the fan on.
Turn on the air conditioning.
Select and Fresh Air mode.
Adjust the temperature control
dial or buttons to your pref erence.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). To remove f og f rom the inside of the
windows:
Set the f an to the desired speed or
high f or f aster def rosting.
Select . When you select , the system automatically
switches to Fresh Air mode and
turns on the A/C. The A/C
indicator will not come on in U.S.
vehicles.
Set the temperature control dial or
buttons so the airflow feels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the side vents.
When you switch to another mode
f rom , the A/C stays on.
Press the A/C button to turn it of f . Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel below it. This will
send more warm air to the
windshield def roster vents. Once the
windshield is clear, select the Fresh
Air mode to avoid f ogging the
windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
1.2.3.4.
1. 2. 3. 4.5.1. 2. 3.
Dehumidif y the Interior T o Def og and Def rost T o Remove Exterior Frost or Ice
From the Windows
Vents, Heating, and A/C
112
——y

y
(y

y

µ
Û
Ý The system automatically selects the
proper mix of conditioned and/or
heated air to raise or lower the
interior temperature to the
temperature you selected.
If you set the temperature to its
lowest limit, (Lo) or its highest limit,
(Hi) the system runs at f ull cooling
or heating only. It does not regulate
the interior temperature.
In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
When
the indicator in the Dual button is on,
the driver’s side and passenger’s side
temperature can be controlled
independently (see page ).
The automatic climate control
system adjusts the f an speed and
airflow levels to maintain the interior
temperature you select.
In the AUTO mode, the vehicle’s
interior temperature is
independently regulated f or the
driver and passenger. If the driver’s
side of the vehicle is getting too
much sun, the system will adjust to a
lower temperature.
Press the AUTO button.
Set the
desired temperature by turning
the Temperature Control dial. You
will see AUTO in the system’s
display. Set the
desired temperature by pressing
the to raise the temperature or
to lower the temperature. The
selected temperature will show in
the upper display.
115Dual Temperature Control
On models with Navigation System
Without Navigation System:
With Navigation System:
On EX-L and EX-V6 models
Vents, Heating, and A/C
Automatic Climate Control
Features
113
——y

y
(y

y

µ µ
If you press OFF, the Climate
Control system shuts of f completely.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
When the Climate Control System is
turned OFF, the temperature in the
upper display will also turn of f .
Turningthefanspeedand
temperature control dials all the way
to the left shuts off the system
completely.
You can manually select various
functions of the automatic climate
controlsystemwhenitisinAUTO.
All other f eatures remain
automatically controlled.
Manual selections will cause the
word AUTO in the display to go out.
Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause f ogging.
If you press the A/C button next to
the display, the manual selections
will show in the display. Manual
selection will cause the light in the
AUTO button to turn of f .
With Navigation System Except f or EX and EX-V6 models
EX-L and EX-V6 without Navigation
System
EX-L and EX-V6 with Navigation System
Vents, Heating, and A/C
Manual Operation To Turn Everything Of f
114
——y

y
(y

y

Without Navigation SystemWith Navigation System
On EX-L and EX-V6 models
Your vehicle has two temperature
control dials, one f or the driver, and
one f or the passenger.
Your vehicle has four temperature
control buttons, two f or the driver,
and two f or the passenger.
Thedriver’ssideandthepassenger’s
side can be controlled independently
by adjusting these dials or buttons
when the green indicator in the
DUAL button is lit.
Push AUTO or . The selected
temperatures appear in the upper
display. For vehicles with navigation
system when the indicator in the
DUALbuttonisoff,youcanadjust
both sides to the same temperature
by adjusting the driver’s side
temperature control dial or buttons.
CONT INUED
Dual Temperature Control
T emperat ure Cont rol Dials/But t ons
Features
115
DUAL BUTTON
Without Navigation System
DUAL BUTTON
DRIVER’S SIDE
TEMPERATURE
CONTROL BUTTONS PASSENGER’S SIDE
TEMPERATURE
CONTROL BUTTONS
With Navigation System
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
——y
y
(y

y

ÛÝÛÝ

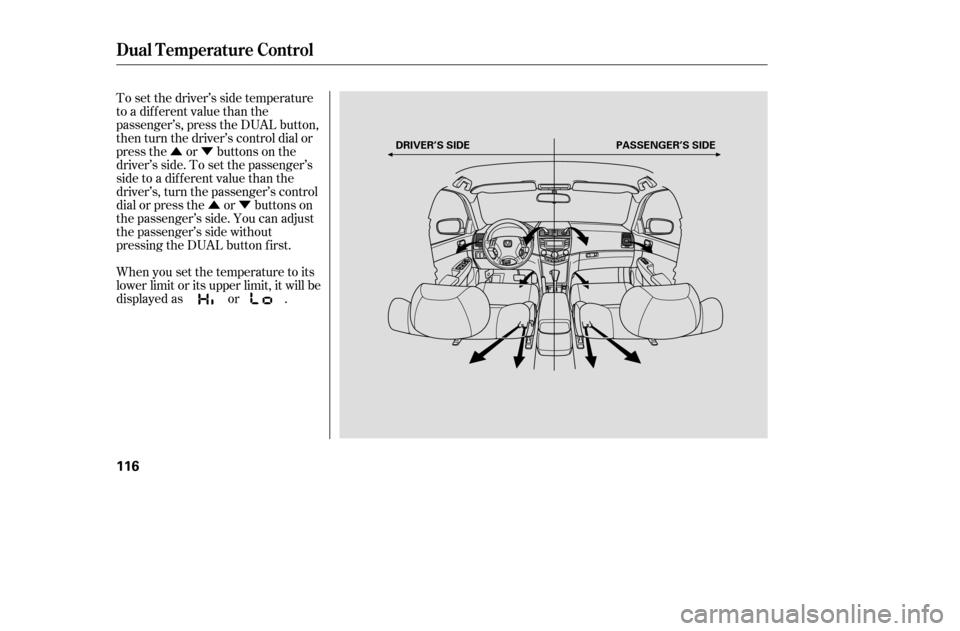

To set the driver’s side temperature
to a different value than the
passenger’s, press the DUAL button,
then turn the driver’s control dial or
press the or buttons on the
driver’s side. To set the passenger’s
side to a dif f erent value than the
driver’s, turn the passenger’s control
dial or press the or buttons on
the passenger’s side. You can adjust
the passenger’s side without
pressing the DUAL button first.
When you set the temperature to its
lower limit or its upper limit, it will be
displayed as or .
Dual Temperature Control
116
DRIVER’S SIDE PASSENGER’S SIDE
——y

y
(y

y

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Sensors
Features
117
SUNLIGHT SENSOR
TEMPERATURE SENSOR
——y
y
(y
y

Playing the Radio
118
DX and LX ModelsSOUND BUTTON
SEEK BAR TUNE BAR
SEEK BAR SOUND BUTTON
EX and LX-V6 Models without Navigation System
AM/FM
BUTTON A.SEL
BUTTON
PWR/VOL KNOB
STEREO INDICATOR
SCAN BUTTON AM/FM BUTTONSTEREO INDICATOR
A.SEL
BUTTON
TUNE BAR
PRESET BARS PRESET
BARS
SCAN BUTTON PWR/VOL KNOB
