2005 GMC SIERRA Owner's Manual

Headlamps
To replace a headlamp bulb, do the following:
1. If your vehicle is equipped with two pins, remove
the two pins on the top of the headlamp assembly.
To remove the pins, turn the outer pin outward
and pull it straight up. To remove the inner pin, turn
it in and pull it straight up.If your vehicle has one pin on the headlamp
assembly, remove the pin. To remove the pin, turn
the pin up and pull it out straight out.
5-63

A. Low-Beam Headlamp
B. High-Beam Headlamp
2. Pull the headlamp assembly out.
3. Unplug the electrical connector.
4. Turn the old bulb counterclockwise and remove it
from the headlamp assembly.
5. Put the new bulb into the assembly and turn it
clockwise until it is tight. Use care not to touch
the bulb with your ngers or hands.
6. Plug in the electrical connector.
7. Put the headlamp assembly back into the vehicle.
8. Install and tighten the two pins. If your vehicle
has one pin, install it and turn it into the locking
feature.
Front Turn Signal, Sidemarker and
Daytime Running Lamps
A. Sidemarker Lamp
B. Retainer Clip
C. Front Turn Signal Lamp
D. Daytime Running Lamp (DRL)
To replace a front turn signal, sidemarker or DRL bulb,
do the following:
1. Remove the headlamp assembly as described
previously. SeeHeadlamps on page 5-63for
more information.
5-64

2. Press the retainer clip (B), located behind the turn
signal housing, towards the outside of the vehicle.
3. Pull the turn signal housing out of the vehicle.
4. Press the locking release lever, turn the bulb socket
counterclockwise and remove it from the turn signal
housing.
5. Remove the old bulb from the bulb socket.
6. Put a new bulb into the bulb socket. Use care not
to touch the bulb with your ngers or hands.7. Put the bulb socket back into the turn signal
housing and turn it clockwise until it locks.
8. Put the turn signal housing back into the vehicle
placing the hook and posts on the inner side into
the alignment holes rst, then the outer side into the
retainer bracket until you hear a click.
9. Put the headlamp assembly back into the vehicle.
Roof Marker Lamps
To replace a roof marker lamp bulb, do the following:
1. Remove the two
screws and lift
off the lens.
5-65

2. Remove the six screws on the center roof
marker lamps.
3. Turn the old bulb counterclockwise to remove it
from the socket.4. Put a new bulb into the
socket and turn
clockwise until it locks
in place.
5-66

5. Reinstall the lens and tighten the screws.
Center High-Mounted Stoplamp
(CHMSL) and Cargo Lamp
To replace a center high-mounted stoplamp (CHMSL)
bulb, do the following:
1. Remove the screws and lift off the lamp assembly.
5-67

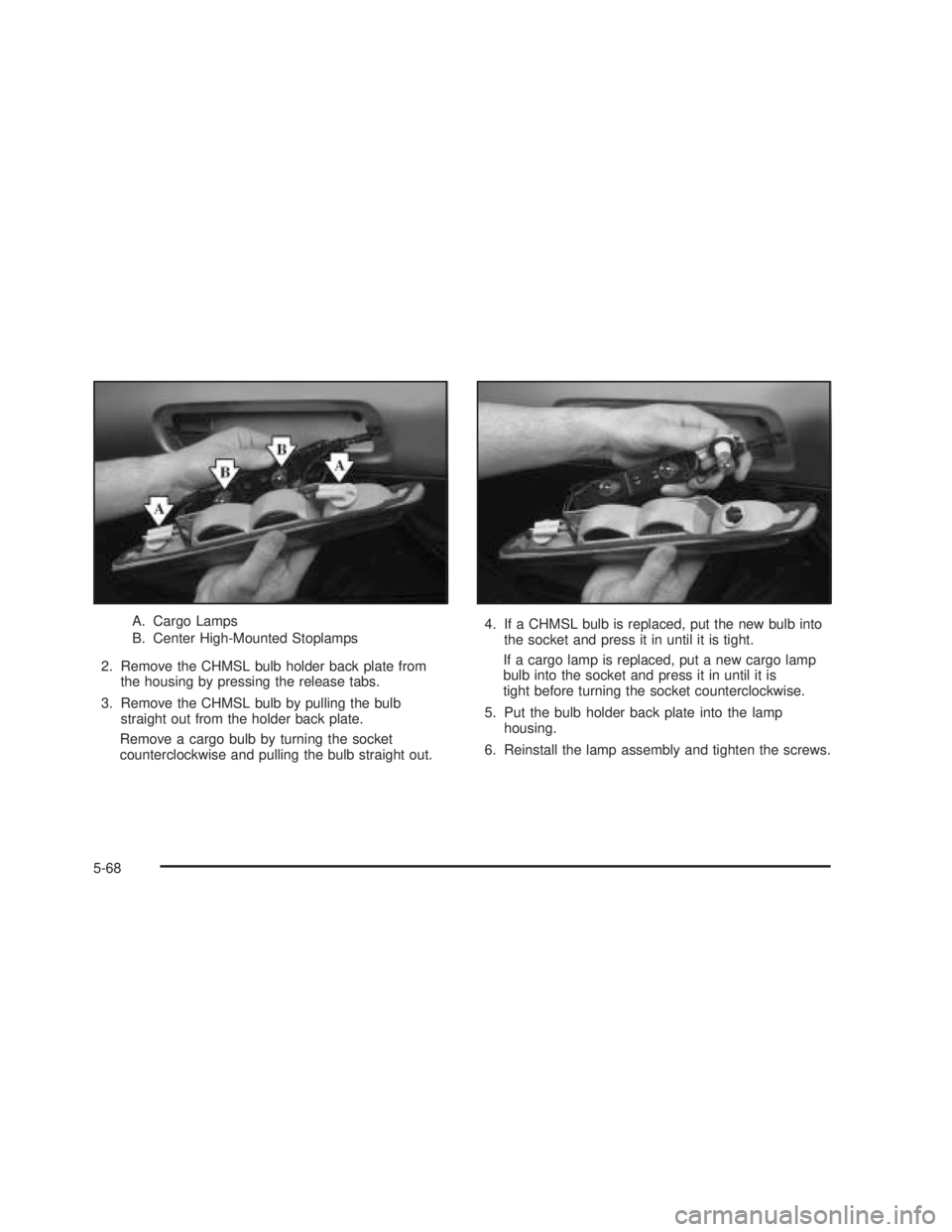

A. Cargo Lamps
B. Center High-Mounted Stoplamps
2. Remove the CHMSL bulb holder back plate from
the housing by pressing the release tabs.
3. Remove the CHMSL bulb by pulling the bulb
straight out from the holder back plate.
Remove a cargo bulb by turning the socket
counterclockwise and pulling the bulb straight out.4. If a CHMSL bulb is replaced, put the new bulb into
the socket and press it in until it is tight.
If a cargo lamp is replaced, put a new cargo lamp
bulb into the socket and press it in until it is
tight before turning the socket counterclockwise.
5. Put the bulb holder back plate into the lamp
housing.
6. Reinstall the lamp assembly and tighten the screws.
5-68

Pickup Box Identication and
Fender Marker Lamps
To replace a pickup box identication or fender marker
lamp bulb, do the following:
1. Remove the screws and lamp assembly.
2. Unplug the lamp assembly harness.
3. Gently pry the individual lamp from the lamp
housing.
4. Unplug the lamp.
5. Plug in a new lamp and snap it into the housing.
6. Reinstall the lamp housing.
Taillamps
To replace a taillamp bulb, do the following:
1. Open the tailgate.Tailgate on page 2-15for more
information.2. Remove the two rear
lamp assembly screws
near the tailgate
latch and pull out the
lamp assembly.
3. Determine which of the following taillamp assembly
applies to your vehicle.
A. Stoplamp
B. Turn Signal
C. Back-up Lamp
5-69

A. Stoplamp
B. Turn Signal Lamp
C. Back-up Lamp
D. Sidemarker Lamp4. Press the release tab,
if equipped, and turn
the bulb socket
counterclockwise to
remove it from
the taillamp housing.
5. Pull the old bulb straight out from the socket.
6. Press a new bulb into the socket and turn the socket
clockwise into the taillamp housing.
7. Reinstall the rear lamp assembly.
8. Close the tailgate.
5-70
