2005 FORD FREESTAR Owners Manual

This switch is located behind the
service panel on the right side of
the cargo area.
To reset the switch:
1. Turn the ignition OFF.
2. Check the fuel system for leaks.
3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.
4. Turn the ignition ON.
5. Wait a few seconds and return
the key to OFF.
6. Make another check for leaks.
FUSES AND RELAYS
Fuses
If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.
Note:Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.
15
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
233

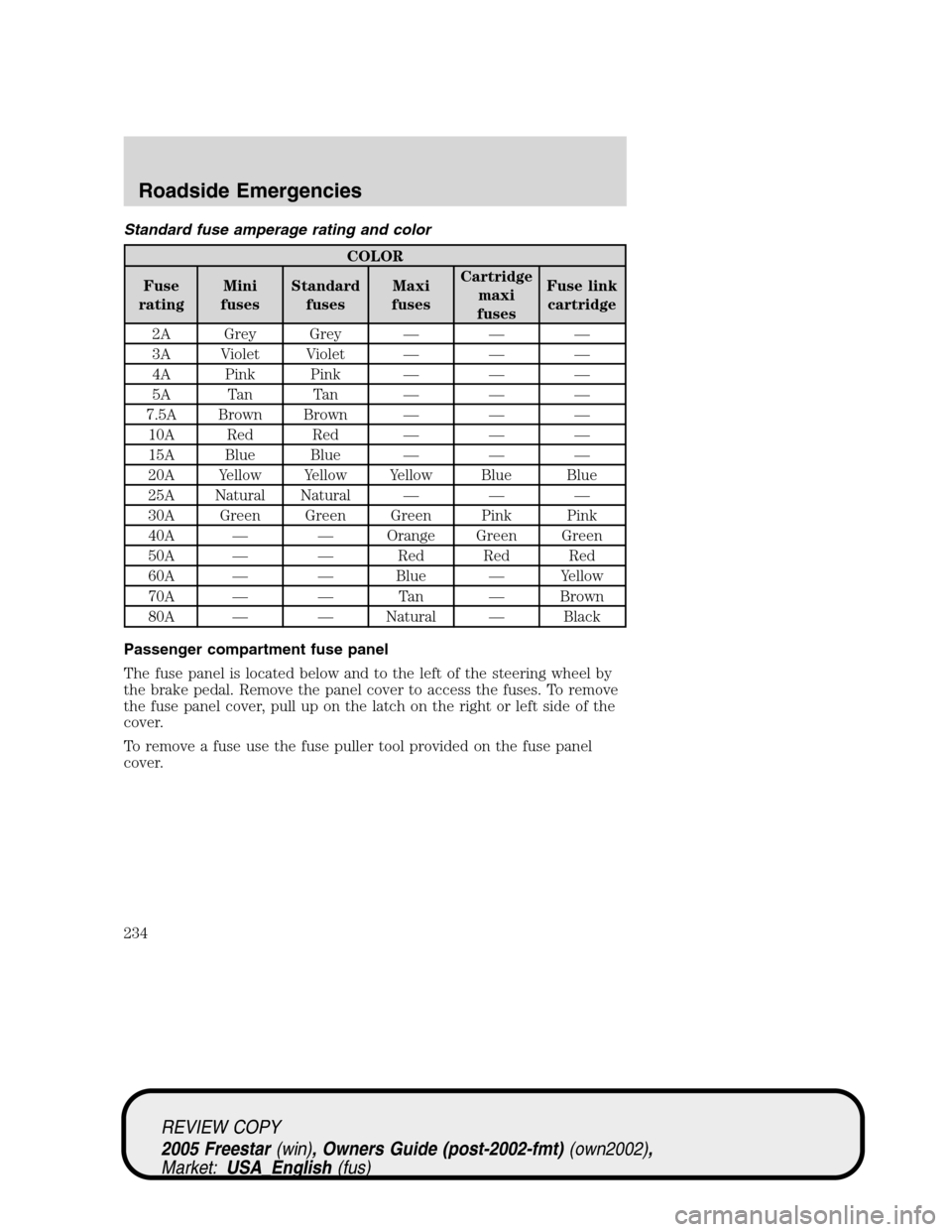

Standard fuse amperage rating and color
COLOR
Fuse
ratingMini
fusesStandard
fusesMaxi
fusesCartridge
maxi
fusesFuse link
cartridge
2A Grey Grey———
3A Violet Violet———
4A Pink Pink———
5A Tan Tan———
7.5A Brown Brown———
10A Red Red———
15A Blue Blue———
20A Yellow Yellow Yellow Blue Blue
25A Natural Natural———
30A Green Green Green Pink Pink
40A——Orange Green Green
50A——Red Red Red
60A——Blue—Yellow
70A——Ta n—Brown
80A——Natural—Black
Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses. To remove
the fuse panel cover, pull up on the latch on the right or left side of the
cover.
To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
234

The fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
1 Relay Accessory delay relay 1
2 Relay Accessory delay relay 2
3 10A Front wiper motor Run feed
4 5A B+ feed to outside mirrors
5 20A Vent window power feed/Radio feed
6 5A Driver door switch illumination/Passenger
door switch illumination
7 10A Rear wiper Run feed
8 10A Cluster/Electronic Automatic Temperature
Control (EATC) B+ feed, DVD
9 10A Passive Anti-theft System (PATS) LED
feed
10 5A Auxiliary radio
11 5A Auxiliary climate control system/Power
Liftgate Module/Left and right power
sliding door module/Data Link Connector
(DLC)/Clock B+ feeds
12 5A Brake-Shift Interlock (BSI) Run feed,
Climate control system Run feed
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
235

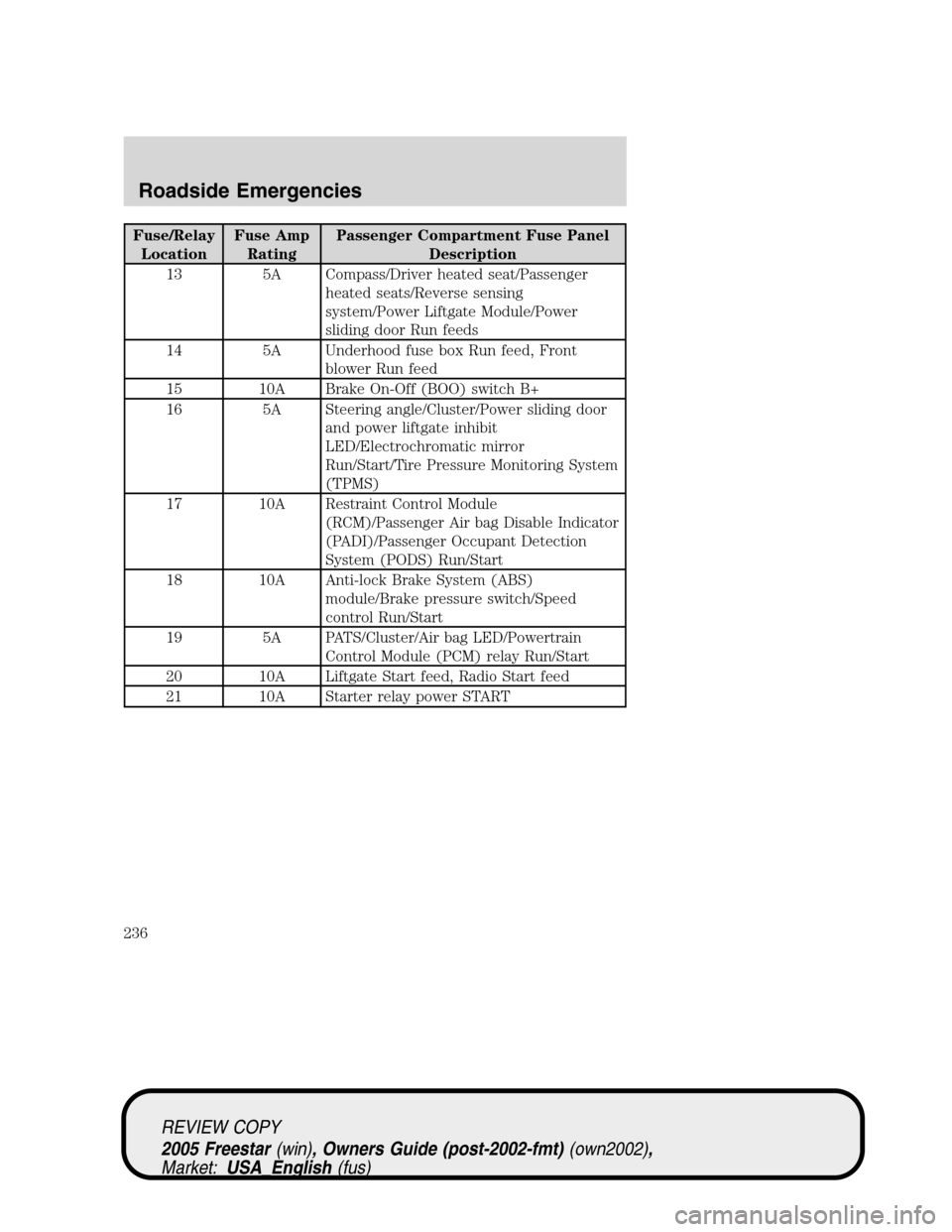

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
13 5A Compass/Driver heated seat/Passenger
heated seats/Reverse sensing
system/Power Liftgate Module/Power
sliding door Run feeds
14 5A Underhood fuse box Run feed, Front
blower Run feed
15 10A Brake On-Off (BOO) switch B+
16 5A Steering angle/Cluster/Power sliding door
and power liftgate inhibit
LED/Electrochromatic mirror
Run/Start/Tire Pressure Monitoring System
(TPMS)
17 10A Restraint Control Module
(RCM)/Passenger Air bag Disable Indicator
(PADI)/Passenger Occupant Detection
System (PODS) Run/Start
18 10A Anti-lock Brake System (ABS)
module/Brake pressure switch/Speed
control Run/Start
19 5A PATS/Cluster/Air bag LED/Powertrain
Control Module (PCM) relay Run/Start
20 10A Liftgate Start feed, Radio Start feed
21 10A Starter relay power START
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
236

Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.
Always disconnect the battery before servicing high current
fuses.
Always replace the cover to the power distribution box before
reconnecting the battery or refilling fluid reservoirs
If the battery has been disconnected and reconnected, refer to the
Batterysection of theMaintenance and Specificationschapter.
To remove the cover of the power distribution box, pull the release
latches at both ends of the cover, then pull the cover up.
The high-current fuses are coded as follows:
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
1—Not used
2 30A** Right cooling fan
3 30A** Left cooling fan
4 30A** Starter solenoid
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
237

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
5 30A** Right-hand power sliding door
6 30A** SJB accessory #2 (driver power
window)
7 30A** Auxiliary blower motor
8 40A** Anti-lock Brake System (ABS) #2 (coil
power)
9 30A** Power liftgate
10 30A** SJB accessory #1 (passenger window,
radio, vent windows)
11 30A** Left power seat/heated seat
12 40A** ABS #1 (pump motor)
13 40A** Rear defroster
14 30A** Front climate control system blower
motor
15 30A** Right power seat/heated seat
16 30A** Left-hand power sliding door
20 Mini relay Powertrain Control Module (PCM)
power
21 Mini relay Horn
22 Micro relay A/C clutch
23 Micro relay High beams
24 Mini relay Starter
25 Micro relay Fuel pump
26—Not used
27—Not used
28 Mini relay Auxiliary blower
29 Micro relay Trailer park lamps
30 Micro relay Left trailer stop/turn lamps
31 Micro relay Right trailer stop/turn lamps
32 Mini relay Rear defroster
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
238

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
40 15A* Engine #1 (A/C relay coil, IMRC, HEGO
sensors, Canister purge, Transaxle,
Canister vent)
41 25A* Horn
42 10A* A/C clutch
43 15A* Engine #2 (Cooling fan relays, Injectors,
PCM, MAF sensor, IAC, Ignition coil,
ESM)
44 10A* Heated PCV
45 15A* High beams
46 20A* Trailer stop/turn lamps
47 15A* Fuel pump driver module
48—Not used
49 10A* PCM KAP
50 10A* Alternator
51 10A* Adjustable pedals (non-memory) or
memory module
52 20A* Trailer tow park lamps
53 10A* Heated mirrors
54 30A* Front wiper motor
55 25A* Rear wiper motor
56 30A* Premium sound radio
57 20A* Cigar lighter
58 30A* SJB #1–Center High-Mounted Stop
Lamp (CHMSL), License plate lamps,
OBD II, Dome lamp, Auxiliary blend
doors, Switch illumination (feeds
F–8, F–9, F–10 and F–11)
59 20A* Radio (non-premium)
60 30A* SJB #4–Back-up lamps, Door locks
61 20A* 3rd row power point
REVIEW COPY
2005 Freestar(win), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Roadside Emergencies
239

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
62 30A* SJB #3–Right cornering/auxiliary
lamps, Right low beam, Left front
park/turn lamps, Left rear
park/stop/turn lamps, Instrument panel
courtesy lamps, Step well lamps, Left
signal mirror, Clock, Cluster, Message
center (SJB F–15), Switch illumination
for: overhead console, DVD/Rear climate
control system, Headlamp switch
illumination, Climate control
illumination
63 20A* Instrument panel power point
64 20A* Ignition switch #1 feed
65 30A* SJB #2–Left cornering/auxiliary lamps,
Left low beam, Right front park/turn
lamps, Right rear park/stop/turn lamps,
Puddle lamps, Mirror signals, Visors,
2nd and 3rd row lamps, Cargo lamp,
Defroster indicator
66 20A* 2nd row seat power point
67 20A* Ignition switch #2 feed
70—Not used
71—Not used
72—Not used
73—Not used
74—Not used
75 Diode PCM
76 Diode A/C clutch
* Mini Fuse ** Cartridge Fuse
