2005 FORD F250 SUPER DUTY Owners Manual

Page 41 of 312

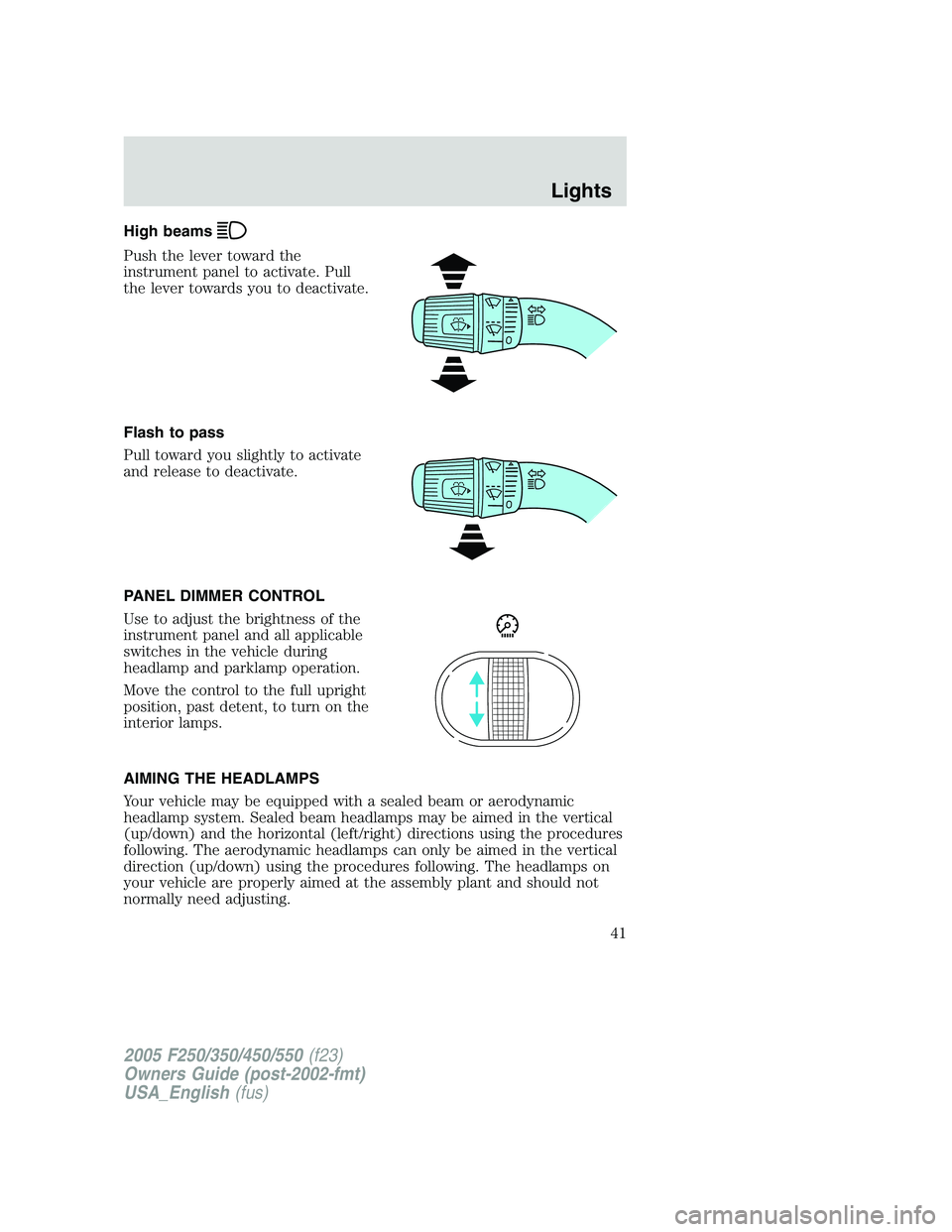

FORD F250 SUPER DUTY 2005  Owners Manual High beams
Push the lever toward the
instrument panel to activate. Pull
the lever towards you to deactivate.
Flash to pass
Pull toward you slightly to activate
and release to deactivate.
PANEL DIMMER

Page 42 of 312

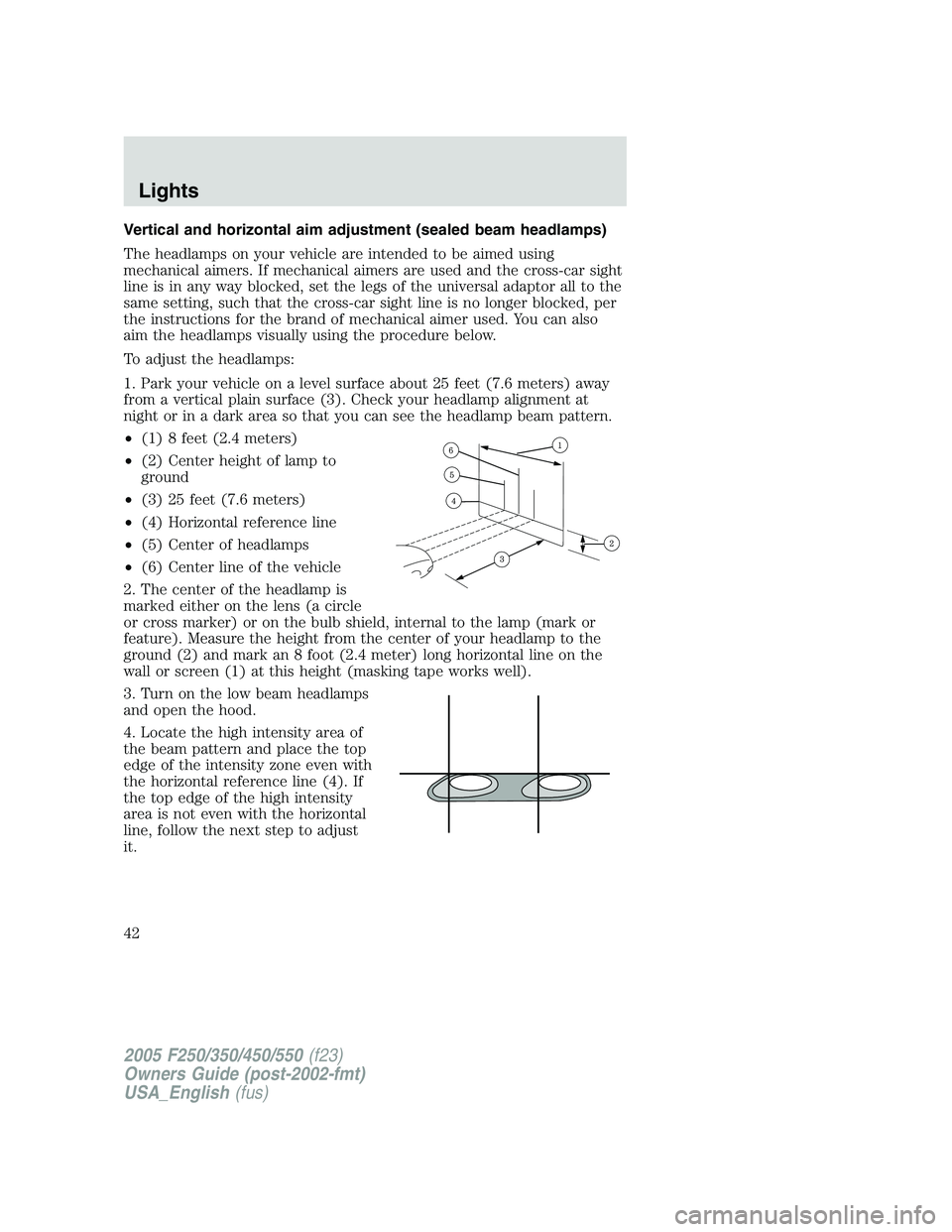

FORD F250 SUPER DUTY 2005  Owners Manual Vertical and horizontal aim adjustment (sealed beam headlamps)
The headlamps on your vehicle are intended to be aimed using
mechanical aimers. If mechanical aimers are used and the cross-car sight
lin

Page 43 of 312

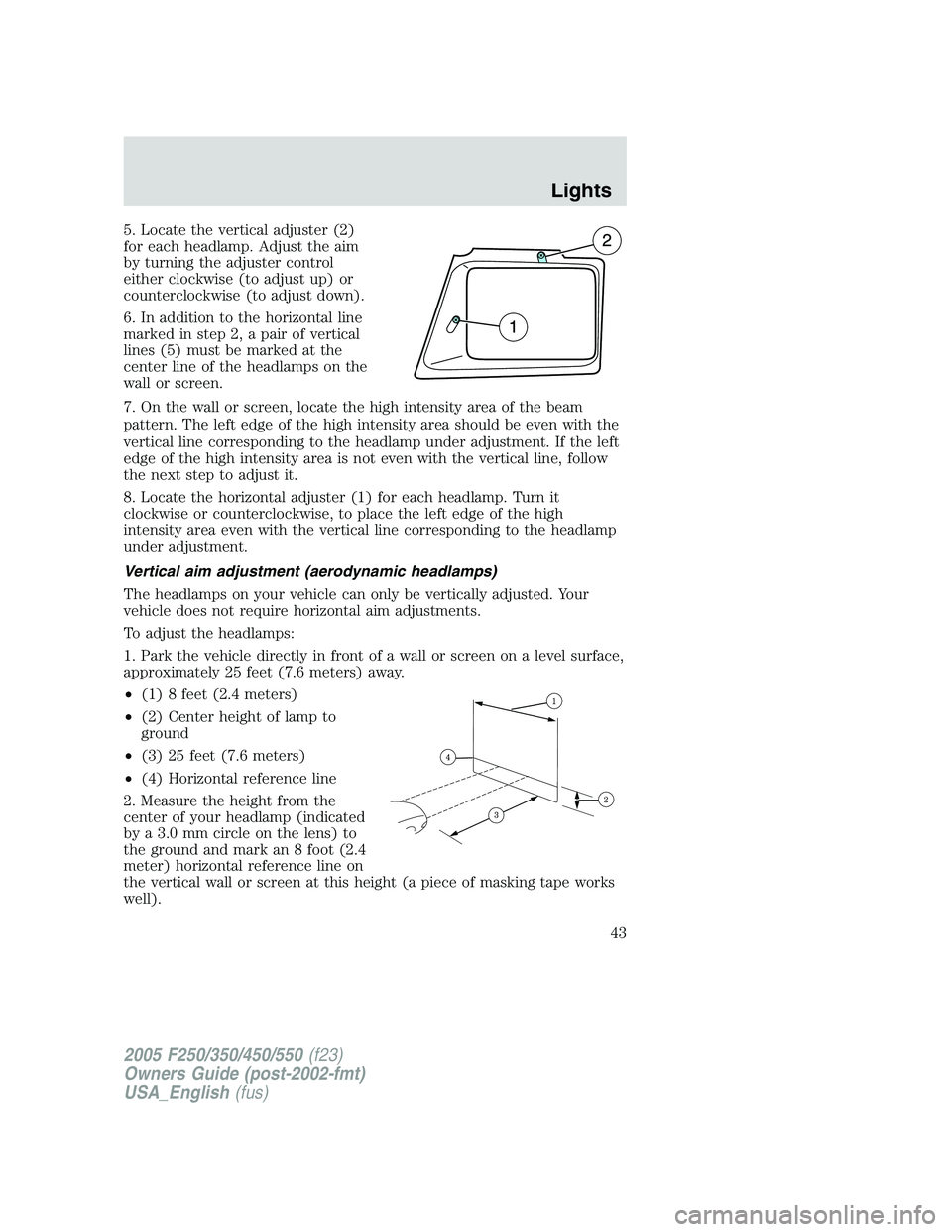

FORD F250 SUPER DUTY 2005  Owners Manual 5. Locate the vertical adjuster (2)
for each headlamp. Adjust the aim
by turning the adjuster control
either clockwise (to adjust up) or
counterclockwise (to adjust down).
6. In addition to the horizo

Page 44 of 312

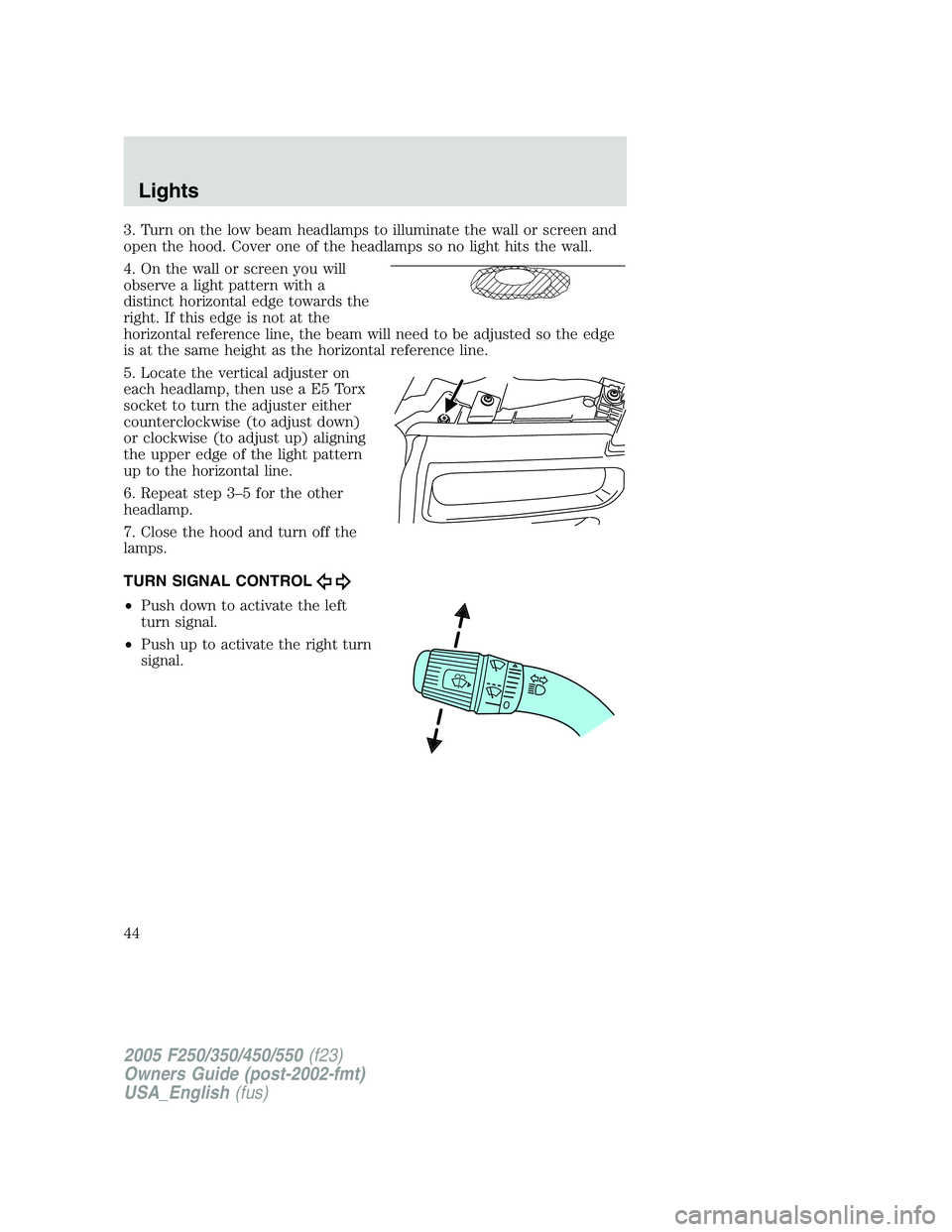

FORD F250 SUPER DUTY 2005  Owners Manual 3. Turn on the low beam headlamps to illuminate the wall or screen and
open the hood. Cover one of the headlamps so no light hits the wall.
4. On the wall or screen you will
observe a light pattern wi

Page 45 of 312

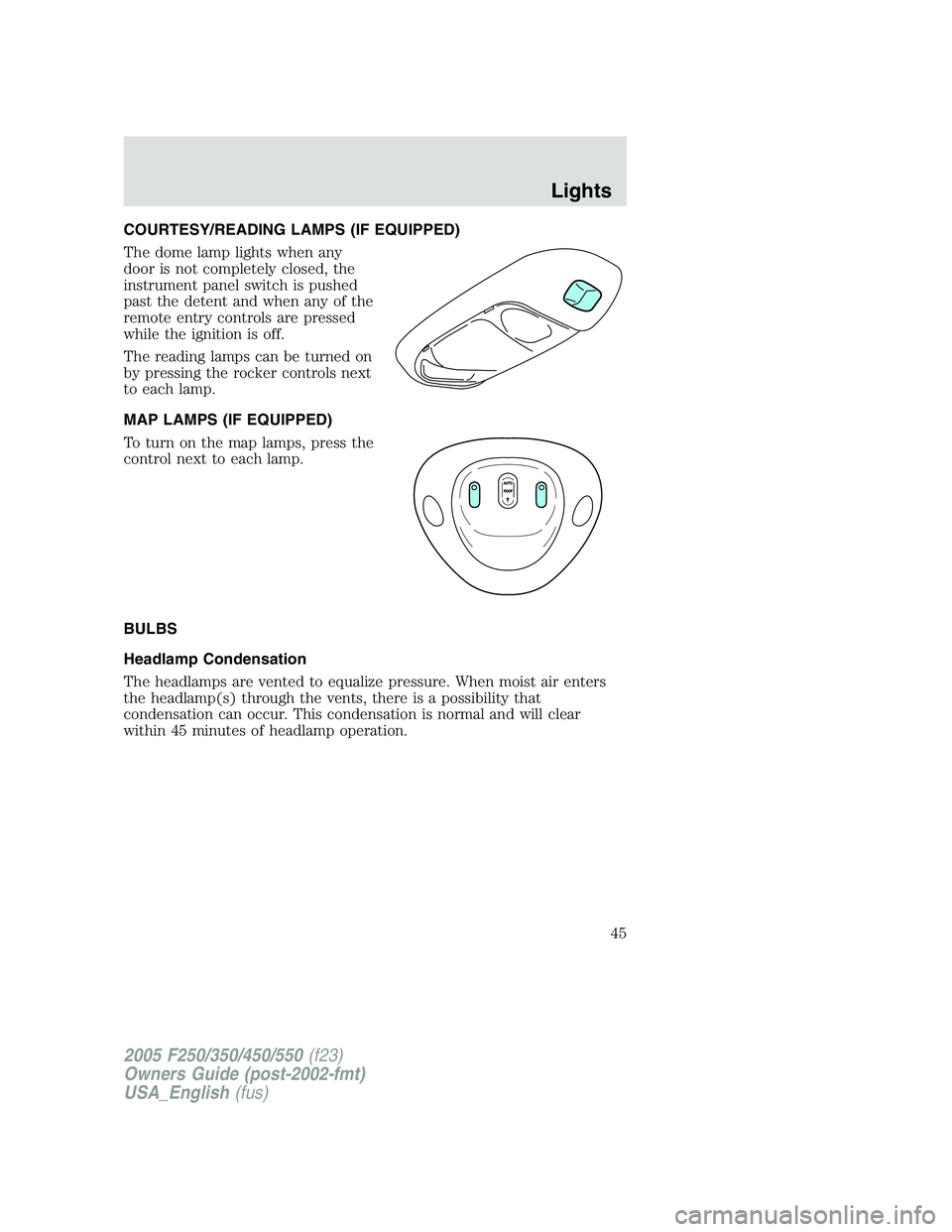

FORD F250 SUPER DUTY 2005  Owners Manual COURTESY/READING LAMPS (IF EQUIPPED)
The dome lamp lights when any
door is not completely closed, the
instrument panel switch is pushed
past the detent and when any of the
remote entry controls are pr

Page 46 of 312

FORD F250 SUPER DUTY 2005  Owners Manual Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Function Number of
bulbs Trade number
Headlamps (aerodynamic) 2 H13/9008
Headlamps (sealed beam) 2 H6054
Park lamp with aerody

Page 47 of 312

FORD F250 SUPER DUTY 2005  Owners Manual 2. Remove the four screws from the
top and bottom front of the
headlamp assembly.
3. Press the retaining clip at the top
of the headlamp assembly while
pulling the assembly straight out.
If removing t

Page 48 of 312

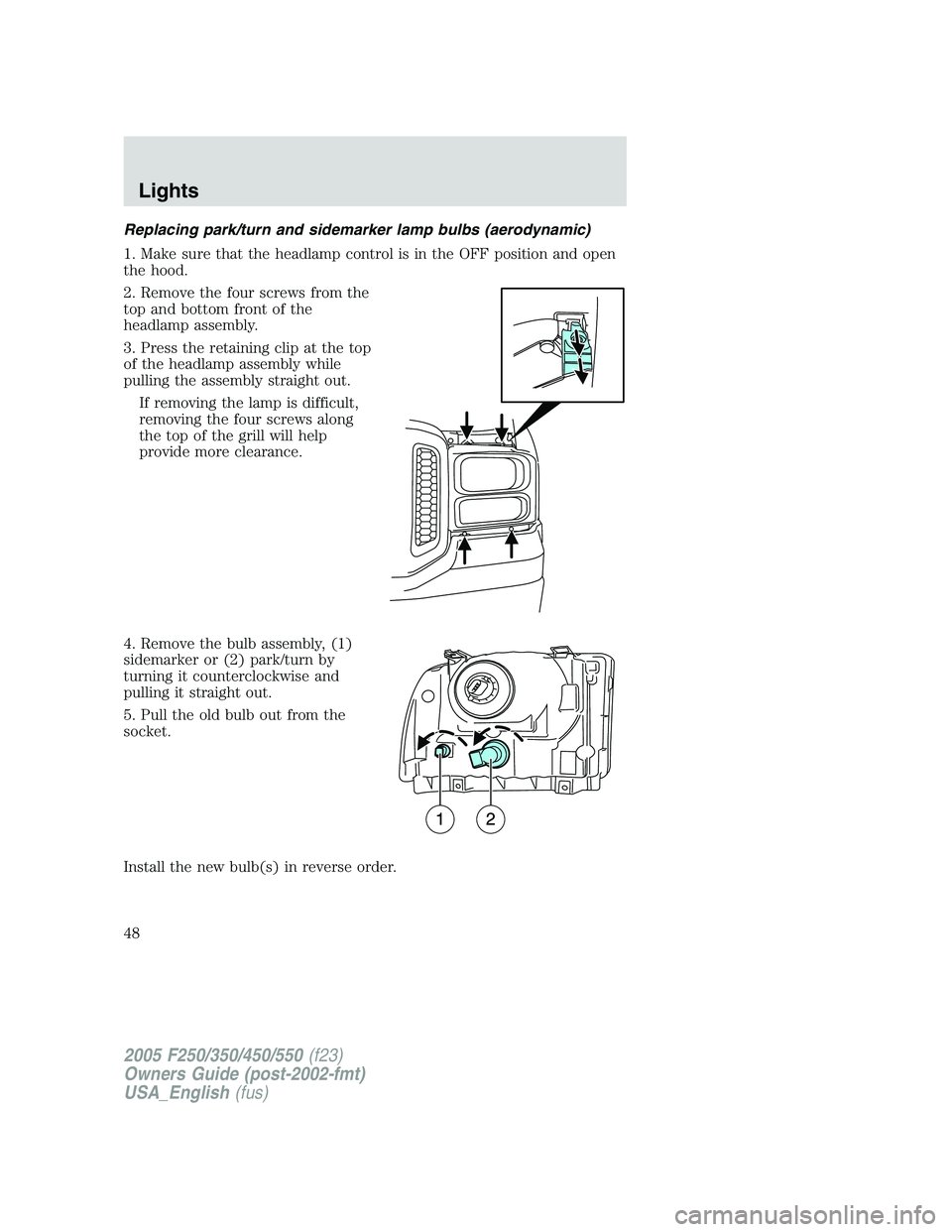

FORD F250 SUPER DUTY 2005  Owners Manual Replacing park/turn and sidemarker lamp bulbs (aerodynamic)
1. Make sure that the headlamp control is in the OFF position and open
the hood.
2. Remove the four screws from the
top and bottom front of
