2005 FORD F250 SUPER DUTY Owners Manual

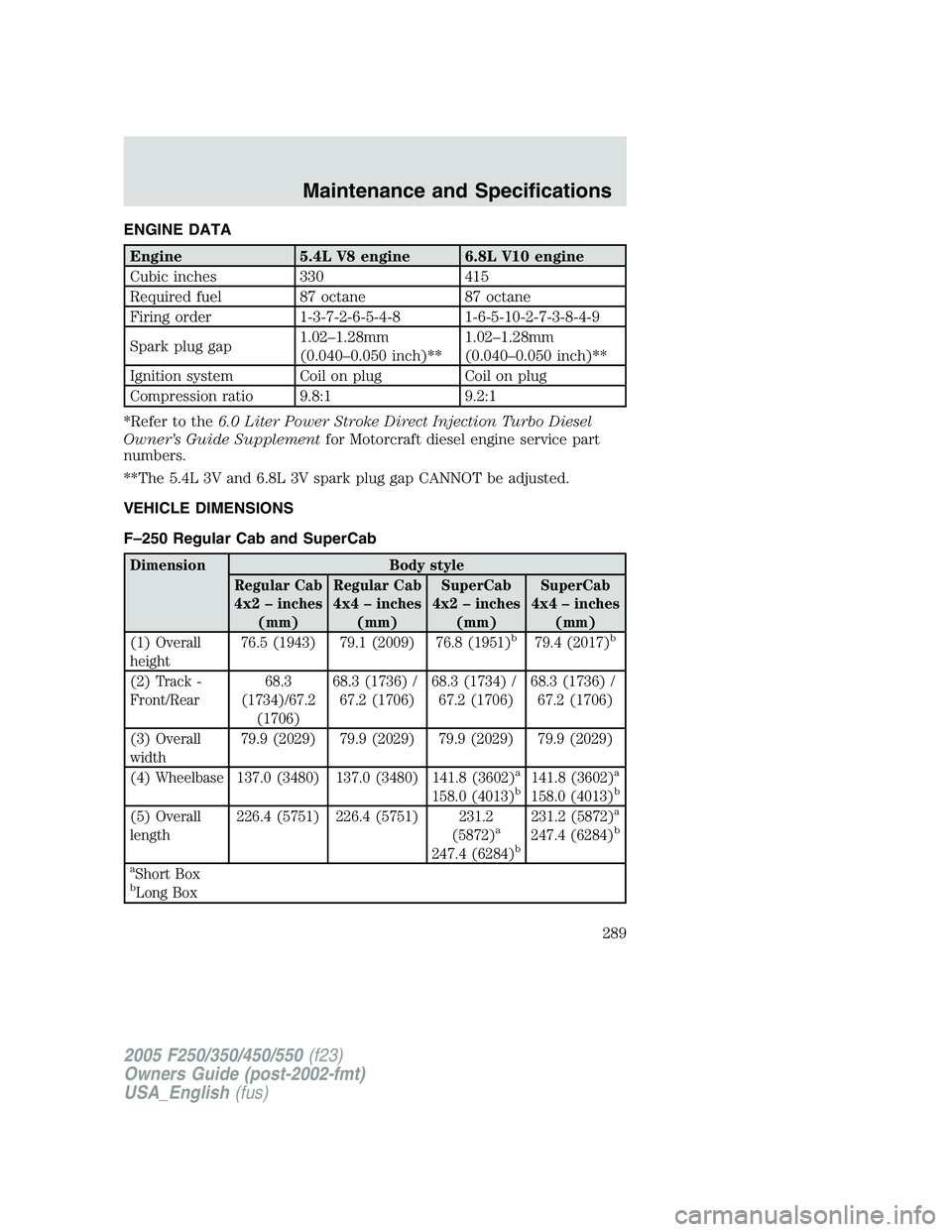

ENGINE DATA
Engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap 1.02–1.28mm
(0.040–0.050 inch)** 1.02–1.28mm
(0.040–0.050 inch)**
Ignition system Coil on plug Coil on plug
Compression ratio 9.8:1 9.2:1
*Refer to the 6.0 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplement for Motorcraft diesel engine service part
numbers.
**The 5.4L 3V and 6.8L 3V spark plug gap CANNOT be adjusted.
VEHICLE DIMENSIONS
F–250 Regular Cab and SuperCab
Dimension Body style
Regular Cab
4x2 – inches
(mm) Regular Cab
4x4 – inches
(mm) SuperCab
4x2 – inches
(mm) SuperCab
4x4 – inches
(mm)
(1) Overall
height 76.5 (1943) 79.1 (2009) 76.8 (1951) b
79.4 (2017) b
(2) Track -
Front/Rear 68.3
(1734)/67.2
(1706) 68.3 (1736) /
67.2 (1706) 68.3 (1734) /
67.2 (1706) 68.3 (1736) /
67.2 (1706)
(3) Overall
width 79.9 (2029) 79.9 (2029) 79.9 (2029) 79.9 (2029)
(4) Wheelbase 137.0 (3480) 137.0 (3480) 141.8 (3602) a
158.0 (4013) b
141.8 (3602) a
158.0 (4013) b
(5) Overall
length 226.4 (5751) 226.4 (5751) 231.2
(5872) a
247.4 (6284) b
231.2 (5872) a
247.4 (6284) b
a
Short Box b
Long Box
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Maintenance and Specifications
289

F–250 Crew Cab
Dimension Body style
Crew Cab
4x2, Short
box -
inches
(mm) Crew Cab
4x4, Short
box - inches
(mm) Crew Cab
4x2, Long
box - inches
(mm) Crew Cab
4x4, Long
box - inches
(mm)
(1) Overall
height 77.5 (1969) 80.0 (2032) 77.3 (1963) 79.9 (2029)
(2) Track -
Front/Rear 68.3
(1734)/
67.2 (1706) 68.3 (1736)/
67.2 (1706) 68.3 (1734)/
67.2 (1706) 68.3 (1736)/
67.2 (1706)
(3) Overall
width 79.9 (2029) 79.9 (2029) 79.9 (2029) 79.9 (2029)
(4)
Wheelbase 156.2
(3967) 156.2 (3967) 172.4 (4379) 172.4 (4379)
(5) Overall
length 245.6
(6238) 245.6 (6238) 261.8 (6650) 261.8 (6650)
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Maintenance and Specifications
290

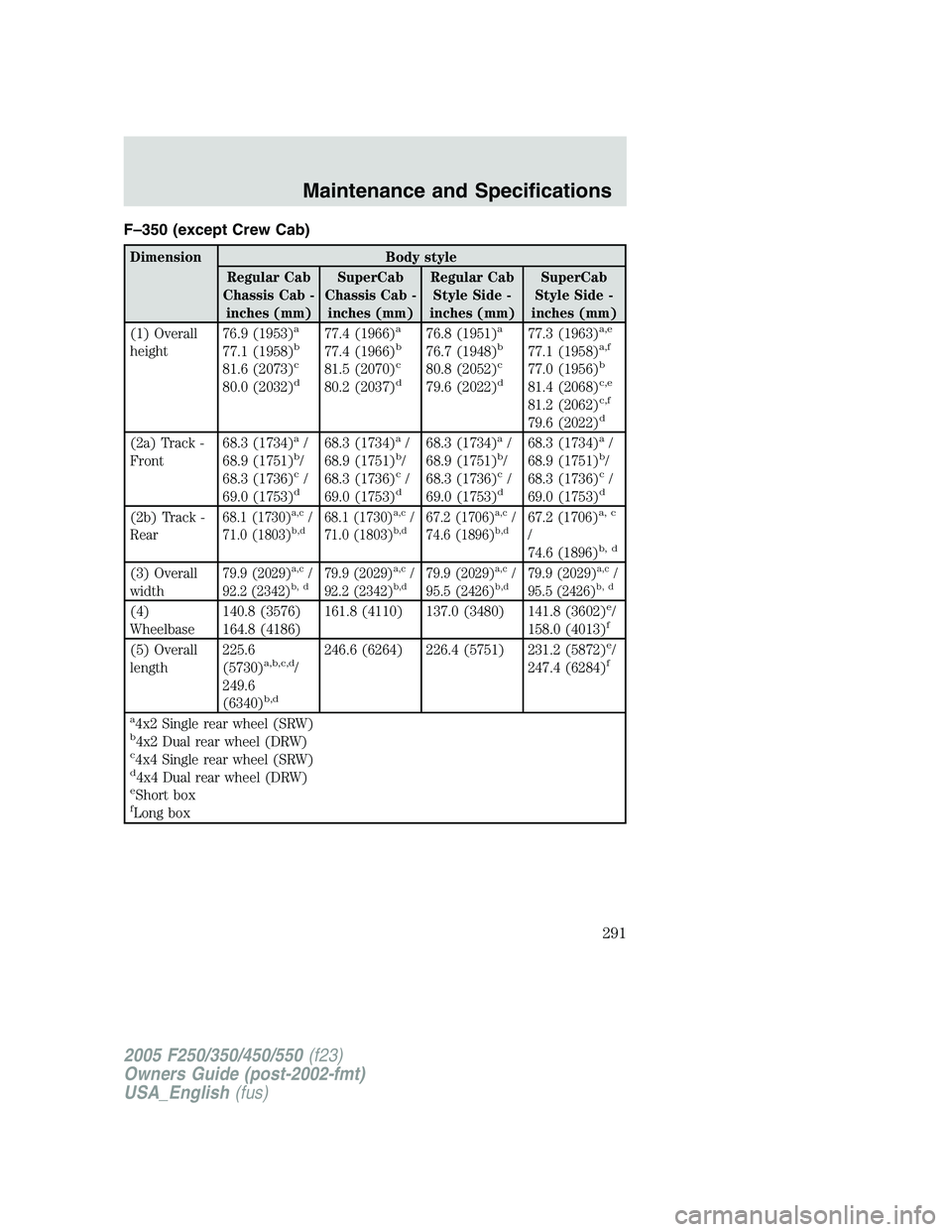

F–350 (except Crew Cab) Dimension Body style
Regular Cab
Chassis Cab -
inches (mm) SuperCab
Chassis Cab -
inches (mm) Regular Cab
Style Side -
inches (mm) SuperCab
Style Side -
inches (mm)
(1) Overall
height 76.9 (1953) a
77.1 (1958) b
81.6 (2073) c
80.0 (2032) d
77.4 (1966) a
77.4 (1966) b
81.5 (2070) c
80.2 (2037) d
76.8 (1951) a
76.7 (1948) b
80.8 (2052) c
79.6 (2022) d
77.3 (1963) a,e
77.1 (1958) a,f
77.0 (1956) b
81.4 (2068) c,e
81.2 (2062) c,f
79.6 (2022) d
(2a) Track -
Front 68.3 (1734) a
/
68.9 (1751) b
/
68.3 (1736) c
/
69.0 (1753) d
68.3 (1734) a
/
68.9 (1751) b
/
68.3 (1736) c
/
69.0 (1753) d
68.3 (1734) a
/
68.9 (1751) b
/
68.3 (1736) c
/
69.0 (1753) d
68.3 (1734) a
/
68.9 (1751) b
/
68.3 (1736) c
/
69.0 (1753) d
(2b) Track -
Rear 68.1 (1730) a,c
/
71.0 (1803) b,d
68.1 (1730) a,c
/
71.0 (1803) b,d
67.2 (1706) a,c
/
74.6 (1896) b,d
67.2 (1706) a, c
/
74.6 (1896) b, d
(3) Overall
width 79.9 (2029) a,c
/
92.2 (2342) b, d
79.9 (2029) a,c
/
92.2 (2342) b,d
79.9 (2029) a,c
/
95.5 (2426) b,d
79.9 (2029) a,c
/
95.5 (2426) b, d
(4)
Wheelbase 140.8 (3576)
164.8 (4186) 161.8 (4110) 137.0 (3480) 141.8 (3602) e
/
158.0 (4013) f
(5) Overall
length 225.6
(5730) a,b,c,d
/
249.6
(6340) b,d
246.6 (6264) 226.4 (5751) 231.2 (5872) e
/
247.4 (6284) f
a
4x2 Single rear wheel (SRW) b
4x2 Dual rear wheel (DRW) c
4x4 Single rear wheel (SRW) d
4x4 Dual rear wheel (DRW) e
Short box f
Long box
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Maintenance and Specifications
291

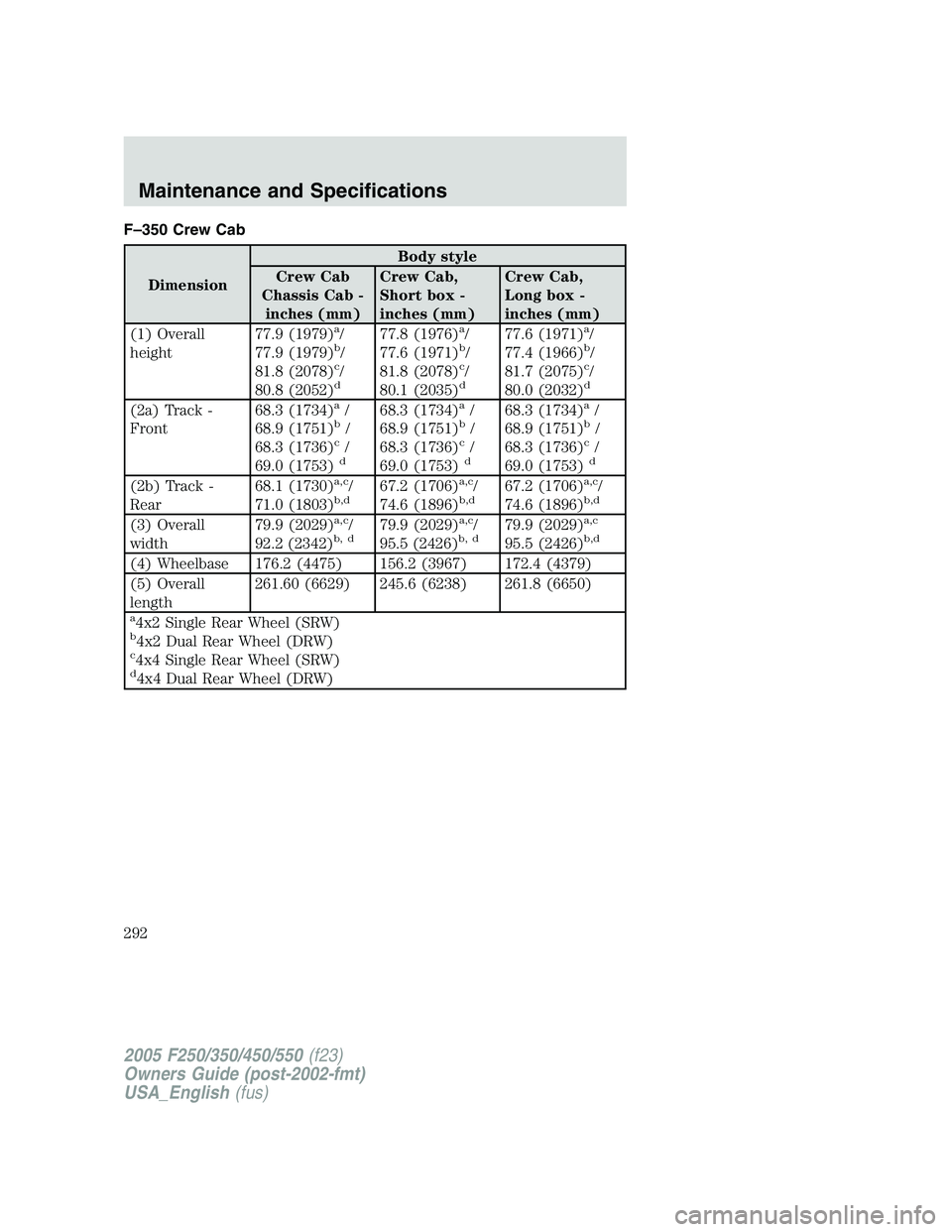

F–350 Crew Cab
Dimension Body style
Crew Cab
Chassis Cab -
inches (mm) Crew Cab,
Short box -
inches (mm) Crew Cab,
Long box -
inches (mm)
(1) Overall
height 77.9 (1979) a
/
77.9 (1979) b
/
81.8 (2078) c
/
80.8 (2052) d
77.8 (1976) a
/
77.6 (1971) b
/
81.8 (2078) c
/
80.1 (2035) d
77.6 (1971) a
/
77.4 (1966) b
/
81.7 (2075) c
/
80.0 (2032) d
(2a) Track -
Front 68.3 (1734) a
/
68.9 (1751) b
/
68.3 (1736) c
/
69.0 (1753) d
68.3 (1734) a
/
68.9 (1751) b
/
68.3 (1736) c
/
69.0 (1753) d
68.3 (1734) a
/
68.9 (1751) b
/
68.3 (1736) c
/
69.0 (1753) d
(2b) Track -
Rear 68.1 (1730) a,c
/
71.0 (1803) b,d
67.2 (1706) a,c
/
74.6 (1896) b,d
67.2 (1706) a,c
/
74.6 (1896) b,d
(3) Overall
width 79.9 (2029) a,c
/
92.2 (2342) b, d
79.9 (2029) a,c
/
95.5 (2426) b, d
79.9 (2029) a,c
95.5 (2426) b,d
(4) Wheelbase 176.2 (4475) 156.2 (3967) 172.4 (4379)
(5) Overall
length 261.60 (6629) 245.6 (6238) 261.8 (6650)a
4x2 Single Rear Wheel (SRW) b
4x2 Dual Rear Wheel (DRW) c
4x4 Single Rear Wheel (SRW) d
4x4 Dual Rear Wheel (DRW)
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Maintenance and Specifications
292

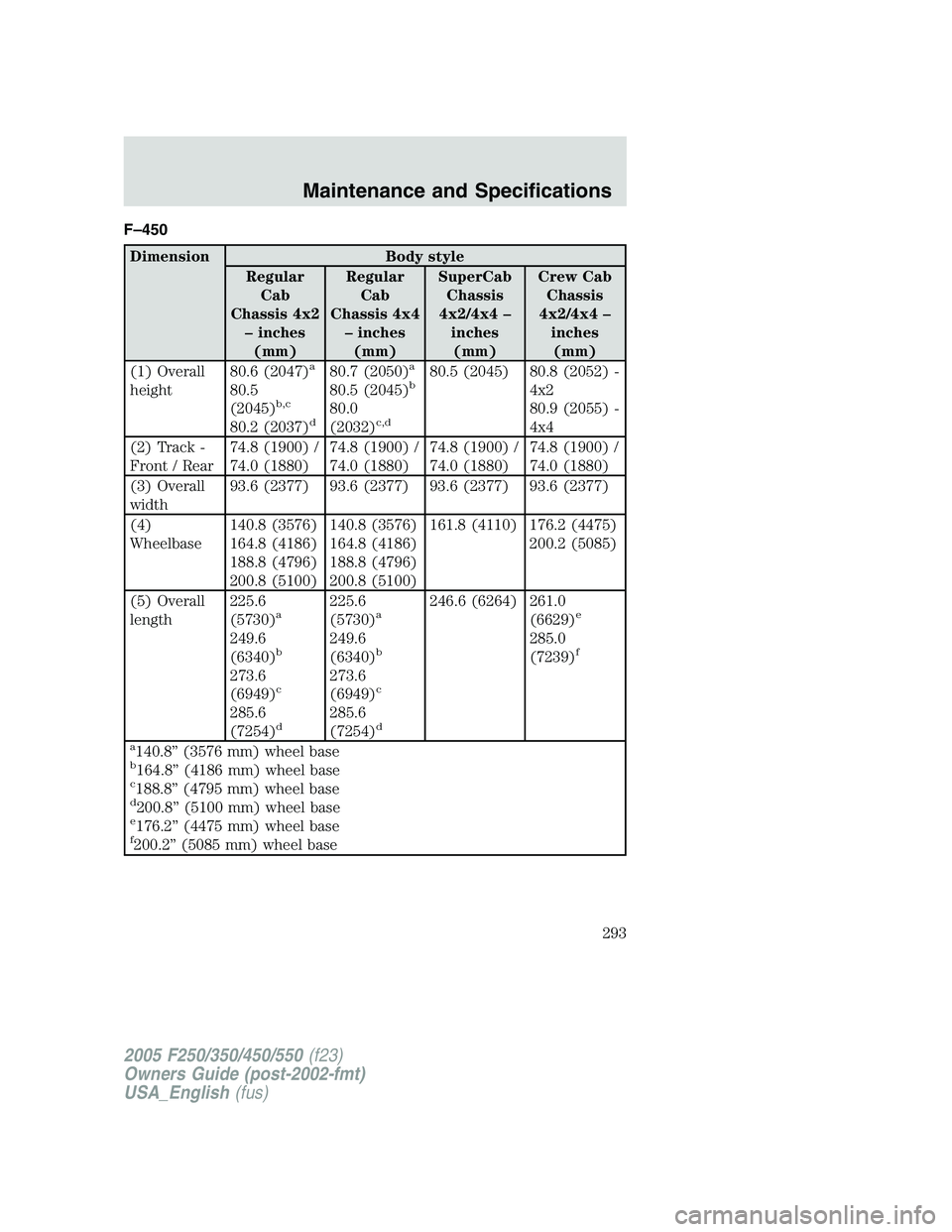

F–450
Dimension Body style
Regular
Cab
Chassis 4x2
– inches
(mm) Regular
Cab
Chassis 4x4
– inches
(mm) SuperCab
Chassis
4x2/4x4 –
inches
(mm) Crew Cab
Chassis
4x2/4x4 –
inches
(mm)
(1) Overall
height 80.6 (2047) a
80.5
(2045) b,c
80.2 (2037) d
80.7 (2050) a
80.5 (2045) b
80.0
(2032) c,d
80.5 (2045) 80.8 (2052) -
4x2
80.9 (2055) -
4x4
(2) Track -
Front / Rear 74.8 (1900) /
74.0 (1880) 74.8 (1900) /
74.0 (1880) 74.8 (1900) /
74.0 (1880) 74.8 (1900) /
74.0 (1880)
(3) Overall
width 93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase 140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100) 140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100) 161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length 225.6
(5730) a
249.6
(6340) b
273.6
(6949) c
285.6
(7254) d
225.6
(5730) a
249.6
(6340) b
273.6
(6949) c
285.6
(7254) d
246.6 (6264) 261.0
(6629) e
285.0
(7239) f
a
140.8” (3576 mm) wheel base b
164.8” (4186 mm) wheel base c
188.8” (4795 mm) wheel base d
200.8” (5100 mm) wheel base e
176.2” (4475 mm) wheel base f
200.2” (5085 mm) wheel base
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Maintenance and Specifications
293

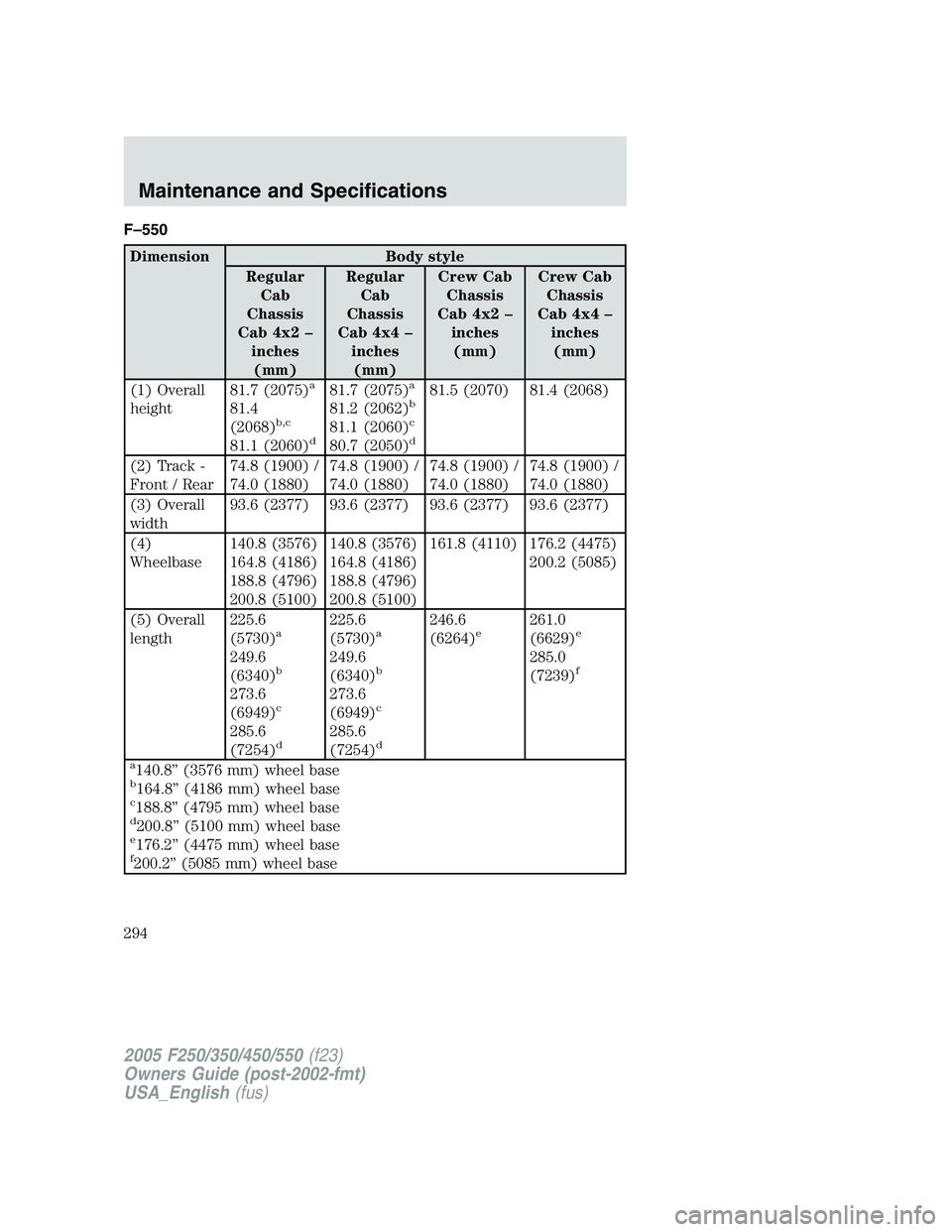

F–550
Dimension Body style
Regular
Cab
Chassis
Cab 4x2 –
inches
(mm) Regular
Cab
Chassis
Cab 4x4 –
inches
(mm) Crew Cab
Chassis
Cab 4x2 –
inches
(mm) Crew Cab
Chassis
Cab 4x4 –
inches
(mm)
(1) Overall
height 81.7 (2075) a
81.4
(2068) b,c
81.1 (2060) d
81.7 (2075) a
81.2 (2062) b
81.1 (2060) c
80.7 (2050) d
81.5 (2070) 81.4 (2068)
(2) Track -
Front / Rear 74.8 (1900) /
74.0 (1880) 74.8 (1900) /
74.0 (1880) 74.8 (1900) /
74.0 (1880) 74.8 (1900) /
74.0 (1880)
(3) Overall
width 93.6 (2377) 93.6 (2377) 93.6 (2377) 93.6 (2377)
(4)
Wheelbase 140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100) 140.8 (3576)
164.8 (4186)
188.8 (4796)
200.8 (5100) 161.8 (4110) 176.2 (4475)
200.2 (5085)
(5) Overall
length 225.6
(5730) a
249.6
(6340) b
273.6
(6949) c
285.6
(7254) d
225.6
(5730) a
249.6
(6340) b
273.6
(6949) c
285.6
(7254) d
246.6
(6264) e
261.0
(6629) e
285.0
(7239) f
a
140.8” (3576 mm) wheel base b
164.8” (4186 mm) wheel base c
188.8” (4795 mm) wheel base d
200.8” (5100 mm) wheel base e
176.2” (4475 mm) wheel base f
200.2” (5085 mm) wheel base
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Maintenance and Specifications
294

2
31
54
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus) Maintenance and Specifications
295

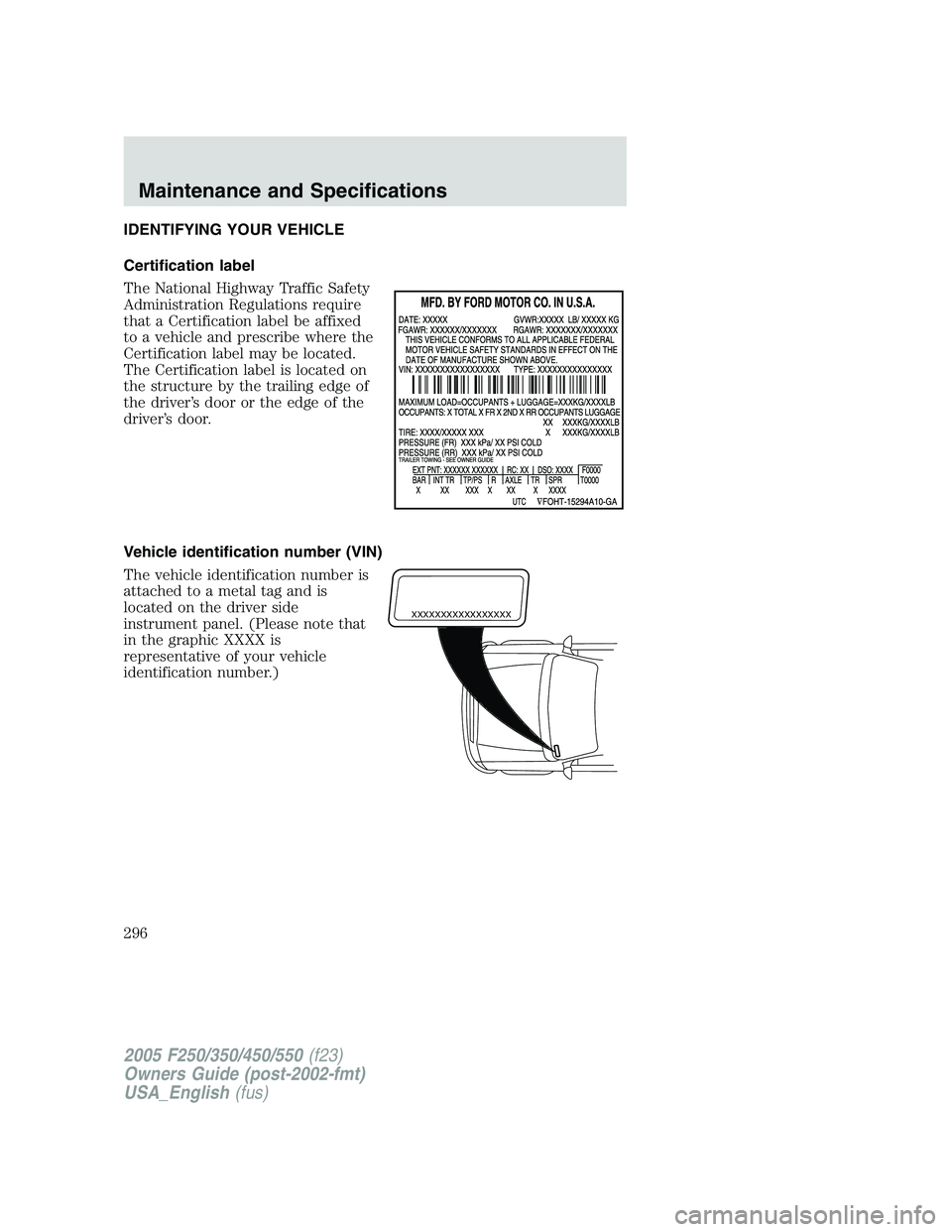

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the structure by the trailing edge of
the driver’s door or the edge of the
driver’s door.
Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.) XXXXXXXXXXXXXXXXX
2005 F250/350/450/550 (f23)
Owners Guide (post-2002-fmt)
USA_English (fus)Maintenance and Specifications
296
