2005 FORD E-250 Owners Manual

MERCON
and MERCON
V type fluids are not interchangeable.
DO NOT mix MERCON
and MERCON
V. Use of a transmission
fluid that indicates dual usage (MERCON
and MERCON
V) in
an automatic transmission application requiring MERCON
may
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
2Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent for
complete refill of Visteon Traction-Lok rear axles.
3Add 8 oz. (237 ml) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of Dana
Limited Slip rear axles.
ENGINE DATA
Engine*4.6L V8
engine5.4L V8
engine6.8L V10 engine
Cubic inches 281 330 415
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.052–0.056
inch
(1.32–1.42mm)0.052–0.056
inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)
Compression
ratio9.4:1 9.0:1 9.0:1
*Refer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplementfor diesel engine information.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
233
ProCarManuals.com

VEHICLE DIMENSIONS
Van/wagon models
E-150 – Inches
(mm)E-250 –
Inches (mm)E-350 –
Inches (mm)
(1) Overall
height80.7 (2050) 82.9 (2107) 84.6 (2148)
(2) Track
front/rear69.4 (1765)/
67.3(1709)69.4 (1763)/
66.6 (1692)69.4 (1763)/
66.4 (1687)
(3) Overall width
(excluding
mirrors)79.3 (2014)
(4) Wheelbase 138.0 (3505)
(5) Overall
lengthRegular van: 212.0 (5384)
Extended van: 232.0 (5892)
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
234
ProCarManuals.com

Cutaway/commercial stripped chassis models
E-350 – inches (mm) E-450 – inches (mm)
(1) Overall height Refer to Body Builder for specifications.
(2) Track front/rearCutaway:
69.4 (1763)
SRW: 72.1 (1831)
DRW: 73.2 (1860)
Stripped Chassis:
69.4 (1763)
SRW: 72.1 (1831.4)
DRW: 73.2 (1859)69.4 (1763)/
77.7 (1974)
(3) Overall width Refer to Body Builder for specifications.
(4) Wheelbase 138.0 (3505)
158.0 (4012.3)
176.0 (4470)158.0 (4012.3)
176.0 (4470)
(5) Overall length Refer to Body Builder for specifications.
4
5
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
235
ProCarManuals.com

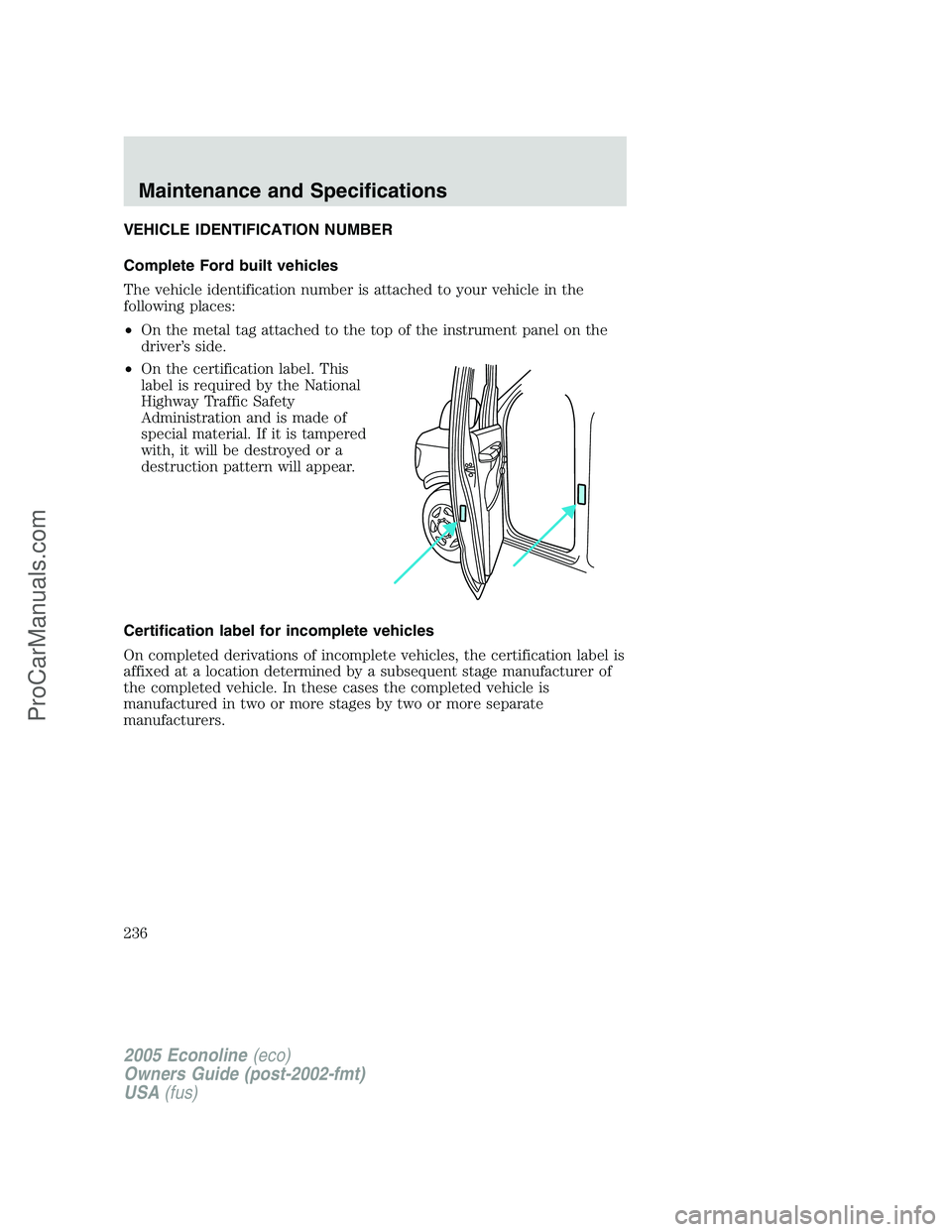

VEHICLE IDENTIFICATION NUMBER
Complete Ford built vehicles
The vehicle identification number is attached to your vehicle in the
following places:
•On the metal tag attached to the top of the instrument panel on the
driver’s side.
•On the certification label. This
label is required by the National
Highway Traffic Safety
Administration and is made of
special material. If it is tampered
with, it will be destroyed or a
destruction pattern will appear.
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
236
ProCarManuals.com

Transmission/Transaxle code designations
You can find a
transmission/transaxle code on the
vehicle certification label. The
following table tells you which
transmission or transaxle each code
represents.
Code Description
A Four-speed automatic overdrive (4570E)
B Five-speed automatic, TorqShift
F Four-speed automatic overdrive (4R75E)
T Five-speed automatic overdrive (5R110W)
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
237
ProCarManuals.com

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles (60,000
km) (whichever occurs first). Contact your dealer for details and a copy
of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products. Not
all accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Daytime Running Lamps (DRLs)
Splash guards
Step bars
Interior style
Consoles
Electrochromatic compass/temperature interior mirrors
Floor mats
Leather wrapped steering wheels
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
238
ProCarManuals.com

Scuff plates
Speed control
Lifestyle
Mobile-ease hands-free communication system
Trailer hitches, wiring harnesses and accessories
Peace of mind
First aid and highway safety kits
Keyless entry keypad
Remote start
Vehicle security systems
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the dealer or the owner may adversely affect battery
performance and durability.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
239
ProCarManuals.com

A
Accessory delay ..........................56
Air cleaner filter ...............223–224
Airbag supplemental restraint
system ..........................................82
and child safety seats ..............84
description ................................82
disposal ......................................86
driver airbag ..............................84
indicator light ...........................86
operation ...................................84
passenger airbag .......................84
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................203
Anti-lock brake system
(see Brakes) ..............................149
Audio system
(see Radio) ....18–19, 22, 25, 28, 32
Automatic transmission
driving an automatic
overdrive .................154, 156, 159
fluid, adding ............................220
fluid, checking ........................220
fluid, refill capacities ..............226
fluid, specification ..................233
Auxiliary power point .................55
Axle
lubricant specifications ..230, 233
refill capacities ........................226
traction lok ..............................151
B
Battery .......................................201
acid, treating emergencies .....201
jumping a disabled battery ....174
maintenance-free ....................201replacement, specifications ...224
servicing ..................................201
BeltMinder ...................................77
Brakes ........................................149
anti-lock ...................................149
anti-lock brake system (ABS)
warning light ...........................149
fluid, checking and adding ....220
fluid, refill capacities ..............226
fluid, specifications .........230, 233
lubricant specifications ..230, 233
parking ....................................150
shift interlock ..........................153
Break-in period .............................6
Bulbs ............................................46
C
Capacities for refilling fluids ....226
Cell phone use ............................55
Child safety restraints ................87
child safety belts ......................87
Child safety seats ........................90
in front seat ..............................91
in rear seat ................................91
tether anchorage hardware .....94
Cleaning your vehicle
engine compartment ..............190
exterior ....................................193
instrument panel ....................192
interior .....................................192
interior trim ............................192
plastic parts ............................191
safety belts ..............................192
washing ....................................189
waxing .....................................189
wheels ......................................190
wiper blades ............................191
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
240
ProCarManuals.com
