2005 FORD E-250 Owners Manual

Component14.6L V8 engine 5.4L V8 engine 6.8L V10
engine
Oil filter FL-820-S FL-820-S FL-820-S
PCV valve
2
Spark plugs3
Automatic
transmission
filter
4
— FT-145 FT-145
1Refer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplementfor Motorcraft diesel engine service part numbers.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
4Also available with 6.0L Diesel engine/TorqShift transmission. Part
number is FT-145.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
225
ProCarManuals.com

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine
oil-gasoline
engine (includes
filter change
8
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)All 6.0 quarts
(5.7L)
Engine oil-diesel
engine (includes
filter change)Refer to thePower Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.
Engine
coolant-gasoline
engine
1
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.6L V8 engine 23.8 quarts
(22.6L)
4.6L V8 engine
with aux rear heat26.0 quarts
(24.6L)
5.4L V8 engine 28.8 quarts
(27.2L)
5.4L V8 engine
with aux rear heat30.8 quarts
(29.1L)
6.8L V10 engine 30.0 quarts
(28.4L)
6.8L V10 engine
with aux rear heat32.5 quarts
(30.8L)
Engine
coolant-diesel
engineRefer to thePower Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.
1
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
226
ProCarManuals.com

Fluid Ford Part
NameApplication Capacity
Power steering
fluidMotorcraft
MERCON
AT FAll Keep in FULL
range on
dipstick
Rear axle
4SAE 75W-140
Synthetic Rear
Axle Lubricant
2
Visteon 8.8/9.75
inch conventional
and Traction-Lok5.5 pints
(2.6L)3
SAE 75W-140
Synthetic Rear
Axle Lubricant
2
Dana M70HD
(M273HD)
E-350 DSO7.4 pints
(3.5L)3
Dana M60 (M248)
E-250/350 DSO
limited slip
4
6.3 pints
(3.0L)3
SAE 90 Hypoid
Gear Oil (axles
shown are all
limited slip)
4
Dana Limited Slip
Axles
M60 (M248)
E250/3506.3 pints
(3.0L)3
M70FF (M267FF)
E-3506.8 pints
(3.2L)3
M70HD (M273HD)
E-4508.3 pints
(3.9L)3
SAE 80W-90
Premium Rear
Axle LubricantDana conventional
axles
M60 (M248)
E250/3506.3 pints
(3.0L)3
M70FF (M267FF)
E-3506.6 pints
(3.1L)3
M70HD (M273HD)
E-4508.3 pints
(3.9L)3
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
227
ProCarManuals.com

Fluid Ford Part
NameApplication Capacity
Fuel tank N/A All regular and
extended length
vans and wagons35.0 gallons
(132.4L)
138 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
158 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
5
176 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
158 inch and 176
inch wheelbase
(E-Super Duty)55 .0 gallons
(208.0L)
Transmission
fluid
6Motorcraft
MERCON
V
AT FAutomatic
(4R70/75 E)13.9 quarts
(13.1L)7
Motorcraft
MERCON
SP
AT FTorqShift
(5–speed)17.5 quarts
(16.6L)7
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.2 quarts
(4.0L)
1Add the coolant type originally equipped in your vehicle.
2If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
Fill 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
Add 4 oz. (118 ml) of Additive Friction Modifier XL–3 or equivalent
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
228
ProCarManuals.com

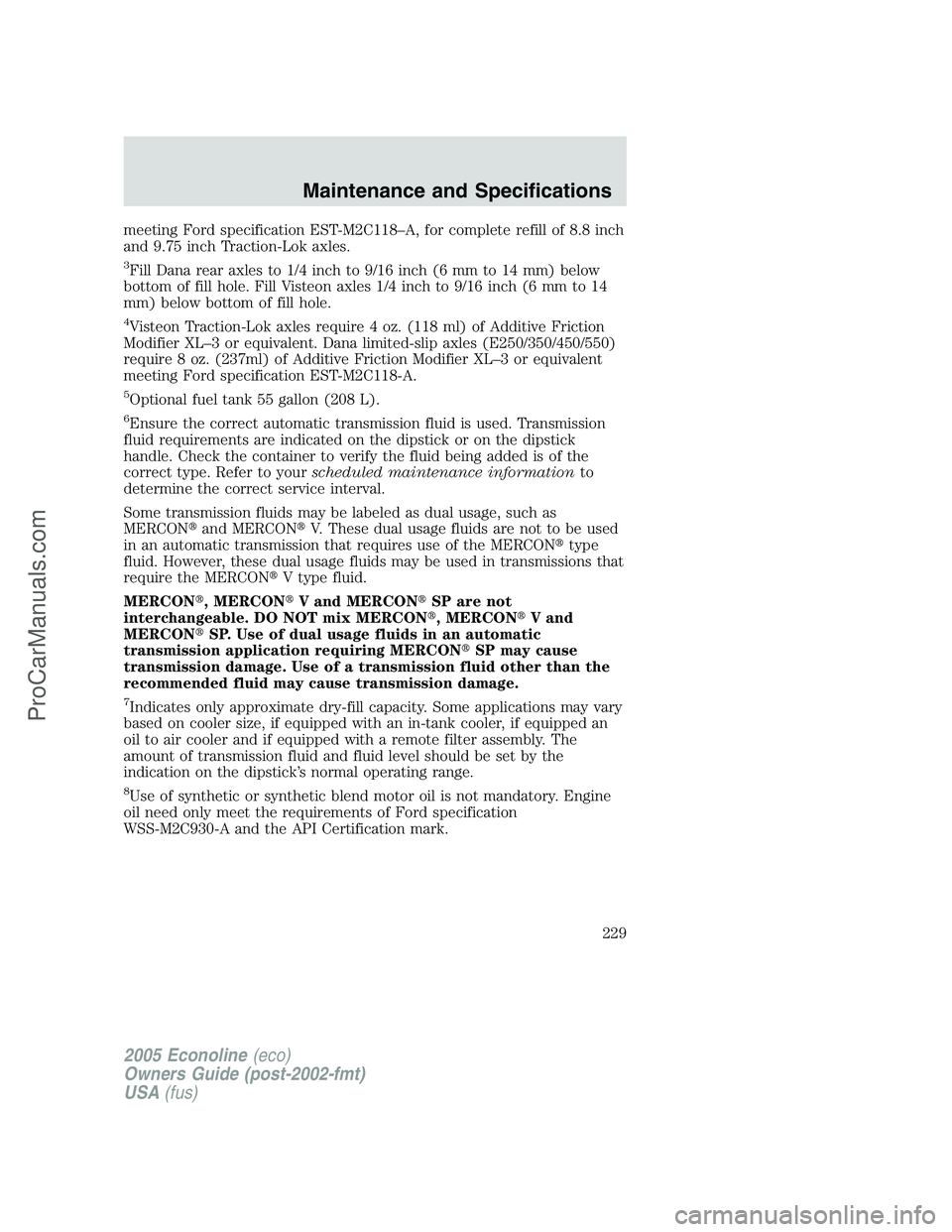

meeting Ford specification EST-M2C118–A, for complete refill of 8.8 inch
and 9.75 inch Traction-Lok axles.
3Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below
bottom of fill hole. Fill Visteon axles 1/4 inch to 9/16 inch (6 mm to 14
mm) below bottom of fill hole.
4Visteon Traction-Lok axles require 4 oz. (118 ml) of Additive Friction
Modifier XL–3 or equivalent. Dana limited-slip axles (E250/350/450/550)
require 8 oz. (237ml) of Additive Friction Modifier XL–3 or equivalent
meeting Ford specification EST-M2C118-A.
5Optional fuel tank 55 gallon (208 L).
6Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourscheduled maintenance informationto
determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCON
and MERCON
V. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCON
type
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCON
V type fluid.
MERCON
, MERCON
V and MERCON
SP are not
interchangeable. DO NOT mix MERCON
, MERCON
V and
MERCON
SP. Use of dual usage fluids in an automatic
transmission application requiring MERCON
SP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
7Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size, if equipped with an in-tank cooler, if equipped an
oil to air cooler and if equipped with a remote filter assembly. The
amount of transmission fluid and fluid level should be set by the
indication on the dipstick’s normal operating range.
8Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
229
ProCarManuals.com

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA, OR
and NM),
VC-7-B (CA, OR
and NM)WSS
-M97B51-A1
Engine
oil-gasoline
engineMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)
XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
with API
Certification
Mark
Engine oil-diesel
engineRefer to thePower Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.
Hinges, latches,
Striker plates,
fuel filler door
hinge, and seat
tracksMotorcraft
Multi-Purpose
GreaseXG–4 or XL-5 ESR-M1C159-A
or
ESB-M1C93–B
Lock cylinders Motorcraft
Penetrating and
Lock LubricantMotorcraft XL-1 none
Power steering
fluidMotorcraft
MERCON
AT FXT-2-QDX MERCON

2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
230
ProCarManuals.com

Item Ford part
nameFord part
numberFord
specification
Automatic
transmission
(4R70/75 E)
1
Motorcraft
MERCON
V
AT FXT-5-QM MERCON
V
Automatic
transmission
TorqShift
(5–speed)
1
Motorcraft
MERCON
SP
AT FXT-6–QSP MERCON
SP
WSS-M2C919–D
Disc brake
caliper railsMotorcraft
Silicone Brake
Caliper Grease
and Dielectric
CompoundXG-3-A ESE-M1C171-A
Parking brake
assembly (E-450
Super Duty)Motorcraft
MERCON

Automatic
Transmission
FluidXT-2-QDX MERCON

Visteon
conventional and
Traction-Lok
axles
2
Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192–A
Dana M70HD
(M273HD)
E-350 DSO
Dana M60
(M248)
E-250/350 DSO
limited slip
3
SAE 75W-140
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192–A
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
231
ProCarManuals.com

Item Ford part
nameFord part
numberFord
specification
Dana Limited
Slip Axles
3
M60 (M248)
E-250/350
M70FF
(M267FF)
E-350
M70HD
(M273HD)
E-450SAE 90 Hypoid
Gear OilC6AZ-19580–E ESW-M2C105–E
Dana
conventional
axles
M60 (M248)
E-250/350
M70FF
(M267FF)
E-350
M70HD
(M273HD)
E-450SAE 80W-90
Premium Rear
Axle LubricantXY-80W90–QL WSP-M2C197–A
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
