2005 FORD CROWN VICTORIA Owners Manual

ENGINE DATA
Engine 4.6L V8 engine
Cubic inches 281
Required fuel 87 octane
Firing order 1-3-7-2-6-5-4-8
Ignition system Coil on plug
Spark plug gap 0.052–0.056 inch (1.32–1.42mm)
Compression ratio 9.4:1
VEHICLE DIMENSIONS (AT CURB MASS)
Vehicle dimensions Inches (mm)
(1) Overall length 213.1 (5413)/219.1 (5566)a
(2) Overall width 78.3 (1990)
(3) Overall height 58.3 (1481)/58.9 (1495)a
(4) Wheelbase 114.6 (2911)/120.8 (3067)a
(5) Track - Front 63.4 (1610)
(5) Track - Rear 65.6 (1666)
aDenotes long wheel base
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
249

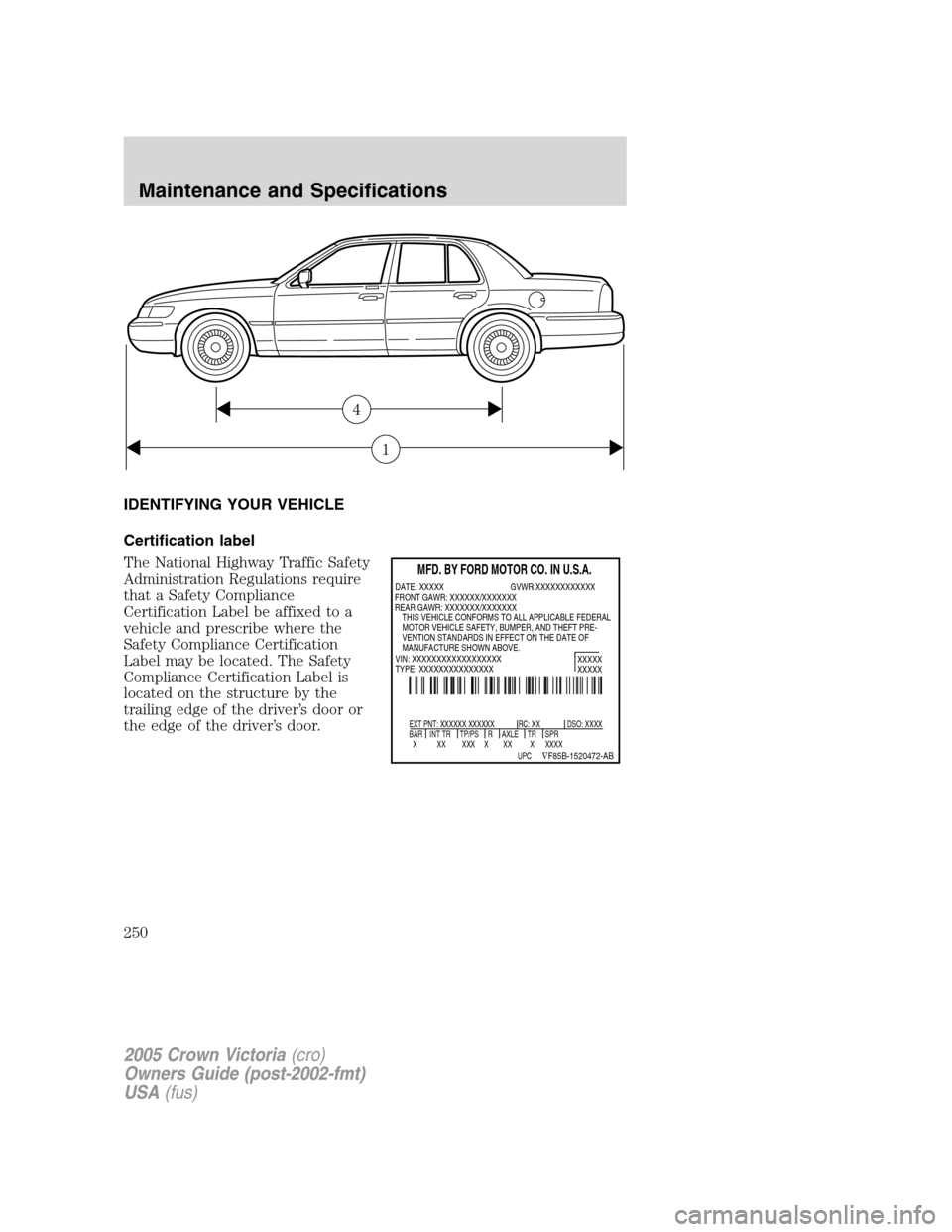

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure by the
trailing edge of the driver’s door or
the edge of the driver’s door.
1
4
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT: XXXXXX XXXXXX RC: XX DSO: XXXX
BAR INT TR TP/PS R AXLE TR SPR
X XX XXX X XX X XXXX
XXXXX
XXXXX
UPC ∇F85B-1520472-AB
DATE: XXXXX GVWR:XXXXXXXXXXXX
VIN: XXXXXXXXXXXXXXXXXX
TYPE: XXXXXXXXXXXXXXX FRONT GAWR: XXXXXX/XXXXXXX
REAR GAWR: XXXXXXX/XXXXXXX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL
MOTOR VEHICLE SAFETY, BUMPER, AND THEFT PRE-
VENTION STANDARDS IN EFFECT ON THE DATE OF
MANUFACTURE SHOWN ABOVE.
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
250

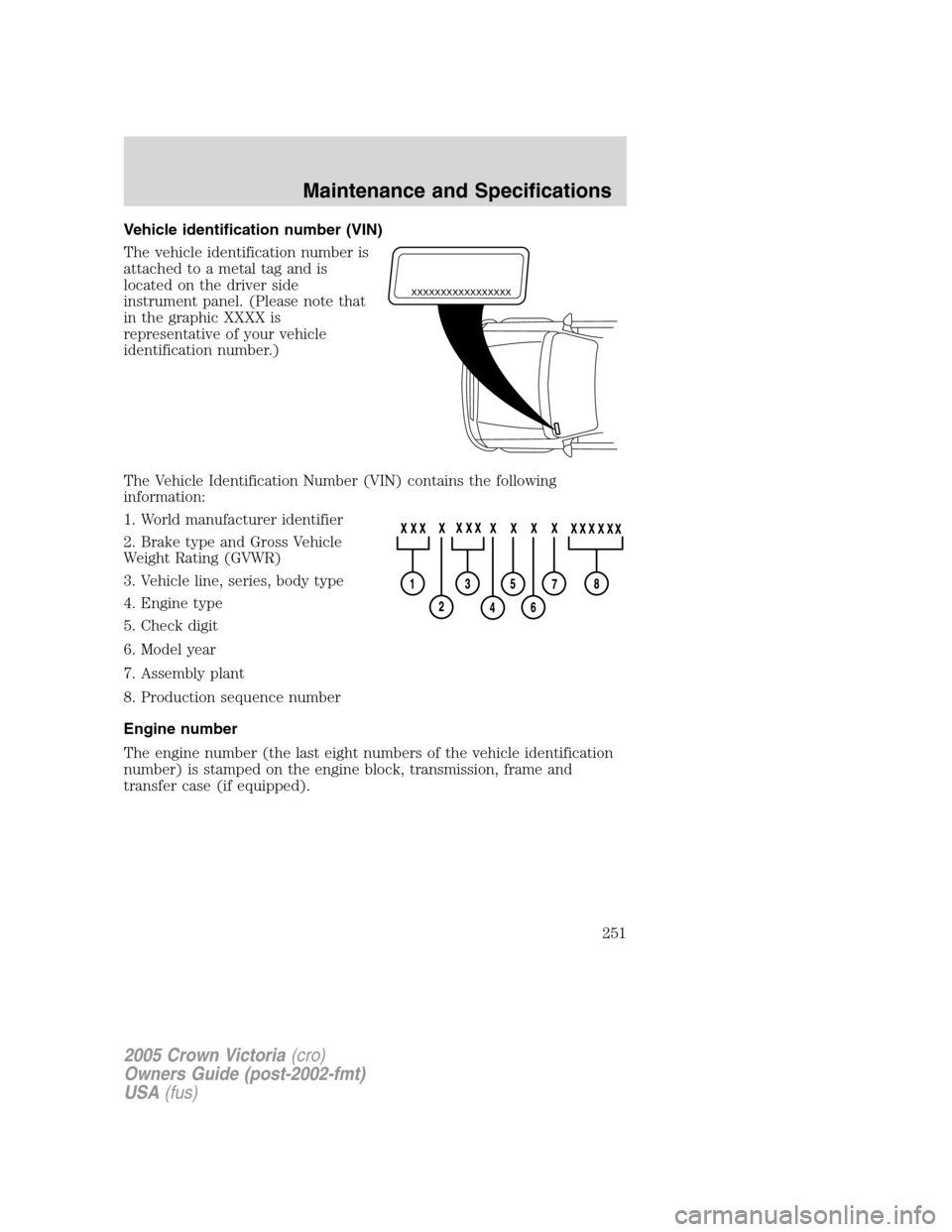

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
251

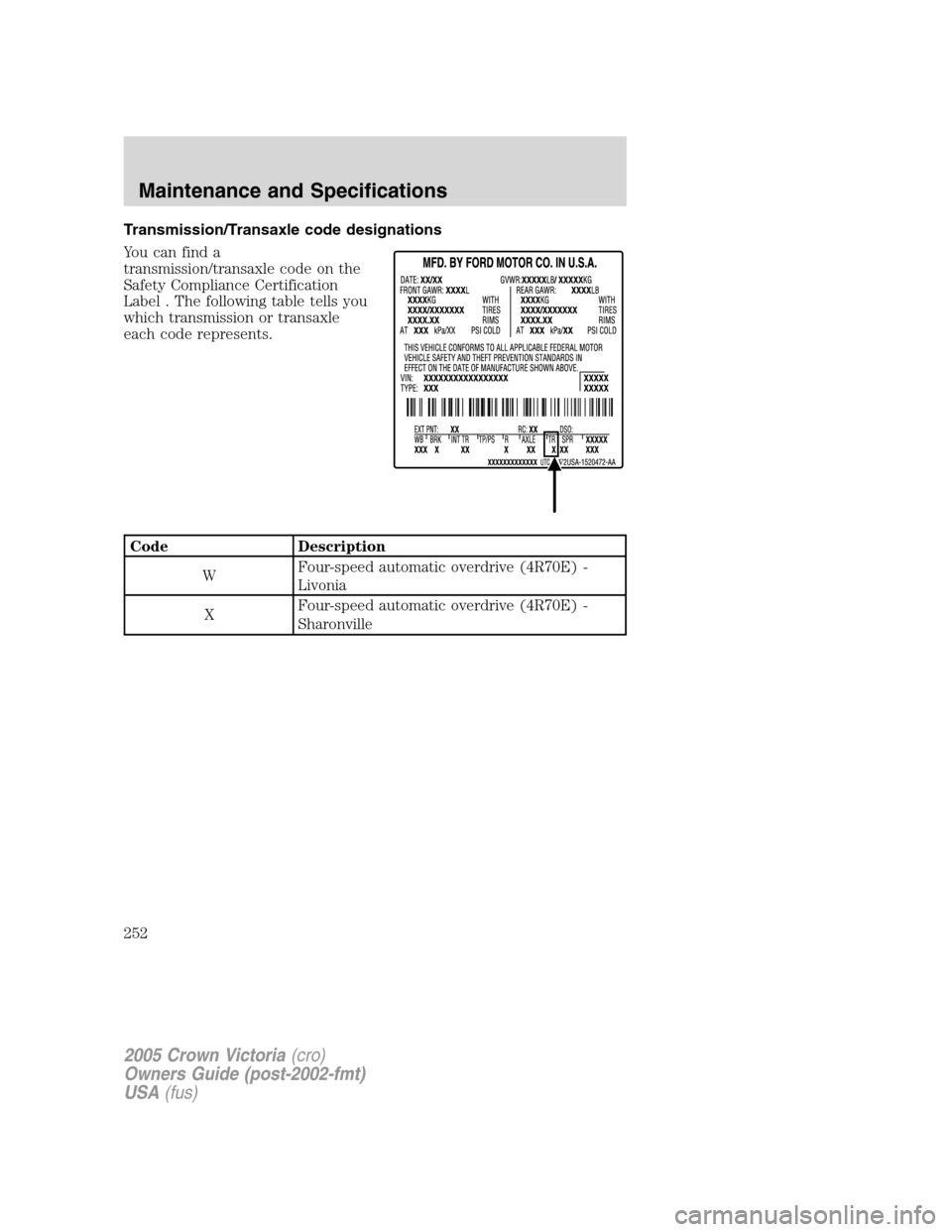

Transmission/Transaxle code designations
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label . The following table tells you
which transmission or transaxle
each code represents.
Code Description
WFour-speed automatic overdrive (4R70E) -
Livonia
XFour-speed automatic overdrive (4R70E) -
Sharonville
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
252

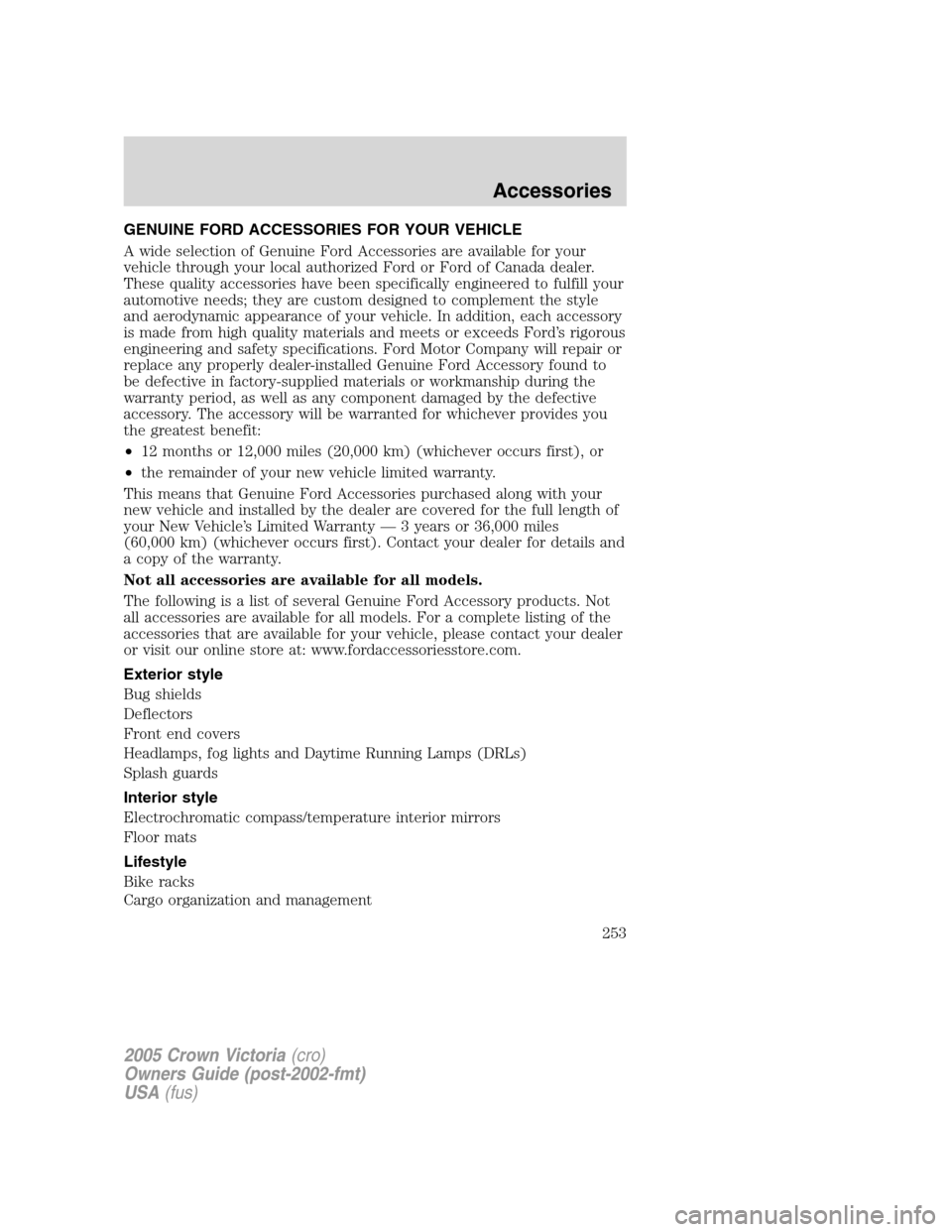

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local authorized Ford or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessory found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that Genuine Ford Accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty — 3 years or 36,000 miles
(60,000 km) (whichever occurs first). Contact your dealer for details and
a copy of the warranty.
Not all accessories are available for all models.
The following is a list of several Genuine Ford Accessory products. Not
all accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Front end covers
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Bike racks
Cargo organization and management
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
253

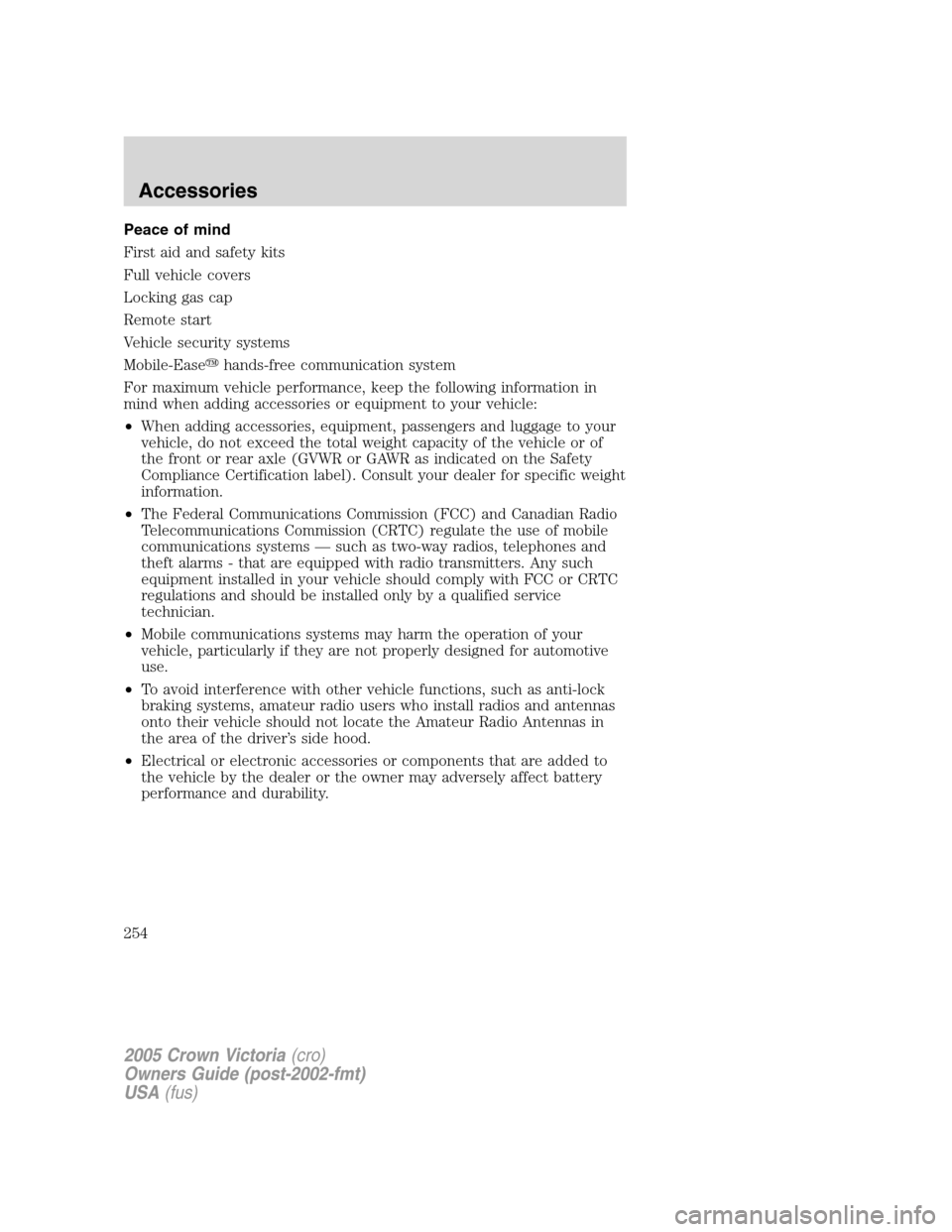

Peace of mind
First aid and safety kits
Full vehicle covers
Locking gas cap
Remote start
Vehicle security systems
Mobile-Ease
hands-free communication system
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your dealer for specific weight
information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the dealer or the owner may adversely affect battery
performance and durability.
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
254

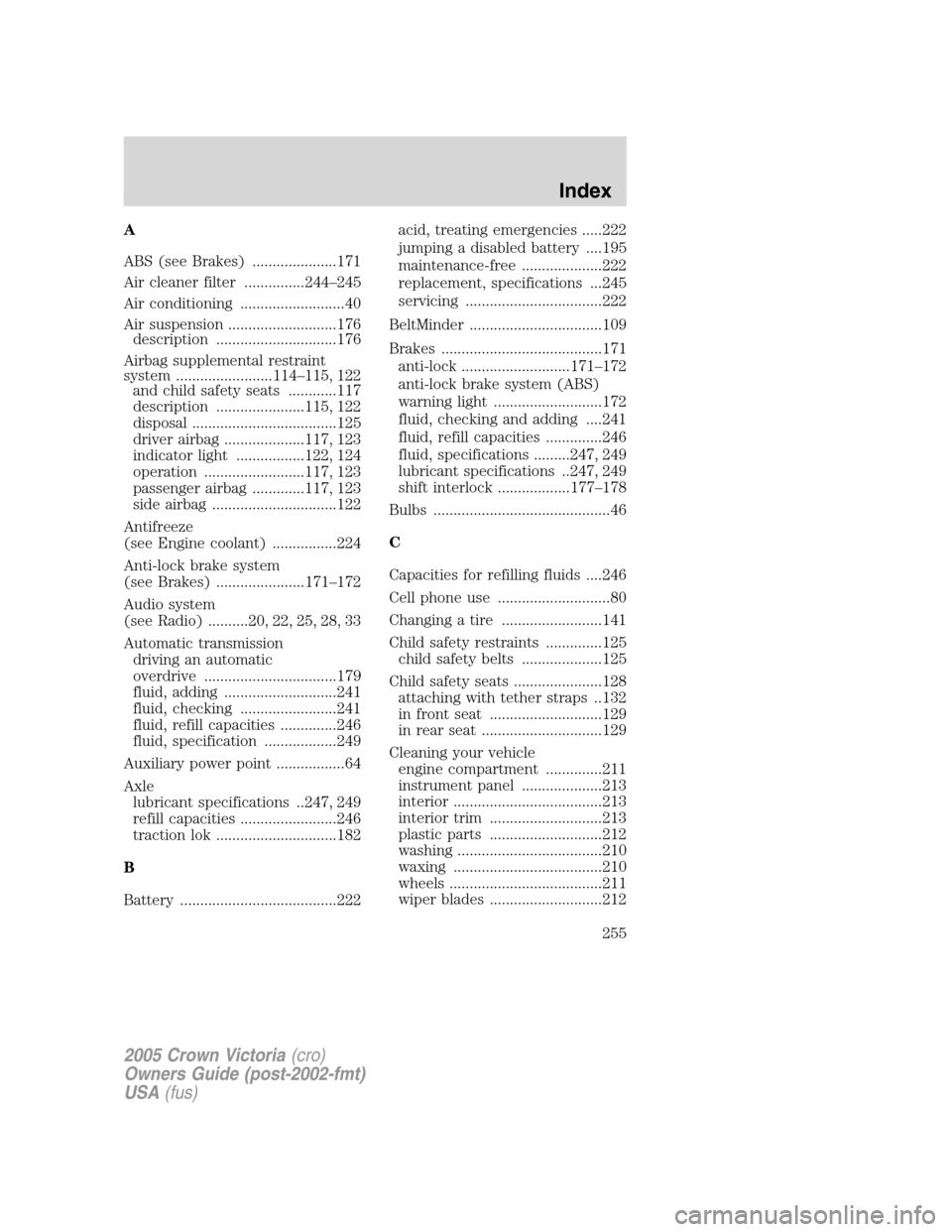

A
ABS (see Brakes) .....................171
Air cleaner filter ...............244–245
Air conditioning ..........................40
Air suspension ...........................176
description ..............................176
Airbag supplemental restraint
system ........................114–115, 122
and child safety seats ............117
description ......................115, 122
disposal ....................................125
driver airbag ....................117, 123
indicator light .................122, 124
operation .........................117, 123
passenger airbag .............117, 123
side airbag ...............................122
Antifreeze
(see Engine coolant) ................224
Anti-lock brake system
(see Brakes) ......................171–172
Audio system
(see Radio) ..........20, 22, 25, 28, 33
Automatic transmission
driving an automatic
overdrive .................................179
fluid, adding ............................241
fluid, checking ........................241
fluid, refill capacities ..............246
fluid, specification ..................249
Auxiliary power point .................64
Axle
lubricant specifications ..247, 249
refill capacities ........................246
traction lok ..............................182
B
Battery .......................................222acid, treating emergencies .....222
jumping a disabled battery ....195
maintenance-free ....................222
replacement, specifications ...245
servicing ..................................222
BeltMinder .................................109
Brakes ........................................171
anti-lock ...........................171–172
anti-lock brake system (ABS)
warning light ...........................172
fluid, checking and adding ....241
fluid, refill capacities ..............246
fluid, specifications .........247, 249
lubricant specifications ..247, 249
shift interlock ..................177–178
Bulbs ............................................46
C
Capacities for refilling fluids ....246
Cell phone use ............................80
Changing a tire .........................141
Child safety restraints ..............125
child safety belts ....................125
Child safety seats ......................128
attaching with tether straps ..132
in front seat ............................129
in rear seat ..............................129
Cleaning your vehicle
engine compartment ..............211
instrument panel ....................213
interior .....................................213
interior trim ............................213
plastic parts ............................212
washing ....................................210
waxing .....................................210
wheels ......................................211
wiper blades ............................212
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Index
255

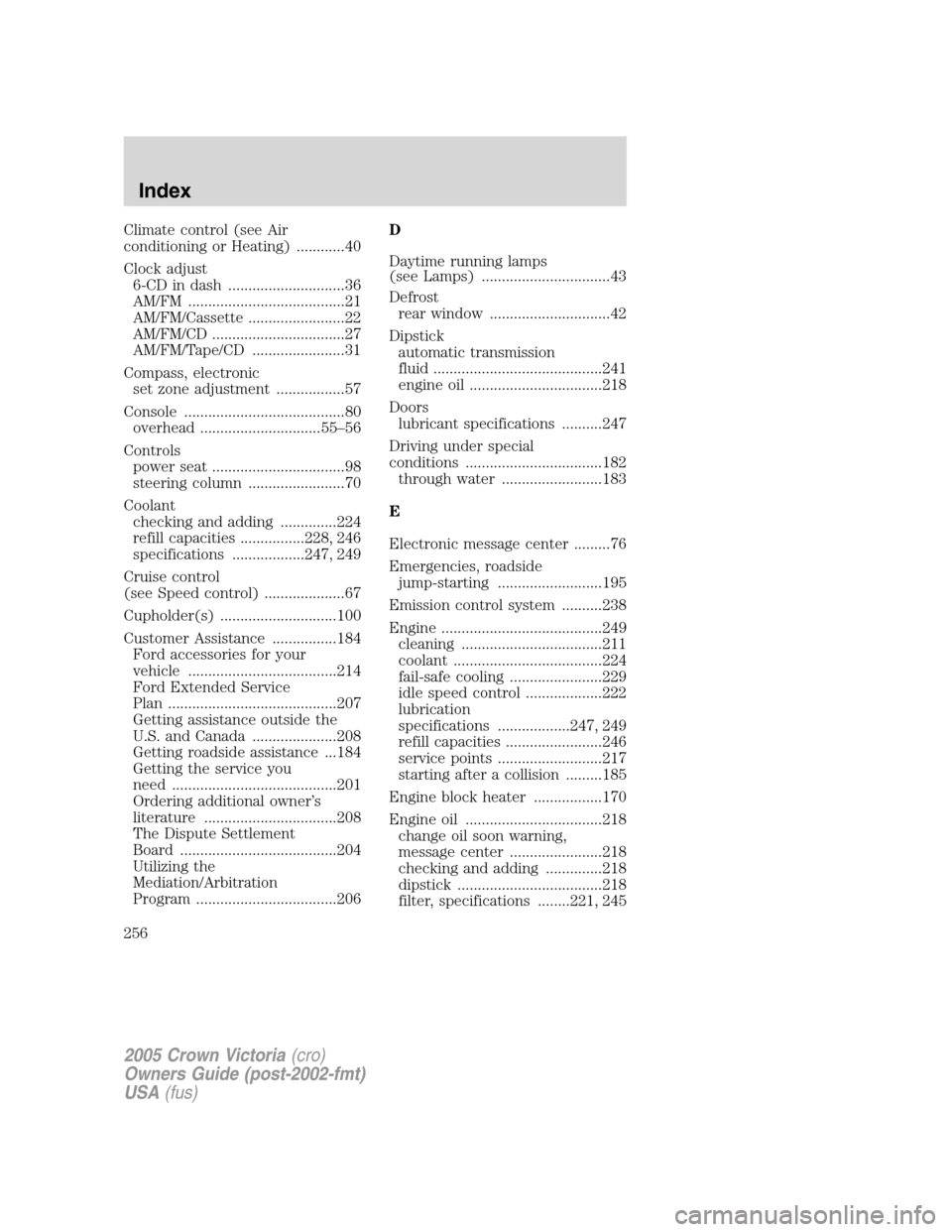

Climate control (see Air
conditioning or Heating) ............40
Clock adjust
6-CD in dash .............................36
AM/FM .......................................21
AM/FM/Cassette ........................22
AM/FM/CD .................................27
AM/FM/Tape/CD .......................31
Compass, electronic
set zone adjustment .................57
Console ........................................80
overhead ..............................55–56
Controls
power seat .................................98
steering column ........................70
Coolant
checking and adding ..............224
refill capacities ................228, 246
specifications ..................247, 249
Cruise control
(see Speed control) ....................67
Cupholder(s) .............................100
Customer Assistance ................184
Ford accessories for your
vehicle .....................................214
Ford Extended Service
Plan ..........................................207
Getting assistance outside the
U.S. and Canada .....................208
Getting roadside assistance ...184
Getting the service you
need .........................................201
Ordering additional owner’s
literature .................................208
The Dispute Settlement
Board .......................................204
Utilizing the
Mediation/Arbitration
Program ...................................206D
Daytime running lamps
(see Lamps) ................................43
Defrost
rear window ..............................42
Dipstick
automatic transmission
fluid ..........................................241
engine oil .................................218
Doors
lubricant specifications ..........247
Driving under special
conditions ..................................182
through water .........................183
E
Electronic message center .........76
Emergencies, roadside
jump-starting ..........................195
Emission control system ..........238
Engine ........................................249
cleaning ...................................211
coolant .....................................224
fail-safe cooling .......................229
idle speed control ...................222
lubrication
specifications ..................247, 249
refill capacities ........................246
service points ..........................217
starting after a collision .........185
Engine block heater .................170
Engine oil ..................................218
change oil soon warning,
message center .......................218
checking and adding ..............218
dipstick ....................................218
filter, specifications ........221, 245
2005 Crown Victoria(cro)
Owners Guide (post-2002-fmt)
USA(fus)
Index
256
