MAINTAINING YOUR VEHICLE 251
7
Chassis

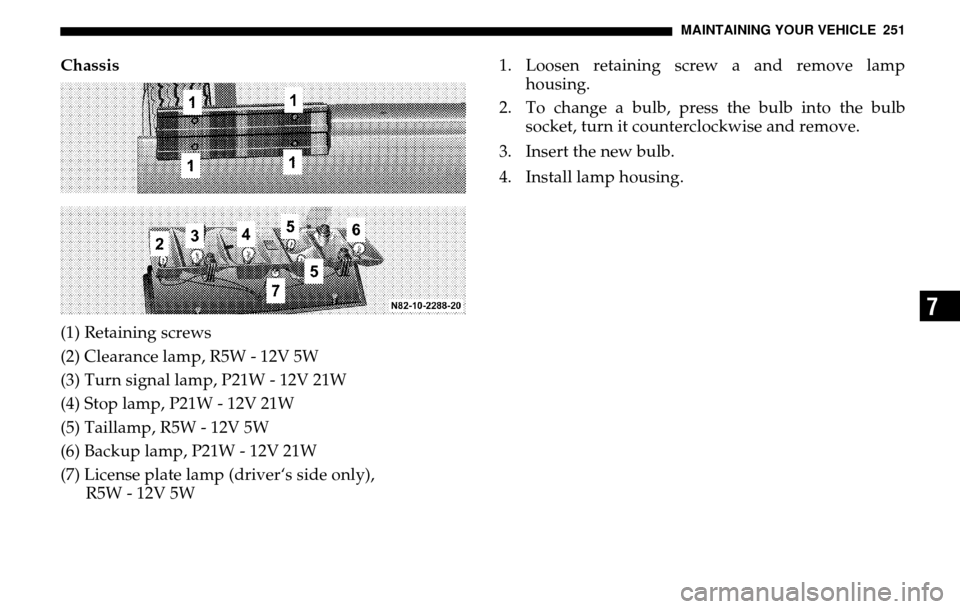

(1) Retaining screws
(2) Clearance lamp, R5W - 12V 5W
(3) Turn signal lamp, P21W - 12V 21W
(4) Stop lamp, P21W - 12V 21W
(5) Taillamp, R5W - 12V 5W
(6) Backup lamp, P21W - 12V 21W
(7) License plate lamp (driver‘s side only), R5W - 12V 5W 1. Loosen retaining screw a and remove lamp
housing.
2. To change a bulb, press the bulb into the bulb socket, turn it counterclockwise and remove.
3. Insert the new bulb.
4. Install lamp housing.
Page 253 of 288
MAINTAINING YOUR VEHICLE 253
7

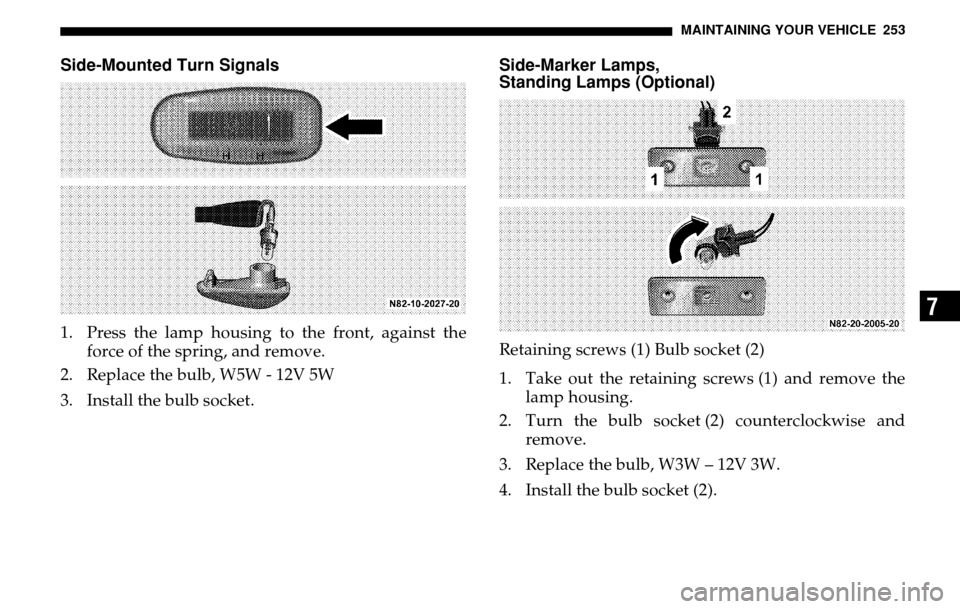

Side-Mounted Turn Signals1. Press the lamp housing to the front, against the force of the spring, and remove.
2. Replace the bulb, W5W - 12V 5W
3. Install the bulb socket.
Side-Marker Lamps,
Standing Lamps (Optional)Retaining screws (1) Bulb socket (2)
1. Take out the retaining screws (1) and remove the lamp housing.
2. Turn the bulb socket (2) counterclockwise and remove.
3. Replace the bulb, W3W – 12V 3W.
4. Install the bulb socket (2).
