186 STARTING AND OPERATINGPERMISSIBLE ROOF LOADThe maximum permissible roof load is:
 Vehicles with low roof 660 lbs (300 kg)
 Vehicles with high roof 330 lbs (150 kg)
 The weight of any load carried on the roof, including the roof rack, must not exceed the
maximum permissible roof load.TRAILER TOWING Trailer Hitches (Optional)
Only install a trailer hitch
receiver approved for your
vehicle. For information on availability and
installation, please see your authorized Sprinter
Dealer.
The bumpers on your vehicle are not designed for use
with clamp-type hitches. Do not attach rental hitches
or other bumper-type hitches to them.
To reduce the possibility of damage, remove the hitch
ball adaptor from the receiver when not in use.Electrical Connections (Optional)The Sprinter is available with a variety of pre-installed
conditions (lines and turn signal indicator and brake
module installed and / or not installed). Make sure that
the correct trailer hitch receiver kit is used. For further
information, please see your authorized Sprinter
Dealer.
In order to prevent possible damage to the vehicle’s
electrical system by incorrectly installing the trailer
wiring plug, we recommend having the harness
connected at an authorized Sprinter Dealer.
WARNING!
Failure to use proper equipment and driving tech-
nique can result in a loss of vehicle control when
towing a trailer.
Improper towing or failure to follow the
instructions contained in this guide can result in
serious injury. Follow the guidelines below
carefully to assure safe trailer operation.
Ask your authorized Sprinter Dealer, if you
require an explanation of information contained
in this guide.

188 STARTING AND OPERATINGChecking Weights of Vehicle and TrailerTo assure that the tow vehicle and trailer are in
compliance with the maximum permissible weight
limits, and to know the actual weights, have the loaded
vehicle-trailer combination (tow vehicle including
driver, passengers and cargo, trailer fully loaded)
weighed on a commercial scale.
Check the vehicle’s front and rear Gross Axle Weight
(GAW), the GTW and TW. The values as measured
must not be exceeded, according to the weight listed
under “Vehicle and trailer weight and ratings”.Attaching a TrailerPlease observe maximum permitted trailer dimensions
(width and length).
Most states and all Canadian provinces require safety
chains between your tow vehicle and the trailer. The
chains should be crisscrossed under the trailer tongue.
They must be attached to the hitch receiver, and not to
the vehicle’s bumper or axle. Be sure to leave enough
slack in the chains to permit turning corners.
Most states and all Canadian provinces require a
separate brake system at various trailer weights.
WARNING!
Do not connect a trailer brake system (if trailer is
so equipped) directly to the vehicle’s hydraulic
brake system as your vehicle is equipped with an-
tilock brakes. If you do, neither the vehicle’s
brakes nor the trailer’s brakes will function prop-
erly. This could cause an accident resulting in
property damage, injury or death to you or others.
The provided vehicle electrical wiring harness for
trailer towing has a brake signal wire for hook-up
to a brake controller.
Most states and all Canadian provinces require a
break-away switch on trailers with a separate
brake system. The switch activates the trailer
brakes in the possible event that the trailer might
separate from the tow vehicle.
You should consider using a trailer sway control
system. For further information see your
authorized Sprinter Dealer.

196 WHAT TO DO IN EMERGENCIESHAZARD WARNING FLASHER SWITCHThe switch is located on top of the steering column
housing.
When the hazard warning flasher switch is switched
on, the indicator lamp in th e switch and the turn signal
indicator lamp in the inst rument cluster both flash.
WARNING!
If the rear cargo doors are opened to 90° (detent
position), the rear lights will be concealed. The
vehicle is then not sufficiently safeguarded at the
rear and may only be seen by other road users
when they are close to the vehicle. This could
lead to an accident.
The vehicle must then be clearly marked in
accordance with state and local laws, e.g., with a
warning triangle.

214 MAINTAINING YOUR VEHICLE

Headlamps, Taillamps, Identification Lamps,
Turn Signal Lenses . . . . . . . . . . . . . . . . . . . . . . . 234
Reversing Aid Sensors . . . . . . . . . . . . . . . . . . . . 235
Window Cleaning . . . . . . . . . . . . . . . . . . . . . . . 235
Wiper Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Light Alloy Wheels . . . . . . . . . . . . . . . . . . . . . . 236
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . 236
Steering Wheel and Gear Selector Lever . . . . 236
Cup Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Headliner and Shelf Below Rear Window . . . 237
Upholstery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Hard Plastic Trim Items . . . . . . . . . . . . . . . . . . 237
Plastic and Rubber Parts . . . . . . . . . . . . . . . . . . 238


Electrical Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Standard Fuse and Relay Equipment . . . . . . . 239
Relay Assignment, Standard Equipment . . . . 242
Fuse and Relay Optional Equipment . . . . . . . 242


Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Front Lamp Unit . . . . . . . . . . . . . . . . . . . . . . . . . 245
Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
License Plate Lamps
(Cargo/Passenger Vans Only) . . . . . . . . . . . . . 252
Additional Brake Lamp
(Cargo/Passenger Vans Only) . . . . . . . . . . . . . 252
Side-Mounted Turn Signals . . . . . . . . . . . . . . . 253
Side-Marker Lamps,
Standing Lamps (Optional) . . . . . . . . . . . . . . . . 253
Identification Lamps (Cargo/
passenger vans only) . . . . . . . . . . . . . . . . . . . . . 254
Interior Lighting in Passenger Compartment
and Load Compartment . . . . . . . . . . . . . . . . . . 254
Interior Lighting with Reading Lamp . . . . . . . 255
Interior Lighting with Interior Sensor
Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 255
Exit Lamps (Optional) . . . . . . . . . . . . . . . . . . . . 256


Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Recommended Fluids and Lubricants . . . . . . 258

234 MAINTAINING YOUR VEHICLECorrosion protection, such as anticorrosion wax
should be applied to the engine compartment after
every engine cleaning. Before applying, all control
linkage bushings and joints should be lubricated. The
poly-V-belt and all pulleys should be protected from
any wax.Vehicle WashingDo not use hot water or wash your vehicle in direct
sunlight. Use only a mild car wash detergent.
Thoroughly spray the vehicle with a diffused jet of
water. Direct only a very weak spray towards the
ventilation intake. Use plenty of water and rinse the
sponge and chamois frequently.
Rinse with clear water and thoroughly wipe dry with a
chamois. Do not allow cleaning agents to dry on the
finish.
Due to the width of the vehicle, prior to running the
vehicle through an automatic car wash, fold back the
outside mirrors to prevent them from getting
damaged.
In the winter, thoroughly remove all traces of road salt
as soon as possible. When washing the underbody, do not forget to clean
the inner sides of the wheels.
Ornamental MoldingsFor regular cleaning and care of very dirty chrome-
plated parts, use a chrome cleaner.Headlamps, Taillamps, Identification Lamps, Turn
Signal LensesUse a mild car wash detergent with plenty of water.
To prevent scratches, never apply strong force and use
only a soft, non-scratchy cloth when cleaning the
lenses. Do not attempt to wipe dirty lenses with a dry
cloth or sponge.
WARNING!
Dirty or iced-up steps and entrances create a risk
of slipping or falling.
Keep steps, entrances and footwear free from dirt
(e.g. mud, clay, snow and ice).

242 MAINTAINING YOUR VEHICLERelay Assignment, Standard Equipment1. Windshield wiper motor (W)
2. Diesel engine control unit (M)
3. Turn signals (B)
Fuse and Relay Optional EquipmentThe cover is located below the driver’s seat.
Remove cover:
1. Press both detent springs down and remove cover. Install cover:
2. Position cover at bottom and engage both detent springs.

246 MAINTAINING YOUR VEHICLE1. Turn signal lamp and sidemarker lamp, 3457 NA – 12V 28 / 7.5W, yellow glass
2. Low beam headlamp, H7 – 12V 55W
3. Fog lamp, H1 – 12V 55W
4. Side and parking lamps, W5W – 12V 5W
5. High beam headlamps, H1 – 12V 55 Turn Signal Lamps and Side-Marker Lamps
1. Turn bulb holder, together with bulb,
counterclockwise and remove.
2. Remove the bulb from the bulb holder.
3. Insert a new bulb in the bulb holder.
4. Insert the bulb holder together with the bulb and turn clockwise to the stop.

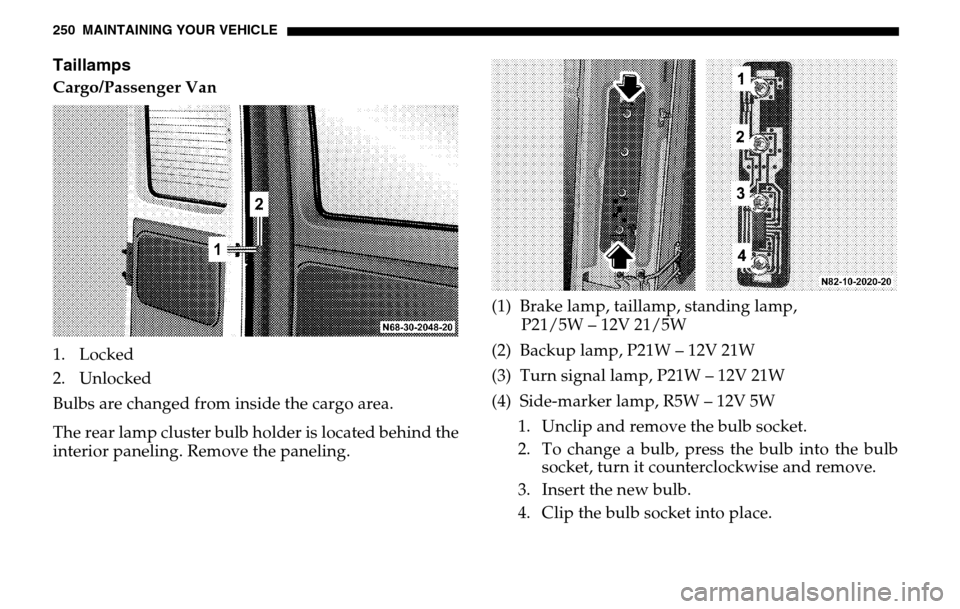

250 MAINTAINING YOUR VEHICLETaillampsCargo/Passenger Van
1. Locked
2. Unlocked
Bulbs are changed from inside the cargo area.
The rear lamp cluster bulb holder is located behind the
interior paneling. Remove the paneling. (1) Brake lamp, taillamp, standing lamp,
P21/5W – 12V 21/5W
(2) Backup lamp, P21W – 12V 21W
(3) Turn signal lamp, P21W – 12V 21W
(4) Side-marker lamp, R5W – 12V 5W 1. Unclip and remove the bulb socket.
2. To change a bulb, press the bulb into the bulb socket, turn it counterclockwise and remove.
3. Insert the new bulb.
4. Clip the bulb socket into place.
