2005 DODGE GRAND CARAVAN clock

Radio Operation
Power/Volume Control
Press the ON/VOL control to turn the radio on. Turn the
volume control clockwise to increase the volume.
NOTE: Power to operate the radio is supplied through
the ignition switch. It must be in the ON or ACC position
to operate the radio.
Seek
Press and release the SEEK button to search for the next
station in either the AM or FM mode. Press the top of the
button to seek up or the bottom to seek down. The radio
will remain tuned to the new station until you make
another selection. Holding the button in will bypass
stations without stopping until you release it. Tune
Press the TUNE control up or down to increase or
decrease the frequency. If you press and hold the button,
the radio will continue to tune until you release the
button. The frequency will be displayed and continu-
ously updated while the button is pressed.
To Set The Radio Push-Button Memory
When you are receiving a station that you wish to
commit to push-button memory, press the SET button.
SET 1 will show in the display window. Select the “ 1 – 5 ”
button you wish to lock onto this station and press and
release that button. If a button is not selected within 5
seconds after pressing the SET button, the station will
continue to play but will not be locked into push-button
memory.234 UNDERSTANDING YOUR INSTRUMENT PANEL

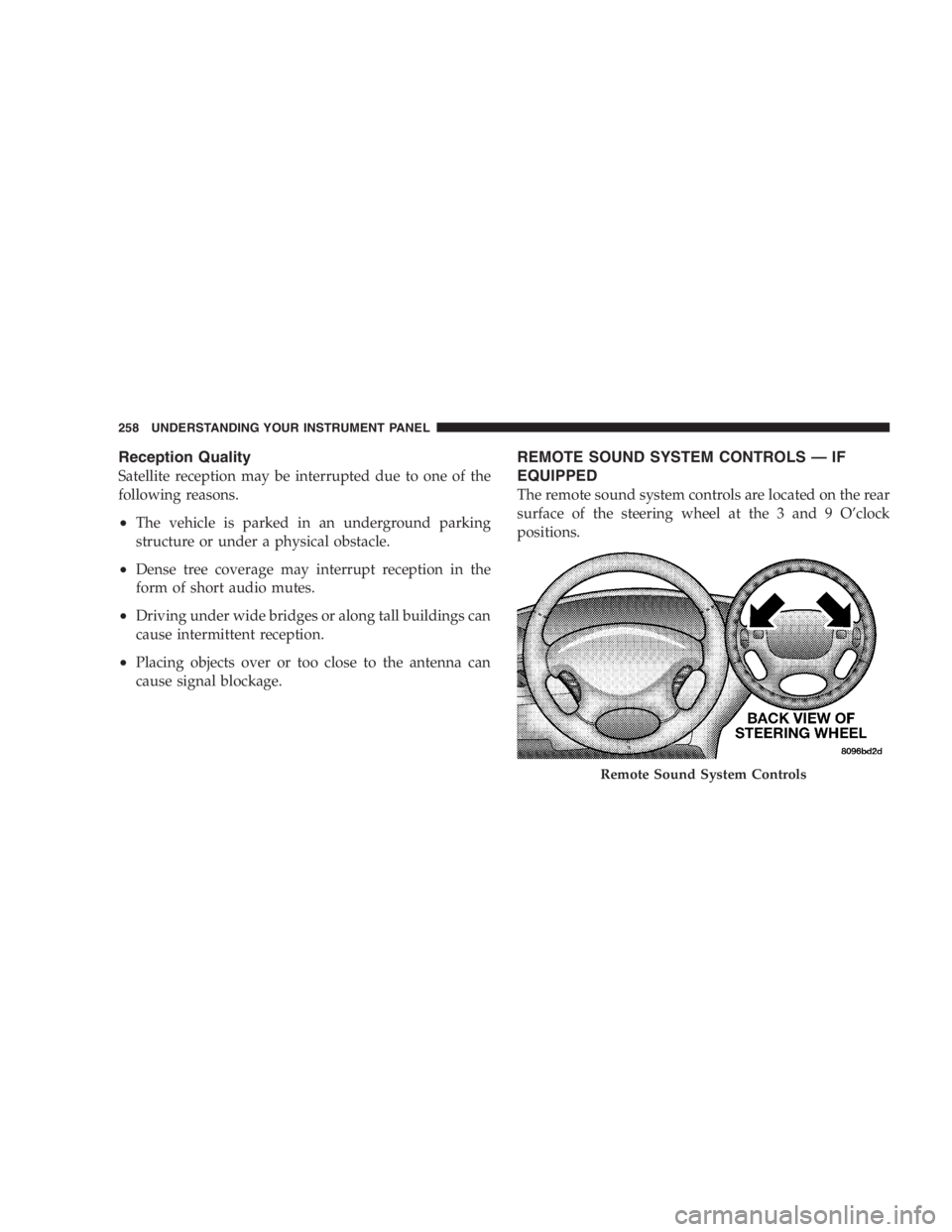

Reception Quality
Satellite reception may be interrupted due to one of the
following reasons.
• The vehicle is parked in an underground parking
structure or under a physical obstacle.
• Dense tree coverage may interrupt reception in the
form of short audio mutes.
• Driving under wide bridges or along tall buildings can
cause intermittent reception.
• Placing objects over or too close to the antenna can
cause signal blockage. REMOTE SOUND SYSTEM CONTROLS — IF
EQUIPPED
The remote sound system controls are located on the rear
surface of the steering wheel at the 3 and 9 O ’ clock
positions.
Remote Sound System Controls258 UNDERSTANDING YOUR INSTRUMENT PANEL

CLIMATE CONTROLS
The Air Conditioning and Heating System is designed to
make you comfortable in all types of weather.
Manual Air Conditioning and Heating System Front Blower Control
The Front Blower Control selects whether the Cli-
mate Control System is ON or OFF. When the blower
control is set to the O (OFF) position the front blower will
turn off and the system will be placed in the Recirculation
mode. When the blower control is set to any position
other than off, it selects the amount of air delivered to the
passenger compartment. There are four blower speeds.
The fan speed increases as you
move the control clockwise.
Manual Air Conditioning and Heating Controls262 UNDERSTANDING YOUR INSTRUMENT PANEL

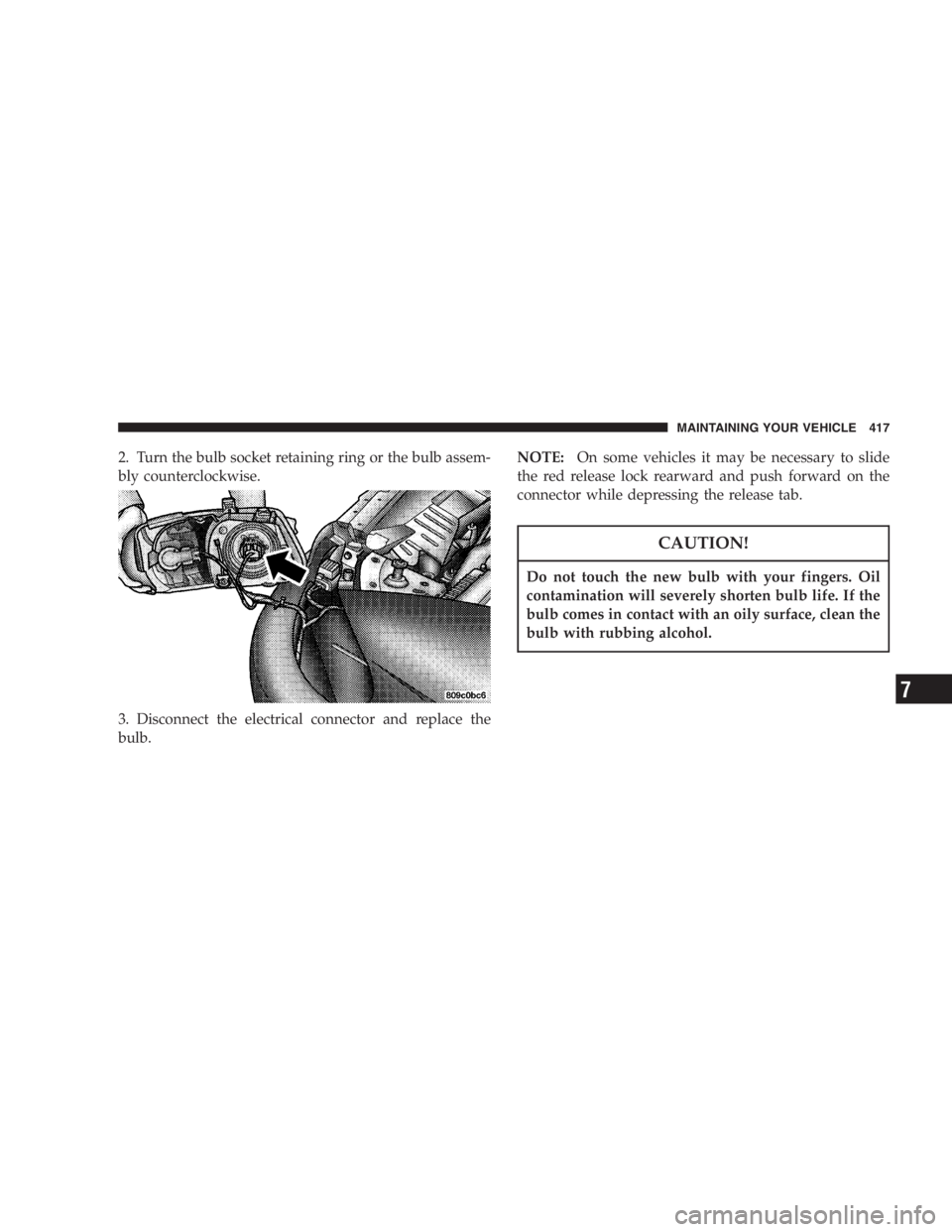

2. Turn the bulb socket retaining ring or the bulb assem-
bly counterclockwise.
3. Disconnect the electrical connector and replace the
bulb. NOTE: On some vehicles it may be necessary to slide
the red release lock rearward and push forward on the
connector while depressing the release tab.
CAUTION!Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol. MAINTAINING YOUR VEHICLE 417
7

Caps, Filler
Fuel ................................ 334
Oil (Engine) .......................... 382
Radiator (Coolant Pressure) ............... 396
Car Washes ............................ 407
Carbon Monoxide Warning ................. 333
Cargo Compartment
Luggage Carrier ....................... 182
Cargo (Vehicle Loading) ................... 181
Cassette Tape and Player Maintenance ......... 260
Cassette Tape Player ................ 206,216,221
Catalytic Converter ...................... 385
Caution, Exhaust Gas .............. 38,83,333,393
CD Changer ................ 215,224,238,240,243
CD Player ......... 212,216,223,226,229,233,236,243
CD Player Maintenance ................... 261
Cellular Phone ........................ 96,261
Center High Mounted Stop Light ............ 420
Center Lap Belts ......................... 50 Chains, Tire ............................ 327
Changing A Flat Tire ..................... 346
Chart, Tire Sizing ........................ 309
Check Engine Light (Malfunction
Indicator Light) ...................... 202,377
Child Restraint .......................... 69
Child Restraint Tether Anchors ............... 74
Child Safety Locks ........................ 33
Child Seat ............................ 68,76
Clean Air Gasoline ....................... 331
Climate Control ......................... 262
Clock ................................ 204
Compact Disc Changer .................... 240
Compact Disc Maintenance ................. 261
Compact Disc Player .................. 206,212
Compact Spare Tire ...................... 320
Compass .............................. 151
Compass Calibration ..................... 152
Compass Variance ....................... 152460 INDEX

Pretensioners .......................... 50
Rear Seat ............................. 42
Untwisting Procedure .................... 48
Seats ................................. 107
Adjustment .......................... 107
Bench ............................ 126,128
Easy Entry ........................... 120
Easy-Out Roller ....................... 126
Heated .............................. 110
Integrated, Child ....................... 68
Lumbar Support ....................... 112
Power .............................. 108
Reclining ......................... 1 10,112
Removal ....................... 121,124,126
Tilting .............................. 120
Security Alarm (Theft Alarm) ................ 27
Selection of Coolant ................... 395,422
Sentry Key ............................. 13
Sentry Key Programming ................... 15 Service Assistance .................... 448,449
Service Contract ......................... 450
Service Engine Soon Light (Malfunction Indicator) . 202
Service Manuals ........................ 454
Setting the Clock ........................ 204
Shoulder Belts ........................... 42
Signals, Turn ................... 138,197,418,419
Sliding Door ............................ 29
Slippery Surfaces, Driving On ............... 367
Snow Chains (Tire Chains) ................. 327
Snow Tires ............................ 329
Spare Tire ..................... 320,321,349,360
Spark Plugs ............................ 384
Speed Control .......................... 147
Speedometer ........................... 197
Starting ............................... 292
Engine Fails to Start ................. 293,295
Starting and Operating .................... 292 INDEX 471
10
