INJECTION
CHECKS: EXHAUST GASES RECYCLING CIRCUIT
Exhaust gas recycling (EGR) valve.
(1)Exhaust gas recycling (EGR) electrovalve
NOTE:The engine ECU pilots the EGR valve.
Perform the check with the aid of a diagnostic tool.
Carry out the following operations with the diagnostic tool:
- «INJECTION»menu.
- Actuator tests.
- EGR electrovalve.
Check that you can hear the click from the EGR regulation electrovalve.
Double butterfly housing
(vehicle with particle filter).
(2)Double butterfly housing
Perform the check with the aid of a diagnostic tool.
Carry out the following operations with the diagnostic tool:
- «INJECTION»menu.
- Actuator tests.
- Butterfly.
EGR exchanger butterfly.
Check that you can hear the click from the double butterfly housing.
B1HP1UPC
B1HP1UQC
XSARA PICASSO
Engines: 9HZ - 9HY
Angl.-t2-page283-305-2005 9/01/06 10:18 Page 303

Downloaded from www.Manualslib.com manuals search engine 346
CLUTCH
GEARBOX
TRANSMISSION
RECOMMENDATIONS/PRECAUTIONS : AL4 AUTOMATIC GEARBOX
Procedure for initialising the automatic gearbox ECU
Downloading.
Updating the gearbox ECU by downloading:
- Follow the procedure using the diagnostic tool.
The downloading operation enables the automatic gearbox to be
updated, or adapted to an evolution of the engine ECU.
Before commencing the downloading, take the value of the oil usage
counter present in the automatic gearbox ECU.
After the downloading operation, carry out the following:
- A clearing of faults.
- An initialisation of the auto-adaptives.
- A writing of the value of the oil usage counter previously read.
- A road test.
ESSENTIAL: Every update of the automatic gearbox ECU should
be accompanied by an update of the engine ECU.Updating the value of the oil usage counter.
Using PROXIA.
Access to reading and recording of the oil counter is via the menu:
- «Configuration
(integrated circuit button)/Oil counter».
Adjustment of the oil counter value is done in incremental steps of
2750 units.
Using LEXIA.
Access to reading and recording of the oil counter is via the menu:
- «Oil counter».
Adjustment of the oil counter value is done by entering directly
the 5 figuresof the oil counter.
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 346

Downloaded from www.Manualslib.com manuals search engine 410

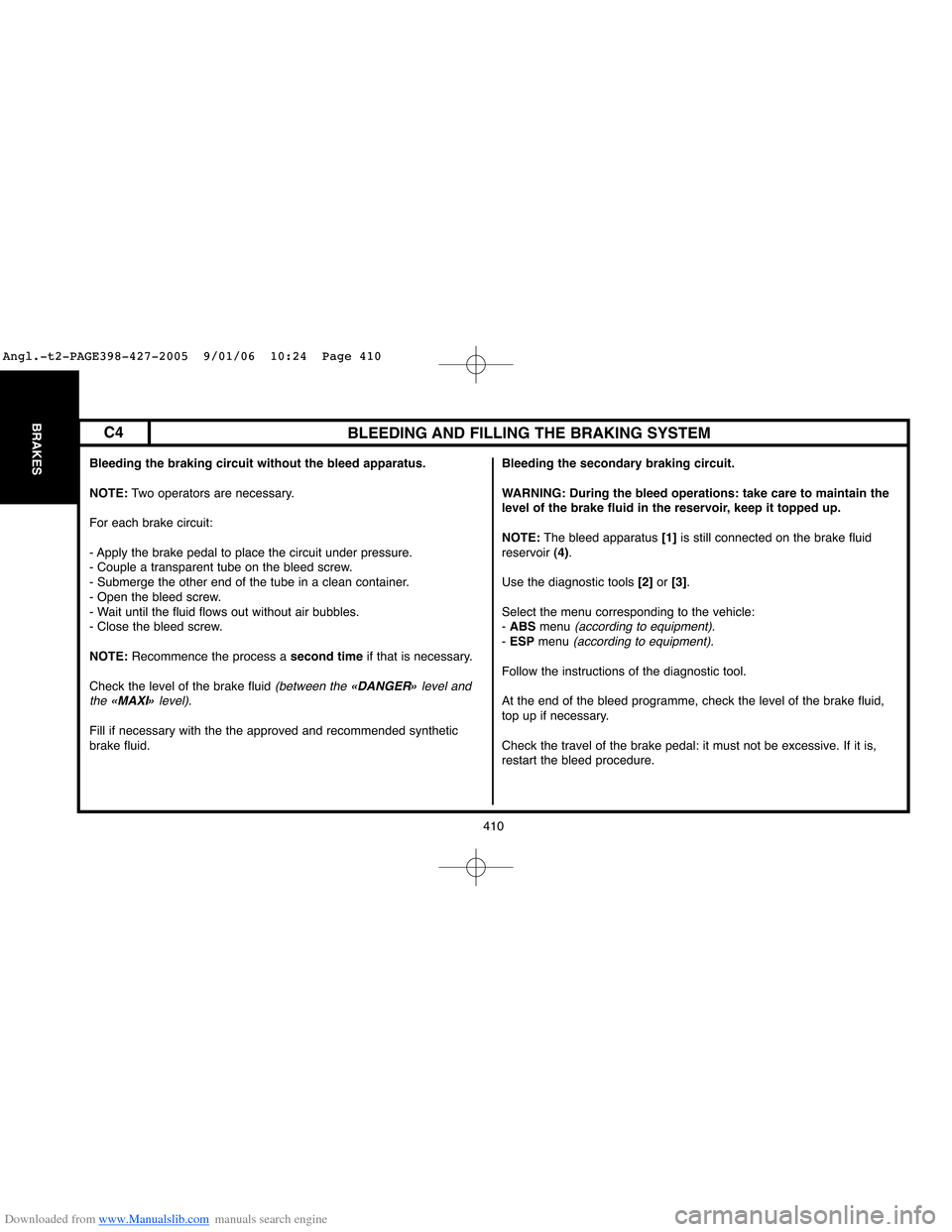

BRAKESBLEEDING AND FILLING THE BRAKING SYSTEM
Bleeding the braking circuit without the bleed apparatus.
NOTE:Two operators are necessary.
For each brake circuit:
- Apply the brake pedal to place the circuit under pressure.
- Couple a transparent tube on the bleed screw.
- Submerge the other end of the tube in a clean container.
- Open the bleed screw.
- Wait until the fluid flows out without air bubbles.
- Close the bleed screw.
NOTE:Recommence the process a second timeif that is necessary.
Check the level of the brake fluid
(between the «DANGER»level and
the «MAXI»level).
Fill if necessary with the the approved and recommended synthetic
brake fluid.Bleeding the secondary braking circuit.
WARNING: During the bleed operations: take care to maintain the
level of the brake fluid in the reservoir, keep it topped up.
NOTE:The bleed apparatus [1]is still connected on the brake fluid
reservoir (4).
Use the diagnostic tools [2]or [3].
Select the menu corresponding to the vehicle:
- ABSmenu
(according to equipment).- ESPmenu (according to equipment).
Follow the instructions of the diagnostic tool.
At the end of the bleed programme, check the level of the brake fluid,
top up if necessary.
Check the travel of the brake pedal: it must not be excessive. If it is,
restart the bleed procedure.
C4
