SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Cylinder block
14 Crankshaft bearing cap sealing screw (*) 0,8 ± 0,1
15 Knock sensor 2 ± 0,4
16 Coolant pump stud screw 1,6 ± 0,2
17 Coolant pump cover screw 0,6 ± 0,1
18 Screw of coolant pump body on cylinder block 6,5 ± 0,6
19 Cooling circuit plug 3 ± 0,5
20 Oil circuit plugs 3 ± 0,5
21 Flywheel screw (*) 6,7 ± 0,6
22 Con rod cap fixing nut 3,7 ± 0,4
23 Accessories drive belt pulley screw 0,8 ± 0,2
Crankshaft pinion screw
24Tightening4 ± 0,4
Angular tightening45°±4°
Crankshaft bearing cap cover screw (*)
25Tightening2
Angular tightening44°±4°
Engine: KFU
B1DP1KVP
(*) = IMPERATIVE: Respect the tightening sequence (see following page).
C4
ENGINE
Angl.-t2-page040-134-2005 9/01/06 10:11 Page 49

Downloaded from www.Manualslib.com manuals search engine 50

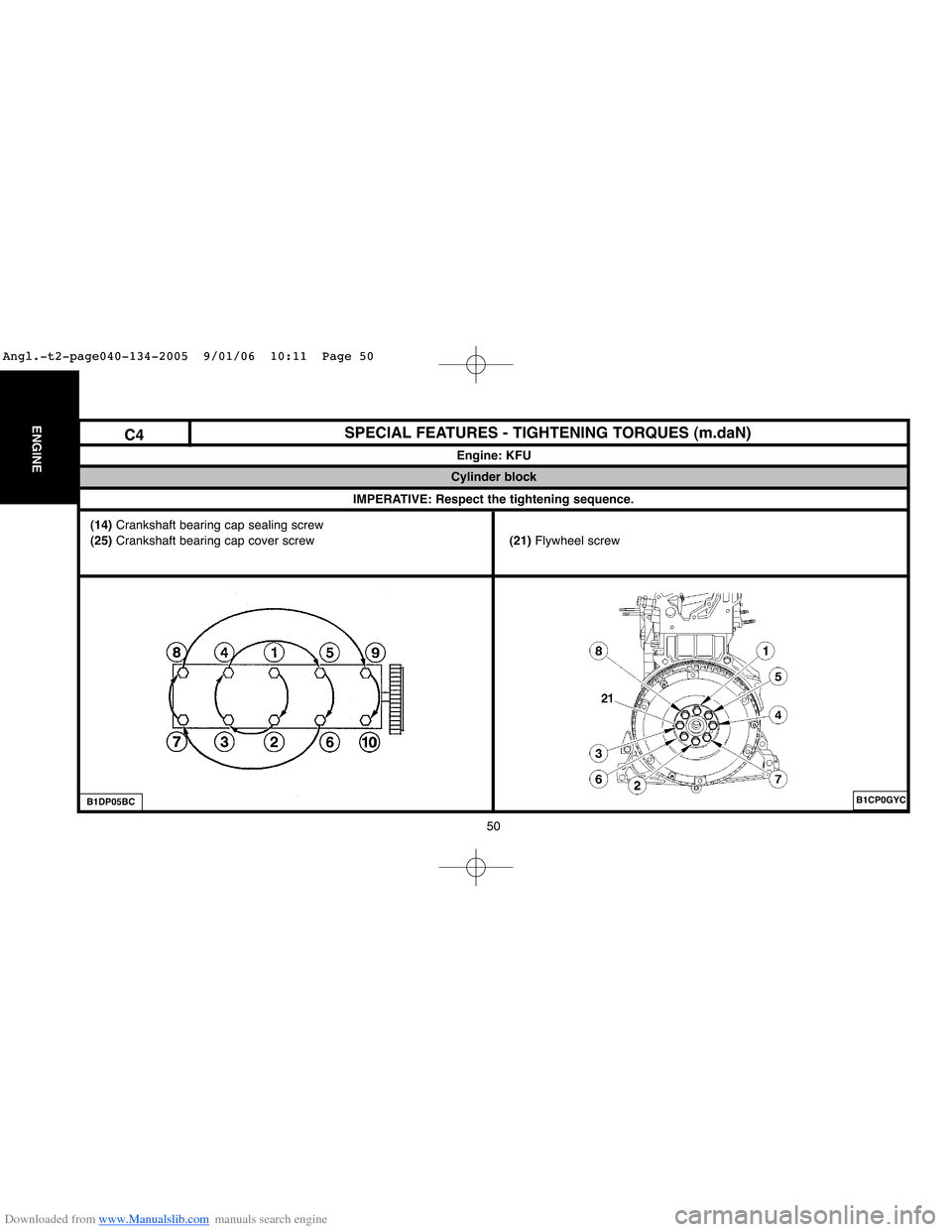

ENGINESPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
