2005 CHRYSLER CARAVAN relay

8W-80 CONNECTOR PIN-OUTS
Component Page
A/C Compressor Clutch............... 8W-80-6
A/C Pressure Sensor.................. 8W-80-6
A/C-Heater Control C1 (MTC).......... 8W-80-6
A/C-Heater Control C2 (MTC).......... 8W-80-7
Accelerator Pedal Position Sensor
(Diesel).......................... 8W-80-7
Adjustable Pedals Motor
(Except Export)................... 8W-80-7
Adjustable Pedals Relay (Except
Export/Except Memory)............. 8W-80-8
Adjustable Pedals Sensor
(Except Export)................... 8W-80-8
Adjustable Pedals Switch
(Except Export)................... 8W-80-8
Ambient Temperature Sensor........... 8W-80-8
Amplifier C1 (Highline Audio).......... 8W-80-9
Amplifier C2 (Highline Audio).......... 8W-80-9
ATC Remote Sensor (ATC)............ 8W-80-10
Auto Temp Control C1............... 8W-80-10
Auto Temp Control C2............... 8W-80-10
Auto Temp Control C3............... 8W-80-11
Back-Up Lamp Switch (MTX).......... 8W-80-11
Battery Temperature Sensor........... 8W-80-11
Belt Tension Sensor
(Occupant Sensing)................ 8W-80-11

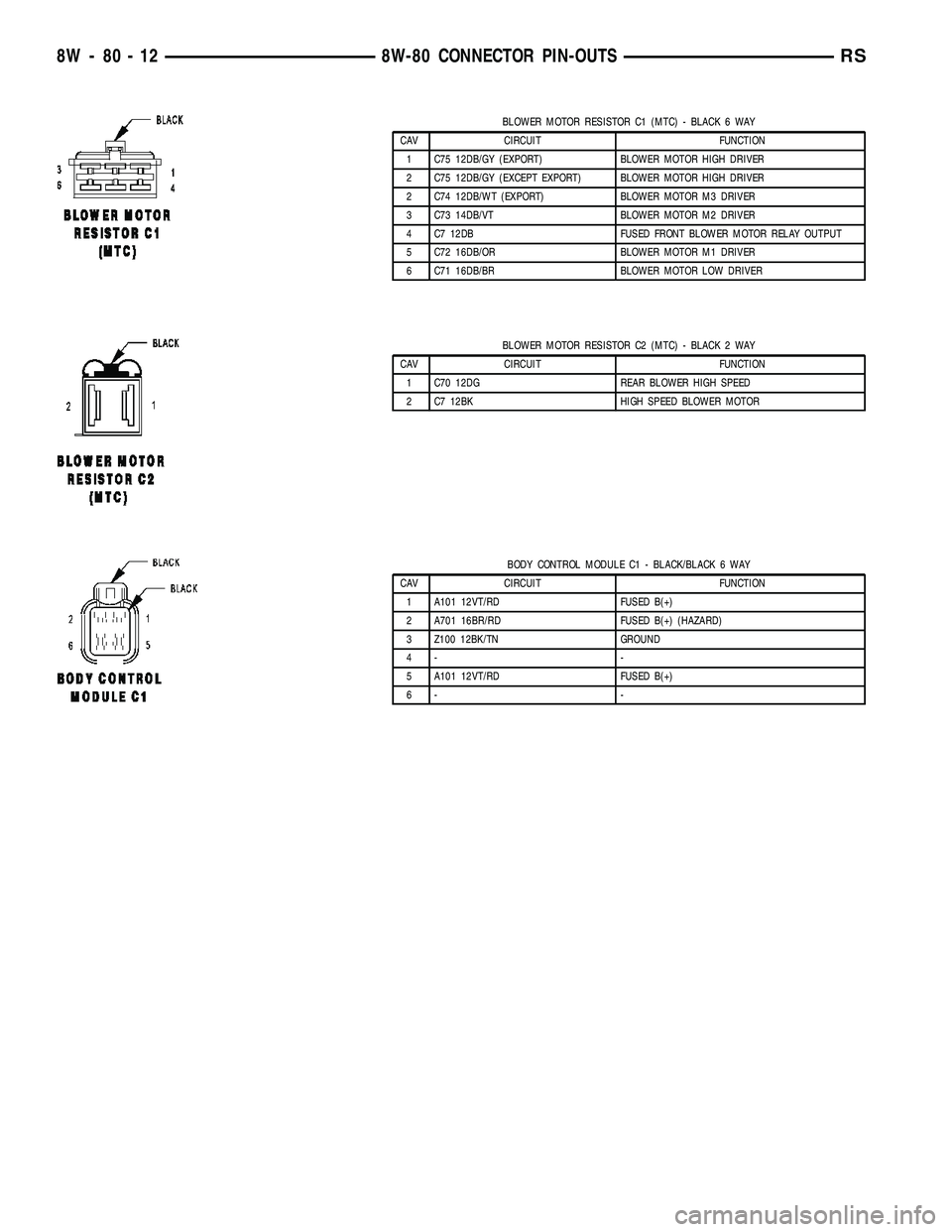

Blower Motor Resistor C1 (MTC)....... 8W-80-12
Blower Motor Resistor C2 (MTC)....... 8W-80-12
Body Control Module C1.............. 8W-80-12
Body Control Module C2.............. 8W-80-13
Body Control Module C3.............. 8W-80-14
Body Control Module C4.............. 8W-80-15
Body Control Module C5.............. 8W-80-16
Boost Pressure Sensor (Diesel)......... 8W-80-16
Brake Fluid Level Switch............. 8W-80-17
Brake Lamp Switch................. 8W-80-17
Brake Transmission Shift Interlock
Solenoid........................ 8W-80-17
C100............................. 8W-80-17
C100............................. 8W-80-18
C101 (Diesel)...................... 8W-80-18
C101 (Diesel)...................... 8W-80-19
C101 (Gas)........................ 8W-80-19
C101 (Gas)........................ 8W-80-19
C102 (Gas)........................ 8W-80-19
C102 (Gas)........................ 8W-80-20
C103 (Diesel)...................... 8W-80-20
C103 (Diesel)...................... 8W-80-20
C104 (Except Export)................ 8W-80-20
C104 (Except Export)................ 8W-80-21
C106 (Export)...................... 8W-80-21
C106 (Export)...................... 8W-80-21
C107 (Export)...................... 8W-80-21Component Page
C107 (Export)...................... 8W-80-22
C111(EATX)....................... 8W-80-22
C111(EATX)....................... 8W-80-22
C112 (Gas)........................ 8W-80-22
C112 (Gas)........................ 8W-80-22
C200............................. 8W-80-23
C200............................. 8W-80-25
C202............................. 8W-80-27
C202............................. 8W-80-27
C204 (Premium).................... 8W-80-27
C204 (Premium).................... 8W-80-28
C206 (Except Base).................. 8W-80-28
C206 (Except Base).................. 8W-80-28
C207 (DVD)....................... 8W-80-28
C207 (Hands Free).................. 8W-80-29
C300 (LHD)....................... 8W-80-29
C300 (LHD)....................... 8W-80-29
C300 (RHD)....................... 8W-80-30
C300 (RHD)....................... 8W-80-30
C301 (Luxury/Export)................ 8W-80-30
C301 (Luxury/Export)................ 8W-80-30
C302 (Export)...................... 8W-80-31
C302 (Export)...................... 8W-80-31
C302 (Luxury/Except Export).......... 8W-80-31
C302 (Luxury/Except Export).......... 8W-80-31
C303 (LHD)....................... 8W-80-32
C303 (LHD)....................... 8W-80-32
C303 (RHD)....................... 8W-80-32
C303 (RHD)....................... 8W-80-33
C304 (LHD)....................... 8W-80-33
C304 (LHD)....................... 8W-80-33
C305............................. 8W-80-33
C305............................. 8W-80-34
C306 (RHD)....................... 8W-80-34
C306 (RHD)....................... 8W-80-34
C307............................. 8W-80-34
C307............................. 8W-80-35
C308 (Except Side Airbag)............ 8W-80-35
C308 (Side Airbag).................. 8W-80-35
C308 (Except Side Airbag)............ 8W-80-36
C308 (Side Airbag).................. 8W-80-36
C309 (Side Airbag).................. 8W-80-36
C309 (Side Airbag).................. 8W-80-37
C309 (Except Side Airbag)............ 8W-80-37
C309 (Except Side Airbag)............ 8W-80-37
C310 (Front Console)................ 8W-80-38
C310 (Front Console)................ 8W-80-38
C311 (3 Zone HVAC/Except
Side Airbag)..................... 8W-80-38
C311 (3 Zone HVAC/Except
Side Airbag)..................... 8W-80-38
C311 (3 Zone HVAC/Side Airbag)....... 8W-80-39
RS8W-80 CONNECTOR PIN-OUTS8W-80-1

Component Page
Evaporator Temperature Sensor........ 8W-80-70
Floor Console Lamp................. 8W-80-70
Floor Console Power Outlet (Export).... 8W-80-70
Front Blower Module C1 (ATC)........ 8W-80-71
Front Blower Module C2 (ATC)........ 8W-80-71
Front Cigar Lighter................. 8W-80-71
Front Control Module................ 8W-80-72
Front Intrusion Sensor (United
Kingdom)....................... 8W-80-73
Front Reading Lamps/Switch.......... 8W-80-73
Fuel Heater (Diesel)................. 8W-80-73
Fuel Injector No. 1 (2.4L/3.3L/3.8L)..... 8W-80-73
Fuel Injector No. 1 (Diesel)............ 8W-80-73
Fuel Injector No. 2 (2.4L/3.3L/3.8L)..... 8W-80-74
Fuel Injector No. 2 (Diesel)............ 8W-80-74
Fuel Injector No. 3 (2.4L/3.3L/3.8L)..... 8W-80-74
Fuel Injector No. 3 (Diesel)............ 8W-80-74
Fuel Injector No. 4 (2.4L/3.3L/3.8L)..... 8W-80-75
Fuel Injector No. 4 (Diesel)............ 8W-80-75
Fuel Injector No. 5 (3.3L/3.8L)......... 8W-80-75
Fuel Injector No. 6 (3.3L/3.8L)......... 8W-80-75
Fuel Pressure Sensor (Diesel).......... 8W-80-76
Fuel Pressure Solenoid (Diesel)........ 8W-80-76
Fuel Pump Module.................. 8W-80-76
Generator......................... 8W-80-76
Glow Plug Relay (Diesel)............. 8W-80-77
Hands Free Module C1............... 8W-80-77
Hands Free Module C2............... 8W-80-77
Hands Free Module C3............... 8W-80-78
Headlamp Switch................... 8W-80-78
Headlamp Washer Pump Motor (Export) . 8W-80-78
High Note Horn.................... 8W-80-79
Hood Ajar Switch (Export)............ 8W-80-79
Idle Air Control Motor (Gas)........... 8W-80-79
Ignition Coil (2.4L).................. 8W-80-79
Ignition Coil (3.3L/3.8L).............. 8W-80-80
Ignition Switch..................... 8W-80-80
Inlet Air Temperature Sensor.......... 8W-80-80
Input Speed Sensor................. 8W-80-80
Instrument Cluster.................. 8W-80-81
Instrument Panel Switch Bank
(Except Heated Seats)............. 8W-80-81
Instrument Panel Switch Bank
(Heated Seats)................... 8W-80-81
Integrated Power Module C1.......... 8W-80-82
Integrated Power Module C2.......... 8W-80-82
Integrated Power Module C3.......... 8W-80-83
Integrated Power Module C4.......... 8W-80-83
Integrated Power Module C5.......... 8W-80-84
Integrated Power Module C6.......... 8W-80-84
Integrated Power Module C7.......... 8W-80-84
Integrated Power Module C8.......... 8W-80-85
Integrated Power Module C9.......... 8W-80-85
Knock Sensor (Except Export)......... 8W-80-85Component Page
Left B-Pillar Switch (Power Sliding
Door).......................... 8W-80-86
Left Cinch/Release Motor (Power Sliding
Door).......................... 8W-80-86
Left Curtain Airbag Squib............ 8W-80-86
Left Cylinder Lock Switch (Export)..... 8W-80-86
Left Door Speaker.................. 8W-80-87
Left Fog Lamp..................... 8W-80-87
Left Front Door Ajar Switch (Base)..... 8W-80-87
Left Front Door Lock Motor/Ajar Switch
(Except Base).................... 8W-80-87
Left Front Impact Sensor (Export)...... 8W-80-87
Left Front Impact Sensor (Except
Export)......................... 8W-80-88
Left Front Park/Turn Signal Lamp...... 8W-80-88
Left Front Wheel Speed Sensor........ 8W-80-88
Left Full Open Switch (Power Sliding
Door).......................... 8W-80-88
Left Headlamp (Caravan/Voyager Except
Export)......................... 8W-80-89
Left Headlamp (Town And Country)..... 8W-80-89
Left Headlamp Leveling Motor (Export) . . 8W-80-89
Left High Beam Lamp (Export)........ 8W-80-89
Left Instrument Panel Speaker........ 8W-80-90
Left Liftgate Flood Lamp (Export)...... 8W-80-90
Left Low Beam Lamp (Export)......... 8W-80-90
Left Mid Reading Lamp (Premium/
Luxury)........................ 8W-80-90
Left Park Lamp (Export)............. 8W-80-91
Left Power Mirror................... 8W-80-91
Left Rear Lamp Assembly............ 8W-80-91
Left Rear Pillar Speaker (Highline
Audio).......................... 8W-80-92
Left Rear Reading Lamp (Luxury)...... 8W-80-92
Left Rear Speaker.................. 8W-80-92
Left Rear Vent Motor................ 8W-80-92
Left Rear Wheel Speed Sensor......... 8W-80-93
Left Remote Radio Switch............ 8W-80-93
Left Repeater Lamp (Export).......... 8W-80-93
Left Side Impact Sensor 1 (Export)..... 8W-80-93
Left Side Impact Sensor 1 (Except
Export)......................... 8W-80-94
Left Side Impact Sensor 2............ 8W-80-94
Left Side Impact Sensor 3............ 8W-80-94
Left Sliding Door Control Module C1
(Power Sliding Door).............. 8W-80-94
Left Sliding Door Control Module C2
(Power Sliding Door).............. 8W-80-95
Left Sliding Door Latch Sensing Switch
(Power Sliding Door).............. 8W-80-95
Left Sliding Door Lock Motor (Power Sliding
Door).......................... 8W-80-95
Left Sliding Door Lock Motor/Ajar Switch
(Manual Sliding Door)............. 8W-80-96
RS8W-80 CONNECTOR PIN-OUTS8W-80-3

Component Page
Left Sliding Door Motor (Power Sliding
Door).......................... 8W-80-96
Left Speed Control Switch............ 8W-80-96
Left Turn Signal Lamp (Export)........ 8W-80-96
Left Visor/Vanity Lamp (Premium/Luxury
Except Export)................... 8W-80-97
License Lamp (Manual Release)........ 8W-80-97
License Lamp (Power Liftgate)......... 8W-80-97
License Lamp (Power Release)......... 8W-80-97
Lift Pump Motor (Diesel)............. 8W-80-98
Liftgate Ajar Switch (Manual Release) . . . 8W-80-98
Liftgate Ajar Switch (Power Release).... 8W-80-98
Liftgate Cinch/Release Motor (Power
Liftgate)........................ 8W-80-98
Liftgate Left Pinch Sensor (Power
Liftgate)........................ 8W-80-99
Liftgate Right Pinch Sensor (Power
Liftgate)........................ 8W-80-99
Manifold ABSolute Pressure Sensor
(Gas)........................... 8W-80-99
Mass Air Flow Sensor (Diesel)......... 8W-80-99
Memory Seat/Mirror/Adjustable
Pedals Module C1................ 8W-80-100
Memory Seat/Mirror/Adjustable
Pedals Module C2................ 8W-80-100
Memory Seat/Mirror/Adjustable
Pedals Module C3................ 8W-80-101
Memory Seat/Mirror/Adjustable
Pedals Module C4................ 8W-80-101
Memory Set Switch................. 8W-80-101
Message Center (Export)............ 8W-80-101
Mode Door Actuator................ 8W-80-102
Multi-Function Switch.............. 8W-80-102
Natural Vacuum Leak Detection Assembly
(Except Export).................. 8W-80-102
Occupant Classification Module....... 8W-80-102
Occupant Restraint Controller C1..... 8W-80-103
Occupant Restraint Controller C2..... 8W-80-104
Output Speed Sensor............... 8W-80-104
Overhead Console (Except Base)...... 8W-80-105
Oxygen Sensor 1/1 Upstream (Gas).... 8W-80-105
Oxygen Sensor 1/2 Downstream (Gas) . . 8W-80-105
Park Assist Display................ 8W-80-105
Park Assist Module................. 8W-80-106
Park Assist Sensor No. 1............ 8W-80-106
Park Assist Sensor No. 2............ 8W-80-106
Park Assist Sensor No. 3............ 8W-80-107
Park Assist Sensor No. 4............ 8W-80-107
Passenger Airbag.................. 8W-80-107
Passenger Airbag On/Off Indicator
Lamp......................... 8W-80-107
Passenger Blend Door Actuator....... 8W-80-107
Passenger Door Courtesy Lamp
(Luxury/Export)................. 8W-80-108
Passenger Door Lock Switch.......... 8W-80-108Component Page
Passenger Folding Mirror Relay
(Export)....................... 8W-80-108
Passenger Heated Seat Back......... 8W-80-108
Passenger Heated Seat Cushion....... 8W-80-109
Passenger Heated Seat Module (Except
Export)........................ 8W-80-109
Passenger Heated Seat Module C1
(Export)....................... 8W-80-109
Passenger Heated Seat Module C2
(Export)....................... 8W-80-109
Passenger Heated Seat Module C3
(Export)........................ 8W-80-110
Passenger Power Seat Front Riser
Motor......................... 8W-80-110
Passenger Power Seat
Horizontal Motor................ 8W-80-110
Passenger Power Seat
Rear Riser Motor................ 8W-80-110
Passenger Power Seat Recliner Motor . . . 8W-80-111
Passenger Power Seat Switch......... 8W-80-111
Passenger Power Window Motor....... 8W-80-111
Passenger Power Window Switch...... 8W-80-111
Passenger Seat Belt Switch (Occupant
Sensing)....................... 8W-80-112
Passenger Seat Belt Tensioner........ 8W-80-112
Passenger Seat Weight Sensor........ 8W-80-112
Power Folding Mirror Switch (Export) . . 8W-80-113
Power Liftgate Module C1........... 8W-80-113
Power Liftgate Module C2........... 8W-80-113
Power Liftgate Motor............... 8W-80-114
Power Mirror Switch................ 8W-80-114
Power Outlet (Except Lowline)........ 8W-80-114
Power Seat Circuit Breaker (30A)...... 8W-80-115
Power Window Circuit Breaker (25A) . . . 8W-80-115
Power Window Switch (LHD Lowline) . . 8W-80-115
Powertrain Control Module C1........ 8W-80-116
Powertrain Control Module C2........ 8W-80-117
Powertrain Control Module C3........ 8W-80-118
Powertrain Control Module C4........ 8W-80-119
Radiator Fan No. 1 (Diesel).......... 8W-80-120
Radiator Fan No. 1 (Gas)............ 8W-80-120
Radiator Fan No. 2 (Diesel).......... 8W-80-120
Radiator Fan No. 2 (Gas)............ 8W-80-120
Radiator Fan Relay (Gas)............ 8W-80-121
Radiator Fan Relay No. 1 (Diesel)..... 8W-80-121
Radiator Fan Relay No. 2 (Diesel)..... 8W-80-121
Radiator Fan Relay No. 3 (Diesel)..... 8W-80-122
Radio C1......................... 8W-80-122
Radio C2 (CD Changer)............. 8W-80-123
Radio C2 (DVD/CD Changer)......... 8W-80-123
Radio C2 (Hands Free).............. 8W-80-123
Rear A/C-Heater Unit (3 Zone MTC) . . . 8W-80-124
Rear Auto Temp Control Switch (3 Zone
ATC) .......................... 8W-80-124
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSRS

Component Page
Rear Blower Front Control Switch (3 Zone
MTC)......................... 8W-80-124
Rear Blower Motor Power Module C1 (3 Zone
ATC) .......................... 8W-80-125
Rear Blower Motor Power Module C2 (3 Zone
ATC) .......................... 8W-80-125
Rear Blower Rear Control Switch C1 (3 Zone
MTC)......................... 8W-80-125
Rear Blower Rear Control Switch C2 (3 Zone
MTC)......................... 8W-80-125
Rear Dome Lamp (Except Luxury)..... 8W-80-126
Rear Intrusion Sensor (United
Kingdom)...................... 8W-80-126
Rear Mode Motor (3 Zone ATC)....... 8W-80-126
Rear Power Outlet................. 8W-80-126
Rear Temperature Motor (3 Zone ATC) . . 8W-80-127
Rear View Mirror C1 (Luxury)........ 8W-80-127
Rear View Mirror C2 (Hands Free)..... 8W-80-127
Rear Wiper Motor.................. 8W-80-128
Recirculation Door Actuator.......... 8W-80-128
Right B-Pillar Switch (Power Sliding
Door).......................... 8W-80-128
Right Cinch/Release Motor (Power Sliding
Door).......................... 8W-80-128
Right Curtain Airbag Squib.......... 8W-80-129
Right Cylinder Lock Switch (Export) . . . 8W-80-129
Right Door Speaker................ 8W-80-129
Right Fog Lamp................... 8W-80-129
Right Front Door Ajar Switch (Base) . . . 8W-80-130
Right Front Door Lock Motor/Ajar Switch (Except
Base).......................... 8W-80-130
Right Front Impact Sensor........... 8W-80-130
Right Front Park/Turn Signal Lamp.... 8W-80-130
Right Front Wheel Speed Sensor...... 8W-80-131
Right Full Open Switch (Power Sliding
Door).......................... 8W-80-131
Right Headlamp (Caravan/Voyager Except
Export)........................ 8W-80-131
Right Headlamp (Town And Country) . . . 8W-80-131
Right Headlamp Leveling Motor
(Export)....................... 8W-80-132
Right High Beam Lamp (Export)...... 8W-80-132
Right Instrument Panel Speaker...... 8W-80-132
Right Liftgate Flood Lamp........... 8W-80-132
Right Low Beam Lamp (Export)....... 8W-80-133
Right Mid Reading Lamp (Premium/
Luxury)........................ 8W-80-133
Right Park Lamp (Export)........... 8W-80-133
Right Power Mirror................ 8W-80-133
Right Rear Lamp Assembly.......... 8W-80-134
Right Rear Pillar Speaker (Highline
Audio)......................... 8W-80-134Component Page
Right Rear Reading Lamp (Luxury).... 8W-80-134
Right Rear Speaker................ 8W-80-134
Right Rear Vent Motor.............. 8W-80-135
Right Rear Wheel Speed Sensor....... 8W-80-135
Right Remote Radio Switch.......... 8W-80-135
Right Repeater Lamp (Export)........ 8W-80-135
Right Side Impact Sensor 1 (Export) . . . 8W-80-135
Right Side Impact Sensor 1 (Except
Export)........................ 8W-80-136
Right Side Impact Sensor 2.......... 8W-80-136
Right Side Impact Sensor 3.......... 8W-80-136
Right Sliding Door Control Module C1 (Power
Sliding Door)................... 8W-80-136
Right Sliding Door Control Module C2 (Power
Sliding Door)................... 8W-80-137
Right Sliding Door Latch Sensing Switch (Power
Sliding Door)................... 8W-80-137
Right Sliding Door Lock Motor (Power Sliding
Door).......................... 8W-80-137
Right Sliding Door Lock Motor/Ajar Switch (Manual
Sliding Door)................... 8W-80-138
Right Sliding Door Motor (Power Sliding
Door).......................... 8W-80-138
Right Speed Control Switch.......... 8W-80-138
Right Turn Signal Lamp (Export)...... 8W-80-138
Right Visor/Vanity Lamp (Except Base/
Export)........................ 8W-80-139
Sentry Key Remote Entry Module
(SKREEM)..................... 8W-80-139
Siren (United Kingdom)............. 8W-80-139
Speed Control Servo (Gas)........... 8W-80-139
Sunroof Module (Except Export)....... 8W-80-140
Sunroof Switch (Except Export)....... 8W-80-140
Thatcham Alarm Module (United
Kingdom)...................... 8W-80-140
Throttle Position Sensor (Gas)........ 8W-80-141
Traction Control Switch............. 8W-80-141
Trailer Tow Connector (Except Export) . . 8W-80-141
Transmission Control Module (Diesel) . . 8W-80-141
Transmission Control Relay (Diesel).... 8W-80-143
Transmission Range Sensor.......... 8W-80-143
Transmission Solenoid/Pressure Switch
Assembly...................... 8W-80-143
Vehicle Speed Sensor (MTX).......... 8W-80-144
Washer Fluid Level Switch........... 8W-80-144
Washer Pump Motor................ 8W-80-144
Water In Fuel Sensor (Diesel)......... 8W-80-144
Wiper Module..................... 8W-80-144
RS8W-80 CONNECTOR PIN-OUTS8W-80-5

A/C COMPRESSOR CLUTCH - LT. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C3 20DB/YL (DIESEL) A/C COMPRESSOR CLUTCH RELAY OUTPUT
1 C3 20DB/YL (GAS) A/C CLUTCH RELAY OUTPUT
2 Z153 18BK/GY GROUND
A/C PRESSURE SENSOR - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 C918 20BK/LB (DIESEL) A/C PRESSURE SENSOR GROUND
1 K900 18DB/DG (GAS) SENSOR GROUND
2 F855 20PK/YL (2.4L) 5 VOLT SUPPLY
2 F855 18PK/YL (3.3L/3.8L) 5 VOLT SUPPLY
2 F851 20LB/PK (DIESEL) SENSOR REFERENCE VOLTAGE B
3 C18 20LB/BR (DIESEL) A/C PRESSURE SENSOR SIGNAL
3 C18 18LB/BR (GAS) A/C PRESSURE SIGNAL
4- -
A/C-HEATER CONTROL C1 (MTC) - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Z24 18BK/OR GROUND
2 C121 20DB/DG SENSOR GROUND
3 C22 20LB/WT (3 ZONE) REAR TEMPERATURE FEEDBACK SIGNAL
4- -
5 F850 20LB/PK (3 ZONE) 5 VOLT SUPPLY
6- -
7 C32 22DB/TN RECIRCULATION DOOR DRIVER (A)
8 C54 22LB/YL (3 ZONE) REAR BLEND DOOR DRIVER
9 C34 22DB/LB COMMON DOOR DRIVER (B)
10 D25 20WT/VT PCI BUS
11 - -
12 C121 20DB/DG (3 ZONE) REAR TEMPERATURE RETURN
13 F504 20GY/PK IGNITION SWITCH OUTPUT (RUN)
14 E12 20OR/GY PANEL LAMPS DRIVER
15 C21 22LB EVAPORATOR TEMPERATURE SENSOR SIGNAL
16 C33 22LB/BR PASSENGER BLEND DOOR DRIVER (A)
17 C61 22DB/LG (EXCEPT BASE) DRIVER BLEND DOOR DRIVER (A)
18 C35 22LB/LG MODE DOOR DRIVER (A)
19 C53 22LB (3 ZONE) REAR MODE DOOR DRIVER
20 C154 20LB/OR (3 ZONE) REAR COMMON DOOR DRIVER
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTSRS

ADJUSTABLE PEDALS RELAY (EXCEPT EXPORT/EXCEPT MEMORY)-9WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 18LG/RD FUSED B(+)
5 A128 18RD/OR ADJUSTABLE PEDALS RELAY OUTPUT
6 P201 20LG/DB ADJUSTABLE PEDALS RELAY CONTROL
7- -
8 A108 18LG/RD FUSED B(+)
9- -
ADJUSTABLE PEDALS SENSOR (EXCEPT EXPORT)-3WAY
CAV CIRCUIT FUNCTION
1 G11 18VT/TN (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR FEED
1 G11 20VT/TN (MEMORY) ADJUSTABLE PEDALS SENSOR FEED
2 G12 18VT/BR (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR SIGNAL
2 G12 22VT/BR (MEMORY) ADJUSTABLE PEDALS SENSOR SIGNAL
3 G912 18VT/WT (EXCEPT MEMORY) ADJUSTABLE PEDALS SENSOR RETURN
3 G912 20VT/WT (MEMORY) ADJUSTABLE PEDALS SENSOR RETURN
ADJUSTABLE PEDALS SWITCH (EXCEPT EXPORT)-4WAY
CAV CIRCUIT FUNCTION
1 A128 18RD/OR (EXCEPT MEMORY) ADJUSTABLE PEDALS RELAY OUTPUT
1 A114 18GY/RD (MEMORY) FUSED B(+) (I.O.D.)
2 Z146 18BK/YL GROUND
3 Q102 18OR/LB ADJUSTABLE PEDALS SWITCH REARWARD
4 Q103 18OR/LG ADJUSTABLE PEDALS SWITCH FORWARD
AMBIENT TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G31 18VT/LG (DIESEL) AMBIENT TEMPERATURE SENSOR SIGNAL
1 G31 18VT/LG (GAS) AAT SIGNAL
2 G931 18VT/BR (DIESEL) AMBIENT TEMPERATURE SENSOR RETURN
2 K900 18DB/DG (GAS) SENSOR GROUND
8W - 80 - 8 8W-80 CONNECTOR PIN-OUTSRS

AMPLIFIER C1 (HIGHLINE AUDIO) - NATURAL 14 WAY
CAV CIRCUIT FUNCTION
1 X201 18DG (EXCEPT EXPORT) AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
1 X201 20DG (EXPORT) AMPLIFIED LEFT FRONT DOOR SPEAKER (+)
2 X202 18GY (EXCEPT EXPORT) AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
2 X202 20GY (EXPORT) AMPLIFIED RIGHT FRONT DOOR SPEAKER (+)
3 X205 18GY/LG (EXCEPT EXPORT) AMPLIFIED LEFT REAR SPEAKER (+)
3 X205 20GY/LG (EXPORT) AMPLIFIED LEFT REAR SPEAKER (+)
4 X206 18DG/LG (EXCEPT EXPORT) AMPLIFIED RIGHT REAR SPEAKER (+)
4 X206 20DG/LG (EXPORT) AMPLIFIED RIGHT REAR SPEAKER (+)
5 X214 18DG/DB (EXCEPT EXPORT) AMPLIFIED LEFT REAR TWEETER (+)
5 X214 20DG/DB (EXPORT) AMPLIFIED LEFT REAR TWEETER (+)
6 X212 18GY/DB (EXCEPT EXPORT) AMPLIFIED RIGHT REAR TWEETER (+)
6 X212 20GY/DB (EXPORT) AMPLIFIED RIGHT REAR TWEETER (+)
7 X291 18DG/BR (EXCEPT EXPORT) AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
7 X291 20DG/BR (EXPORT) AMPLIFIED LEFT FRONT DOOR SPEAKER (-)
8 X292 18GY/BR (EXCEPT EXPORT) AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
8 X292 20GY/BR (EXPORT) AMPLIFIED RIGHT FRONT DOOR SPEAKER (-)
9 X295 18GY/DG (EXCEPT EXPORT) AMPLIFIED LEFT REAR SPEAKER (-)
9 X295 20GY/DG (EXPORT) AMPLIFIED LEFT REAR SPEAKER (-)
10 - -
11 - -
12 X296 18DG/GY (EXCEPT EXPORT) AMPLIFIED RIGHT REAR SPEAKER (-)
12 X296 20DG/GY (EXPORT) AMPLIFIED RIGHT REAR SPEAKER (-)
13 X284 18DG/TN (EXCEPT EXPORT) AMPLIFIED LEFT REAR TWEETER (-)
13 X284 20DG/TN (EXPORT) AMPLIFIED LEFT REAR TWEETER (-)
14 X282 18GY/TN (EXCEPT EXPORT) AMPLIFIED RIGHT REAR TWEETER (-)
14 X282 20GY/TN (EXPORT) AMPLIFIED RIGHT REAR TWEETER (-)
AMPLIFIER C2 (HIGHLINE AUDIO) - 20 WAY
CAV CIRCUIT FUNCTION
1 X153 18DG/YL (EXCEPT EXPORT) LEFT INSTRUMENT PANEL SPEAKER (+)
1 X153 20DG/YL (EXPORT) LEFT INSTRUMENT PANEL SPEAKER (+)
2 X154 18GY/YL (EXCEPT EXPORT) RIGHT INSTRUMENT PANEL SPEAKER (+)
2 X154 20GY/YL (EXPORT) RIGHT INSTRUMENT PANEL SPEAKER (+)
3- -
4 A116 16YL/RD FUSED B (+)
5- -
6 D25 20WT/VT PCI BUS
7 X51 20DG/DB LEFT REAR SPEAKER (+)
8 X52 20GY/DB RIGHT REAR SPEAKER (+)
9 Z513 16BK GROUND
10 X155 18DG/LB (EXCEPT EXPORT) LEFT INSTRUMENT PANEL SPEAKER (-)
10 X155 20DG/LB (EXPORT) LEFT INSTRUMENT PANEL SPEAKER (-)
11 X156 18GY/LB (EXCEPT EXPORT) RIGHT INSTRUMENT PANEL SPEAKER (-)
11 X156 20GY/LB (EXPORT) RIGHT INSTRUMENT PANEL SPEAKER (-)
12 - -
13 A116 16YL/RD FUSED B (+)
14 - -
15 - -
16 - -
17 F306 20DB/PK FUSED ACCESSORY RELAY OUTPUT
18 X57 20DG/OR LEFT REAR SPEAKER (-)
19 X58 20GY/OR RIGHT REAR SPEAKER (-)
20 Z513 16BK GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-9

BLOWER MOTOR RESISTOR C1 (MTC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 C75 12DB/GY (EXPORT) BLOWER MOTOR HIGH DRIVER
2 C75 12DB/GY (EXCEPT EXPORT) BLOWER MOTOR HIGH DRIVER
2 C74 12DB/WT (EXPORT) BLOWER MOTOR M3 DRIVER
3 C73 14DB/VT BLOWER MOTOR M2 DRIVER
4 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
5 C72 16DB/OR BLOWER MOTOR M1 DRIVER
6 C71 16DB/BR BLOWER MOTOR LOW DRIVER
BLOWER MOTOR RESISTOR C2 (MTC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C70 12DG REAR BLOWER HIGH SPEED
2 C7 12BK HIGH SPEED BLOWER MOTOR
BODY CONTROL MODULE C1 - BLACK/BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 A701 16BR/RD FUSED B(+) (HAZARD)
3 Z100 12BK/TN GROUND
4- -
5 A101 12VT/RD FUSED B(+)
6- -
