LEFT PARK LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
LEFT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P171 20TN/YL (EXPORT) LEFT FOLDING MIRROR UNFOLD DRIVER
2 P112 22TN/OR (AUTOMATIC DAY/
NIGHT MIRROR)MIRROR B(+)
3 P114 22TN/WT (AUTOMATIC DAY/
NIGHT MIRROR)MIRROR B(-)
4 P65 20TN/VT (MEMORY) LEFT MIRROR HORIZONTAL POSITION SIGNAL
5 P69 20TN/WT (MEMORY) LEFT MIRROR SENSOR GROUND
6 P64 20TN (MEMORY) LEFT MIRROR VERTICAL POSITION SIGNAL
7 P159 20TN/DG (LHD EXPORT) DRIVER FOLDING MIRROR FOLD DRIVER
7 P160 20TN/LG (RHD EXPORT) PASSENGER FOLDING MIRROR RELAY OUTPUT
8 Z215 22BK/LG GROUND
9 C16 20DB/GY (HEATED MIRRORS) FUSED DEFOGGER RELAY OUTPUT
10 P73 20TN/YL LEFT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P71 20TN/DG LEFT MIRROR UP DRIVER
12 P75 20TN/LG LEFT MIRROR LEFT DRIVER
LEFT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 L63 18WT/DG (EXCEPT EXPORT) LEFT REAR TURN SIGNAL DRIVER
1 Z363 18BK/DG (EXPORT) GROUND
2 L63 18WT/DG (EXPORT) LEFT REAR TURN SIGNAL DRIVER
3 L50 18WT/TN (DIESEL EXPORT) PRIMARY BRAKE SWITCH SIGNAL
3 L77 18WT/BR (EXCEPT EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L50 18WT/TN (GAS EXPORT) BRAKE LAMP SWITCH OUTPUT
4 L1 18WT/LG (EXCEPT TRAILER TOW) BACK-UP LAMP FEED
4 L1 18WT/BR (TRAILER TOW) BACK-UP LAMP FEED
5 Z363 18BK/DG (EXCEPT EXPORT) GROUND
5 L38 20WT/YL (EXPORT) REAR FOG LAMP SWITCH OUTPUT
6 L77 18WT/BR (EXPORT) FUSED PARK LAMP RELAY OUTPUT (LEFT)
RS8W-80 CONNECTOR PIN-OUTS8W-80-91

LEFT VISOR/VANITY LAMP (PREMIUM/LUXURY EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A Z327 20BK/OR GROUND
B M27 20YL/LB READING LAMP DRIVER
LICENSE LAMP (MANUAL RELEASE) - DK. GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
LICENSE LAMP (POWER LIFTGATE) - DK. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
5 Q94 20TN/LG LIFTGATE CHIME DRIVER
6 Z294 20BK/LG GROUND
7 G32 20VT/LB LIFTGATE TEMPERATURE SENSOR SIGNAL
8 Z78 20BK/OR GROUND
LICENSE LAMP (POWER RELEASE) - DK. GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
2 Z367 20BK/BR GROUND
3 P30 20TN/DG LIFTGATE HANDLE SWITCH SENSE
4 Z430 20BK/LG GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-97

LIFT PUMP MOTOR (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N2 18OR LIFT PUMP RELAY OUTPUT
2 Z201 18OR GROUND
LIFTGATE AJAR SWITCH (MANUAL RELEASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
LIFTGATE AJAR SWITCH (POWER RELEASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 P31 20TN/YL LIFTGATE RELEASE DRIVER
4 Z231 20BK/YL GROUND
LIFTGATE CINCH/RELEASE MOTOR (POWER LIFTGATE) - BLUE 7 WAY
CAV CIRCUIT FUNCTION
1 Z78 20BK/OR GROUND
2 G78 20VT/OR LIFTGATE AJAR SWITCH SENSE
3 Q60 20OR/YL LIFTGATE PAWL SWITCH SENSE
4 Z245 18BK/GY GROUND
5 Q85 18TN/WT LIFTGATE LATCH RELEASE DRIVER
6 Q84 18TN/GY LIFTGATE LATCH CINCH DRIVER
7 Q83 18OR/GY LIFTGATE LATCH CLUTCH DRIVER
8W - 80 - 98 8W-80 CONNECTOR PIN-OUTSRS

LIFTGATE LEFT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Q76 20OR/LB PINCH SENSOR SIGNAL
LIFTGATE RIGHT PINCH SENSOR (POWER LIFTGATE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q77 20OR/DB RIGHT PINCH SENSOR SIGNAL
2 Z78 20BK/OR GROUND
MANIFOLD ABSOLUTE PRESSURE SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K1 18VT/BR MAP SIGNAL
2 K900 18DB/DG SENSOR GROUND
3 F855 18PK/YL 5 VOLT SUPPLY
MASS AIR FLOW SENSOR (DIESEL) - ORANGE 5 WAY
CAV CIRCUIT FUNCTION
1- -
2 K342 16BR/WT ECM/PCM RELAY OUTPUT
3 K957 20BK/OR MASS AIR FLOW SENSOR GROUND
4 F855 20PK/YL SENSOR REFERENCE VOLTAGE A
5 K55 20DB/OR MASS AIR FLOW SENSOR SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W-80-99

PASSENGER DOOR COURTESY LAMP (LUXURY/EXPORT) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (LHD) GROUND
1 Z321 20BK/BR (RHD) GROUND
2- -
3 M21 14YL/BR (EXCEPT EXPORT) COURTESY LAMPS DRIVER
3 M21 20YL/BR (EXPORT) COURTESY LAMPS DRIVER
PASSENGER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 G160 20VT/LG (LHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (RHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (LHD) GROUND
3 Z461 20BK/DG (RHD) GROUND
PASSENGER FOLDING MIRROR RELAY (EXPORT) - BLUE 9 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 A108 20LG/RD FUSED B(+)
5 P164 18LG/DB PASSENGER FOLDING MIRROR RELAY INPUT
6 P162 18LG/DG PASSENGER FOLDING MIRROR RELAY CONTROL
7- -
8 P160 18TN/LG PASSENGER FOLDING MIRROR RELAY OUTPUT
9- -
PASSENGER HEATED SEAT BACK - LT. GREEN 2 WAY
CAV CIRCUIT FUNCTION
A S1 16DB (EXCEPT EXPORT) SEAT HEATER B(+) DRIVER
A S1 18WT (EXPORT) SEAT HEATER B(+) DRIVER
B Z848 16BK/OR (EXCEPT EXPORT) GROUND
B S2 18GY (EXPORT) SEAT HEATER GROUND
8W - 80 - 108 8W-80 CONNECTOR PIN-OUTSRS

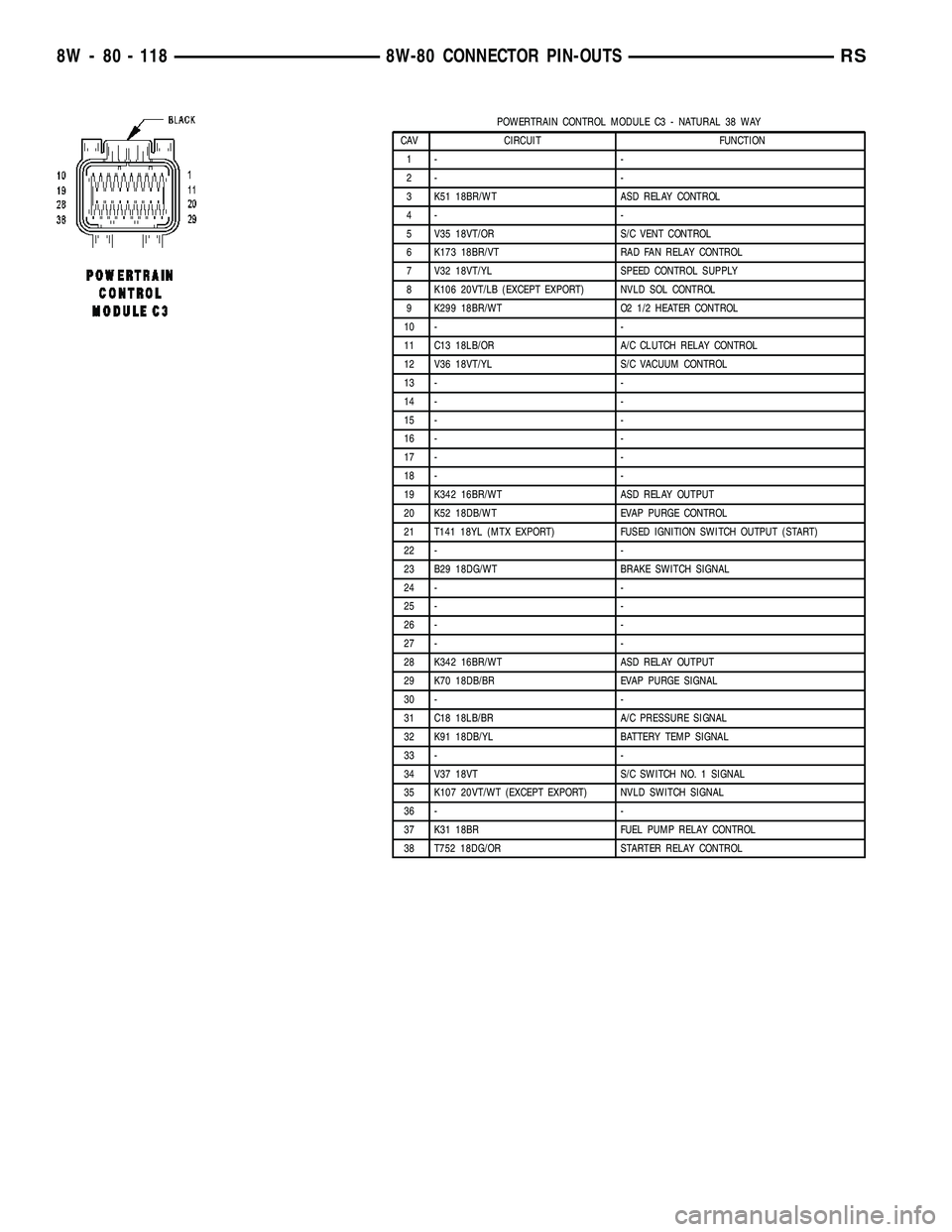

POWERTRAIN CONTROL MODULE C3 - NATURAL 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3 K51 18BR/WT ASD RELAY CONTROL
4- -
5 V35 18VT/OR S/C VENT CONTROL
6 K173 18BR/VT RAD FAN RELAY CONTROL
7 V32 18VT/YL SPEED CONTROL SUPPLY
8 K106 20VT/LB (EXCEPT EXPORT) NVLD SOL CONTROL
9 K299 18BR/WT O2 1/2 HEATER CONTROL
10 - -
11 C13 18LB/OR A/C CLUTCH RELAY CONTROL
12 V36 18VT/YL S/C VACUUM CONTROL
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 K342 16BR/WT ASD RELAY OUTPUT
20 K52 18DB/WT EVAP PURGE CONTROL
21 T141 18YL (MTX EXPORT) FUSED IGNITION SWITCH OUTPUT (START)
22 - -
23 B29 18DG/WT BRAKE SWITCH SIGNAL
24 - -
25 - -
26 - -
27 - -
28 K342 16BR/WT ASD RELAY OUTPUT
29 K70 18DB/BR EVAP PURGE SIGNAL
30 - -
31 C18 18LB/BR A/C PRESSURE SIGNAL
32 K91 18DB/YL BATTERY TEMP SIGNAL
33 - -
34 V37 18VT S/C SWITCH NO. 1 SIGNAL
35 K107 20VT/WT (EXCEPT EXPORT) NVLD SWITCH SIGNAL
36 - -
37 K31 18BR FUEL PUMP RELAY CONTROL
38 T752 18DG/OR STARTER RELAY CONTROL
8W - 80 - 118 8W-80 CONNECTOR PIN-OUTSRS

POWERTRAIN CONTROL MODULE C4 - GREEN 38 WAY
CAV CIRCUIT FUNCTION
1 T60 18YL/GY OVERDRIVE SOLENOID CONTROL
2 T59 18DB/LB UNDERDRIVE SOLENOID CONTROL
3- -
4- -
5- -
6 T19 18YL/DB 2-4 SOLENOID CONTROL
7- -
8- -
9- -
10 T20 18DG/WT LOW/REVERSE SOLENOID CONTROL
11 - -
12 - -
13 Z133 16BK/LG GROUND
14 Z133 16BK/LG GROUND
15 T1 18DG/LB TRS T1 SENSE
16 T3 18DG/DB TRS T3 SENSE
17 - -
18 T15 18YL/BR TRANSMISSION CONTROL RELAY CONTROL
19 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
20 - -
21 - -
22 T9 18DG/TN OVERDRIVE PRESSURE SWITCH SENSE
23 - -
24 - -
25 - -
26 - -
27 T41 18DG/GY TRS T41 SENSE
28 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
29 T50 18YL/TN LOW/REVERSE PRESSURE SWITCH SENSE
30 T47 18YL/DG 2-4 PRESSURE SWITCH SENSE
31 - -
32 T14 18DG/BR OUTPUT SPEED SENSOR SIGNAL
33 T52 18DG/WT INPUT SPEED SENSOR SIGNAL
34 T13 18DG/VT SPEED SENSOR GROUND
35 T54 18DG/OR TRANSMISSION TEMPERATURE SENSOR SIGNAL
36 - -
37 T42 18DG/YL TRS T42 SENSE
38 T16 18YL/OR TRANSMISSION CONTROL RELAY OUTPUT
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 119

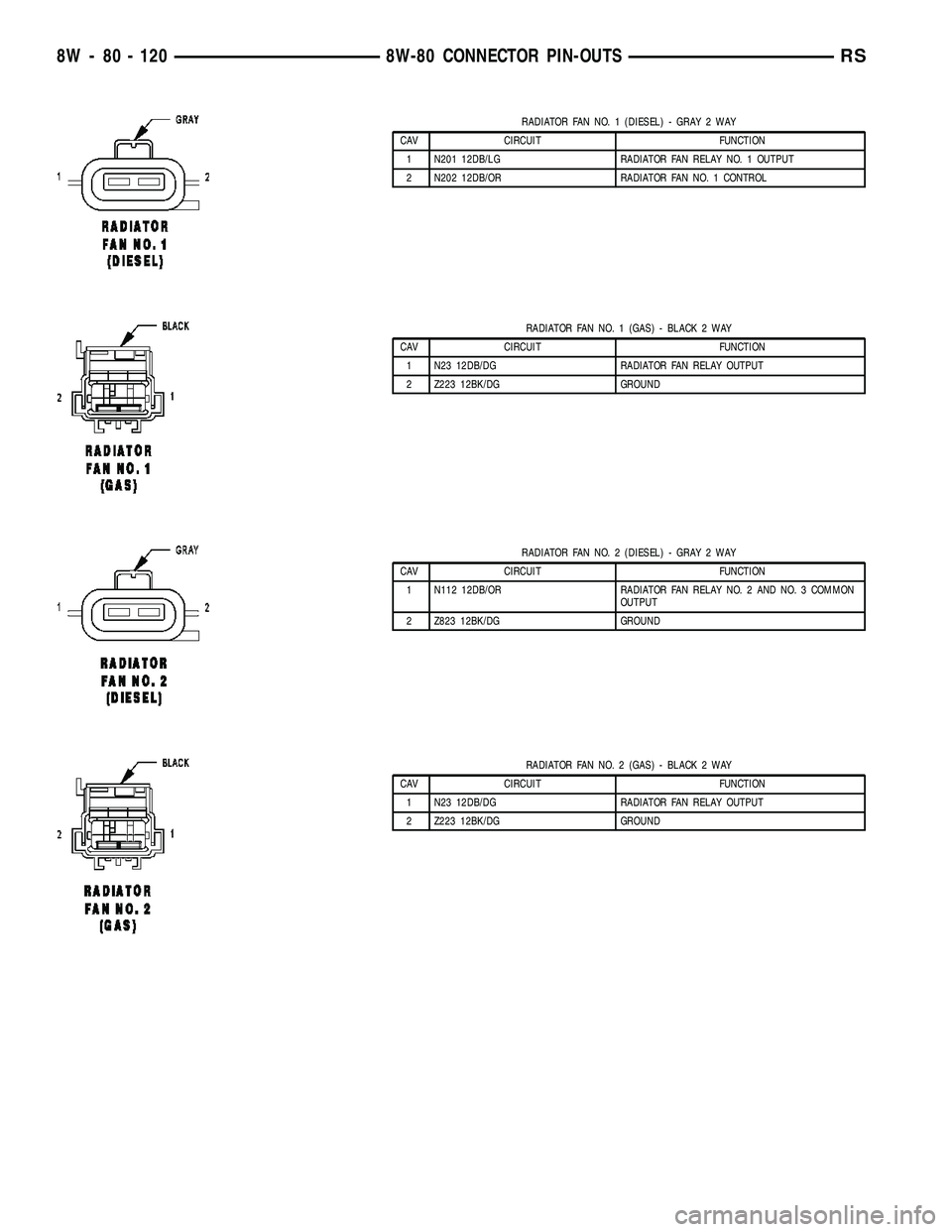

RADIATOR FAN NO. 1 (DIESEL) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 N201 12DB/LG RADIATOR FAN RELAY NO. 1 OUTPUT
2 N202 12DB/OR RADIATOR FAN NO. 1 CONTROL
RADIATOR FAN NO. 1 (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z223 12BK/DG GROUND
RADIATOR FAN NO. 2 (DIESEL) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 N112 12DB/OR RADIATOR FAN RELAY NO. 2 AND NO. 3 COMMON
OUTPUT
2 Z823 12BK/DG GROUND
RADIATOR FAN NO. 2 (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
2 Z223 12BK/DG GROUND
8W - 80 - 120 8W-80 CONNECTOR PIN-OUTSRS
