2005 CHRYSLER CARAVAN window

Component Page
Left Sliding Door Motor (Power Sliding
Door).......................... 8W-80-96
Left Speed Control Switch............ 8W-80-96
Left Turn Signal Lamp (Export)........ 8W-80-96
Left Visor/Vanity Lamp (Premium/Luxury
Except Export)................... 8W-80-97
License Lamp (Manual Release)........ 8W-80-97
License Lamp (Power Liftgate)......... 8W-80-97
License Lamp (Power Release)......... 8W-80-97
Lift Pump Motor (Diesel)............. 8W-80-98
Liftgate Ajar Switch (Manual Release) . . . 8W-80-98
Liftgate Ajar Switch (Power Release).... 8W-80-98
Liftgate Cinch/Release Motor (Power
Liftgate)........................ 8W-80-98
Liftgate Left Pinch Sensor (Power
Liftgate)........................ 8W-80-99
Liftgate Right Pinch Sensor (Power
Liftgate)........................ 8W-80-99
Manifold ABSolute Pressure Sensor
(Gas)........................... 8W-80-99
Mass Air Flow Sensor (Diesel)......... 8W-80-99
Memory Seat/Mirror/Adjustable
Pedals Module C1................ 8W-80-100
Memory Seat/Mirror/Adjustable
Pedals Module C2................ 8W-80-100
Memory Seat/Mirror/Adjustable
Pedals Module C3................ 8W-80-101
Memory Seat/Mirror/Adjustable
Pedals Module C4................ 8W-80-101
Memory Set Switch................. 8W-80-101
Message Center (Export)............ 8W-80-101
Mode Door Actuator................ 8W-80-102
Multi-Function Switch.............. 8W-80-102
Natural Vacuum Leak Detection Assembly
(Except Export).................. 8W-80-102
Occupant Classification Module....... 8W-80-102
Occupant Restraint Controller C1..... 8W-80-103
Occupant Restraint Controller C2..... 8W-80-104
Output Speed Sensor............... 8W-80-104
Overhead Console (Except Base)...... 8W-80-105
Oxygen Sensor 1/1 Upstream (Gas).... 8W-80-105
Oxygen Sensor 1/2 Downstream (Gas) . . 8W-80-105
Park Assist Display................ 8W-80-105
Park Assist Module................. 8W-80-106
Park Assist Sensor No. 1............ 8W-80-106
Park Assist Sensor No. 2............ 8W-80-106
Park Assist Sensor No. 3............ 8W-80-107
Park Assist Sensor No. 4............ 8W-80-107
Passenger Airbag.................. 8W-80-107
Passenger Airbag On/Off Indicator
Lamp......................... 8W-80-107
Passenger Blend Door Actuator....... 8W-80-107
Passenger Door Courtesy Lamp
(Luxury/Export)................. 8W-80-108
Passenger Door Lock Switch.......... 8W-80-108Component Page
Passenger Folding Mirror Relay
(Export)....................... 8W-80-108
Passenger Heated Seat Back......... 8W-80-108
Passenger Heated Seat Cushion....... 8W-80-109
Passenger Heated Seat Module (Except
Export)........................ 8W-80-109
Passenger Heated Seat Module C1
(Export)....................... 8W-80-109
Passenger Heated Seat Module C2
(Export)....................... 8W-80-109
Passenger Heated Seat Module C3
(Export)........................ 8W-80-110
Passenger Power Seat Front Riser
Motor......................... 8W-80-110
Passenger Power Seat
Horizontal Motor................ 8W-80-110
Passenger Power Seat
Rear Riser Motor................ 8W-80-110
Passenger Power Seat Recliner Motor . . . 8W-80-111
Passenger Power Seat Switch......... 8W-80-111
Passenger Power Window Motor....... 8W-80-111
Passenger Power Window Switch...... 8W-80-111
Passenger Seat Belt Switch (Occupant
Sensing)....................... 8W-80-112
Passenger Seat Belt Tensioner........ 8W-80-112
Passenger Seat Weight Sensor........ 8W-80-112
Power Folding Mirror Switch (Export) . . 8W-80-113
Power Liftgate Module C1........... 8W-80-113
Power Liftgate Module C2........... 8W-80-113
Power Liftgate Motor............... 8W-80-114
Power Mirror Switch................ 8W-80-114
Power Outlet (Except Lowline)........ 8W-80-114
Power Seat Circuit Breaker (30A)...... 8W-80-115
Power Window Circuit Breaker (25A) . . . 8W-80-115
Power Window Switch (LHD Lowline) . . 8W-80-115
Powertrain Control Module C1........ 8W-80-116
Powertrain Control Module C2........ 8W-80-117
Powertrain Control Module C3........ 8W-80-118
Powertrain Control Module C4........ 8W-80-119
Radiator Fan No. 1 (Diesel).......... 8W-80-120
Radiator Fan No. 1 (Gas)............ 8W-80-120
Radiator Fan No. 2 (Diesel).......... 8W-80-120
Radiator Fan No. 2 (Gas)............ 8W-80-120
Radiator Fan Relay (Gas)............ 8W-80-121
Radiator Fan Relay No. 1 (Diesel)..... 8W-80-121
Radiator Fan Relay No. 2 (Diesel)..... 8W-80-121
Radiator Fan Relay No. 3 (Diesel)..... 8W-80-122
Radio C1......................... 8W-80-122
Radio C2 (CD Changer)............. 8W-80-123
Radio C2 (DVD/CD Changer)......... 8W-80-123
Radio C2 (Hands Free).............. 8W-80-123
Rear A/C-Heater Unit (3 Zone MTC) . . . 8W-80-124
Rear Auto Temp Control Switch (3 Zone
ATC) .......................... 8W-80-124
8W - 80 - 4 8W-80 CONNECTOR PIN-OUTSRS

C207 (HANDS FREE) - (HANDS FREE MODULE SIDE)
CAV CIRCUIT
1 A114 20GY/RD
2-
3 Z530 20GY/BK
C300 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z821 12BK/BR
3 X201 18DG (HIGHLINE AUDIO EXCEPT EXPORT)
3 X201 20DG (HIGHLINE AUDIO EXPORT)
3 X53 20DG (LOWLINE AUDIO)
4 X291 18DG/BR (HIGHLINE AUDIO EXCEPT EXPORT)
4 X291 20DG/BR (HIGHLINE AUDIO EXPORT)
4 X55 20DG/BR (LOWLINE AUDIO)
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F302 18GY/PK (EXCEPT POWER WINDOWS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR
14 Q24 16OR/DG (POWER WINDOWS)
C300 (LHD) - BLACK (LEFT DOOR SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z75 20BK/VT (BASE)
2 Z821 12BK/BR (EXCEPT BASE)
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG (POWER LOCKS)
6 P1 20TN/LG (POWER LOCKS)
7 P3 20TN/WT (POWER LOCKS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS EXCEPT MEMORY)
10 Q26 12OR/GY (POWER WINDOWS MEMORY)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
RS8W-80 CONNECTOR PIN-OUTS8W-80-29

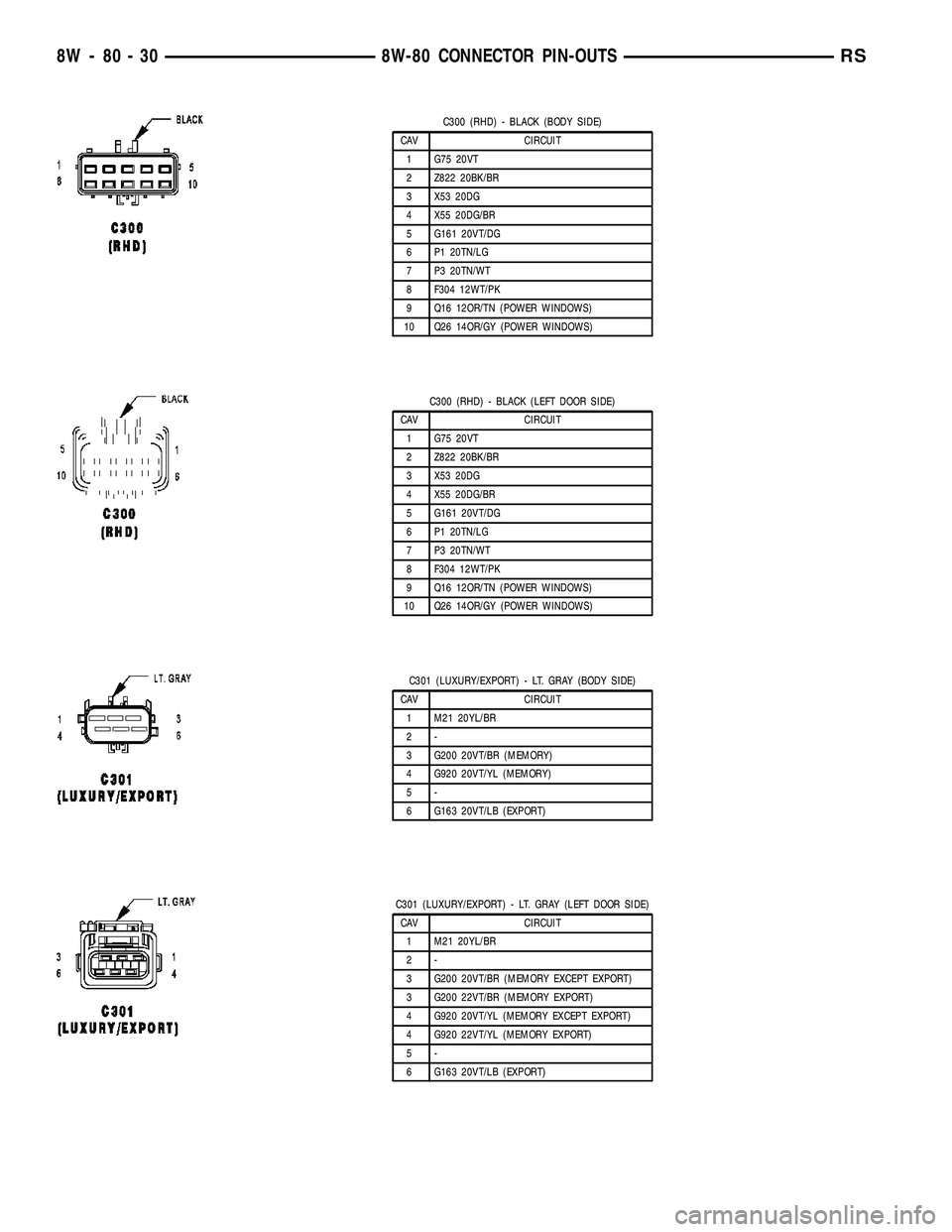

C300 (RHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z822 20BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
C300 (RHD) - BLACK (LEFT DOOR SIDE)
CAV CIRCUIT
1 G75 20VT
2 Z822 20BK/BR
3 X53 20DG
4 X55 20DG/BR
5 G161 20VT/DG
6 P1 20TN/LG
7 P3 20TN/WT
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
C301 (LUXURY/EXPORT) - LT. GRAY (BODY SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2-
3 G200 20VT/BR (MEMORY)
4 G920 20VT/YL (MEMORY)
5-
6 G163 20VT/LB (EXPORT)
C301 (LUXURY/EXPORT) - LT. GRAY (LEFT DOOR SIDE)
CAV CIRCUIT
1 M21 20YL/BR
2-
3 G200 20VT/BR (MEMORY EXCEPT EXPORT)
3 G200 22VT/BR (MEMORY EXPORT)
4 G920 20VT/YL (MEMORY EXCEPT EXPORT)
4 G920 22VT/YL (MEMORY EXPORT)
5-
6 G163 20VT/LB (EXPORT)
8W - 80 - 30 8W-80 CONNECTOR PIN-OUTSRS

C303 (LHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z822 20BK/BR
3 X202 20GY (HIGHLINE AUDIO EXPORT)
3 X202 18GY (HIGHLINE AUDIO EXCEPT EXPORT)
3 X54 20GY (LOWLINE AUDIO)
4 X292 18GY/BR (HIGHLINE AUDIO EXCEPT EXPORT)
4 X292 20GY/BR (HIGHLINE AUDIO EXPORT)
4 X56 20GY/BR (LOWLINE AUDIO)
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 18GY/PK (EXCEPT POWER WINDOWS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
C303 (LHD) - BLACK (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z74 20BK/WT (BASE)
2 Z822 20BK/BR (EXCEPT BASE)
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG (POWER LOCKS)
6 P2 20TN/GY (POWER LOCKS)
7 P4 20TN/BR (POWER LOCKS)
8 F304 16WT/PK (EXCEPT POWER WINDOWS)
8 F304 12WT/PK (POWER WINDOWS)
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS EXCEPT MEMORY)
10 Q26 12OR/GY (POWER WINDOWS MEMORY)
C303 (RHD) - BLACK (BODY SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X202 20GY
4 X292 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
8W - 80 - 32 8W-80 CONNECTOR PIN-OUTSRS

C303 (RHD) - BLACK (RIGHT DOOR SIDE)
CAV CIRCUIT
1 G74 20VT/WT
2 Z821 12BK/BR
3 X54 20GY
4 X56 20GY/BR
5 G160 20VT/LG
6 P2 20TN/GY
7 P4 20TN/BR
8 F304 12WT/PK
9 Q16 12OR/TN (POWER WINDOWS)
10 Q26 14OR/GY (POWER WINDOWS EXCEPT MEMORY)
10 Q26 12OR/GY (POWER WINDOWS MEMORY)
11 Q13 16OR/DB (POWER WINDOWS)
12 Q23 16OR/LB (POWER WINDOWS)
13 Q14 16OR/BR (POWER WINDOWS)
14 Q24 16OR/DG (POWER WINDOWS)
C304 (LHD) - YELLOW (BODY SIDE)
CAV CIRCUIT
1 R53 20LG/YL
2 R55 20LG/DG
3-
4-
C304 (LHD) - YELLOW (SEAT SIDE)
CAV CIRCUIT
1 R53 18LG/YL
2 R55 18LG/DG
3-
4-
C305 - GRAY (BODY SIDE)
CAV CIRCUIT
1 Z849 12BK/OR (POWER SEAT)
2 R57 20LG/GY
3 R59 20LG/TN
4 P7 22LG/DG (HEATED SEATS)
5 A210 14OR/RD (HEATED SEATS)
6 F503 20WT/PK (HEATED SEATS)
7 A110 12OR/RD (POWER SEAT)
8-
9-
10 -
11 -
12 -
13 -
RS8W-80 CONNECTOR PIN-OUTS8W-80-33

DRIVER POWER WINDOW MOTOR - RED 2 WAY
CAV CIRCUIT FUNCTION
1 Q11 16OR/LG DRIVER WINDOW SWITCH DRIVER (UP)
2 Q21 16OR/WT DRIVER WINDOW SWITCH DRIVER (DOWN)
DRIVER POWER WINDOW SWITCH (LHD EXCEPT LOWLINE) - GREEN 14 WAY
CAV CIRCUIT FUNCTION
1 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
2 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
3 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
4 Q26 14OR/GY (EXCEPT MEMORY) MASTER WINDOW SWITCH PASSENGER (DOWN)
4 Q26 12OR/GY (MEMORY) MASTER WINDOW SWITCH PASSENGER (DOWN)
5 Q14 16OR/BR PASSENGER SIDE REAR WINDOW CLOSE
6 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER (UP)
7 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
8 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER (DOWN)
9 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 Z421 12BK/BR GROUND
14 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
DRIVER POWER WINDOW SWITCH (LHD LOWLINE) - LT. GRAY 8 WAY
CAV CIRCUIT FUNCTION
1 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 Z421 12BK/BR GROUND
3 Z421 12BK/BR GROUND
4- -
5 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER (DOWN)
6- -
7- -
8 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER (UP)
RS8W-80 CONNECTOR PIN-OUTS8W-80-63

DRIVER POWER WINDOW SWITCH (RHD) - NATURAL 14 WAY
CAV CIRCUIT FUNCTION
1 Q23 16OR/LB DRIVER SIDE REAR WINDOW OPEN
2 Q11 16OR/LG MASTER WINDOW SWITCH DRIVER (UP)
3 Q14 16OR/BR PASSENGER SIDE REAR WINDOW CLOSE
4 Q26 14OR/GY (EXCEPT MEMORY) MASTER WINDOW SWITCH PASSENGER (DOWN)
4 Q26 12OR/GY (MEMORY) MASTER WINDOW SWITCH PASSENGER (DOWN)
5 Q13 16OR/DB DRIVER SIDE REAR WINDOW CLOSE
6 Q16 12OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
7 Q24 16OR/DG PASSENGER SIDE REAR WINDOW OPEN
8 F304 16WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
9 Z421 12BK/BR GROUND
10 - -
11 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
12 - -
13 F304 12WT/PK FUSED WINDOW CIRCUIT BREAKER OUTPUT
14 Q21 16OR/WT MASTER WINDOW SWITCH DRIVER (DOWN)
DRIVER SEAT BELT SWITCH - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 R57 18LG/GY DRIVER SEAT BELT SWITCH SENSE
2 R59 18LG/TN DRIVER SEAT BELT SWITCH GROUND
DRIVER SEAT BELT TENSIONER - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R53 18LG/YL DRIVER SEAT BELT TENSIONER LINE 2
2 R55 18LG/DG DRIVER SEAT BELT TENSIONER LINE 1
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTSRS

INTEGRATED POWER MODULE C8 - ORANGE 10 WAY
CAV CIRCUIT FUNCTION
1 W3 14BR/WT FRONT WIPER HIGH/LOW RELAY LOW SPEED OUT-
PUT
2 N1 16DB/OR (DIESEL) FUEL HEATER RELAY OUTPUT
2 N1 18DB/OR (GAS) FUEL PUMP RELAY OUTPUT
3 A108 18LG/RD (EXCEPT EXPORT) FUSED B(+)
3 A108 20LG/RD (EXPORT) FUSED B(+)
3 A108 20LG/RD (EXPORT) FUSED B(+)
4 A103 18GY/RD FUSED B(+)
5 L77 18WT/BR FUSED PARK LAMP RELAY OUTPUT (LEFT)
6 W4 14BR/OR FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUT-
PUT
7 C51 12LB/BR (3 ZONE HVAC) FUSED REAR BLOWER MOTOR RELAY OUTPUT
8- -
9 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
10 L60 18WT/TN RIGHT FRONT TURN SIGNAL DRIVER
INTEGRATED POWER MODULE C9 - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1 A116 14YL/RD (HIGHLINE AUDIO) FUSED B(+)
2 F20 18PK/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 C15 12DB/WT FUSED DEFOGGER RELAY OUTPUT
4 A105 18DB/RD FUSED B(+)
5 L61 20WT/LB LEFT FRONT TURN SIGNAL DIVER
6 A701 18BR/RD FUSED B(+) (HAZARD)
6 A701 16BR/RD FUSED B(+) (HAZARD)
7 F306 16DB/PK FUSED ACCESSORY RELAY OUTPUT
8 F30 12PK/YL (POWER WINDOWS) FUSED ACCESSORY RELAY OUTPUT
9 A115 12YL/RD FUSED B(+)
10 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
KNOCK SENSOR (EXCEPT EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K42 18DB/YL KS SIGNAL
2 K942 18BR/LG KS RETURN
RS8W-80 CONNECTOR PIN-OUTS8W-80-85
