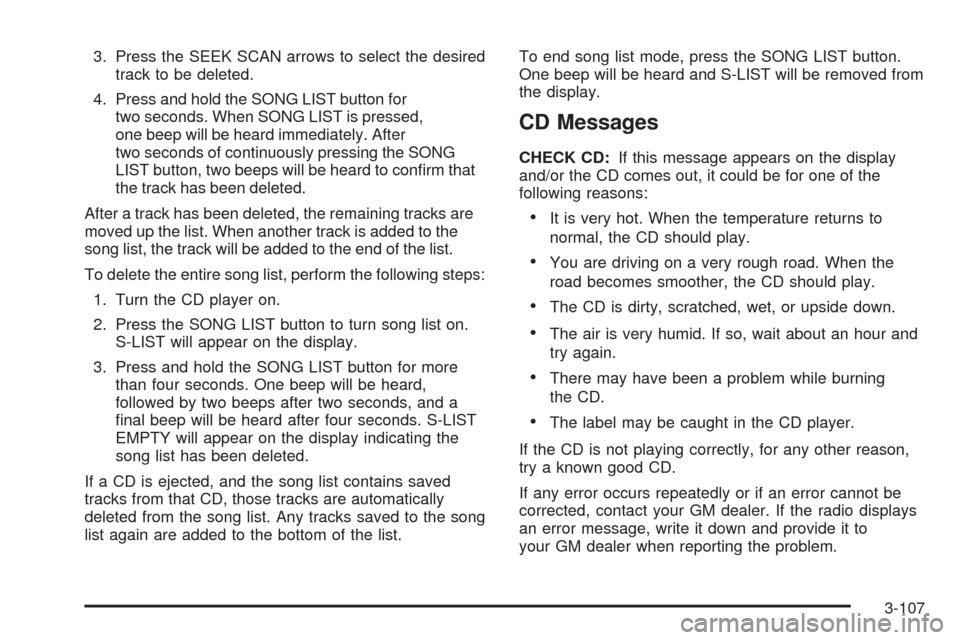

2005 CHEVROLET VENTURE ECO mode

3. Press the SEEK SCAN arrows to select the desired
track to be deleted.
4. Press and hold the SONG LIST button for
two seconds. When SONG LIST is pressed,
one beep will be heard immediately. After
two seconds of continuously pressing the SONG
LIST button, two beeps will be heard to conrm that
the track has been deleted.
After a track has been deleted, the remaining tracks are
moved up the list. When another track is added to the
song list, the track will be added to the end of the list.
To delete the entire song list, perform the following steps:
1. Turn the CD player on.
2. Press the SONG LIST button to turn song list on.
S-LIST will appear on the display.
3. Press and hold the SONG LIST button for more
than four seconds. One beep will be heard,
followed by two beeps after two seconds, and a
nal beep will be heard after four seconds. S-LIST
EMPTY will appear on the display indicating the
song list has been deleted.
If a CD is ejected, and the song list contains saved
tracks from that CD, those tracks are automatically
deleted from the song list. Any tracks saved to the song
list again are added to the bottom of the list.To end song list mode, press the SONG LIST button.
One beep will be heard and S-LIST will be removed from
the display.
CD Messages
CHECK CD:If this message appears on the display
and/or the CD comes out, it could be for one of the
following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road. When the
road becomes smoother, the CD should play.
The CD is dirty, scratched, wet, or upside down.
The air is very humid. If so, wait about an hour and
try again.
There may have been a problem while burning
the CD.
The label may be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your GM dealer. If the radio displays
an error message, write it down and provide it to
your GM dealer when reporting the problem.
3-107

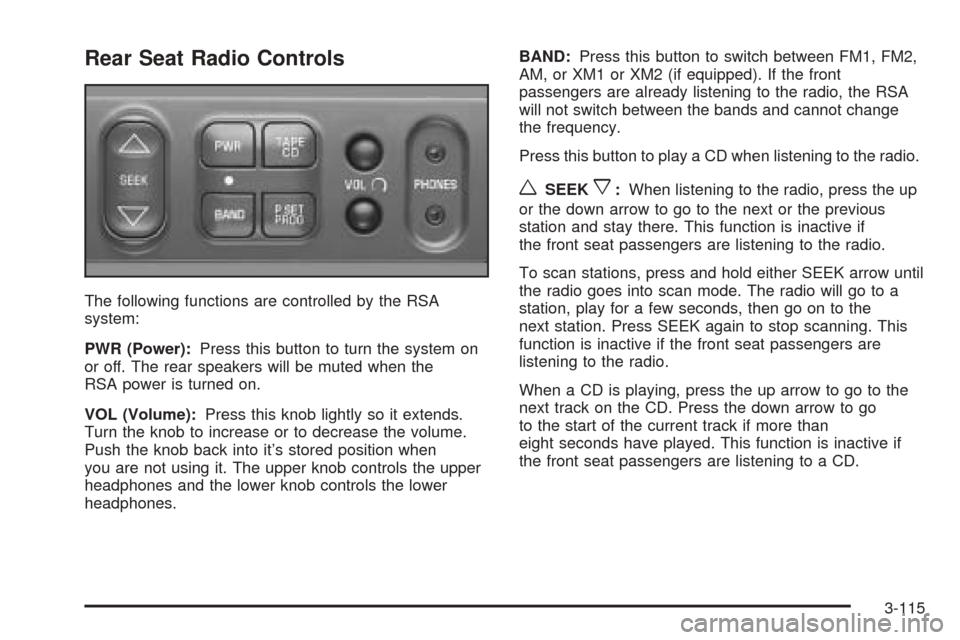

Rear Seat Radio Controls
The following functions are controlled by the RSA
system:
PWR (Power):Press this button to turn the system on
or off. The rear speakers will be muted when the
RSA power is turned on.
VOL (Volume):Press this knob lightly so it extends.
Turn the knob to increase or to decrease the volume.
Push the knob back into it’s stored position when
you are not using it. The upper knob controls the upper
headphones and the lower knob controls the lower
headphones.BAND:Press this button to switch between FM1, FM2,
AM, or XM1 or XM2 (if equipped). If the front
passengers are already listening to the radio, the RSA
will not switch between the bands and cannot change
the frequency.
Press this button to play a CD when listening to the radio.
wSEEKx:When listening to the radio, press the up
or the down arrow to go to the next or the previous
station and stay there. This function is inactive if
the front seat passengers are listening to the radio.
To scan stations, press and hold either SEEK arrow until
the radio goes into scan mode. The radio will go to a
station, play for a few seconds, then go on to the
next station. Press SEEK again to stop scanning. This
function is inactive if the front seat passengers are
listening to the radio.
When a CD is playing, press the up arrow to go to the
next track on the CD. Press the down arrow to go
to the start of the current track if more than
eight seconds have played. This function is inactive if
the front seat passengers are listening to a CD.
3-115

Occupant Distribution:Designated seating positions.
Outward Facing Sidewall:The side of an
asymmetrical tire that has a particular side that faces
outward when mounted on a vehicle. The side of the tire
that contains a whitewall, bears white lettering or
bears manufacturer, brand, and/or model name molding
that is higher or deeper than the same moldings on
the other sidewall of the tire.
Passenger (P-Metric) Tire:A tire used on passenger
cars and some light duty trucks and multipurpose
vehicles.
Recommended Ination Pressure:Vehicle
manufacturer’s recommended tire ination pressure and
shown on the tire placard. SeeInation - Tire Pressure
on page 5-59andLoading Your Vehicle on page 4-29.
Radial Ply Tire:A pneumatic tire in which the ply cords
that extend to the beads are laid at 90 degrees to the
centerline of the tread.
Rim:A metal support for a tire and upon which the tire
beads are seated.
Sidewall:The portion of a tire between the tread and
the bead.
Speed Rating:An alphanumeric code assigned to a
tire indicating the maximum speed at which a tire
can operate.Traction:The friction between the tire and the road
surface. The amount of grip provided.
Tread:The portion of a tire that comes into contact
with the road.
Treadwear Indicators:Narrow bands, sometimes
called “wear bars,” that show across the tread of a tire
when only 1/16 inch (1.6 mm) of tread remains. See
When It Is Time for New Tires on page 5-61.
UTQGS (Uniform Tire Quality Grading Standards):A
tire information system that provides consumers with
ratings for a tire’s traction, temperature, and treadwear.
Ratings are determined by tire manufacturers using
government testing procedures. The ratings are molded
into the sidewall of the tire. SeeUniform Tire Quality
Grading on page 5-63.
Vehicle Capacity Weight:The number of designated
seating positions multiplied by 150 lbs (68 kg) plus
the rated cargo load. SeeLoading Your Vehicle
on page 4-29.
Vehicle Maximum Load on the Tire:Load on an
individual tire due to curb weight, accessory weight,
occupant weight, and cargo weight.
Vehicle Placard:A label permanently attached to a
vehicle showing the vehicle’s capacity weight and
the original equipment tire size and recommended
ination pressure. See “Tire and Loading Information
Label” underLoading Your Vehicle on page 4-29.
5-58

Additional Program Information
Courtesy Transportation is available during the
Bumper-to-Bumper warranty coverage period, but it is
not part of the New Vehicle Limited Warranty. A
separate booklet entitled “Warranty and Owner
Assistance Information” furnished with each new vehicle
provides detailed warranty coverage information.
Courtesy Transportation is available only at participating
GM dealers and all program options, such as shuttle
service, may not be available at every dealer. Please
contact your GM dealer for specic information
about availability. All Courtesy Transportation
arrangements will be administered by appropriate dealer
personnel.
Canadian Vehicles:For warranty repairs during the
Complete Vehicle Coverage period of the General
Motors of Canada New Vehicle Limited Warranty,
alternative transportation may be available under the
Courtesy Transportation Program. Please consult
your dealer for details.
General Motors reserves the right to unilaterally modify,
change or discontinue Courtesy Transportation at
any time and to resolve all questions of claim eligibility
pursuant to the terms and conditions described
herein at its sole discretion.
Vehicle Data Collection and Event
Data Recorders
Your vehicle, like other modern motor vehicles, has a
number of sophisticated computer systems that monitor
and control several aspects of the vehicle’s performance.
Your vehicle uses on-board vehicle computers to monitor
emission control components to optimize fuel economy,
to monitor conditions for airbag deployment and, if so
equipped, to provide anti-lock braking and to help the
driver control the vehicle in difficult driving situations.
Some information may be stored during regular
operations to facilitate repair of detected malfunctions;
other information is stored only in a crash event by
computer systems, such as those commonly called event
data recorders (EDR).
In a crash event, computer systems, such as the Airbag
Sensing and Diagnostic Module (SDM) in your vehicle
may record information about the condition of the vehicle
and how it was operated, such as data related to engine
speed, brake application, throttle position, vehicle speed,
safety belt usage, airbag readiness, airbag performance,
and the severity of a collision. This information has been
used to improve vehicle crash performance and may be
used to improve crash performance of future vehicles and
driving safety. Unlike the data recorders on many
airplanes, these on-board systems do not record sounds,
such as conversation of vehicle occupants.
7-9

Electrical System (cont.)
Underhood Fuse Block.................................5-96
Windshield Wiper Fuses...............................5-92
Engine
Air Cleaner/Filter.........................................5-17
Battery.......................................................5-39
Change Oil Message...................................3-50
Check and Service Engine Soon Light............3-42
Coolant......................................................5-22
Coolant Heater............................................2-32
Coolant Temperature Gage...........................3-41
Coolant Temperature Warning Message..........3-48
Engine Compartment Overview......................5-12
Exhaust.....................................................2-39
Oil .............................................................5-13
Overheated Protection Operating Mode...........5-27
Overheating................................................5-25
Starting......................................................2-31
Entering Programming Mode............................2-55
Entertainment System....................................3-108
Entry Lighting.................................................3-16
Event Data Recorders (EDR)............................. 7-9
Exit Lighting...................................................3-17
Exiting Programming Mode...............................2-64
Extender, Safety Belt.......................................1-47
Exterior Lamps...............................................3-14F
Filter
Engine Air Cleaner......................................5-17
Finish Damage...............................................5-89
Fixed Mast Antenna.......................................3-121
Flash-to-Pass................................................... 3-8
Flat Tire........................................................5-68
Flat Tire, Changing.........................................5-69
Flat Tire, Storing.............................................5-80
Flip and Fold Rear Seats.................................. 1-7
Fluid
Automatic Transaxle.....................................5-19
Power Steering...........................................5-34
Windshield Washer......................................5-35
Front Reading Lamps......................................3-18
Front Seat Storage Net....................................2-50
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Filling a Portable Fuel Container....................5-10
Filling Your Tank........................................... 5-8
Fuels in Foreign Countries.............................. 5-7
Gage.........................................................3-45
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-5
Low Warning Message.................................3-52
5

N
New Vehicle Break-In......................................2-29
Normal Maintenance Replacement Parts............6-14
O
Odometer......................................................3-35
Odometers, Dual Trip......................................3-35
Off-Road Recovery..........................................4-12
Oil
Engine.......................................................5-13
Pressure Message.......................................3-49
Older Children, Restraints................................1-48
Online Owner Center........................................ 7-3
OnStar
®System.............................................2-42
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-26
Outside
Convex Mirror.............................................2-41
Heated Mirrors............................................2-42
Power Mirrors.............................................2-41
Overhead Console..........................................2-48
Overhead Console Switchbank..........................3-20
Overheated Engine Protection Operating Mode.....5-27
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Park Aid........................................................3-20
Park (P)
Shifting Into................................................2-37
Shifting Out of............................................2-38
Parking
Assist........................................................3-20
Brake........................................................2-36
Over Things That Burn.................................2-39
Passenger Compartment Air Filter.....................3-30
Passing.........................................................4-12
PASS-Key
®III ................................................2-27
PASS-Key®III Operation..................................2-27
PASS-Key®III Security Message.......................3-52
Power
Accessory Outlets........................................3-23
Door Locks.................................................2-10
Electrical System.........................................5-92
Rear Quarter Windows.................................2-24
Retained Accessory (RAP)............................2-31
Six-Way Seats.............................................. 1-4
Sliding Door................................................2-15
Sliding Door Warning Message......................3-50
Steering Fluid.............................................5-34
Windows....................................................2-23
Pretensioners, Safety Belt................................1-47
Programmable Automatic Door Locks.................2-11
9

Programming Mode
Entering.....................................................2-55
Exiting.......................................................2-64
Programming the HomeLink
®Transmitter...........2-44
Q
Questions and Answers About Safety Belts.........1-33
R
Radiator Pressure Cap....................................5-25
Radios..........................................................3-56
AM-FM Radio.............................................3-57
Care of Your Cassette Tape Player...............3-120
Care of Your CD and DVD Player................3-121
Care of Your CDs and DVDs.......................3-121
Radio with Cassette and CD.........................3-84
Radio with CD....................................3-59, 3-69
Radio with Six-Disc CD................................3-94
Rear Seat Audio..............................3-114, 3-116
Setting the Time for Radios with
Radio Data Systems (RDS).......................3-56
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-56
Theft-Deterrent..........................................3-118
Understanding Reception............................3-119
Rear Climate Control System...................3-27, 3-29
Rear Hatch Ajar Warning Message....................3-51Rear Reading Lamps......................................3-18
Rear Safety Belt Comfort Guides......................1-45
Rear Seat Audio (RSA)........................3-114, 3-116
Rear Seat Operation......................................... 1-6
Rear Seat Passengers, Safety Belts..................1-42
Rear Storage Area..........................................2-51
Rearview Mirrors.............................................2-41
Reclining Seatbacks.......................................... 1-4
Recommended Fluids and Lubricants.................6-12
Recreational Vehicle Towing.............................4-34
Remote Driver Unlock Control...........................2-59
Remote Keyless Entry System............................ 2-4
Remote Keyless Entry System, Operation............ 2-5
Remote Lock and Unlock Conrmation...............2-60
Removing the Flat Tire and Installing
the Spare Tire.............................................5-73
Removing the Spare Tire and Tools...................5-70
Replacement Bulbs.........................................5-51
Reporting Safety Defects
Canadian Government..................................7-11
General Motors...........................................7-11
United States Government............................7-10
Restraint System Check
Checking Your Restraint Systems...................1-88
Replacing Restraint System Parts
After a Crash..........................................1-89
Restraint Systems
Checking....................................................1-88
Replacing Parts...........................................1-89
Retained Accessory Power (RAP)......................2-31
10

Tires (cont.)
Removing the Flat Tire.................................5-73
Removing the Spare Tire and Tools...............5-70
Secondary Latch System..............................5-78
Storing a Flat or Spare Tire and Tools............5-80
Tire Sidewall Labelling..................................5-54
Tire Terminology and Denitions....................5-56
Uniform Tire Quality Grading.........................5-63
Wheel Alignment and Tire Balance.................5-64
Wheel Replacement.....................................5-64
When It Is Time for New Tires......................5-61
Top Strap......................................................1-57
Top Strap Anchor Location...............................1-58
Towing
Recreational Vehicle.....................................4-34
Towing a Trailer..........................................4-36
Your Vehicle...............................................4-34
Traction
Active Message...........................................3-47
Control System (TCS).................................... 4-8
Control System Warning Light.......................3-40
Service Traction System Warning Message.....3-46
Transaxle
Fluid, Automatic...........................................5-19
Transaxle Operation, Automatic.........................2-33
Turn and Lane-Change Signals.......................... 3-7
Turn Signal/Multifunction Lever........................... 3-7U
Ultrasonic Rear Parking Assist (URPA)...............3-20
Understanding Radio Reception.......................3-119
Uniform Tire Quality Grading............................5-63
V
Vehicle
Control........................................................ 4-5
Damage Warnings........................................... iv
Symbols......................................................... iv
Vehicle Data Collection and Event Data
Recorders.................................................... 7-9
Vehicle Identication
Number (VIN).............................................5-91
Service Parts Identication Label...................5-91
Vehicle Personalization....................................2-55
Arming and Disarming the Content
Theft-Deterrent System.............................2-62
Automatic Door Locks..................................2-57
Content Theft-Deterrent System.....................2-61
Delayed Illumination and Exit Lighting.............2-56
Entering Programming Mode.........................2-55
Exiting Programming Mode...........................2-64
Last Door Locking and Lockout Deterrent........2-58
Remote Driver Unlock Control.......................2-59
Remote Lock and Unlock Conrmation...........2-60
Ventilation Adjustment......................................3-26
Visors...........................................................2-24
13
