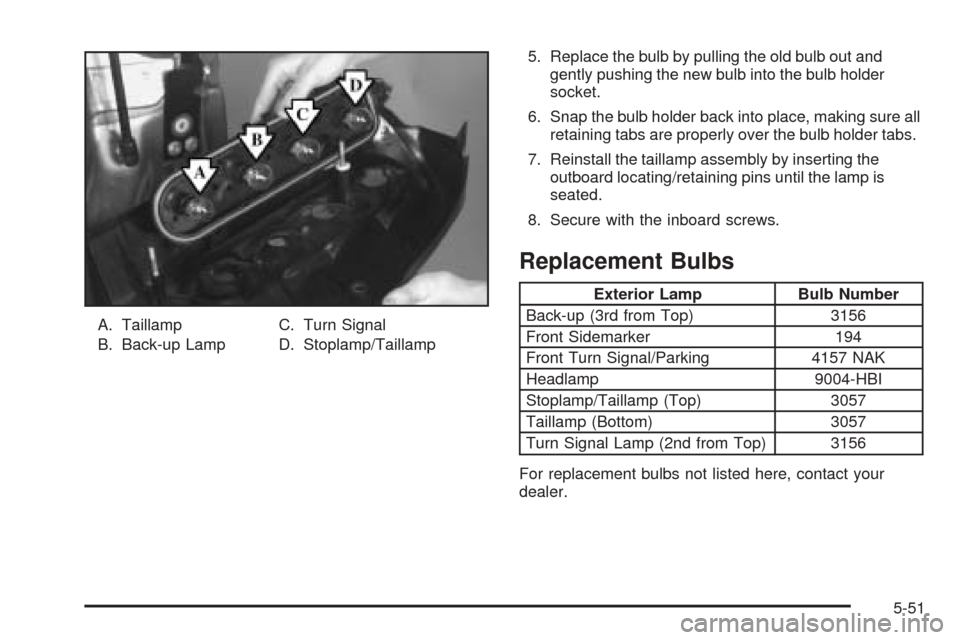

A. Taillamp
B. Back-up LampC. Turn Signal
D. Stoplamp/Taillamp5. Replace the bulb by pulling the old bulb out and
gently pushing the new bulb into the bulb holder
socket.
6. Snap the bulb holder back into place, making sure all
retaining tabs are properly over the bulb holder tabs.
7. Reinstall the taillamp assembly by inserting the
outboard locating/retaining pins until the lamp is
seated.
8. Secure with the inboard screws.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-up (3rd from Top) 3156
Front Sidemarker 194
Front Turn Signal/Parking 4157 NAK
Headlamp 9004-HBI
Stoplamp/Taillamp (Top) 3057
Taillamp (Bottom) 3057
Turn Signal Lamp (2nd from Top) 3156
For replacement bulbs not listed here, contact your
dealer.
5-51
Audio System(s) (cont.)
Setting the Time for Radios with Radio
Data Systems (RDS)................................3-56
Setting the Time for Radios without
Radio Data Systems (RDS).......................3-56
Theft-Deterrent Feature...............................3-118
Understanding Radio Reception...................3-119
XM™ Satellite Radio Antenna System...........3-121
Automatic Door Locks.....................................2-57
Automatic Transaxle
Fluid..........................................................5-19
Operation...................................................2-33
B
Battery..........................................................5-39
Run-Down Protection...................................3-19
Before Leaving on a Long Trip.........................4-21
Bench Seat, Split............................................. 1-8
Brake
Anti-Lock Brake System (ABS)........................ 4-6
Emergencies................................................ 4-8
Parking......................................................2-36
System Warning Light..................................3-39
Brakes..........................................................5-36
Braking........................................................... 4-5
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-29
Bucket Seats, Rear.........................................1-15Built-in Child Restraint.....................................1-67
Bulb Replacement...........................................5-45
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-48
Halogen Bulbs............................................5-45
Headlamps.................................................5-46
Replacement Bulbs......................................5-51
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-50
Buying New Tires...........................................5-62
C
California Fuel.................................................. 5-6
Canadian Owners................................................ ii
Capacities and Speci cations............................5-99
Captain Chairs, Rear.......................................1-21
Carbon Monoxide...................2-20, 2-39, 4-24, 4-36
Care of
Safety Belts and Built-in Child
Restraint Harness.....................................5-86
Your Cassette Tape Player..........................3-120
Your CD and DVD Player...........................3-121
Your CDs and DVDs..................................3-121
Cargo Lamp...................................................3-18
Chains, Tire...................................................5-66
Change Engine Oil Message............................3-50
Charging System Indicator Message..................3-48
2
Fuses
Fuses and Circuit Breakers...........................5-92
Instrument Panel Fuse Block.........................5-93
Underhood Fuse Block.................................5-96
Windshield Wiper.........................................5-92
G
Gage
Engine Coolant Temperature.........................3-41
Fuel..........................................................3-45
Speedometer..............................................3-35
Tachometer.................................................3-37
Garage Door Opener.......................................2-43
Gasoline
Octane........................................................ 5-5
Speci cations............................................... 5-5
Glove Box.....................................................2-47
GM Mobility Reimbursement Program.................. 7-5
H
Hatch Ajar Warning Message............................3-51
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-6
Headlamp Wiring............................................5-92Headlamps....................................................5-46
Bulb Replacement.......................................5-45
Daytime Running Lamps/Automatic
Headlamp System....................................3-14
Flash-to-Pass............................................... 3-8
Front Turn Signal, Sidemarker and
Parking Lamps.........................................5-48
Halogen Bulbs............................................5-45
High/Low Beam Changer................................ 3-8
Heater...........................................................3-24
Highbeam On Light.........................................3-45
Highway Hypnosis...........................................4-22
Hill and Mountain Roads..................................4-22
HomeLink
®Transmitter....................................2-43
HomeLink®Transmitter, Programming................2-44
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-34
