2005 CHEVROLET EQUINOX Owners Manual

Power Seats
If your vehicle has this feature, the control is located on
the outboard side of the seat. To adjust the seat:
Slide the entire control forward or rearward to move
the seat forward or rearward.
Lift or push down the front of the control to raise or
lower the front portion of the seat.
Lift or push down the rear of the control to raise or
lower the rear portion of the seat.
Lift or push down the entire control to raise or lower
the entire seat.
Manual Lumbar
If your vehicle has this
feature, the knob is
located on the front of the
driver’s seat cushion.
Turn the knob clockwise or counterclockwise to increase
or decrease the lumbar support.
1-3

Heated Seats
The switches for the
heated seats, if equipped,
are located on the
outboard sides of the
front seats.
Press the forward part of the switch to turn the heated
seat to high. Press the forward part of the switch
again to turn the setting to low. Press the rearward part
of the switch to turn the heated seat feature off.
Reclining Seatbacks
To adjust the seatback on the driver’s seat, lift the lever
on the rear outboard side of the seat and move the
seatback to the desired position. Then release the lever
to lock the seatback in place.
To adjust the seatback on the front passenger’s seat, lift
the lever on the outboard side of the seat and move
the seatback to the desired position. Then release the
lever to lock the seatback in place. If your front
passenger’s seat is a at folding seat, you must fully
raise the lever to disengage the seatback.
Front Passenger’s Reclining Seatback Lever Shown,
Driver’s Similar
1-4

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Do not have a seatback reclined if your vehicle is
moving.
1-5

Head Restraints
Press the button on the
side of the head restraint
to adjust it.
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
1-6

Passenger Folding Seatback
The front passenger’s seatback may fold at.
To fold the seatback, do the following:
1. Make sure the head restraint is all the way down.
2. Lift the release bar located under the front of
the seat cushion and slide the seat as far back as it
will go. Release the bar.
3. Push and pull on the seat to ensure it is locked
in place.
4. Lift the recliner lever, located on the outboard side
of the seat, up fully and fold the seatback forward.5. Continue folding until the seatback locks in the
folded position. Pull up on the seatback to ensure
it is locked in place.
1-7

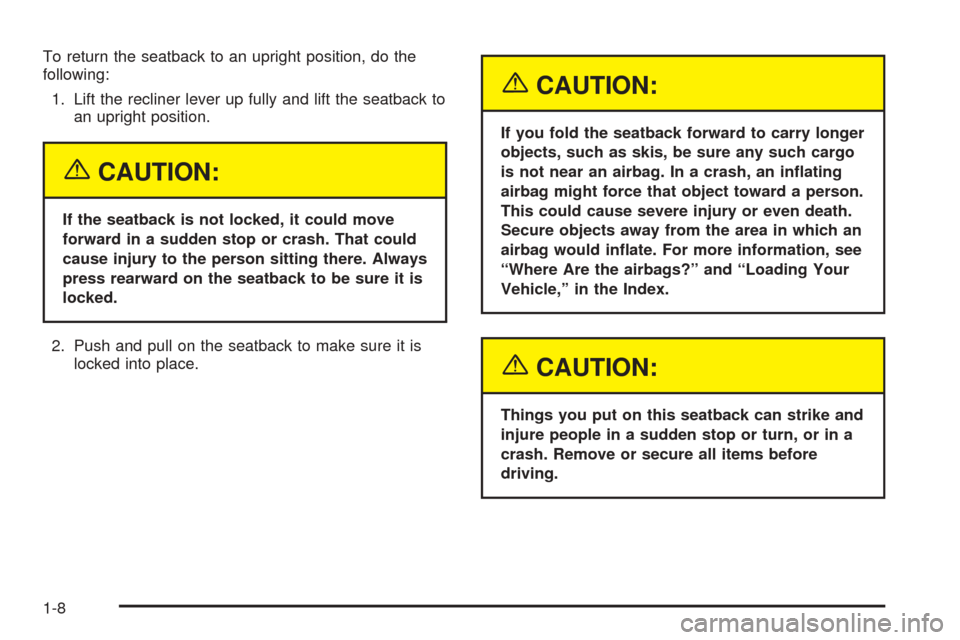

To return the seatback to an upright position, do the
following:
1. Lift the recliner lever up fully and lift the seatback to
an upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
2. Push and pull on the seatback to make sure it is
locked into place.
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an airbag. In a crash, an inating
airbag might force that object toward a person.
This could cause severe injury or even death.
Secure objects away from the area in which an
airbag would inate. For more information, see
“Where Are the airbags?” and “Loading Your
Vehicle,” in the Index.
{CAUTION:
Things you put on this seatback can strike and
injure people in a sudden stop or turn, or in a
crash. Remove or secure all items before
driving.
1-8

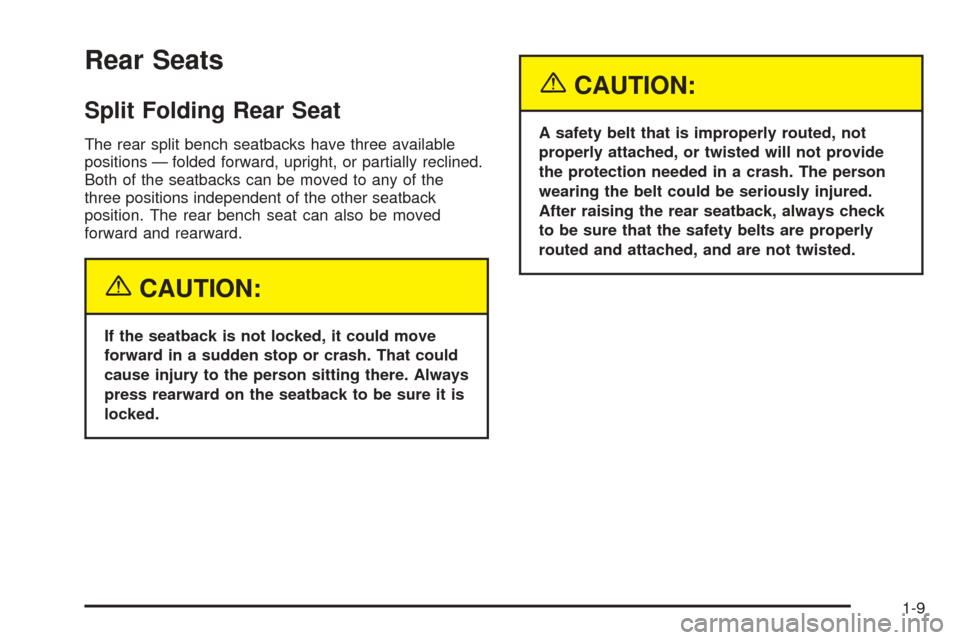

Rear Seats
Split Folding Rear Seat
The rear split bench seatbacks have three available
positions — folded forward, upright, or partially reclined.
Both of the seatbacks can be moved to any of the
three positions independent of the other seatback
position. The rear bench seat can also be moved
forward and rearward.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
1-9

To fold the seatback down, do the following:
1. Ensure all three of the safety belts are unbuckled
and the front seatbacks are not reclined.
2. Lift the lever located on the top of the seatback to
release the seatback.
3. Fold the seatback forward to the desired position.To recline the seatback, do the following:
1. Lift and hold the lever located on top of the
seatback.
2. Tilt the seatback rearward, then release the lever
when the seatback is in the desired position.
To slide the entire seat forward or rearward, do the
following:
1. Lift and hold the release bar located under the front
of the seat cushion to unlock the seat.
2. Slide the seat to the desired position.
3. Release the bar.
4. Try to move the seat back and forth to ensure the
seat is locked in place.
1-10
