2005 CHEVROLET EQUINOX Owners Manual

Matching Transmitter(s) to Your
Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can
be purchased through your dealer. Remember to bring
any remaining transmitters with you when you go to
your dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock
your vehicle. Each vehicle can have a maximum
of four transmitters matched to it.
Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.
1. Use a at thin object to pry open the transmitter.2. Once the transmitter is separated, use a pencil or
similar object to remove the old battery. Do not use
a metal object.
3. Insert the new battery as the instructions under the
cover indicate.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Check the operation of the transmitter.
If the transmitter does not work, try synchronizing your
transmitter with your receiver. See “Resynchronization”
for more information.
2-5

Resynchronization
This is used to keep the transmitter of the vehicle
communicating with the receiver of the vehicle.
Resynchronization may be required due to the security
method used by this system.
Your vehicle has an automatic resynchronization
function built into the system. If your transmitter is not
working properly and you have to manually
resynchronize, press the lock and unlock buttons at the
same time for seven seconds while you are near
your vehicle. The doors will lock or unlock, depending
on their starting position. If they do not, contact
your dealer for service.
Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers — especially children — can
easily open the doors and fall out of a
moving vehicle. When a door is locked, the
handle will not open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors are not locked. So,
wear safety belts properly and lock the
doors whenever you drive.
Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.
Outsiders can easily enter through an
unlocked door when you slow down or
stop your vehicle. Locking your doors can
help prevent this from happening.
2-6

There are a couple of ways to manually lock or unlock
your vehicle.
From the outside, use your key.
From the inside, use the lock control on the door.
Power Door Locks
The power door lock
switches are located on
the driver’s and front
passenger’s doors.
K(Unlock):To unlock the doors, press the unlock
symbol.
Q(Lock):Remove the ignition key and press the lock
symbol to lock all of the doors.
Delayed Locking
A chime will sound three times to indicate a door or
liftgate is open when you try to lock the doors with the
remote keyless entry transmitter or the power door
lock switch. The doors will not lock, and the
theft-deterrent system will not arm until all the doors are
closed and ve seconds have passed.
The delayed locking feature can be overridden by
pressing the lock button on the remote keyless entry
transmitter, or the door lock switch, a second time. The
doors will lock immediately and when all doors are
closed the theft-deterrent system will arm after
30 seconds.
To get the horn to chirp if a door was open during the
arming process, you must press the lock button on your
transmitter twice after the doors are closed.
2-7

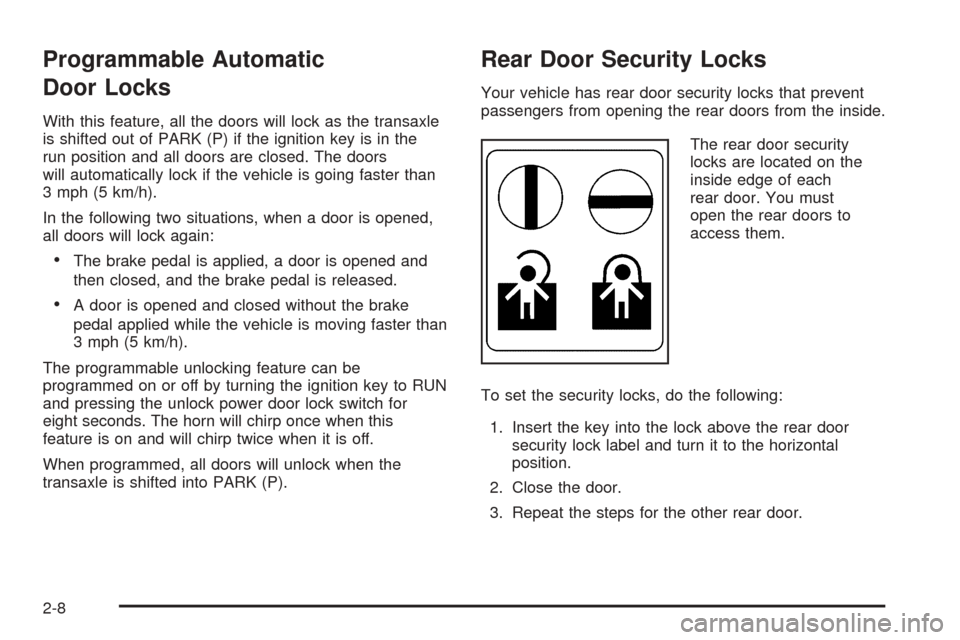

Programmable Automatic
Door Locks
With this feature, all the doors will lock as the transaxle
is shifted out of PARK (P) if the ignition key is in the
run position and all doors are closed. The doors
will automatically lock if the vehicle is going faster than
3 mph (5 km/h).
In the following two situations, when a door is opened,
all doors will lock again:
The brake pedal is applied, a door is opened and
then closed, and the brake pedal is released.
A door is opened and closed without the brake
pedal applied while the vehicle is moving faster than
3 mph (5 km/h).
The programmable unlocking feature can be
programmed on or off by turning the ignition key to RUN
and pressing the unlock power door lock switch for
eight seconds. The horn will chirp once when this
feature is on and will chirp twice when it is off.
When programmed, all doors will unlock when the
transaxle is shifted into PARK (P).
Rear Door Security Locks
Your vehicle has rear door security locks that prevent
passengers from opening the rear doors from the inside.
The rear door security
locks are located on the
inside edge of each
rear door. You must
open the rear doors to
access them.
To set the security locks, do the following:
1. Insert the key into the lock above the rear door
security lock label and turn it to the horizontal
position.
2. Close the door.
3. Repeat the steps for the other rear door.
2-8

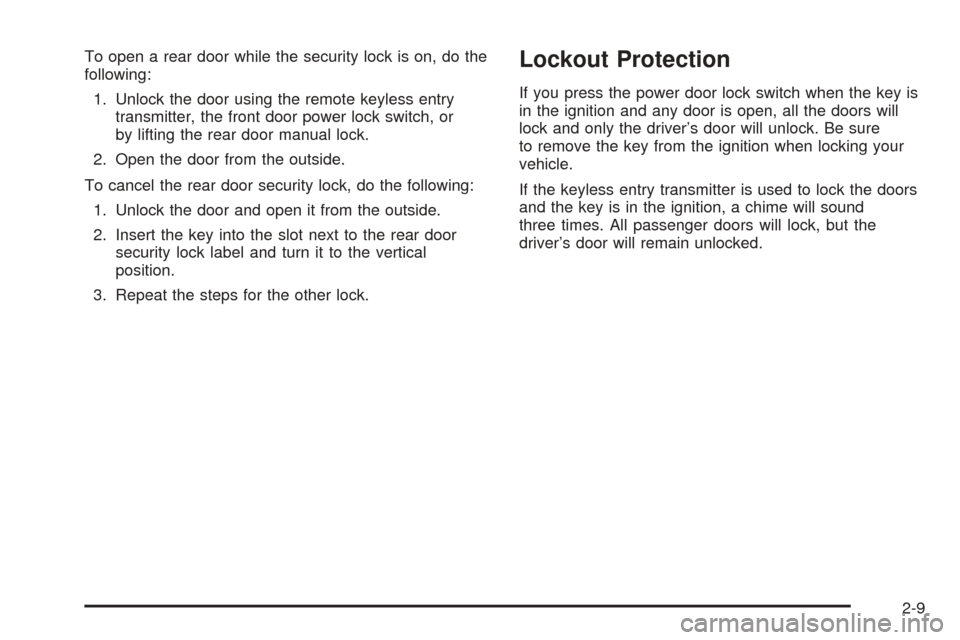

To open a rear door while the security lock is on, do the
following:
1. Unlock the door using the remote keyless entry
transmitter, the front door power lock switch, or
by lifting the rear door manual lock.
2. Open the door from the outside.
To cancel the rear door security lock, do the following:
1. Unlock the door and open it from the outside.
2. Insert the key into the slot next to the rear door
security lock label and turn it to the vertical
position.
3. Repeat the steps for the other lock.Lockout Protection
If you press the power door lock switch when the key is
in the ignition and any door is open, all the doors will
lock and only the driver’s door will unlock. Be sure
to remove the key from the ignition when locking your
vehicle.
If the keyless entry transmitter is used to lock the doors
and the key is in the ignition, a chime will sound
three times. All passenger doors will lock, but the
driver’s door will remain unlocked.
2-9

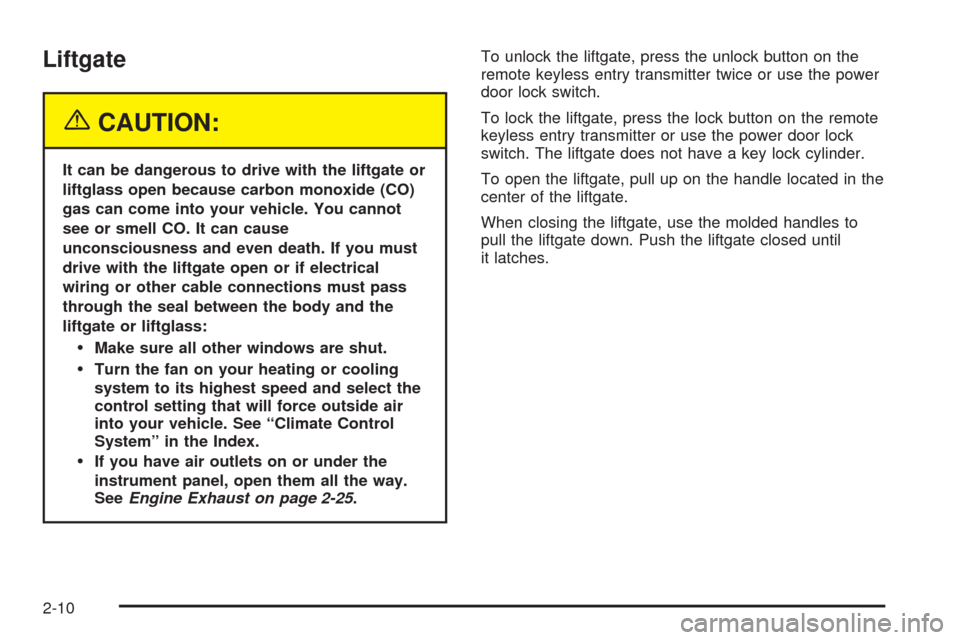

Liftgate
{CAUTION:
It can be dangerous to drive with the liftgate or
liftglass open because carbon monoxide (CO)
gas can come into your vehicle. You cannot
see or smell CO. It can cause
unconsciousness and even death. If you must
drive with the liftgate open or if electrical
wiring or other cable connections must pass
through the seal between the body and the
liftgate or liftglass:
Make sure all other windows are shut.
Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See “Climate Control
System” in the Index.
If you have air outlets on or under the
instrument panel, open them all the way.
SeeEngine Exhaust on page 2-25.To unlock the liftgate, press the unlock button on the
remote keyless entry transmitter twice or use the power
door lock switch.
To lock the liftgate, press the lock button on the remote
keyless entry transmitter or use the power door lock
switch. The liftgate does not have a key lock cylinder.
To open the liftgate, pull up on the handle located in the
center of the liftgate.
When closing the liftgate, use the molded handles to
pull the liftgate down. Push the liftgate closed until
it latches.
2-10

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm or
hot weather.
2-11

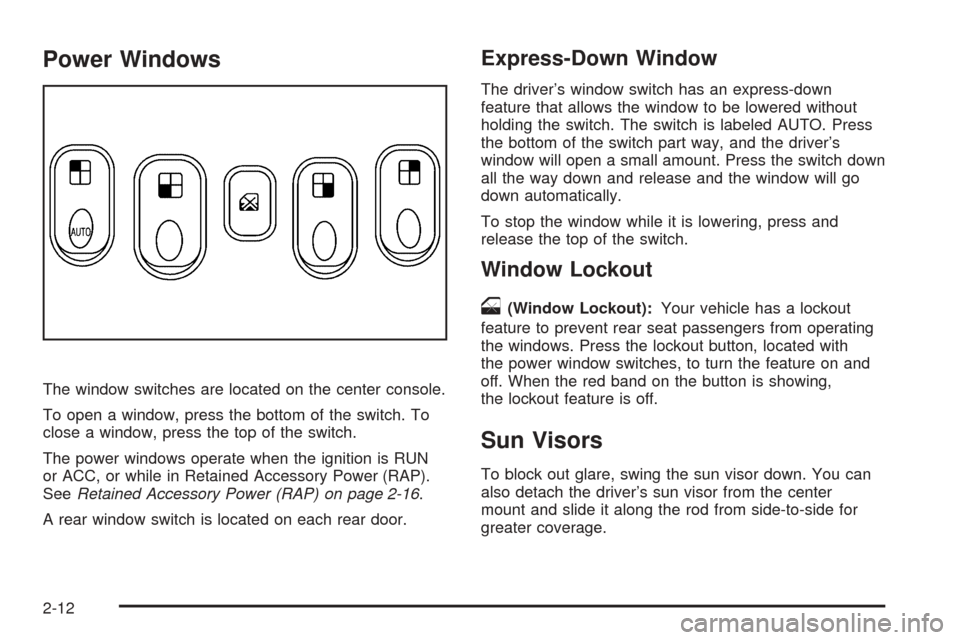

Power Windows
The window switches are located on the center console.
To open a window, press the bottom of the switch. To
close a window, press the top of the switch.
The power windows operate when the ignition is RUN
or ACC, or while in Retained Accessory Power (RAP).
SeeRetained Accessory Power (RAP) on page 2-16.
A rear window switch is located on each rear door.
Express-Down Window
The driver’s window switch has an express-down
feature that allows the window to be lowered without
holding the switch. The switch is labeled AUTO. Press
the bottom of the switch part way, and the driver’s
window will open a small amount. Press the switch down
all the way down and release and the window will go
down automatically.
To stop the window while it is lowering, press and
release the top of the switch.
Window Lockout
o
(Window Lockout):Your vehicle has a lockout
feature to prevent rear seat passengers from operating
the windows. Press the lockout button, located with
the power window switches, to turn the feature on and
off. When the red band on the button is showing,
the lockout feature is off.
Sun Visors
To block out glare, swing the sun visor down. You can
also detach the driver’s sun visor from the center
mount and slide it along the rod from side-to-side for
greater coverage.
2-12
