2005 CHEVROLET ASTRO Owners Manual

If you installed the safety belt with the release hole facing
inward (toward the seat), slide the plastic cover up so you
can see the buckle. Disconnect the seat belt. Slide the
cover back down and reinstall the belt correctly.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
Bench Seat
Each bench seat can carry up to three passengers.
They can also be removed to increase storage space.
See “Removing the Rear Seats” following.
Only the third row bench seat can be adjusted forward
or rearward.Move the seat adjustment
lever located at the front
of the seat toward the
passenger’s side to unlock
it. Slide the seat to
where you want it and
release the lever. Try to
move the seat with
your body, to make sure
the seat is locked into
place.
The center bench seat has a pivoting right armrest.
The optional bench seats come with moveable armrests,
individual reclining seatbacks, adjustable headrests
and a fold-down center armrest console.
1-11

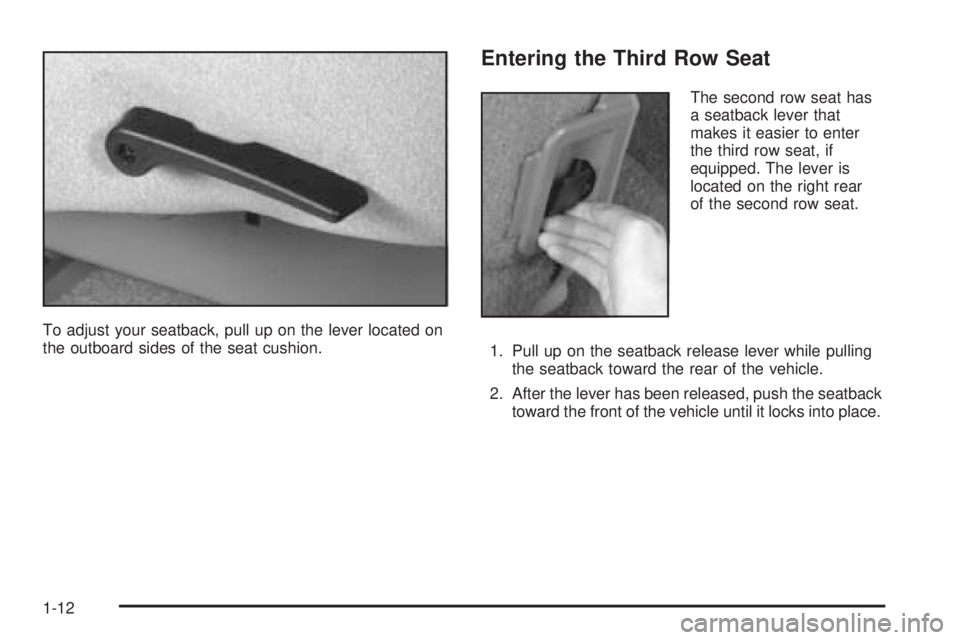

To adjust your seatback, pull up on the lever located on
the outboard sides of the seat cushion.
Entering the Third Row Seat
The second row seat has
a seatback lever that
makes it easier to enter
the third row seat, if
equipped. The lever is
located on the right rear
of the second row seat.
1. Pull up on the seatback release lever while pulling
the seatback toward the rear of the vehicle.
2. After the lever has been released, push the seatback
toward the front of the vehicle until it locks into place.
1-12

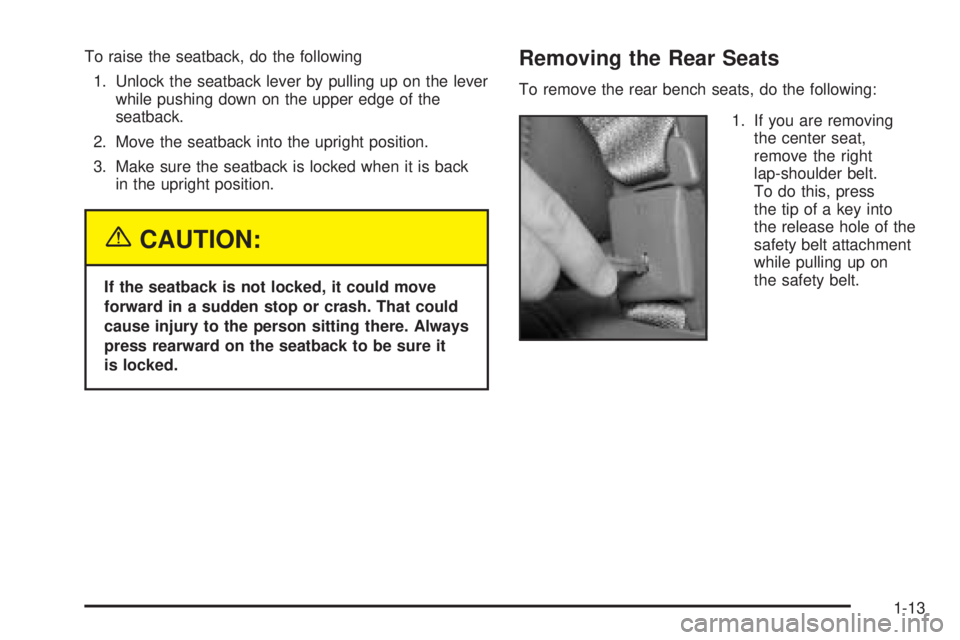

To raise the seatback, do the following
1. Unlock the seatback lever by pulling up on the lever
while pushing down on the upper edge of the
seatback.
2. Move the seatback into the upright position.
3. Make sure the seatback is locked when it is back
in the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
Removing the Rear Seats
To remove the rear bench seats, do the following:
1. If you are removing
the center seat,
remove the right
lap-shoulder belt.
To do this, press
the tip of a key into
the release hole of the
safety belt attachment
while pulling up on
the safety belt.
1-13

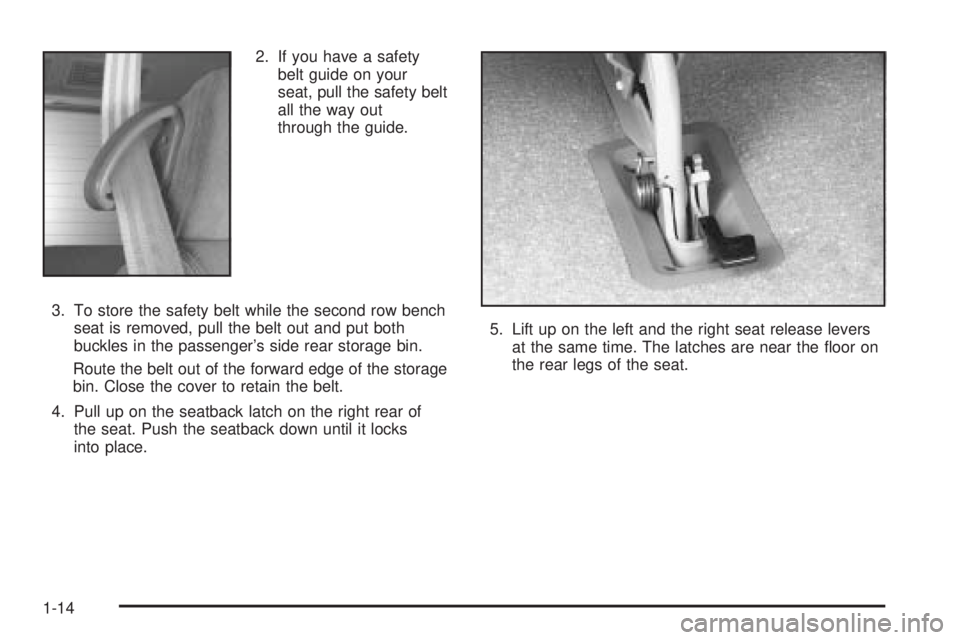

2. If you have a safety
belt guide on your
seat, pull the safety belt
all the way out
through the guide.
3. To store the safety belt while the second row bench
seat is removed, pull the belt out and put both
buckles in the passenger’s side rear storage bin.
Route the belt out of the forward edge of the storage
bin. Close the cover to retain the belt.
4. Pull up on the seatback latch on the right rear of
the seat. Push the seatback down until it locks
into place.5. Lift up on the left and the right seat release levers
at the same time. The latches are near the oor on
the rear legs of the seat.
1-14

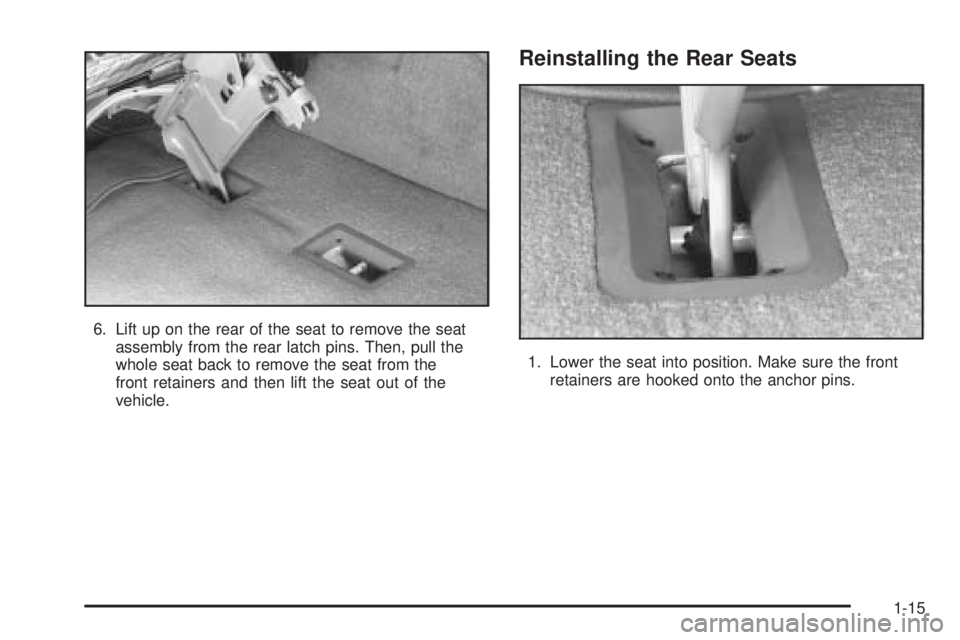

6. Lift up on the rear of the seat to remove the seat
assembly from the rear latch pins. Then, pull the
whole seat back to remove the seat from the
front retainers and then lift the seat out of the
vehicle.
Reinstalling the Rear Seats
1. Lower the seat into position. Make sure the front
retainers are hooked onto the anchor pins.
1-15

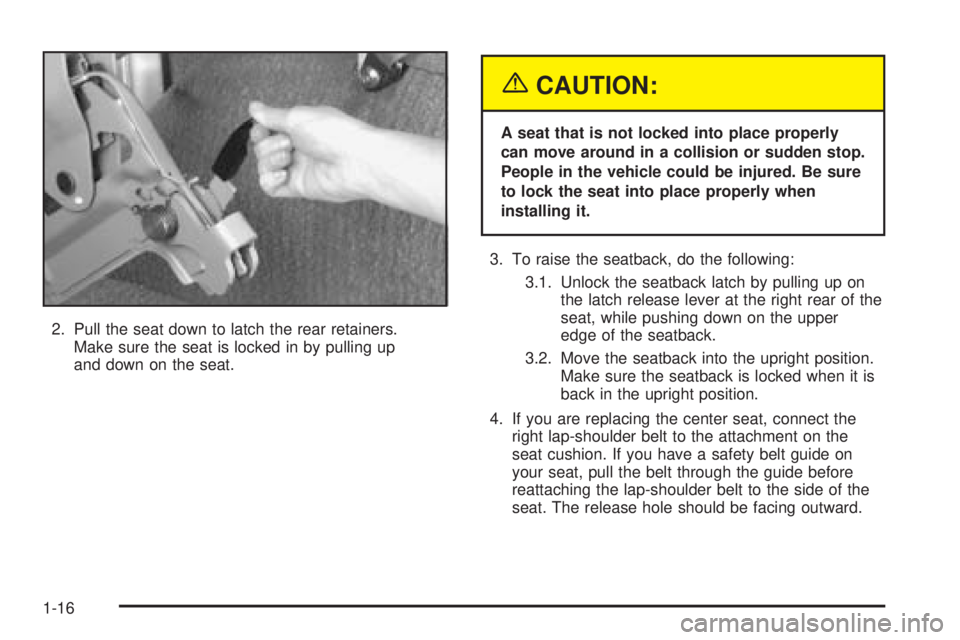

2. Pull the seat down to latch the rear retainers.
Make sure the seat is locked in by pulling up
and down on the seat.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
3. To raise the seatback, do the following:
3.1. Unlock the seatback latch by pulling up on
the latch release lever at the right rear of the
seat, while pushing down on the upper
edge of the seatback.
3.2. Move the seatback into the upright position.
Make sure the seatback is locked when it is
back in the upright position.
4. If you are replacing the center seat, connect the
right lap-shoulder belt to the attachment on the
seat cushion. If you have a safety belt guide on
your seat, pull the belt through the guide before
reattaching the lap-shoulder belt to the side of the
seat. The release hole should be facing outward.
1-16

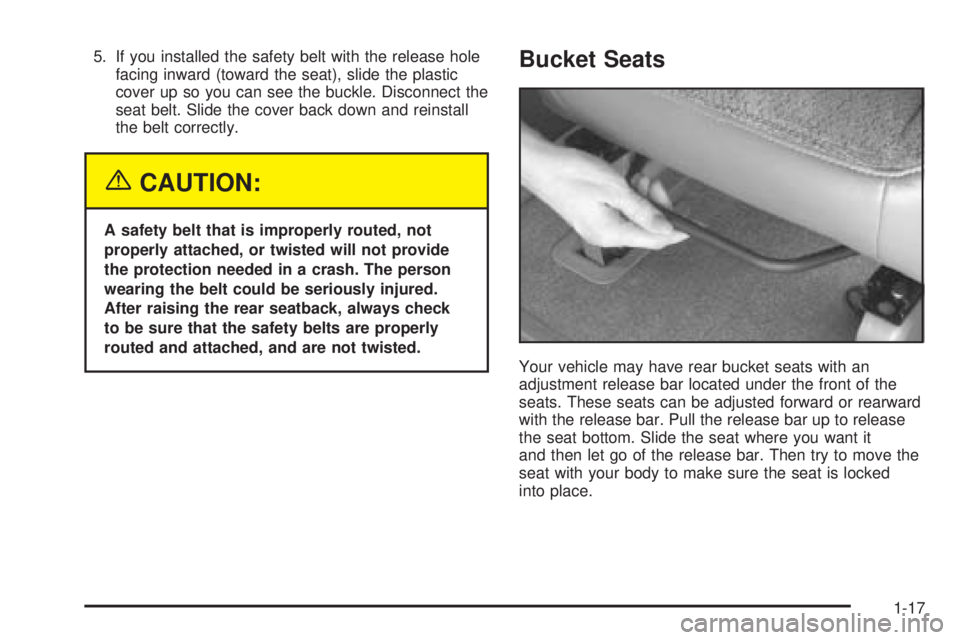

5. If you installed the safety belt with the release hole
facing inward (toward the seat), slide the plastic
cover up so you can see the buckle. Disconnect the
seat belt. Slide the cover back down and reinstall
the belt correctly.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
Bucket Seats
Your vehicle may have rear bucket seats with an
adjustment release bar located under the front of the
seats. These seats can be adjusted forward or rearward
with the release bar. Pull the release bar up to release
the seat bottom. Slide the seat where you want it
and then let go of the release bar. Then try to move the
seat with your body to make sure the seat is locked
into place.
1-17

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-25.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
1-18
