2005 CADILLAC STS Owners Manual

Power Lumbar
The driver’s and
passenger’s seatback
lumbar support switches
are located on the
outboard sides of
the seats.
Use the power seat controls rst to get the proper
position, then continue with the lumbar adjustment.
Use the top lumbar switch to adjust support to the
middle seatback and the bottom lumbar switch to adjust
support to the lower seatback. Press the front of the
switch to increase support and the rear of the switch
to decrease support.
Keep in mind that as your seating position changes,
as it may during long trips, so should the position of your
lumbar support. Adjust the seat as needed.
Heated Seats
Your vehicle may have
heated front seats. The
buttons are located on the
climate control panel.
z(Heated Seat and Seatback):This button is for the
heated seat and seatback. Press the up arrow once
to turn on the heated seat at the highest setting. Press
the down arrow once to turn on the heated seat at
the lowest setting.
Pressing the up or down arrows a second time will raise
or lower the setting. To turn off the heated seat keep
pressing the down arrow until the indicator for heated
seat on the climate control display is off.
The heated seat will automatically shut off when the
vehicle is turned off.
1-3

Heated and Ventilated Seats
Your vehicle may have
heated and ventilated front
seats. The buttons are
located on the climate
control panel.
z(Heated Seat and Seatback):This button is for the
heated seat and seatback.
{(Ventilated Seat):This button is for the
ventilated seat.
There are three settings for each feature. A light bar in
the climate control display shows the setting; high,
medium or low. The longest bar shows the high range
and the shortest bar shows the low range.
Pressing either the heated seat or ventilated seat
button will start that feature at the highest setting. Each
time you press the button, the feature will decrease
one setting.
To turn the feature off, keep pressing the button until
the display lights turn off.
The heated or ventilated seats will automatically shut off
when the vehicle is turned off.
1-4

Power Reclining Seatback
The vertical power seat control described earlier allows
the seatback to recline. SeePower Seats on page 1-2
for more information.
But do no have a seatback reclined if your vehicle is
moving.{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job. In a crash,
you could go into it, receiving neck or other
injuries.
The lap belt cannot do its job either. In a crash
the belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-5

Head RestraintsAdjust your head restraint so that the top of the
restraint is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
The head restraints lock into place when raised. To
release the head restraint and lower it, press the
tab located at the base of the restraint. The head
restraints tilt forward and rearward, also.
The rear seat head restraints work the same as the
front head restraints.
1-6

Rear Seats
Heated Seats
Your vehicle may have this feature. The buttons used to
control the heated rear seats are located on the back
of the center console. The engine must be running
for the heated seat feature to work.
z(Heated Seat and Seatback):Press this button to
turn the heated seat feature on. When you press the
button, the feature will turn on at the highest setting. Each
time you press the button, the feature will go down one
temperature setting. A light next to the button will indicate
the setting; 3 is the highest, 1 is the lowest. To turn the
feature off, keep pressing the button until the indicator
light goes off.
The heated rear seats will shut off automatically when
the ignition is turned off.
Rear Seat Pass-Through Door
Your vehicle has a pass-through door that provides
access to the trunk from the rear seats. See “Rear Seat
Pass-Through Door” underTrunk on page 2-14.
1-7

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-62.
1-8

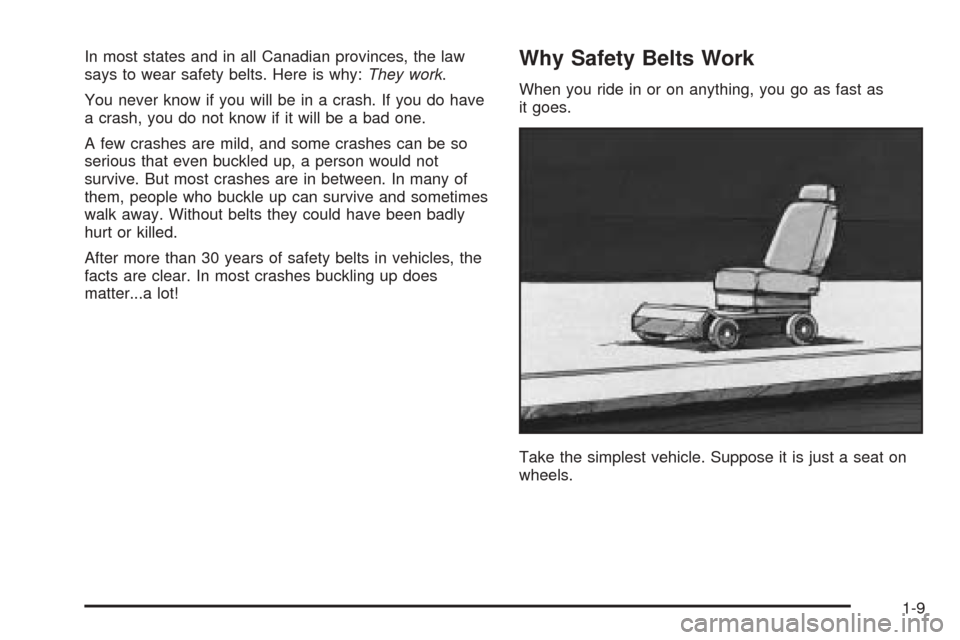

In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
You never know if you will be in a crash. If you do have
a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be so
serious that even buckled up, a person would not
survive. But most crashes are in between. In many of
them, people who buckle up can survive and sometimes
walk away. Without belts they could have been badly
hurt or killed.
After more than 30 years of safety belts in vehicles, the
facts are clear. In most crashes buckling up does
matter...a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.
Take the simplest vehicle. Suppose it is just a seat on
wheels.
1-9

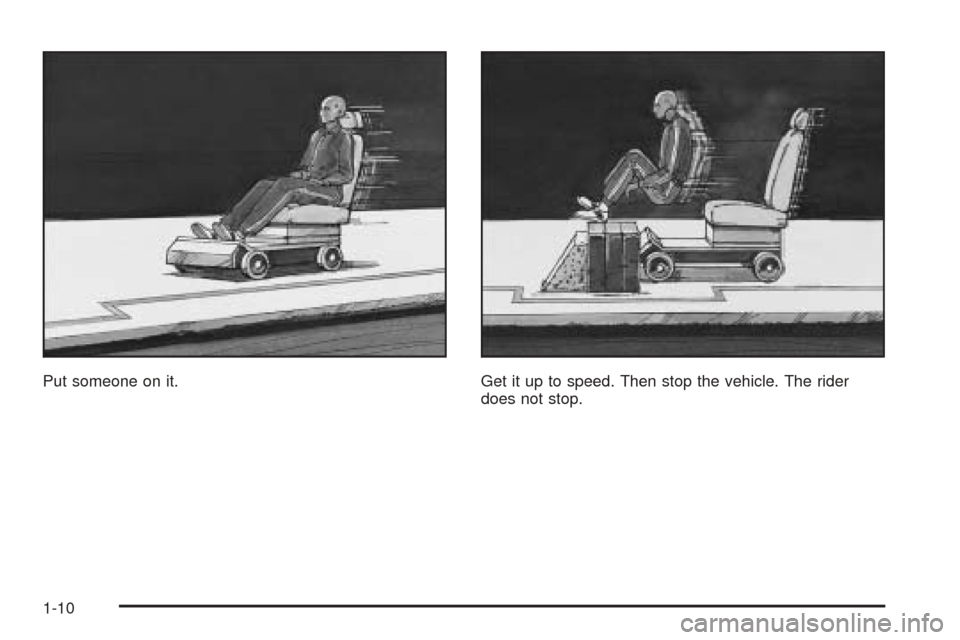

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
does not stop.
1-10
