2005 BUICK RANDEZVOUS Owner's Manual

Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-53.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb
package.
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps
1. Open the hood. SeeHood Release on page 5-11
for more information.
2. Push in on the
headlamp panel and lift
up the headlamp
retaining clip partway,
but do not remove.
3. Remove the wing stud on the upper, outboard side
of the lamp assembly.
4. Unsnap the headlamp assembly by pulling it
forward, away from the vehicle.
5. Disconnect the electrical connector by pulling back
on the locking tab, located on the electrical
connector, to separate the two connectors.
5-49

6. Turn the bulb socket
one-quarter of a turn
clockwise.
7. Pull the bulb assembly out from the lamp housing.8. Unhook the electrical connector by lifting up the
gray tabs and separate the connector from the
bulb base.
9. Install the appropriate new bulb into the electrical
connector. Push the bulb rmly enough so that the
gray tabs hook over the tab on the bulb.
10. Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
counterclockwise.
11. Align the retaining clips on the back of the headlamp
with the rectangular holes in the mounting panel.
12. Push rmly on both ends of the headlamp to snap it
into position.
13. Push the retaining clip down to its original position.
14. Reinstall the wing stud.
5-50

Front Turn Signal, Sidemarker and
Parking Lamps
To replace the front turn signal, parking or sidemarker
lamp bulbs, follow the headlamp bulb replacement
procedure and replace the appropriate bulb.
Taillamps, Turn Signal, and
Stoplamps
1. Open the liftgate. SeeLiftgate on page 2-11for
more information.
2. Remove the two
screws on the inboard
taillamp panel.3. Pull the lamp directly rearward from the vehicle.
4. Turn the bulb socket one-quarter of a turn
counterclockwise.
5. Pull the bulb assembly out from the lamp housing.
6. Unhook the electrical connector by lifting up the tabs
and separate the connector from the bulb base.
7. Install the new bulb into the electrical connector.
Push the bulb rmly enough so that the tabs hook
over the tab on the bulb.
8. Reverse the steps to reinstall.
9. Reinstall the lamp to its pocket by lining up the
mounting pin and pushing forward to set the
position.
10. Reinstall the screws removed in Step 2.
11. Close the liftgate.
5-51

Taillamps and Back-Up Lamps
This procedure is for the liftgate-mounted taillamps and
back-up lamps.
1. Open the liftgate. SeeLiftgate on page 2-11for
more information.
2. Remove the panel inside the liftgate by lifting the
tabs and pulling the panel off.
3. Remove the seven
wing nuts and the four
outboard nuts (two
at each end).
4. Gently lower the liftgate.
5. Pull the lamp assembly directly rearward from the
vehicle.A. Outboard Taillamp
B. Center Taillamp
C. Inboard Back-Up Lamp
6. Turn the bulb socket one-quarter of a turn
counterclockwise.
7. Pull the bulb assembly out from the lamp housing.
8. Pull the bulb out of the base.
9. Install the new bulb into the electrical connector.
Push the bulb rmly enough so that the tabs hook
over the tab on the bulb.
5-52

10. Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
clockwise.
11. Replace the applique on the liftgate.
12. Gently lift the liftgate.
13. Reinstall the seven wing nuts and the four
outboard nuts.
14. Reinstall the panel inside the liftgate by connecting
the tabs.
15. Close the liftgate.
Replacement Bulbs
Exterior Lamp Bulb Number
Front Turn Signal/Parking Lamps 3457K
Headlamps
High-beam 9005
Low-beam 9006
Liftgate-Mounted
Back-Up Lamps 921
Taillamps 161
Rear Outboard Stop/Tail/Turn 3057K
Sidemarker Lamps 168
For replacement bulbs not listed here, contact your
dealer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See “Wiper Blade
Check” underOwner Checks and Services on page 6-8
for more information.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
seeNormal Maintenance Replacement Parts on
page 6-13.
Here’s how to replace the windshield wiper blades:
1. Turn the wipers on to the lowest intermittent setting.
2. Turn off the ignition while the wipers are at the
outer positions of the wipe pattern. The blades
are more accessible for removal/replacement while
in this position.
3. Pull the windshield wiper arm away from the
windshield.
5-53

4. Pull up the release clip, located at the connecting
point of the blade and the arm. Then, pull the
blade assembly down toward the glass to remove it
from the wiper arm.
5. Push the new wiper blade securely on the wiper
arm until you hear the release clip click into place.
6. Push the release clip, from Step 4, down to secure
the wiper blade into place.To replace the backglass mounted wiper blade, do the
following:
1. Turn the rear wiper off.
2. Pull the wiper away from the backglass.
3. Pull up the release clip, located at the connecting
point of the blade and the arm. Then, pull the
blade assembly down toward the glass to remove it
from the wiper arm.
4. Push the new wiper blade securely on the wiper
arm until you hear the release clip click into place.
5. Push the release clip, from Step 3, down to secure
the wiper blade into place.
5-54

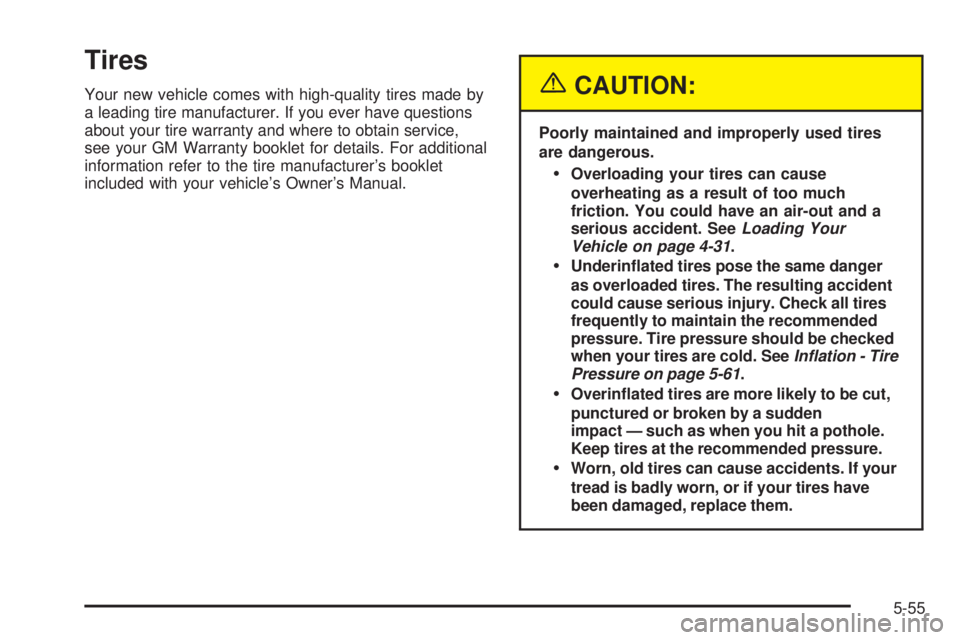

Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service,
see your GM Warranty booklet for details. For additional
information refer to the tire manufacturer’s booklet
included with your vehicle’s Owner’s Manual.{CAUTION:
Poorly maintained and improperly used tires
are dangerous.
Overloading your tires can cause
overheating as a result of too much
friction. You could have an air-out and a
serious accident. SeeLoading Your
Vehicle on page 4-31.
Underinated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold. SeeInflation - Tire
Pressure on page 5-61.
Overinated tires are more likely to be cut,
punctured or broken by a sudden
impact — such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents. If your
tread is badly worn, or if your tires have
been damaged, replace them.
5-55

Tire Sidewall Labelling
Useful information about a tire is molded into its
sidewall. The examples below show a typical passenger
vehicle tire and a compact spare tire sidewall.
(A) Tire Size:The tire size is a combination of letters
and numbers used to dene a particular tire’s width,
height, aspect ratio, construction type and service
description. See the “Tire Size” illustration later in this
section for more detail.(B) TPC Spec (Tire Performance Criteria
Specication):Original equipment tires designed to
GM’s specic tire performance criteria have a TPC
specication code molded onto the sidewall. GM’s TPC
specications meet or exceed all federal safety
guidelines.
(C) DOT (Department of Transportation):The
Department of Transportation (DOT) code indicates that
the tire is in compliance with the U.S. Department of
Transportation Motor Vehicle Safety Standards.
(D) Tire Identication Number (TIN):The letters and
numbers following DOT (Department of Transportation)
code is the Tire Identication Number (TIN). The
TIN shows the manufacturer and plant code, tire size,
and date the tire was manufactured. The TIN is molded
onto both sides of the tire, although only one side
may have the date of manufacture.
(E) Tire Ply Material:The type of cord and number of
plies in the sidewall and under the tread.
(F) Uniform Tire Quality Grading (UTQG):Tire
manufacturers are required to grade tires based on three
performance factors: treadwear, traction and
temperature resistance. For more information see
Uniform Tire Quality Grading on page 5-67.
(G) Maximum Cold Ination Load Limit:Maximum
load that can be carried and the maximum pressure
needed to support that load. Passenger (P-Metric) Tire Example
5-56
