2005 BUICK RANDEZVOUS Owner's Manual

Replacing the Split Bench Seat
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure that the seatback is in the folded forward
position and that the safety belts are on the correct
section of the seat.
Don’t put the sections of the bench seat in so that they
face rearward because they won’t latch that way.
The split bench seat sections have seat position labels,
located on the back of each section, showing where
the section must go.
The seat must be placed in the proper location for the
legs to attach correctly.
1-11

1. Squeeze the angled latch release bar toward the
straight crossbar while placing the front hooks of
the bench seat onto the front two oor pins.
2. Make sure that the
bench seat is angled
so that the front
hooks clear the oor
pins. If the front
legs are not attached
correctly, the rear
legs will not attach
to the rear set of
oor pins.3. Firmly push the rear hooks onto the rear oor pins
by pushing down on the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever and raise the
seatback until it locks upright.
6. Push and pull on the seatback to check that it is
locked upright.
7. Attach the lap belt.
1-12

Captain Chairs
If your vehicle has captain’s chairs, the chairs and
seatbacks can be adjusted forward or rearward.
Adjusting the Captain’s Chairs
(Second Row)
To adjust the second row captain’s chairs, use the
adjustment bar located below the front of each seat.
Lift up the lever to slide the seat forward or rearward.
Release the lever. Push and pull on the seat to
make sure it is locked into place.
Folding or Reclining the Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.To recline the seatback, lift up on the recliner lever
located on the outboard side of the seatback. Use the
recliner lever to move the seatback to the desired
position.
It is easier to raise or lower the seatback if you lean
forward and take the weight off the seatback.
The seatbacks on the second row captain’s chairs fold
forward the same way.
After raising a seatback to an upright position, push and
pull on the seatback to check that it is locked upright.
1-13

Removing the Captain’s Chairs
1. Make sure that the seatback is in the upright position.
2. Lift the seatback recliner lever to fold the seatback
forward.
3. Pull the nylon strap behind the chair to release the
rear hooks from the oor pins.4. The seat can then be lifted off the front oor pins.
5. Remove the seat by rocking it slightly toward
the rear of the vehicle and then pulling it out.
Repeat these steps for the other captain’s chair.
1-14

Replacing the Captain’s Chairs
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure that the seatback is in the folded forward
position and that the safety belts are on the correct side
of the chair.
Don’t put the chairs in so that they face rearward
because they won’t latch that way.
The captain’s chairs have seat position labels, located
on the back of each section, showing where the section
must go.
The seat must be placed in the proper location for the
legs to attach correctly.
1-15

1. Hook the front latches over the front oor pins. 2. Push the rear of the seat down to lock the rear
latches onto the rear set of oor pins.
3. Push and pull on the seat to check that it is
properly attached.
1-16

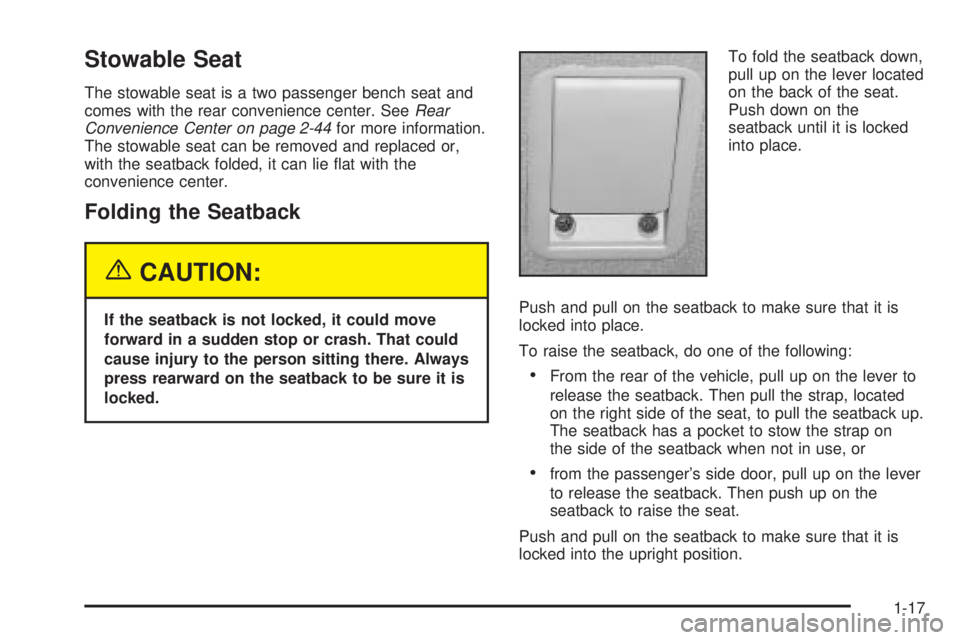

Stowable Seat
The stowable seat is a two passenger bench seat and
comes with the rear convenience center. SeeRear
Convenience Center on page 2-44for more information.
The stowable seat can be removed and replaced or,
with the seatback folded, it can lie at with the
convenience center.
Folding the Seatback
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.To fold the seatback down,
pull up on the lever located
on the back of the seat.
Push down on the
seatback until it is locked
into place.
Push and pull on the seatback to make sure that it is
locked into place.
To raise the seatback, do one of the following:
From the rear of the vehicle, pull up on the lever to
release the seatback. Then pull the strap, located
on the right side of the seat, to pull the seatback up.
The seatback has a pocket to stow the strap on
the side of the seatback when not in use, or
from the passenger’s side door, pull up on the lever
to release the seatback. Then push up on the
seatback to raise the seat.
Push and pull on the seatback to make sure that it is
locked into the upright position.
1-17

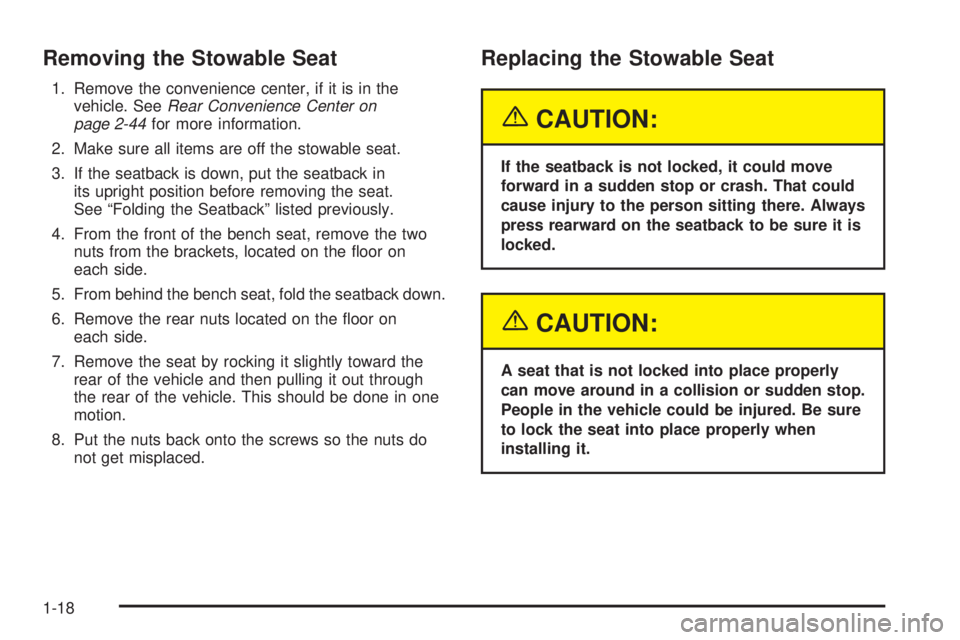

Removing the Stowable Seat
1. Remove the convenience center, if it is in the
vehicle. SeeRear Convenience Center on
page 2-44for more information.
2. Make sure all items are off the stowable seat.
3. If the seatback is down, put the seatback in
its upright position before removing the seat.
See “Folding the Seatback” listed previously.
4. From the front of the bench seat, remove the two
nuts from the brackets, located on the oor on
each side.
5. From behind the bench seat, fold the seatback down.
6. Remove the rear nuts located on the oor on
each side.
7. Remove the seat by rocking it slightly toward the
rear of the vehicle and then pulling it out through
the rear of the vehicle. This should be done in one
motion.
8. Put the nuts back onto the screws so the nuts do
not get misplaced.
Replacing the Stowable Seat
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it is
locked.
{CAUTION:
A seat that is not locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
1-18
