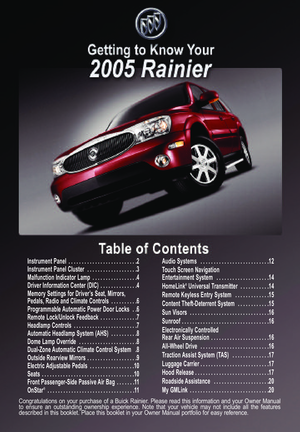

2005 BUICK RAINIER Get To Know Guide

Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . . .2
Instrument Panel Cluster . . . . . . . . . . . . . . . . . . .3
Malfunction Indicator Lamp . . . . . . . . . . . . . . . . .4
Driver Information Center (DIC) . . . . . . . . . . . . . .4
Memory Settings for Driver’s Seat, Mirrors,
Pedals, Radio and Climate Controls . . . . . . . . . .6
Programmable Automatic Power Door Locks . .6
Remote Lock/Unlock Feedback . . . . . . . . . . . . . .7
Headlamp Controls . . . . . . . . . . . . . . . . . . . . . . . .7
Automatic Headlamp System (AHS) . . . . . . . . . .8
Dome Lamp Override . . . . . . . . . . . . . . . . . . . . . .8
DualZone Automatic Climate Control System .8Outside Rearview Mirrors . . . . . . . . . . . . . . . . . . .9
Electric Adjustable Pedals . . . . . . . . . . . . . . . . .10
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Front PassengerSide Passive Air Bag . . . . . . .11OnStar
® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Audio Systems . . . . . . . . . . . . . . . . . . . . . . . . . .12
Touch Screen Navigation
Entertainment System . . . . . . . . . . . . . . . . . . . .14
HomeLink
®Universal Transmitter . . . . . . . . . . .14
Remote Keyless Entry System . . . . . . . . . . . . .15
Content TheftDeterrent System . . . . . . . . . . . .15
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16Electronically Controlled
Rear Air Suspension . . . . . . . . . . . . . . . . . . . . . .16
AllWheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . .16
Traction Assist System (TAS) . . . . . . . . . . . . . .17
Luggage Carrier . . . . . . . . . . . . . . . . . . . . . . . . . .17Hood Release . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Roadside Assistance . . . . . . . . . . . . . . . . . . . . .20
My GMLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Congratulations on your purchase of a Buick Rainier. Please read this information and your Owner Manual
to ensure an outstanding ownership experience. Note that your vehicle may not include all the featuresdescribed in this booklet. Place this booklet in your Owner Manual portfolio for easy reference.

A.Exterior Lamp Controls
B.Air Outlets
C.Turn Signal/Multifunction Lever
D.OnStar
®/Audio Steering Wheel
Controls
E.Instrument Panel ClusterF.Audio Steering Wheel Controls
G.Ignition Switch
H.Audio System
I.Climate Controls
J.Hood Release
K.Driver Information Center Steering
Wheel ControlsL.Rear Window Washer/Wiper
M.Lighter
N.Accessory Power Outlet
O.Rear Window Defogger
P.Glove Box
Getting to Know YourRainier2
Instrument Panel
See Section 3 of your Owner Manual.

Your vehicle’s instrument panel is
equipped with this cluster or one verysimilar to it. The instrument panel
cluster includes these key features:
A.Tachometer
B.Speedometer
C.Engine Oil Pressure Gauge
D.Voltmeter Gauge
E.Engine Coolant Temperature
Gauge
F.Fuel Gauge
G.Driver Information Center (DIC)
IMPORTANT:
The instrument panel
cluster is designed to let you knowabout many important aspects ofyour vehicle’s operation. It is impor
tant to read your Owner Manual andbecome familiar with the informationbeing relayed to you by the lights,gauges and indicators, as well aswhat action can be taken to ensuresafety and to prevent damage.
3
See Section 3 of your Owner Manual.
Instrument Panel Cluster
A
B
C
D
E
F
G

Getting to Know YourRainier4
Trip Information Button:Press
to access each of the odometer,
TRIP A, TRIP B and TIMER functions.To reset either trip odometer to zero,
access it on the DIC and press the
Select button ( ) for one second, orpress and hold the reset stem on the
instrument cluster.
Use the TIMER function to time the
length of your trip, pressing to startor stop the timer when the function is
displayed on the DIC. To reset it to zero,press and hold when the function isdisplayed on the DIC.
Fuel Information Button:Press
to access the range, average fuel
economy, fuel used and the GM Oil LifeSystem
TMstatus.
RANGE estimates the remaining dis
tance you can drive without refueling. It is based on recent fuel economy andremaining fuel.
AVG ECON calculates how many miles
per gallon you are getting based on current and past driving conditions. Press
and hold the reset stem while it is displayed and the DIC will begin calculatingaverage fuel economy from that point intime.
Driver Information Center (DIC)
The Driver Information Center (DIC) fea
tures a message center that can display
trip information, fuel economy information, personalization features and othermessages or warnings.The DIC displayis located above the steering wheel on
the instrument cluster, and can be pro
grammed in three languages. To accessthe various DIC modes, press one ofthe four DIC buttons located on the
steering wheel: Trip Information, FuelInformation, Personalization or Select.
Malfunction Indicator Lamp(Service Engine Soon Lamp)
Located on the instrument panel, this
lamp illuminates under a variety of conditions when the OnBoard DiagnosticsII (OBD II) system detects a malfunction
in the vehicle’s emission controls. If it is
lit steadily, check the gas cap to ensurethat it is attached and securely fastened.
Turn it clockwise until a “ratcheting”sound is heard, signaling that it is
secure. If this is the cause of the condi
tion, and the cap is installed properly,
this should turn the light off.
See Section 3 of your Owner Manual.

5
FUEL USED shows the current amount
of fuel used in gallons since the last
reset for FUEL USED. This mode shouldbe reset after every fuel tank fillup.
ENGINE OIL LIFE calculates an estimat
ed percentage of the engine oil’sremaining useful life and alerts the driver
when it’s time to change the oil by illumi
nating the CHANGE ENG OIL light on
the instrument cluster. Please rememberto always reset the oil life system afteran oil change by pressing and holding
for four seconds while ENGINE OIL
LIFE is displayed. When successful, the
DIC displays ENGINE OIL LIFE: 100%.
For full engine oil information, see Section 5
of your Owner Manual.
Vehicle Personalization
Depending on the equipment ordered on
your vehicle, you can personalize a widevariety of preferences on the DIC. Onlythe features included on your vehicle willbe displayed by the DIC.Personalization features can include:
• Alarm Warning Type
• Mirror Curb View Assist
• Easy Exit Driver Seat (see Seats
section of this booklet)
• Display Units (English/Metric)
• Display Language
Personalization Button:Up to two
people can program individualized settings. Press once and current
driver preferences will be displayed. Any
changes made at this time affect only
the displayed driver. Press the buttonagain to scroll through and personalizemenu features.
Select Button:When scrolling through
the personalization features, pressto scroll through the choices provided foreach menu item. When you find the
choice you want, press to select it
and move on to the next feature. Toreset all personalization features to theirdefault settings, hold and down forfour seconds. Driver preferences arerecalled by pressing memory button #1or #2 located on the driver’s door.
See Section 3 of your Owner Manual.

Getting to Know YourRainier6
Programmable Automatic Power
Door Locks
Your vehicle includes an automatic door
lock/unlock feature with a choice of four
modes, as well as automatic door lockout protection to prevent locking thekeys in the vehicle. In the event thepower door lock switch is activatedwhen a door is open and the key is inthe ignition, the driver door will unlock.
Locking Options:The default setting
for the programmable automatic powerdoor locks is to lock automatically whenthe transmission is shifted into gear (Mode 1).
Other locking options include:
Mode 2: All doors lock when vehicle
speed is over 8 mph (13 kph)
Unlocking options:Choose one of the
following options before personalizingyour unlocking preference:
Mode 1: Driver door unlocks when the
transmission is placed into Park
Mode 2: All doors unlock when the
transmission is shifted into Park
Mode 3: All doors unlock when the key
is removed from the ignition
Mode 4: No automatic door unlock
Memory Settings for Driver’s
Seat, Mirrors and Pedals
Use the driver’s door mounted controls
(shown above) to program and recallmemory settings for the following features:
• Driver’s seat, including seatback
recliner and lumbar adjustment
• Accelerator and brake pedals
• Outside rearview mirrors
Programming a Memory Setting
• Adjust the above features to your
preferred settings.
• Press and hold memory 1 or 2 button
located on the driver’s door until two
chimes sound (about three seconds). This confirms that your settings are stored.
• To program memory positions for
another driver, repeat the process using the other memory button.
Recalling Memory Settings
Each time memory button 1 or 2 on the
driver’s door is pressed while the vehicle
is in Park (P), a single chime will soundand the memory position(s) will berecalled.
See Section 2 of your Owner Manual.

Remote Lock/Unlock Feedback
Program the Remote Keyless Entry
System’s lock/unlock feedback (horn,parking lamps, both or neither) by press
ing the personalization button ( ) on theDriver Information Center until REMOTELOCK FEEDBACK (or unlock, as
desired) appears on the display. Pressthe Select button ( ) to scroll through
the menu of choices. To program thelock/unlock feedback feature, presswhen the desired menu option is displayed.
See Section 3 of your Owner Manual.
The exterior lamps knob is located on
the instrument panel, to the left of thesteering wheel.
Turn off the Daytime Running Lamps
(DRL) and automatic headlamp system
• Move the knob to the OFF ( )
position.
The automatic headlamp system auto
matically reactivates at the next keyon.
Activate the Daytime Running Lamps
(DRL) and automatic headlamp system
• Move the knob to the AUTO ( )
position.
• All exterior lamps and the instrument
panel/radio lights will illuminate whenthey are needed.
Manually activate the parking lamps,
sidemarker lamps, taillamps, instrument panel/radio lights and licenseplate lamps
• Move the knob to the parking lamp
() position.
Manually activate the headlamps, all
exterior tail/sidemarker lamps andthe instrument panel/radio lights
• Move the knob to the ON ( )
position.
7
Headlamp ControlsThere are two methods for personalizing
your vehicle locking/unlocking prefer
ences. One method is to press the personalization button ( ) on the Driver
Information Center until AUTOMATIC
LOCKING (or AUTOMATIC UNLOCK
ING) appears on the display. Press the
Select button ( ) until the desired set
ting appears on the display and press
to select it.
For an alternate method of setting lock
ing/unlocking preferences, see theProgrammable Locking Feature sectionof your Owner Manual.
See Section 2 of your Owner Manual.

Getting to Know YourRainier8
DualZone Automatic Climate
Control System
Your vehicle is equipped with a climate
control system that automatically main
tains the desired temperature individual
ly for the driver and front seat passen
ger. Independent rear seat fan and airdistribution controls are also included for
increased rearpassenger comfort. Amemory feature for up to two drivers isalso included with this system.
Automatic Operation:Push the AUTO
button to set automatic air delivery
mode, fan speed, A/C and recirculation
functions. Each time the AUTO button is
Dome Lamp Override
The dome lamp
override button islocated below theexterior lamps knob.
To prevent thedome lamp fromilluminating when adoor is opened,press the button.
Although using your
Remote Keyless Entry transmitter tounlock the doors will activate the dome
lamp temporarily, the lamp will remain
deactivated when opening a door, untilthe override button is pressed again.
See Section 3 of your Owner Manual.
Activate the fog lamps
• Press the fog lamp button ( )
located on the instrument panel to theright of the exterior lamps switch.
• An indicator lamp will illuminate.
• To turn them off, press the button
again.
See Section 3 of your Owner Manual.
Automatic Headlamp System
(AHS)
When encountering darker conditions
during the daytime (such as when driving under a bridge or inside a parking
garage), you may notice the AHS tem
porarily activating your headlamps, inte
rior lights and radio display lights. This is normal. The lights will automatically
shut off when returning to daylight driving conditions.
When you start the vehicle at night,
the automatic headlamps will come on
immediately. The Automatic HeadlampSystem light sensor is located on top ofthe instrument panel near the windshield
defroster outlets. To ensure proper system operation, avoid placing objects or
stickers on or near the sensor.
See Section 3 of your Owner Manual.
Note:The fog lamps shut off automati
cally when the ignition is turned off andmust be reactivated when needed.
