143

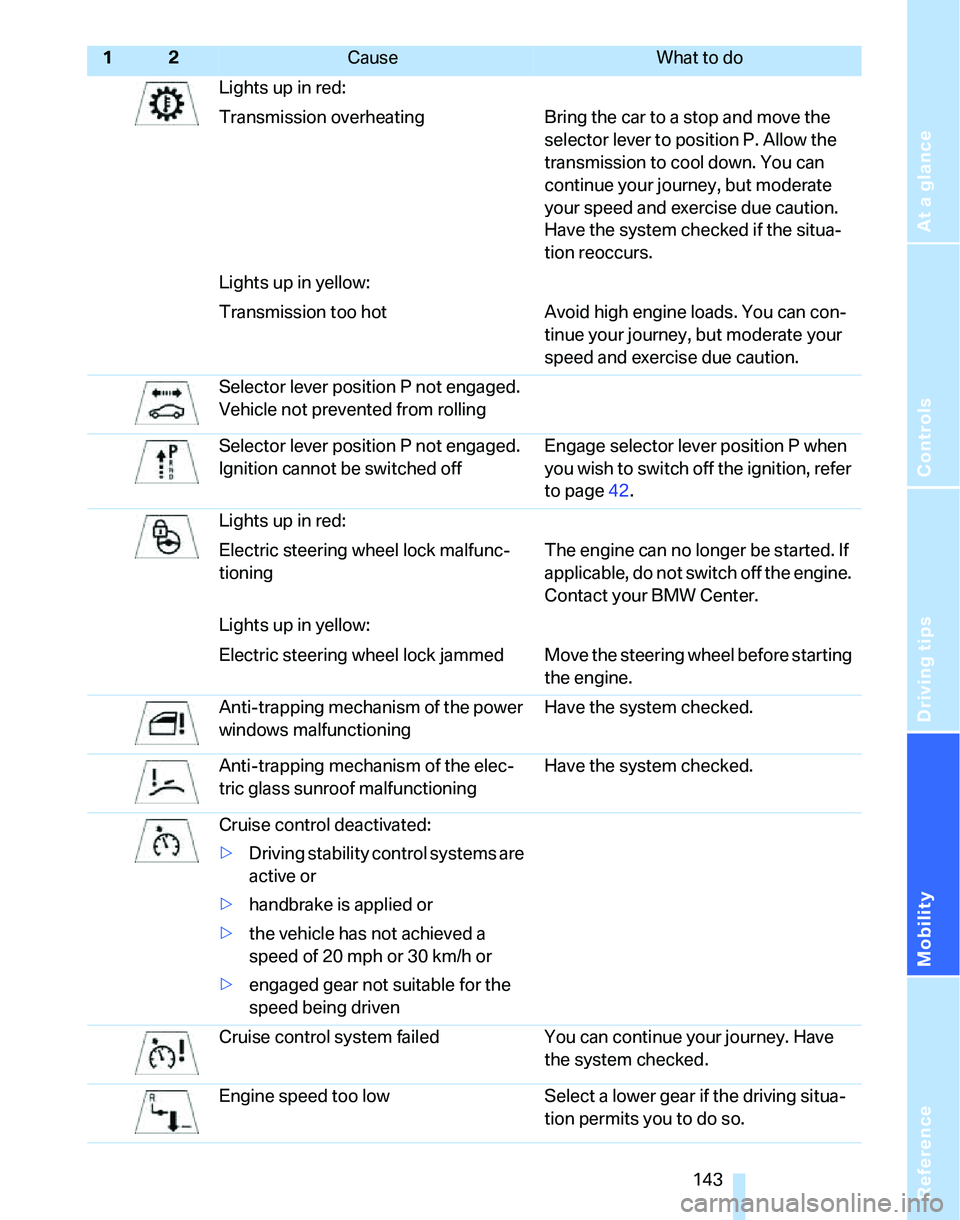

Lights up in red:
Transmission overheating Bring the car to a stop and move the
selector lever to position P. Allow the
transmission to cool down. You can
continue your journey, but moderate
your speed and exercise due caution.
Have the system checked if the situa-
tion reoccurs.
Lights up in yellow:
Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate your
speed and exercise due caution.
Selector lever position P not engaged.
Vehicle not prevented from rolling
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition, refer
to page42.
Lights up in red:
Electric steering wheel lock malfunc-
tioningThe engine can no longer be started. If
applicable, do not switch off the engine.
Contact your BMW Center.
Lights up in yellow:
Electric steering wheel lock jammed Move the steering wheel before starting
the engine.
Anti-trapping mechanism of the power
windows malfunctioningHave the system checked.
Anti-trapping mechanism of the elec-
tric glass sunroof malfunctioningHave the system checked.
Cruise control deactivated:
>Driving stability control systems are
active or
>handbrake is applied or
>the vehicle has not achieved a
speed of 20 mph or 30 km/h or
>engaged gear not suitable for the
speed being driven
Cruise control system failed You can continue your journey. Have
the system checked.
Engine speed too low Select a lower gear if the driving situa-
tion permits you to do so.
12Cause What to do

Indicator and warning lamps
144Engine speed too high Select a higher gear if the driving situa-
tion permits you to do so.
Active cruise control deactivated:
>Driving stability control systems are
active or
>handbrake is applied or
>the vehicle has not achieved a
speed of 20 mph or 30 km/h or
>engaged gear not suitable for the
speed being driven orKeep a safe distance.
>radar sensor dirty Clean the radar sensor, refer to
page56.
Active cruise control failed Keep a safe distance.
Have the system checked.
Park Distance Control failed Have the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp failed Have the low beams checked as soon
as possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Headlamp beam throw adjustment
system failedHave the headlamp beam throw adjust-
ment system checked.
Adaptive Head Light failed
Coolant level too low Add coolant immediately, refer to
page121.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your jour-
ney. Contact your BMW Center.
Engine oil level too low Add engine oil immediately; refer to
page119 for more information.
12Cause What to do

Reference
At a glance
Controls
Driving tips
Mobility
145

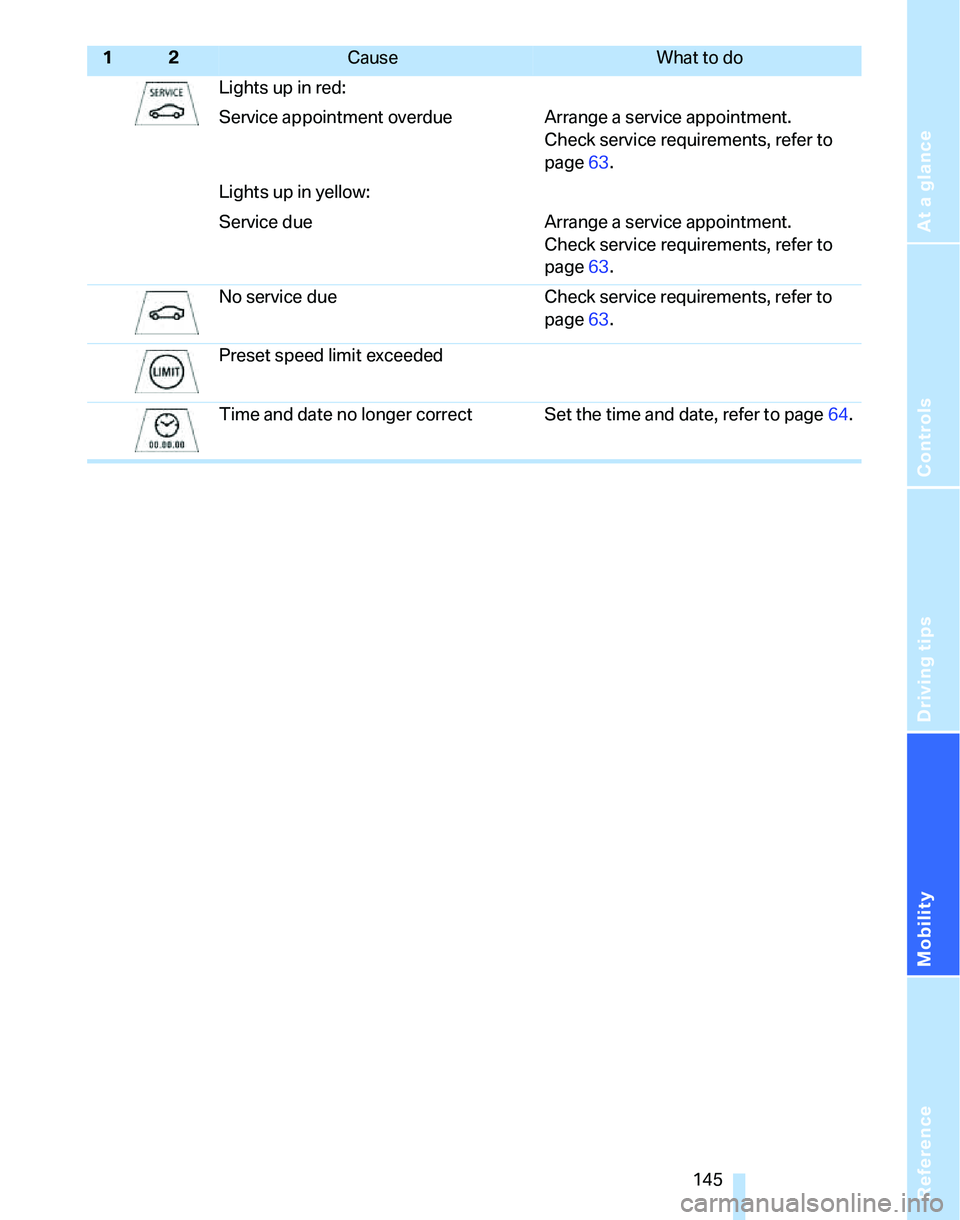

Lights up in red:
Service appointment overdue Arrange a service appointment.
Check service requirements, refer to
page63.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, refer to
page63.
No service due Check service requirements, refer to
page63.
Preset speed limit
exceeded
Time and date no longer correct Set the time and date, refer to page64.
12Cause What to do

Reference
This chapter contains technical data and an
index that will help you find information most
quickly.
Reference

Technical data
148
Technical data
Engine data
323i (Canada) 325i/xi330i/xi
Displacement cu in/cmµ152.4/2,497 182.8/2,996 182.8/2,996
Number of cylinders 6 6 6
Maximum power output hp 215 255
at engine speed rpm 6,250 6,600
Maximum torque lb ft/Nm 185/251 220/298
at engine speed rpm 2,750 2,750

Reference
At a glance
Controls
Driving tips
Mobility
149

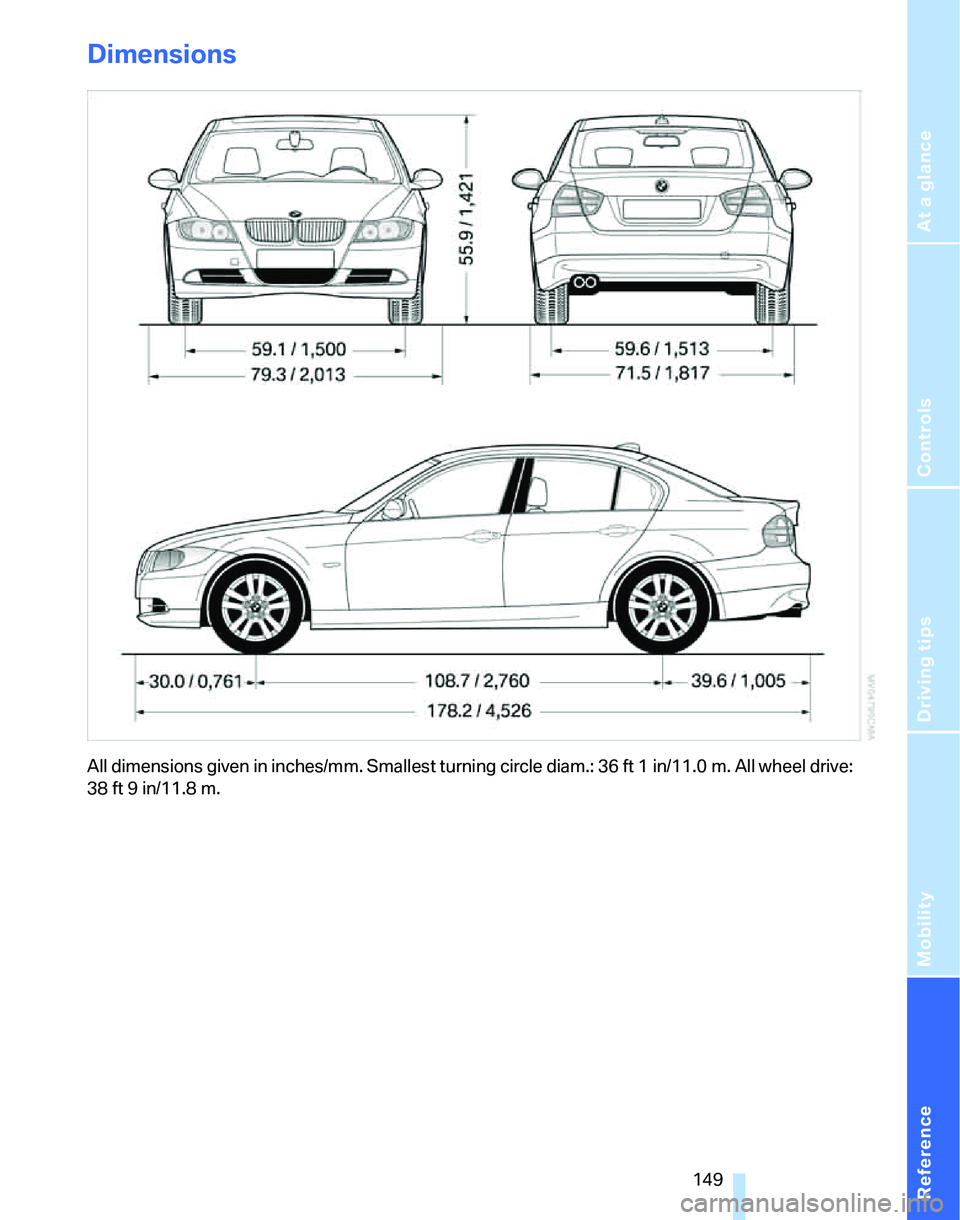

Dimensions
All dimensions given in inches/mm. Smallest turning circle diam.: 36 ft 1 in/11.0 m. All wheel drive:
38 ft 9 in/11.8 m.

Technical data
150
Weights
Never exceed either the approved axle loads or
the gross vehicle weight.
323i (Canada)325i325xi
Curb weight
>with manual transmission lbs/kg 3,274/1,485 3,285/1,490 3,560/1,615
>with automatic transmission lbs/kg 3,329/1,510 3,351/1,520 3,605/1,635
Approved gross weight
>with manual transmission lbs/kg 4,332/1,965 4,343/1,970 4,619/2,095
>with automatic transmission lbs/kg 4,387/1,990 4,409/2,000 4,663/2,115
Load lbs/kg 1,058/480 1,058/480 1,058/480
Approved front axle load lbs/kg 2,083/945 2,072/940 2,282/1,035
Approved rear axle load lbs/kg 2,403/1,090 2,425/1,100 2,480/1,125
Approved roof load capacity lbs/kg 165/75 165/75 165/75
Luggage compartment capacity cu ft/l 16.2/460 16.2/460 16.2/460
330i330xi
Curb weight
>with manual transmission lbs/kg 3,417/1,550 3,627/1,645
>with automatic transmission lbs/kg 3,450/1,565 3,671/1,665
Approved gross weight
>with manual transmission lbs/kg 4,475/2,030 4,685/2,125
> with automatic transmission lbs/kg 4,508/2,045 4,729/2,145
Load lbs/kg 1,058/480 1,058/480
Approved front axle load lbs/kg 2,138/970 2,315/1,050
Approved rear axle load lbs/kg 2,469/1,120 2,513/1,140
Approved roof load capacity lbs/kg 165/75 165/75
Luggage compartment capacity cu ft/l 16.2/460 16.2/460
