2005 AUDI A6 navigation

Downloaded from www.Manualslib.com manuals search engine 5
18 Rotation rate sensor 202
19 Door control unit, passenger's side J387
20 Control unit for seat adjustment with memory,
passenger’s side, J521
21 Door control unit, rear right J389
22 Transmitter unit in wheel well for tyre pressure
monitoring, rear left G433
23 Radio receiver for auxiliary heating R64
24 Control unit for navigation with CD drive J401
Control unit for voice input J507
Digital sound package control unit J525
Radio R
TV tuner R78
Digital radio R147 25 Transmitter unit in wheel well for tyre pressure
monitoring, rear right G434
26 Parking aid control unit J446
Control unit for trailer detection J345
27 Central control unit for convenience system J393
28 Control unit for electric parking and
hand brake J540
29 Control unit for power management J644
326_146

Downloaded from www.Manualslib.com manuals search engine 7
326_027
Display and
operating unit for
front information
J523Te l e p h o n e
transmitter and
for telephone
R36
CD changer
R41
Digital
sound package
J525
Switch for
access and
start authorisation
E415Antenna read-in
unit for keyless access
authorisation
J723
Wiper motor
J400Sensor for rain and
light detection
G397
Passenger
compartment
monitoring
G273Alarm horn
H12
Fresh air fan
J126Refrigerant pressure and
refrigerant temperature
G395
Tr a n s m i t t e r,
front left
G431Tr a n s m i t t e r,
front right
G432Tr a n s m i t t e r,
rear left
G433Transmitter,
rear right
G434Antenna, rear
R96 Te l e p h o n e /
telematics
J526Handset
for telephone
R37
Navigation
with CD drive
J401
TV tuner
R78
Radio module
RVoice input
J507
MOST bus
CAN Instrument cluster
CAN Diagnosis
CAN Drive
CAN Convenience
CAN Distance control
LIN bus
Various sub-bus systems
Wireless transmission
– Bluetooth signal

Downloaded from www.Manualslib.com manuals search engine 68
Multimedia Interface (MMI)
Equipment versions
As in the current Audi A8 ’03, the MMI operating
concept is now also integrated as standard in the
new Audi A6 ’05. Data is transferred between the
individual Infotainment control units via MOST bus
technology and the process is technically identical
to the Infotainment system in the current
Audi A8 ‘03. Driver-relevant functions, such as
on-board computer or navigation, are displayed in
the centre display of dash panel insert J285.
Selected functions for the telephone, radio and
CD control and volume control can be operated
using the multi-function steering wheel.Unlike the current Audi A8 ‘03, several versions of
the control unit for the front display unit J523, the
master control unit in the optical Infotainment bus,
are installed in the Audi A6 ´05, depending on the
optional equipment selected.
The Basic, Basic Plus and Basic Navigation versions
have the same hardware platform, which is
expanded to include the required optional extras.
The MMI High version, on the other hand, uses the
same hardware as the current Audi A8 ‘03.
Furthermore, the data bus diagnosis interface J533,
which assures communication with the other
networked components in the vehicle, is connected
to the MOST bus.
Infotainment
Note
Information on the MOST bus can be found in
the SSP 286 – New data bus systems,
LIN, MOST, Bluetooth.Reference
For information on the Infotainment system
with optical data transfer, please refer to the
SSP 293, Audi A8 ’03 – Infotainment.
326_143 Display elements in the optimum field of vision
Separation of display and operation
– optimum readability
– optimum ease of operation
Operating elements within primary reach

Downloaded from www.Manualslib.com manuals search engine 71
MMI Basic Navigation
The MMI Basic Plus is available on request with a
basic navigation function. For this purpose, a
navigation module is integrated into the
information control unit J523. Optical route
guidance is provided on the central display in the
dash panel insert. The destination is entered using
the MMI operating system with its central knob/
pushbutton.
Audible directions for route guidance are also
output via the sound system.
The data required for navigation is read in via the
integrated CD drive.
Legend
The orange symbols represent the possible optional
equipment. If a relevant option is missing, simply
follow the route indicated by arrows to close the
MOST ring.
326_041
Front information
are used
in the tester
J685Multimedia
operating unit
E380Antenna booster
R24Antenna
amplifier 2
R111
Control unit for front information J523
+ Radio
+ Navigation with CD drive J401Loudspeaker
DSP amplifier
J525
Loudspeaker DSP amplifier
BOSE
J525
CD changer
R41 Te l e p h o n e
transmitter and
for telephone
R36 Data bus diagnosis
for data bus
J533Antenna for
Navigation
R50
Steering column
electronics
J527Multi-function
steering wheel
J453

Downloaded from www.Manualslib.com manuals search engine 72
MMI High
The MMI High comes with the 7" colour display.
The standard equipment of the Top system in
Audi A6 ‘05 Infotainment includes an RDS dual-
tuner, the standard sound system and a 6x CD
changer in the glove compartment. As an optional
extra, this MMI version is also available with DVD
navigation, which is already used in the current A8
‘03, as well as the voice operator system with the
voice input control unit J507 as a plug-in module of
the radio module R.
Only in this MMI version can drivers choose
between the fixed telephone module and the mobile
baseplate. The well-known analogue TV tuner R78 is
also available at present as an optional extra.
Infotainment
Legend
The orange symbols represent the possible optional
equipment. If a relevant option is missing, simply
follow the route indicated by arrows to close the
MOST ring.
326_044 Front information
are used
in the tester
J685Multimedia
operating unit
E380
Control unit for front information J523Loudspeaker
DSP amplifier
J525
Loudspeaker DSP amplifier
BOSE
J525
CD changer
R41 Te l e p h o n e
transmitter and
for telephone
R36 TV tuner
R78
Te l e p h o n e /
telematics
J526
Handset
for telephone
R37 Radio
R
Vo ic e i n pu t
J507 Navigation
with CD drive
J401
Reference
Information on the DVD-based navigation
system can be found in the SSP 293,
Audi A8 ´03 – Infotainment.
Antenna booster
R24Antenna
amplifier 2
R111
Data bus diagnosis
interface
J533
Steering column
electronics
J527
Multi-function
steering wheel
J453

Downloaded from www.Manualslib.com manuals search engine 74
Infotainment
Legend

Hardkey
❍Softkey
–Sub-menu
–Function
* available later

Navigation
Navigation
– mode>
– Country
– City/Postal code
– Street
– Special dest.
– Route guidance
Start
–
– Z-destination 1...3
– Destination
❍Memory
–Last destinations
–Top special dest.
– Destination from
address book
– Save current dest.
– Save route
–Load route
❍Route
– Route criteria
–Distance list
–Route with
stop-off destinations
–Route without
stop-off destinations
–Block route
from here
❍Map
–Zoom
–Map menu
❍Nav Info
– Destination
–Location
–GPS dates

Navigation setup
–Map colours
–Alignment
–Junction zoom
–Map type
–Map contents
– Audible directions
–Demo mode
– Delete last
destinations
–Manual location
– Version information

Info main menu
– TMC message list
❍TP memo
– Message retrieval
❍Sources
–
–

Info setup
– TP memo timer
– TMC display filter

Car main menu
❍User
–User 1 - 4
– User management
❍On-board manual
–Short Guide
–Driver’s Manual
–Audi MMI
❍Maintenance
❍Maintenance
– Ambient lighting
–Acoustic Parking
System
– External lighting
– Battery charge level
– Vehicle registration
number
–Windows
– Instrument cluster
– Tyre pressure
control system
– Windscreen wiper
–Seat adjustment
–Mirror adjustment
–Central locking

Setup main menu
–Radio setup
❍Settings
–Menu language
–Units of measure
– Time setting
–System sounds
– Voice operation
– Factory setting
❍Sound
– Balance
–Fader
–Treble
–Base
–Subwoofer
–DSP
– Standard
– BOSE
– Volume settings
– Navigation
instructions
– Traffic
programme
broadcast
– Voice dialogue
system
– Telephone volume
❍Display
–Brightness

Downloaded from www.Manualslib.com manuals search engine 75
Antenna systems
The antenna system in the new Audi A6 ´05 is
integrated as a module in the top area of the rear
window, to the left and next to the third brake light,
on the right.
The modules are responsible for the various
s y s t e m s, e . g . re m o t e c e n t ral lo ck i n g , rad i o , T V o r t h e
radio receiver for the auxiliary heater.
Only the modules that are required for the
requested optional extras are installed.The table shows the relevant modules for the
available vehicle equipment. These are indicated for
the various, worldwide country versions.
The modules "DAB" and "SDARS" relate to the digital
radio systems, which will be available later and are
based on either a satellite-controlled system
(SDARS) or a terrestrial system (DAB).
ModuleDesignationAvailable in market version
1
1
1
1
2
4
2
2
2
3
4
5
5
5
5
7
8Radio AM/FM
Radio AM/FM-Diversity
Radio AM/FM-Div/TV
Radio AM/FM-Div/TV
Remote central locking
Remote control for auxiliary heater
Remote locking/TV
Remote locking/TV/DAB
Remote central locking/TV
Navigation
Mobile phone-US
Te l e p h o n e E C E
Telephone (fixed or mobile)/Navigation
Telephone/Navigation
Satellite radio
Block circuit
Te l e p a s sECE
ECE/US
ECE/US
Japan
ECE/US
ECE
ECE/US
ECE
Japan
RoW
US
ECE
ECE
US
US
Italy
Installed antenna modules for possible vehicle equipment
Module 1
Module 3 Module 4Module 2 Module 5
Module 7Module 6
A
M
/F
M
-Di
v/
TV
1-2Third brake lightT
V3-
4
/R
emot
e
c
ent
ra
l
locking/R
C
/DA
B
326_125
Module 1: Radio/antenna amplifier R24
Module 2: Remote central locking/antenna amplifier 2 R111
Module 3: GPS/antenna for GPS navigation R50
Module 4: Mobile phone antenna USA/Antenna for telephone,
navigation, auxiliary heater R66Module 5: Roof antenna/antenna for radio, telephone,
navigation R52
Module 6: Block circuit
Module 7: Telepass antenna

Downloaded from www.Manualslib.com manuals search engine 76

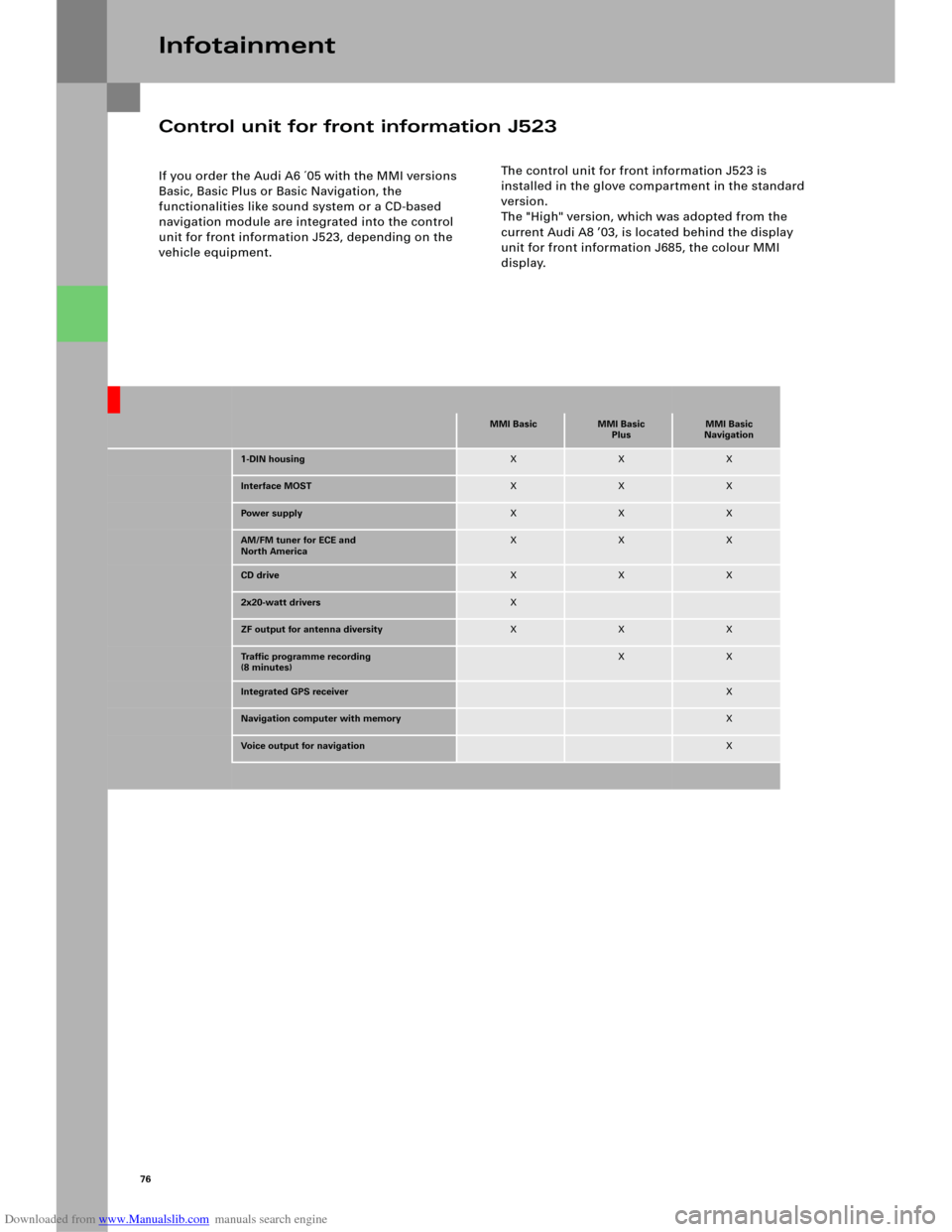

If you order the Audi A6 ´05 with the MMI versions
Basic, Basic Plus or Basic Navigation, the
functionalities like sound system or a CD-based
navigation module are integrated into the control
unit for front information J523, depending on the
vehicle equipment. The control unit for front information J523 is
installed in the glove compartment in the standard
version.
The "High" version, which was adopted from the
current Audi A8 ’03, is located behind the display
unit for front information J685, the colour MMI
display.
Infotainment
MMI BasicMMI Basic
PlusMMI Basic
Navigation
1-DIN housingXXX
Interface MOSTXXX
Power supplyXXX
AM/FM tuner for ECE and
North AmericaXXX
CD driveXXX
2x20-watt driversX
ZF output for antenna diversityXXX
Traffic programme recording
(8 minutes)XX
Integrated GPS receiverX
Navigation computer with memoryX
Voice output for navigationX
Control unit for front information J523
