Seat symmetry positioning
The "Symmetry positioning, driver’s seat/
passenger’s seat" option, which is available in the
MMI, can be used to move the passenger’s seat into
a symmetrical position in relation to the driver’s
seat. The MMI sends a corresponding instruction to
the driver’s seat control unit via the
CAN Convenience bus. The control unit then sends
the current seat position and a control instruction to
the passenger’s seat control unit, which positions
its motors accordingly.
Comfort side view
The "Comfort side view" option moves the
passenger’s seat into a position that hides the
vehicle’s B-pillar, thereby ensuring that the driver
has the best possible view out of the vehicle.
The function can be selected via the MMI, where the
signal is transmitted in the same way as for the
"Seat symmetry positioning" function.
Memory retrieval
Radio code memory
Memory settings are retrieved using the radio code. Personal button memory
Settings are retrieved and stored using the memory
buttons in the door panel.
The stored memory settings can be retrieved in
the following ways.
326_138
326_116

Downloaded from www.Manualslib.com manuals search engine 68
Multimedia Interface (MMI)
Equipment versions
As in the current Audi A8 ’03, the MMI operating
concept is now also integrated as standard in the
new Audi A6 ’05. Data is transferred between the
individual Infotainment control units via MOST bus
technology and the process is technically identical
to the Infotainment system in the current
Audi A8 ‘03. Driver-relevant functions, such as
on-board computer or navigation, are displayed in
the centre display of dash panel insert J285.
Selected functions for the telephone, radio and
CD control and volume control can be operated
using the multi-function steering wheel.Unlike the current Audi A8 ‘03, several versions of
the control unit for the front display unit J523, the
master control unit in the optical Infotainment bus,
are installed in the Audi A6 ´05, depending on the
optional equipment selected.
The Basic, Basic Plus and Basic Navigation versions
have the same hardware platform, which is
expanded to include the required optional extras.
The MMI High version, on the other hand, uses the
same hardware as the current Audi A8 ‘03.
Furthermore, the data bus diagnosis interface J533,
which assures communication with the other
networked components in the vehicle, is connected
to the MOST bus.
Infotainment
Note
Information on the MOST bus can be found in
the SSP 286 – New data bus systems,
LIN, MOST, Bluetooth.Reference
For information on the Infotainment system
with optical data transfer, please refer to the
SSP 293, Audi A8 ’03 – Infotainment.
326_143 Display elements in the optimum field of vision
Separation of display and operation
– optimum readability
– optimum ease of operation
Operating elements within primary reach

Downloaded from www.Manualslib.com manuals search engine 69
MMI Basic
Standard equipment in the new Audi A6 includes
MMI Basic with the MMI operating concept, a
7" monochrome display (J685) in the dash panel
inser t as well as an integrated, analogue radio tuner
and 4x antenna diversity, CD drive and a 2x20-watt
amplifier.
In principle, these drivers are available in all
versions of the control unit for front
information J523.
In the MMI Basic version, the loudspeakers that are
integrated into the front doors are connected
directly to the control unit for front
information J523.
If the Standard Sound System or BOSE option is
installed, this internal amplifier is deactivated via
coding. The loudspeakers are then connected to the
relevant digital sound package control unit J525.Digital tuner technology will be available in the
Audi A6 at a later date. Depending on the market in
question, a satellite radio receiver or a receiver for
terrestrially emitted, but digitally coded
transmissions will then be available.
Legend
The orange symbols represent the possible optional
equipment. If a relevant option is missing, simply
follow the route indicated by arrows to close the
MOST ring.
326_042 Front information
are used
in the tester
J685Multimedia
operating unit
E380Antenna booster
R24Loudspeaker
front
Control unit for front information J523
+ Radio R
+ CD player R89
+ Amplifier R12 (active)Loudspeaker
DSP amplifier
J525
DSP amplifier
BOSE
J525
Loudspeaker
CD changer
R41 Te l e p h o n e
transmitter and
for telephone
R36 Data bus diagnosis
interface
J533Antenna
amplifier 2
R111
Steering column
electronics
J527Multi-function
steering wheel
J453

Downloaded from www.Manualslib.com manuals search engine 70
MMI Basic Plus
As an option, the MMI Basic system can be
equipped with additional functions in the radio and
sound field in the form of a "Plus" version.
This includes, for example, a TP Memo function,
which enables the recording of traffic
announcements for a duration of eight minutes in
total.
A programmable recording period can be used to
provide up-to-date traffic announcements before
starting a journey. Stored traffic messages are
automatically deleted after six hours to ensure that
they are always up-to -date. Instead of the integrated
amplifier, the standard sound system with its own
digital sound package control unit J525 will be used
as standard as of this MMI version.
The internal amplifier can be deactivated via coding
in this and later MMI versions.
Infotainment
Legend
The orange symbols represent the possible optional
equipment. If a relevant option is missing, simply
follow the route indicated by arrows to close the
MOST ring.

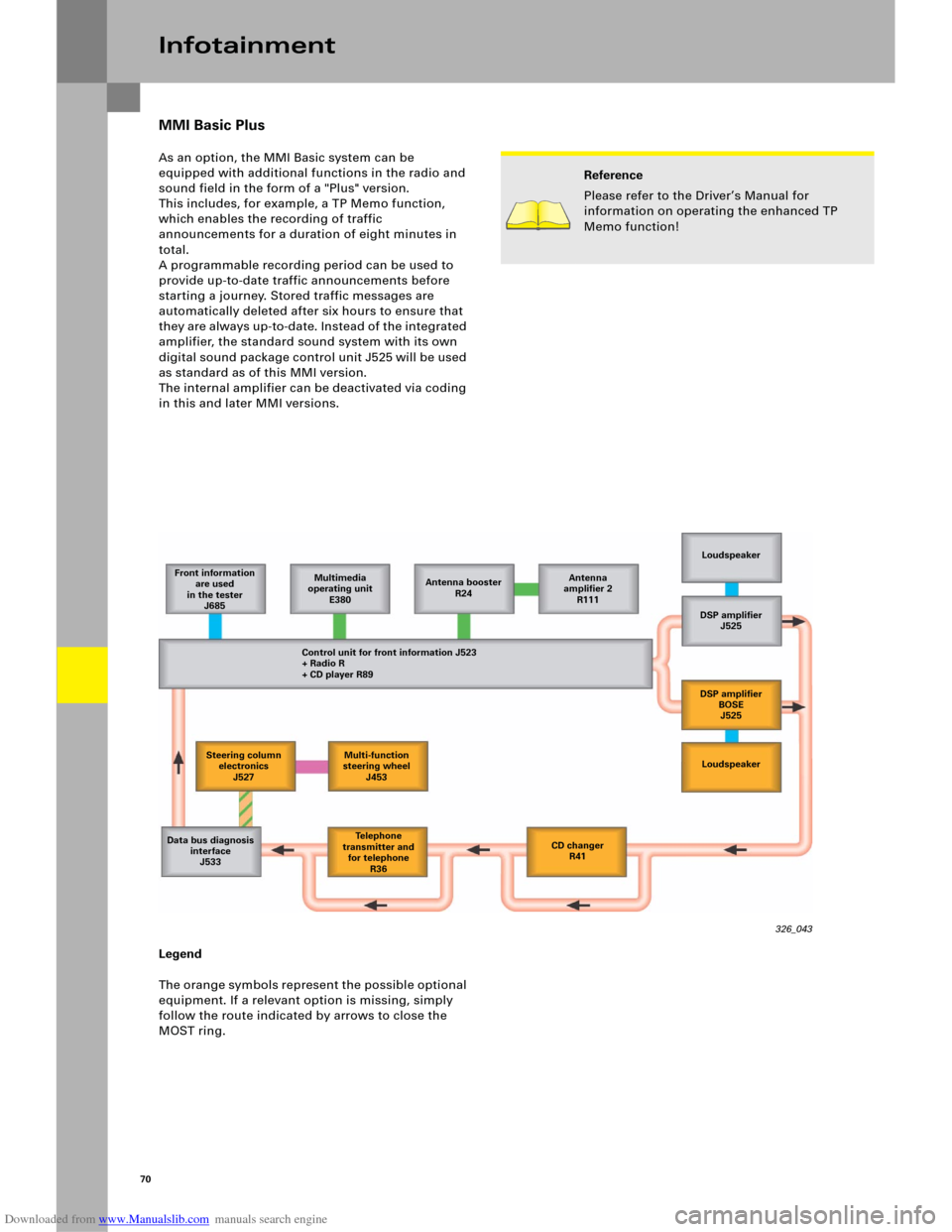

326_043 Front information
are used
in the tester
J685Multimedia
operating unit
E380Antenna booster
R24
Control unit for front information J523
+ Radio R
+ CD player R89Loudspeaker
DSP amplifier
J525
DSP amplifier
BOSE
J525
Loudspeaker
Te l e p h o n e
transmitter and
for telephone
R36 Data bus diagnosis
interface
J533CD changer
R41 Antenna
amplifier 2
R111
Reference
Please refer to the Driver’s Manual for
information on operating the enhanced TP
Memo function!
Steering column
electronics
J527Multi-function
steering wheel
J453

Downloaded from www.Manualslib.com manuals search engine 71
MMI Basic Navigation
The MMI Basic Plus is available on request with a
basic navigation function. For this purpose, a
navigation module is integrated into the
information control unit J523. Optical route
guidance is provided on the central display in the
dash panel insert. The destination is entered using
the MMI operating system with its central knob/
pushbutton.
Audible directions for route guidance are also
output via the sound system.
The data required for navigation is read in via the
integrated CD drive.
Legend
The orange symbols represent the possible optional
equipment. If a relevant option is missing, simply
follow the route indicated by arrows to close the
MOST ring.
326_041
Front information
are used
in the tester
J685Multimedia
operating unit
E380Antenna booster
R24Antenna
amplifier 2
R111
Control unit for front information J523
+ Radio
+ Navigation with CD drive J401Loudspeaker
DSP amplifier
J525
Loudspeaker DSP amplifier
BOSE
J525
CD changer
R41 Te l e p h o n e
transmitter and
for telephone
R36 Data bus diagnosis
for data bus
J533Antenna for
Navigation
R50
Steering column
electronics
J527Multi-function
steering wheel
J453

Downloaded from www.Manualslib.com manuals search engine 72
MMI High
The MMI High comes with the 7" colour display.
The standard equipment of the Top system in
Audi A6 ‘05 Infotainment includes an RDS dual-
tuner, the standard sound system and a 6x CD
changer in the glove compartment. As an optional
extra, this MMI version is also available with DVD
navigation, which is already used in the current A8
‘03, as well as the voice operator system with the
voice input control unit J507 as a plug-in module of
the radio module R.
Only in this MMI version can drivers choose
between the fixed telephone module and the mobile
baseplate. The well-known analogue TV tuner R78 is
also available at present as an optional extra.
Infotainment
Legend
The orange symbols represent the possible optional
equipment. If a relevant option is missing, simply
follow the route indicated by arrows to close the
MOST ring.
326_044 Front information
are used
in the tester
J685Multimedia
operating unit
E380
Control unit for front information J523Loudspeaker
DSP amplifier
J525
Loudspeaker DSP amplifier
BOSE
J525
CD changer
R41 Te l e p h o n e
transmitter and
for telephone
R36 TV tuner
R78
Te l e p h o n e /
telematics
J526
Handset
for telephone
R37 Radio
R
Vo ic e i n pu t
J507 Navigation
with CD drive
J401
Reference
Information on the DVD-based navigation
system can be found in the SSP 293,
Audi A8 ´03 – Infotainment.
Antenna booster
R24Antenna
amplifier 2
R111
Data bus diagnosis
interface
J533
Steering column
electronics
J527
Multi-function
steering wheel
J453

Downloaded from www.Manualslib.com manuals search engine 73

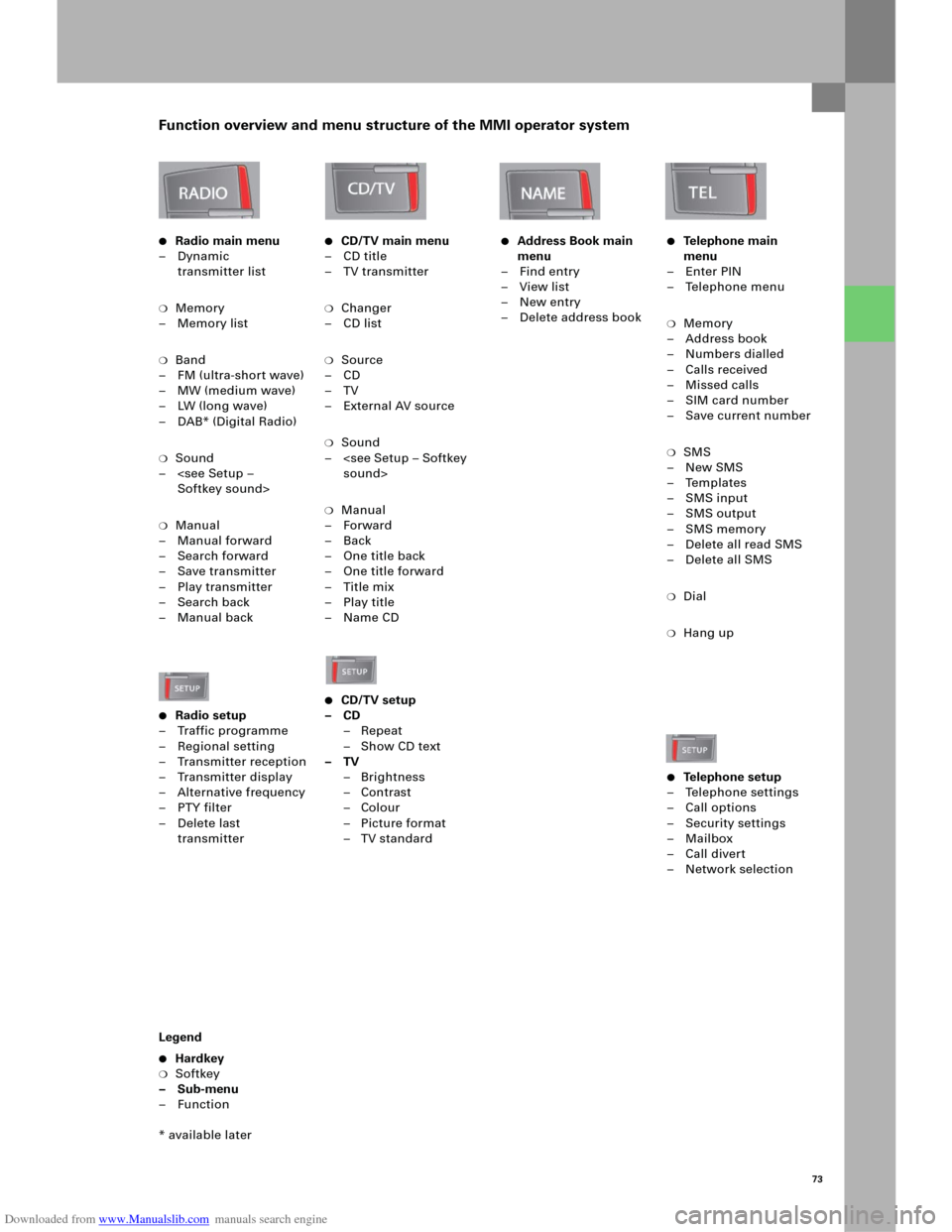

Function overview and menu structure of the MMI operator system

Radio main menu
–Dynamic
transmitter list
❍Memory
–Memory list
❍Band
– FM (ultra-short wave)
– MW (medium wave)
–LW (long wave)
– DAB* (Digital Radio)
❍Sound
– Softkey sound>
❍Manual
–Manual forward
– Search forward
– Save transmitter
– Play transmitter
–Search back
–Manual back

Radio setup
– Traffic programme
– Regional setting
– Transmitter reception
– Transmitter display
– Alternative frequency
–PTY filter
– Delete last
transmitter
Legend

Hardkey
❍Softkey
–Sub-menu
–Function
* available later

CD/TV main menu
– CD title
– TV transmitter
❍Changer
–CD list
❍Source
–CD
–TV
–External AV source
❍Sound
– sound>
❍Manual
–Forward
–Back
– One title back
– One title forward
– Title mix
– Play title
–Name CD

CD/TV setup
–CD
– Repeat
– Show CD text
–TV
– Brightness
– Contrast
– Colour
– Picture format
– TV standard

Address Book main
menu
–Find entry
–View list
–New entry
– Delete address book
Te l e p h o n e m a i n
menu
–Enter PIN
– Telephone menu
❍Memory
– Address book
–Numbers dialled
–Calls received
– Missed calls
–SIM card number
– Save current number
❍SMS
–New SMS
– Templates
–SMS input
–SMS output
–SMS memory
– Delete all read SMS
– Delete all SMS
❍Dial
❍Hang up

Te l e p h o n e s e t u p
– Telephone settings
–Call options
– Security settings
–Mailbox
–Call divert
– Network selection

Downloaded from www.Manualslib.com manuals search engine 74
Infotainment
Legend

Hardkey
❍Softkey
–Sub-menu
–Function
* available later

Navigation
Navigation
– mode>
– Country
– City/Postal code
– Street
– Special dest.
– Route guidance
Start
–
– Z-destination 1...3
– Destination
❍Memory
–Last destinations
–Top special dest.
– Destination from
address book
– Save current dest.
– Save route
–Load route
❍Route
– Route criteria
–Distance list
–Route with
stop-off destinations
–Route without
stop-off destinations
–Block route
from here
❍Map
–Zoom
–Map menu
❍Nav Info
– Destination
–Location
–GPS dates

Navigation setup
–Map colours
–Alignment
–Junction zoom
–Map type
–Map contents
– Audible directions
–Demo mode
– Delete last
destinations
–Manual location
– Version information

Info main menu
– TMC message list
❍TP memo
– Message retrieval
❍Sources
–
–

Info setup
– TP memo timer
– TMC display filter

Car main menu
❍User
–User 1 - 4
– User management
❍On-board manual
–Short Guide
–Driver’s Manual
–Audi MMI
❍Maintenance
❍Maintenance
– Ambient lighting
–Acoustic Parking
System
– External lighting
– Battery charge level
– Vehicle registration
number
–Windows
– Instrument cluster
– Tyre pressure
control system
– Windscreen wiper
–Seat adjustment
–Mirror adjustment
–Central locking

Setup main menu
–Radio setup
❍Settings
–Menu language
–Units of measure
– Time setting
–System sounds
– Voice operation
– Factory setting
❍Sound
– Balance
–Fader
–Treble
–Base
–Subwoofer
–DSP
– Standard
– BOSE
– Volume settings
– Navigation
instructions
– Traffic
programme
broadcast
– Voice dialogue
system
– Telephone volume
❍Display
–Brightness
