The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
SCAN, press the SCAN button or
touch the SCAN icon on the audio
display (models with navigation
system). The system plays each
channel in numerical order f or a f ew
seconds, then selects the next
channel. When you hear a channel
you want to continue listening to,
press the button or touch the icon
again. To store a channel:
To store a channel:
Pick the preset button (icon) you
want f or that channel. Press and
hold the button (icon) until you
hear a beep.
Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, simply
press and release the proper preset
button (icon) to tune to it.
The presets will be lost if your
vehicle’s battery goes dead, is
disconnected, or the radio f use is
removed.
Youcanstoreupto12
preset channels using the six preset
buttons or preset icons (on models
with navigation system). Each button
stores one channel f rom the XM1
band and one channel f rom the XM2
band.
Press the XM button. Either XM1
or XM2 will show in the display. Press the XM button again. The
other XM band will show. Store
the next six channels using steps 2
and 3.
Use the TUNE knob, or the
CATEGORY or SCAN buttons to
tune to a desired channel.
In the category mode, only channels
within that category can be selected.
In the channel mode, all channels
can be selected. 3.
4.
5.
1.
2.
Playing t he XMSatellite Radio (U.S. Models)
SCAN Preset
120

Playing a CD
Features
123

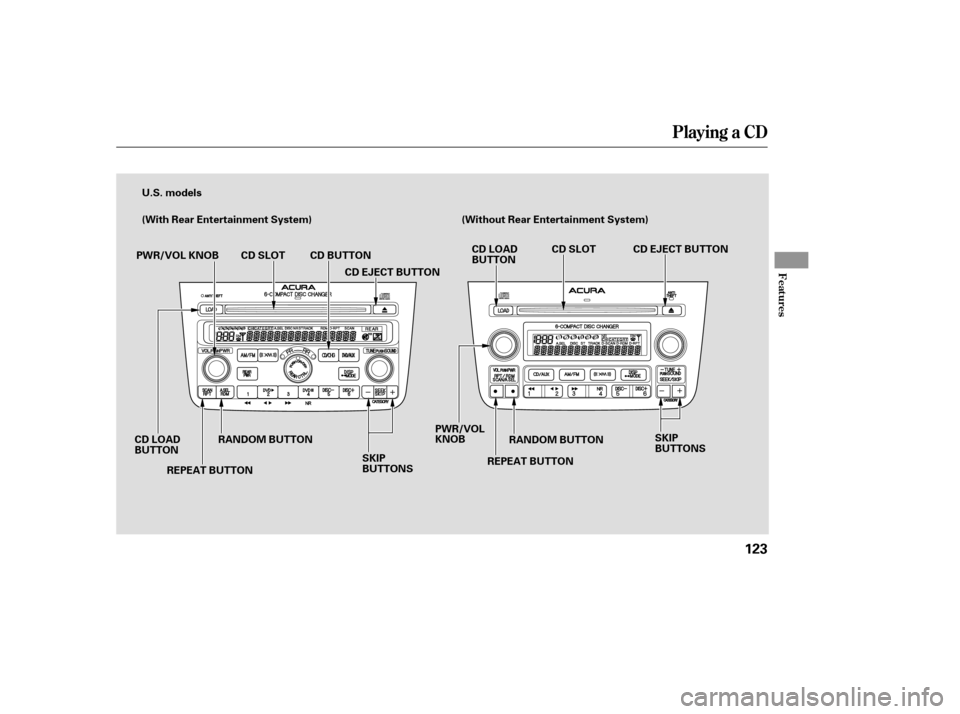

U.S. models
(With Rear Entertainment System)
PWR/VOL KNOB CD BUTTON
CD SLOT
REPEAT BUTTON RANDOM BUTTON
CD LOAD
BUTTON CD LOAD
BUTTON
CD EJECT BUTTON
CD SLOT
PWR/VOL
KNOB RANDOM BUTTON
REPEAT BUTTON
SKIP
BUTTONS SKIP
BUTTONS
CD EJECT BUTTON
(Without Rear Entertainment System)

Playing a CD
124
Canadian models
(With Rear Entertainment System)(Without Rear Entertainment System)
CD LOAD BUTTON CD SLOT
RANDOM BUTTON
REPEAT BUTTON
PWR/VOL
KNOB
CD BUTTONCD EJECT BUTTON
CD LOAD BUTTON
REPEAT BUTTON
PWR/VOL
KNOB
SKIP
BUTTONS
CD BUTTON CD EJECT BUTTON
CD SLOT
SKIP
BUTTONS RANDOM BUTTON

Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code with
the Preset buttons. Because there
are hundreds of number
combinations possible f rom the f ive
digits, making the system work
without knowing the exact code is
nearly impossible.
Youshouldhavereceivedacardthat
lists your audio system code number
and serial number. It is best to store
this card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.If your vehicle’s battery is
disconnected or goes dead, the audio
system will disable itself . If this
happens, you will see ‘‘Code’’ in the
frequencydisplaythenexttimeyou
turn on the system. Use the Preset
buttons to enter the five-digit code.
The code is located on the radio code
card included in your Owner’s
Manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for
one hour bef ore trying again.If thecodecardislost,anAcura
dealer can access your code with
your radio’s serial number. To
access the serial number, turn the
radio on. It must display ‘‘COdE’’,
then turn the radio off. Push the
preset 1, preset 6, and power buttons
at the same time, then quickly
release.
You will have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings were lost when the
power was disconnected.
If youshouldhappentolosethecard,
you must obtain the code number
f rom your dealer. To do this, you will
need the system’s serial number.
Radio T hef t Prot ect ion
Features
131

Rear Entertainment System
132
(U.S. models)(Canadian models)
REAR PWR
BUTTON REAR
CONTROL
OFF ICON
REPEAT
BUTTON RANDOM
BUTTON PAUSE
BUTTON
PLAY
BUTTON
SEEK/
SKIP BAR
REAR SPEAKER
OFF ICON
REAR PWR
BUTTONREAR SPEAKER
OFF ICON
REPEAT
BUTTON PLAY
BUTTONPAUSE
BUTTONSEEK/SKIP
BAR
RANDOM
BUTTON REAR
CONTROL
OFF ICON
REAR CTRL
SELECTOR
KNOB REAR CTRL
SELECTOR
KNOB

Î
Î
The DVD player in your Rear
Entertainment System can play DVD
video discs and CDs. It features
Dolby noise reduction.
To play the radio or XM radio, the
buttons f or the f ront entertainment
system have the same f unctions.
If aCDisloadedinthemainCD
changer, select CD/CHG. If the CD
is loaded in the lower player, select
DVD/AUX. Open the overhead screen by
pushingonthebutton.Thescreen
will swing down part-way. Pivot the
screen the rest of the way (to detent
one or two). If you pivot the screen
too f ar f orward, past detent three,
the display will turn of f . Pivot the
screen back to the detent to turn the
display back on. To close the screen,
pivot it up until it latches.
To operate the rear entertainment
system from the front panel, turn the
REAR CTRL knob clockwise. The
amber RR LED comes on to show
that the control panel is enabled.
Dolby noise reduction manuf actured under
license from Dolby Laboratories Licensing Corpo-
ration. ‘‘DOLBY’’ and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
To Select Rear Entertainment
f rom the Front Control Panel Operating the DVD Player f rom
the Front Control Panel
Rear Entertainment System
134
REAR CONTROL PANEL
BUTTON
OVERHEAD SCREEN

Use these buttons to select the
entertainment source (radio, XM
radio, CD changer, or DVD player/
Auxiliary device). The selected
source will be shown in the display.
Make sure the rear control operation
has not been disabled with the REAR
CTRL knob on the f ront panel.
Use the and buttons to
select from the stations on the radio
preset buttons. Pressing the orbutton will cause the system to
search up or down the band f or a
station with a strong signal. You will
seeSEEKinthedisplay. When the display is open,
use the manual controls to select
icons f rom the menu. Using the Rear Control Panel
To Play the Radio f rom the Rear
Control Panel
Rear Entertainment System
136
NOTE:
SOURCE SELECTION BUTTONS
SEEK/SKIP
BUTTON
CH/DISK
BUTTON
MENU BUTTON
SEEK/SKIP
BUTTON
PLAY/PAUSE/PROG BUTTON ENTER BUTTON CH/DISK BUTTON REAR CONTROLS
OFF INDICATOR

µ
µ µ
Û
Ý
Û Ý
Pressthe buttontoskiptothe
beginning of the next track. Press
the button to return to the
beginning of the current track. If the
changer is selected, use the and buttons to change discs. The video screen is f or use by rear
seat passengers only. The driver and
f ront seat passenger should not try
to view the screen while driving.
Press
this button when you want to pause
the DVD. Press this button again to
go back to PLAY.
Press the
button to skip to the beginning
of the next chapter. Press the buttontoskipbacktothe
beginning of the current chapter. To select the menu
on the DVD, press the MENU
button. Use the , , ,
and buttons to move to the
desired menu selection, then press
the ENT button to enter your
selection.
If aCDisloadedinthemainCD
changer, select it by pressing the
CD/CHG button. If the CD is loaded
in the DVD player, press the DVD/
AUX button. To Play a CD f rom the Rear
Control Panel
To Play a DVD f rom the Rear
Control Panel
PLAY/PAUSE/PROG
SEEK /SK IPMENU/ENT
Rear Entertainment System
