The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes bef ore you
f eel warm air coming f rom the
system.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page
). If it moves near the red zone,
turn of f the A/C until the gauge
reads normally.
Turn on the A/C by pressing the
A/CbuttonortouchingtheA/C
icon on the models with navigation
system. A/C ON will be displayed
on the screen.
Make sure the temperature is set
to maximum heat.
Select .
If the outside air is humid, select
Recirculation mode. If the outside
air is dry, select Fresh Air mode.
Set the f an to the desired speed.
Select and Fresh Air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control buttons.
Press the A/C-INFO button to
show the inf ormation screen.
Select the desired mode by
touching the MODE icon, and set
the f an to the desired speed by
touching the or icon.
Adjustthewarmthwiththe
temperature control buttons ( or
).
Air f lows f rom the def roster
vents at the base of the windshield.
When you select , the system
automatically switches to Fresh Air
mode and turns on the A/C.
The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side
panels.
Set the temperature to maximum.
Make sure the A/C is of f .
Select and Fresh Air mode.
Set the f an to the desired speed. 1.
2.
3.
1.
2.
3.
4. 1.
2.
3.
4.
5.
1.
2.
3. 69
Vehicles without Navigation System
Vehicles without Navigation System
Vents, Heating, and A/C
Using the A /C
Using the Heater
Ventilation
108

The Automatic Climate Control
system can adjust the f an speed and
airflow levels to maintain the interior
temperature you select.Press the AUTO button.
Set the desired temperature with
the temperature control buttons.
You will see FULL AUTO in the
system’s display.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature. In FULL AUTO
the rear A/C control panel cannot be
used. In cold weather, the f an will not
come on automatically until the
heater starts to develop warm air.
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain
automatically controlled.
Manually selecting a f unction causes
thewordFULLinthedisplaytogo
out.
Press the OFF button. However, a
lack of airf low can cause the
windowstofogup.Youshouldkeep
the fan on at all times so stale air and
moisture do not build up in the
interior and cause fogging.
If you set the temperature to its
lower or its upper limit, the system
runs at f ull cooling or heating only. It
does not regulate the interior
temperature.
Select . The system
automatically switches to Fresh
Air mode and turns on the A/C.
The A/C indicator will not come
on in U.S. vehicles.
Select .
Set the f an and temperature
controls to maximum level.
To clear the windshield f aster, you
can close the dashboard corner vents
by rotating the wheel below each
vent. This sends more warm air to
the windshield def roster vents. Once
the windshield is clear, select Fresh
Air mode to avoid f ogging the
windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving. 1.
2.
1.
2.
3.
Vents, Heating, and A/C
T o Remove Exterior Frost or Ice
From the Windows
Manual Operation
To Turn Everything Of f
Using A utomatic Climate Control
110

Press the RR A/C MANUAL button
to enable the rear A/C control panel.
The indicator in the button will come
on. A passenger in the second row
can then use the temperature control
dial, f an speed dial, and mode
buttons to adjust the temperature
and airflow to their preference. This
is limited by the system’s minimum
and maximum temperature.Individual rear control
settings are shut off when the
ignition is turned off and return to
the automatic settings. They must be
reset when the ignition is turned on
again.
Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Rear Climate Control, Climate Control Sensors
Using the Rear A /C Unit Climate Control Sensors
Features
111
NOTE:
TEMPERATURE SENSOR
TEMPERATURE CONTROL DIAL
MODE BUTTONS
FAN SPEED CONTROL DIAL

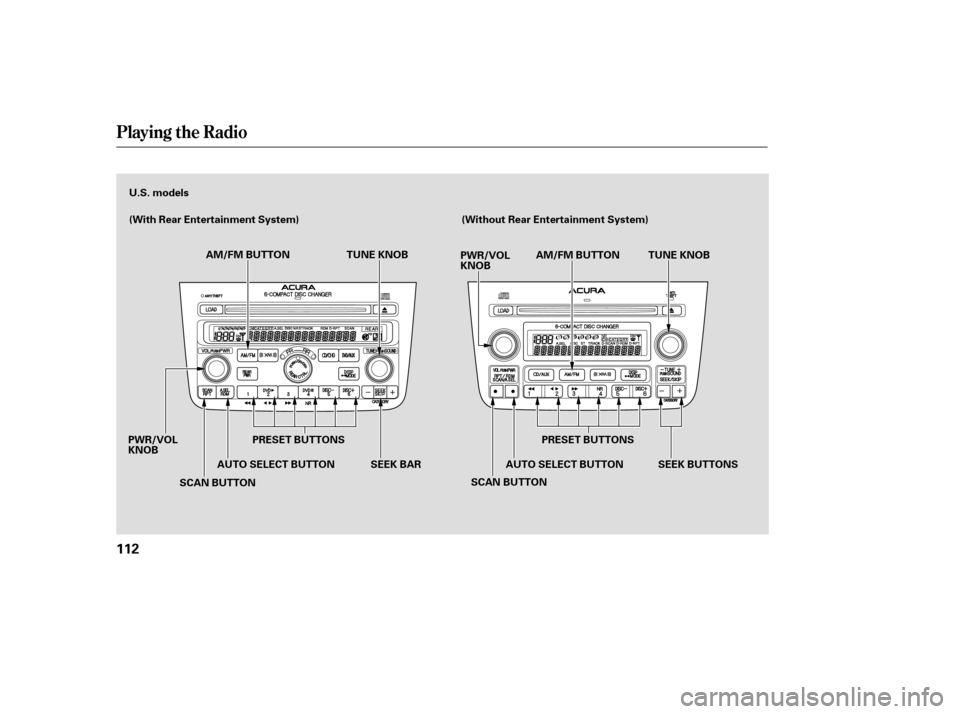

Playing the Radio
112
U.S. models
(With Rear Entertainment System)(Without Rear Entertainment System)
AM/FM BUTTON TUNE KNOB
PRESET BUTTONS
SCAN BUTTON AUTO SELECT BUTTON
PWR/VOL
KNOB TUNE KNOB
PWR/VOL
KNOB AM/FM BUTTON
SEEK BAR SEEK BUTTONS
PRESET BUTTONS
SCAN BUTTON AUTO SELECT BUTTON

Playing the Radio
Features
113
Canadian models(With Rear Entertainment System) (Without Rear Entertainment System)
SCAN BUTTON SEEK BARPWR/VOL
KNOB
AM
BUTTONFM
BUTTON
TUNE KNOB
PRESET BUTTONS
SCAN
BUTTON
PWR/VOL
KNOB
AM
BUTTONFM
BUTTON TUNE KNOB
AUTO SELECT BUTTON PRESET BUTTONS
AUTO SELECT BUTTONSEEK
BUTTONS

µµ
´µ µ
µ
The ignition switch must be in the
ACCESSORY (I) or ON (II) position.
Turn the system on by pushing the
PWR/VOL knob. Adjust the volume
by turning the same knob.
The band and f requency that the
radio was last turned to is displayed.
To change bands, press the AM or
FM button. On the FM band, ST will
be displayed if the station is
broadcasting in stereo. Stereo
reproduction in AM is not available.
Use the TUNE knob to
tune the radio to a desired f requency.
Turn the knob right to tune to a
higher f requency, or lef t to tune to a
lower f requency. The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button, then
release it. Each preset button can
store one f requency on AM, and two
f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
two f requencies with each preset
button.
UsetheTUNE,SEEK,orSCAN
function to tune the radio to a
desired station.
Pick a preset button, and hold it
until you hear a beep.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM.
You can use these five methods to
f ind radio stations on a selected
band: the
preset buttons, and .The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see SCAN in
the display. The system will scan f or
a station with a strong signal. When
it f inds one, it will stop and play that
station f or about 10 seconds.
If you do nothing, the system will
then scan f or the next strong station
andplayitfor10seconds.Whenit
plays a station that you want to listen
to, press the SCAN button again. 1.
2.
3.
4.
To Play the Radio
TUNE SEEK
Preset
To Select a Station TUNE,SEEK,SCAN, AUTO SELECT SCAN
Playing the Radio
114

µµ
µ µ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind stations, then
store them in the preset buttons as
described previously. press the
A. SEL button. This restores the
presets you originally set.
Adjust the Balance,
or side-to-side strength of the sound.
Adjust the Fader, or the
f ront-to-back strength of the sound.
AdjusttheTrebleinthe
sound.
Adjust the Bass in the
sound. On models with navigation system,
pushandholdtheTUNEbuttonfor
5 seconds to display inf ormation on
the navigation screen. Press the TUNE knob repeatedly to
display Bass, Treble, Balance, and
Fader settings. Turn the TUNE knob
to adjust the setting. The indicators
on the display will show you the
adjustable range. The system will
return to the audio display in about 5
seconds.To turn of f Auto Select,AUTO SELECT
Adjusting the Sound
BAL ANCE
FADER
TREBLE
BASS
Playing the Radio
Features
115

Playing t he XMSatellite Radio (U.S. Models)
118
(With Rear Entertainment System)(Without Rear Entertainment System)
XM RADIO BUTTON TUNE KNOB
PWR/VOL KNOB
DISP/MODE
BUTTONCATEGORY
BUTTONS TUNE KNOB
PWR/VOL KNOB XM RADIO BUTTON
DISP/MODE
BUTTONCATEGORY
BUTTONS
PRESET BUTTONS
PRESET BUTTONS
SCAN BUTTON
SCAN BUTTON
