2005.5 Peugeot 407 Owner's Manual

12 -
01-07-2005
13
-
01-07-2005

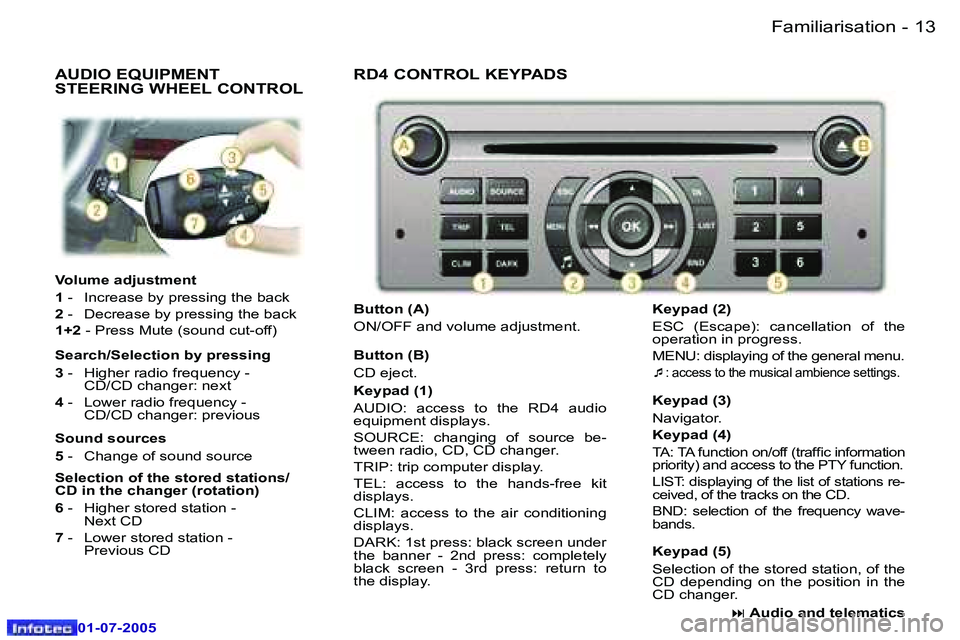

AUDIO EQUIPMENT
STEERING WHEEL CONTROL
Volume adjustment
1 - Increase by pressing the back
2 - Decrease by pressing the back
1+2 - Press Mute (sound cut-off) Button (A)
ON/OFF and volume adjustment.
Keypad (2)
ESC (Escape): cancellation of the
operation in progress.
MENU: displaying of the general menu.
¯
: access to the musical ambience settings.
: Audio and telematics
RD4 CONTROL KEYPADS
Search/Selection by pressing
3 - Higher radio frequency -
CD/CD changer: next
4 - Lower radio frequency -
CD/CD changer: previous
Sound sources
5 - Change of sound source
Selection of the stored stations/
CD in the changer (rotation)
6 - Higher stored station -
Next CD
7 - Lower stored station -
Previous CD Button (B)
CD eject.
Keypad (1)
AUDIO: access to the RD4 audio
equipment displays.
SOURCE: changing of source be-
tween radio, CD, CD changer.
TRIP: trip computer display.
TEL: access to the hands-free kit
displays.
CLIM: access to the air conditioning
displays.
DARK: 1st press: black screen under
the banner - 2nd press: completely
black screen - 3rd press: return to
the display.
Keypad (3)
Navigator.
Keypad (4)
TA: TA function on/off (trafic information
priority) and access to the PTY function.
LIST: displaying of the list of stations re-
ceived, of the tracks on the CD.
BND: selection of the frequency wave-
bands.
Keypad (5)
Selection of the stored station, of the
CD depending on the position in the
CD changer.
Familiarisation

10 -
01-07-2005
11
-
01-07-2005

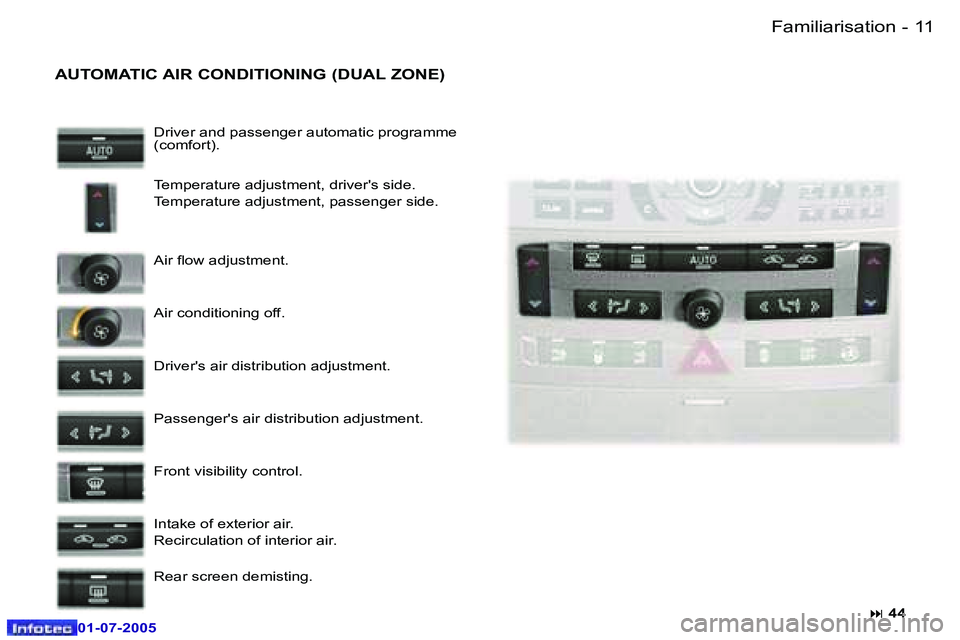

AUTOMATIC AIR CONDITIONING (DUAL ZONE)
Driver and passenger automatic programme
(comfort).
Temperature adjustment, driver's side.
Temperature adjustment, passenger side.
Air low adjustment.
Air conditioning off.
Driver's air distribution adjustment.
Passenger's air distribution adjustment.
Front visibility control.
Intake of exterior air.
Recirculation of interior air.
: 44
Rear screen demisting.
Familiarisation

14 -
01-07-2005
15
-
01-07-2005

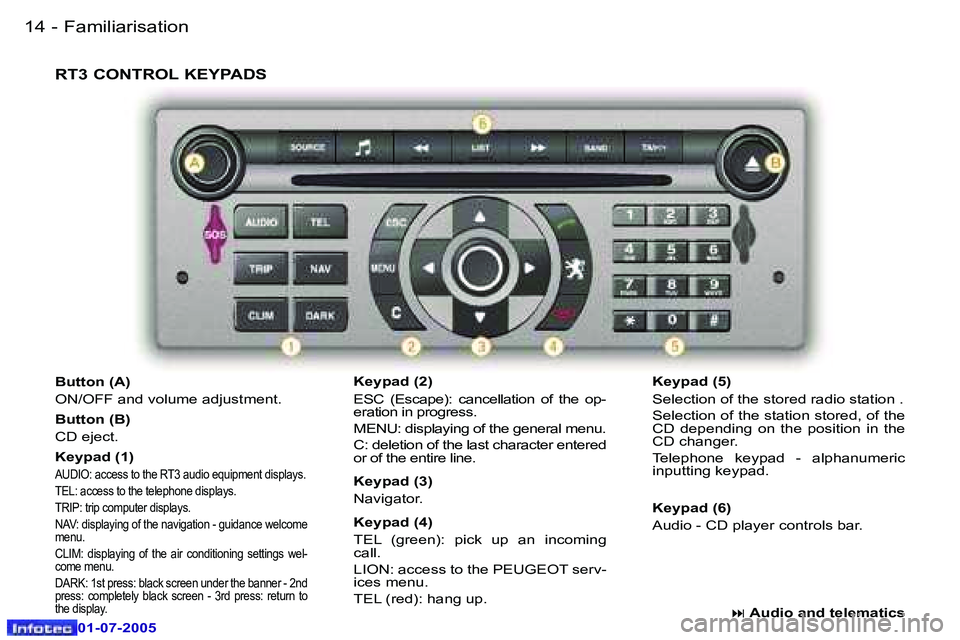

RT3 CONTROL KEYPADS
Keypad (2)
ESC (Escape): cancellation of the op-
eration in progress.
MENU: displaying of the general menu.
C: deletion of the last character entered
or of the entire line.
Button (A)
ON/OFF and volume adjustment.
Keypad (5)
Selection of the stored radio station .
Selection of the station stored, of the
CD depending on the position in the
CD changer.
Telephone keypad - alphanumeric
inputting keypad.
: Audio and telematics
Button (B)
CD eject.
Keypad (1)
AUDIO: access to the RT3 audio equipment displays.
TEL: access to the telephone displays.
TRIP: trip computer displays.
NAV: displaying of the navigation - guidance welcom
e
menu.
CLIM: displaying of the air conditioning settings w el-
come menu.
DARK: 1st press: black screen under the banner - 2n d
press: completely black screen - 3rd press: return to
the display.Keypad (3)
Navigator.
Keypad (4)
TEL (green): pick up an incoming
call.
LION: access to the PEUGEOT serv-
ices menu.
TEL (red): hang up. Keypad (6)
Audio - CD player controls bar.
Familiarisation

14 -
01-07-2005
15
-
01-07-2005

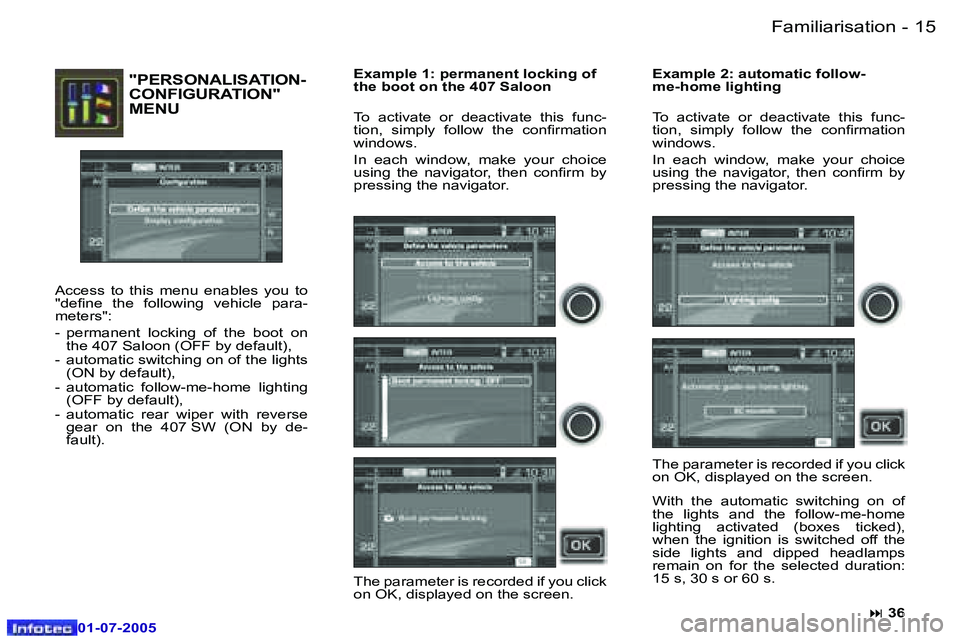

"PERSONALISATION-
CONFIGURATION"
MENU
Access to this menu enables you to
"deine the following vehicle para-
meters":
- permanent locking of the boot on
the 407 Saloon (OFF by default),
- automatic switching on of the lights (ON by default),
- automatic follow-me-home lighting (OFF by default),
- automatic rear wiper with reverse gear on the 407 SW (ON by de-
fault). Example 1: permanent locking of
the boot on the 407 Saloon
To activate or deactivate this func-
tion, simply follow the conirmation
windows.
In each window, make your choice
using the navigator, then conirm by
pressing the navigator.
Example 2: automatic follow-
me-home lighting
With the automatic switching on of
the lights and the follow-me-home
lighting activated (boxes ticked),
when the ignition is switched off the
side lights and dipped headlamps
remain on for the selected duration:
15 s, 30 s or 60 s.
: 36
The parameter is recorded if you click
on OK, displayed on the screen. To activate or deactivate this func-
tion, simply follow the conirmation
windows.
In each window, make your choice
using the navigator, then conirm by
pressing the navigator.
The parameter is recorded if you click
on OK, displayed on the screen.
Familiarisation

Instruments and controls16 -
01-07-2005
17Instruments and controls-
01-07-2005
1 - Coolant temperature
indicator dial.
2 - Lights on indicator lights:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3 - Rev counter dial.
4 - Warning lights:
stop warning.
handbrake applied or brake luid level or electronic brake force
distribution fault.
engine oil pressure.
battery charge.
seat belts not fastened in the front.
punctured tyre.
high coolant temperature.

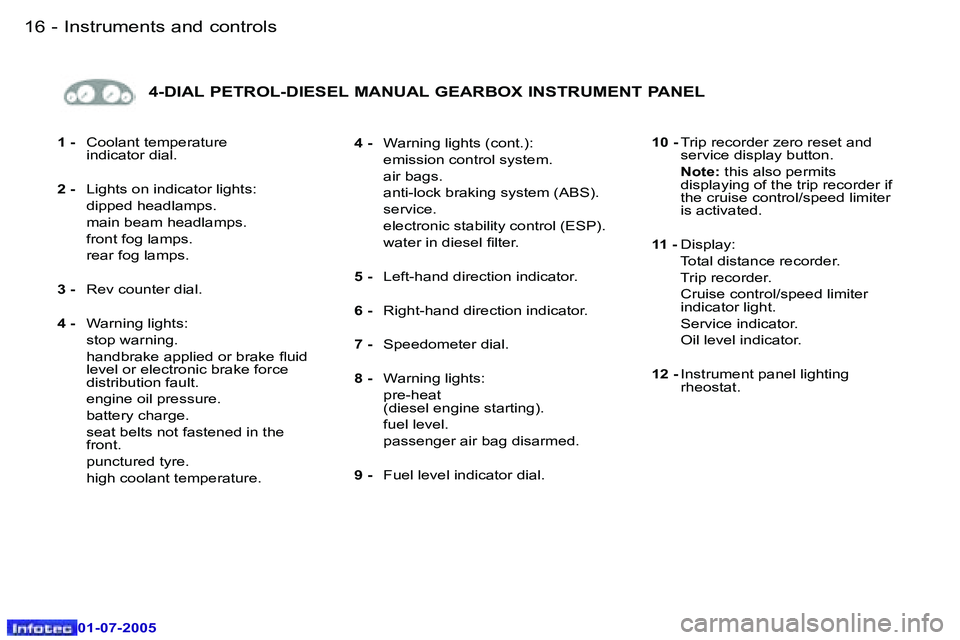

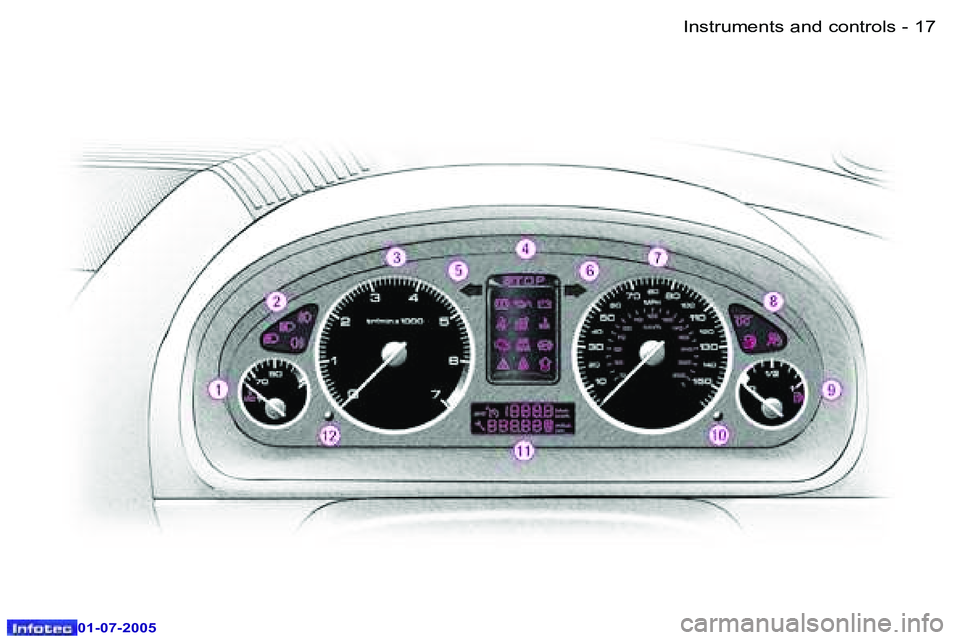

4-DIAL PETROL-DIESEL MANUAL GEARBOX INSTRUMENT PANEL
10 - Trip recorder zero reset and
service display button.
Note: this also permits
displaying of the trip recorder if
the cruise control/speed limiter
is activated.
11 - Display:
Total distance recorder.
Trip recorder.
Cruise control/speed limiter indicator light.
Service indicator.
Oil level indicator.
12 - Instrument panel lighting
rheostat.
4 -
Warning lights (cont.):
emission control system.
air bags.
anti-lock braking system (ABS).
service.
electronic stability control (ESP).
water in diesel ilter.
5 - Left-hand direction indicator.
6 - Right-hand direction indicator.
7 - Speedometer dial.
8 - Warning lights:
pre-heat (diesel engine starting).
fuel level.
passenger air bag disarmed.
9 - Fuel level indicator dial.

Instruments and controls16 -
01-07-2005
17Instruments and controls-
01-07-2005

Instruments and controls18 -
01-07-2005
19Instruments and controls-
01-07-2005
1 - Coolant temperature
indicator dial.
2 - Lights on indicators:
dipped headlamps.
main beam headlamps.
front fog lamps.
rear fog lamps.
3 - Rev counter dial.
4 - Warning lights:
seat belts not fastened in the front.
fuel level.
left direction indicator.
5 - Fuel level indicator dial.

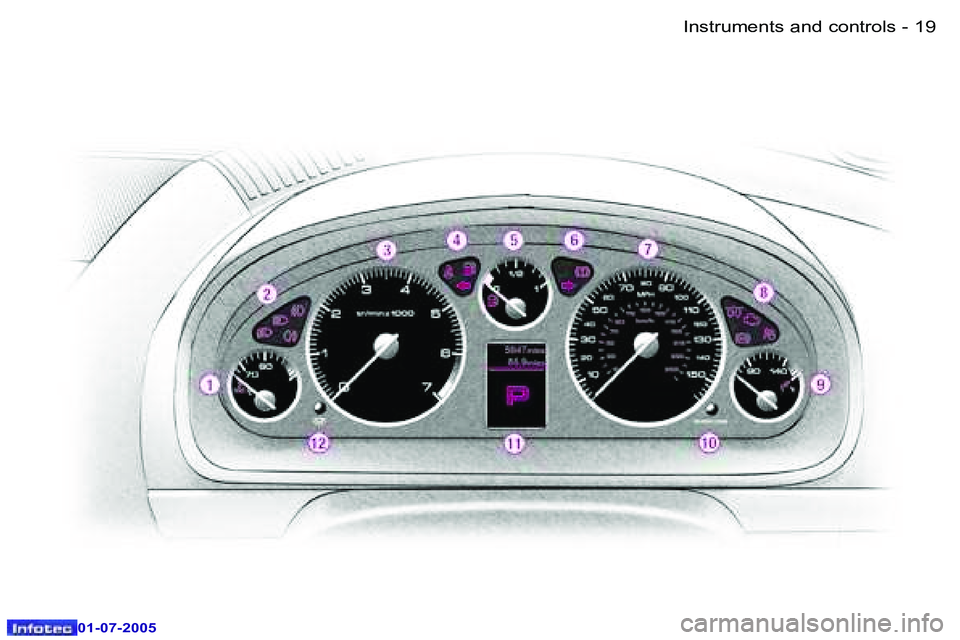

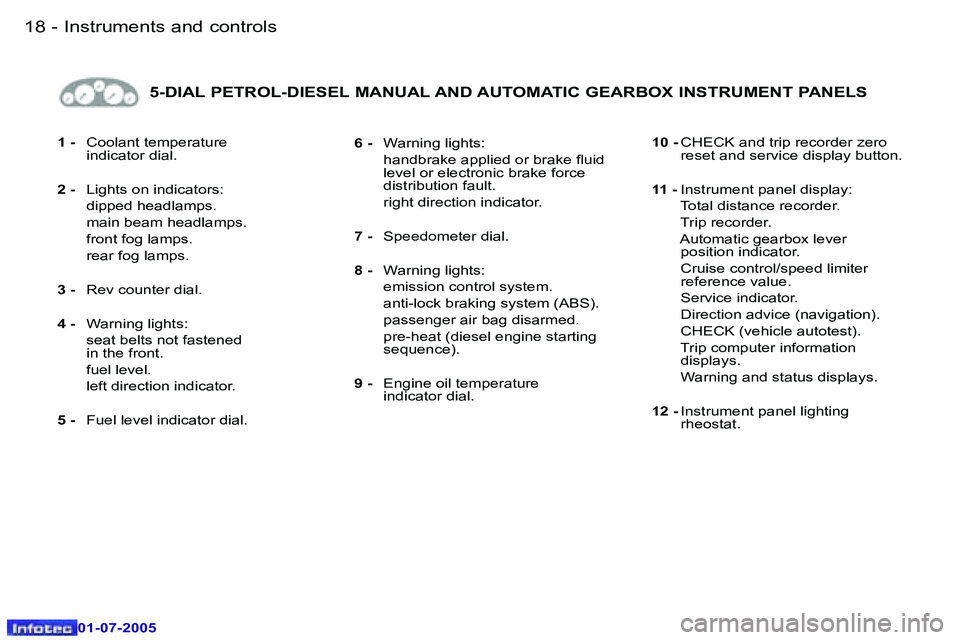

5-DIAL PETROL-DIESEL MANUAL AND AUTOMATIC GEARBOX INSTRUMENT PANEL S
10 - CHECK and trip recorder zero
reset and service display button.
11 - Instrument panel display:
Total distance recorder.
Trip recorder.
Automatic gearbox lever position indicator.
Cruise control/speed limiter reference value.
Service indicator.
Direction advice (navigation).
CHECK (vehicle autotest).
Trip computer information displays.
Warning and status displays.
12 - Instrument panel lighting
rheostat.
6 -
Warning lights:
handbrake applied or brake luid level or electronic brake force
distribution fault.
right direction indicator.
7 - Speedometer dial.
8 - Warning lights:
emission control system.
anti-lock braking system (ABS).
passenger air bag disarmed.
pre-heat (diesel engine starting sequence).
9 - Engine oil temperature
indicator dial.

Instruments and controls18 -
01-07-2005
19Instruments and controls-
01-07-2005
