2005.5 Peugeot 407 Owner's Manual

Visibility82 -
01-07-2005
83Visibility-
01-07-2005

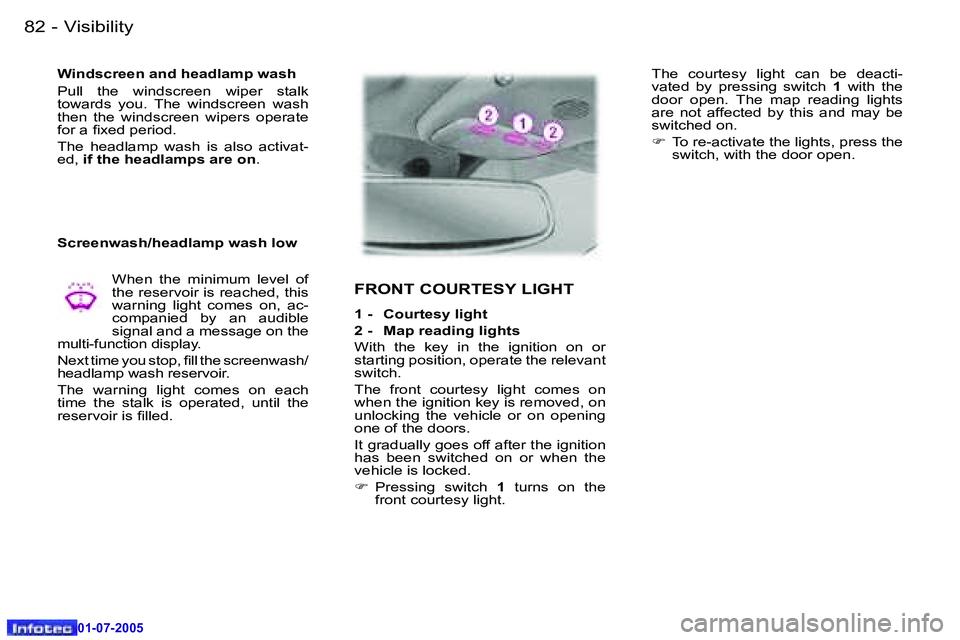

Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a ixed period.
The headlamp wash is also activat-
ed, if the headlamps are on .
When the minimum level of
the reservoir is reached, this
warning light comes on, ac-
companied by an audible
signal and a message on the
multi-function display.
Next time you stop, ill the screenwash/
headlamp wash reservoir.
The warning light comes on each
time the stalk is operated, until the
reservoir is illed.
FRONT COURTESY LIGHT
1 - Courtesy light
2 - Map reading lights
With the key in the ignition on or
starting position, operate the relevant
switch.
The front courtesy light comes on
when the ignition key is removed, on
unlocking the vehicle or on opening
one of the doors.
It gradually goes off after the ignition
has been switched on or when the
vehicle is locked.
F Pressing switch 1 turns on the
front courtesy light. The courtesy light can be deacti-
vated by pressing switch
1 with the
door open. The map reading lights
are not affected by this and may be
switched on.
F To re-activate the lights, press the
switch, with the door open.
Screenwash/headlamp wash low

Visibility82 -
01-07-2005
83Visibility-
01-07-2005

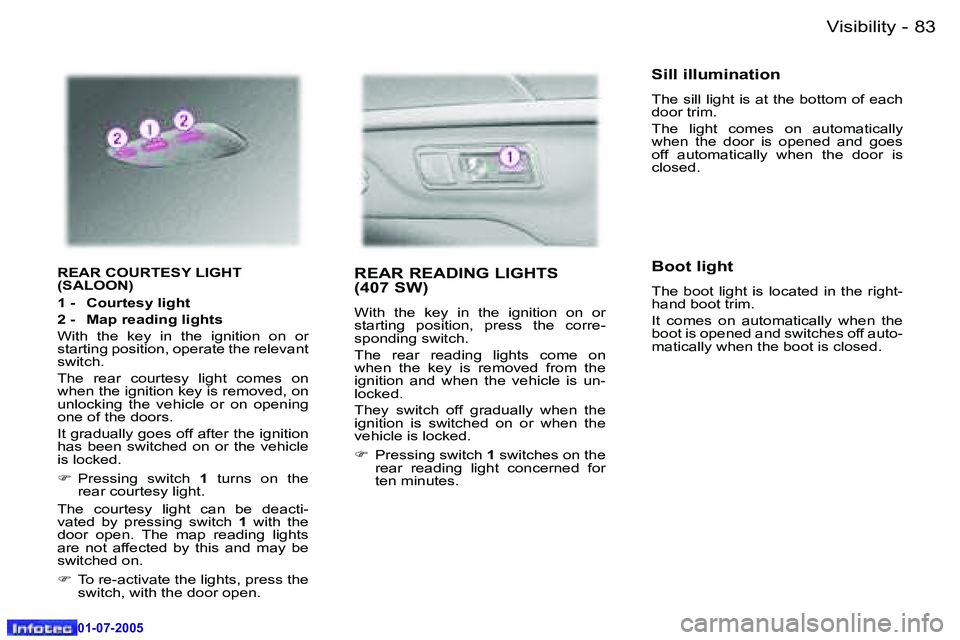

REAR COURTESY LIGHT
(SALOON)
1 - Courtesy light
2 - Map reading lights
With the key in the ignition on or
starting position, operate the relevant
switch.
The rear courtesy light comes on
when the ignition key is removed, on
unlocking the vehicle or on opening
one of the doors.
It gradually goes off after the ignition
has been switched on or the vehicle
is locked.
F Pressing switch 1 turns on the
rear courtesy light.
The courtesy light can be deacti-
vated by pressing switch 1 with the
door open. The map reading lights
are not affected by this and may be
switched on.
F To re-activate the lights, press the
switch, with the door open. REAR READING LIGHTS
(407 SW)
With the key in the ignition on or
starting position, press the corre-
sponding switch.
The rear reading lights come on
when the key is removed from the
ignition and when the vehicle is un-
locked.
They switch off gradually when the
ignition is switched on or when the
vehicle is locked.
F Pressing switch 1 switches on the
rear reading light concerned for
ten minutes.
Sill illumination
The sill light is at the bottom of each
door trim.
The light comes on automatically
when the door is opened and goes
off automatically when the door is
closed.
Boot light
The boot light is located in the right-
hand boot trim.
It comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.

Layout84 -
01-07-2005
85Layout-
01-07-2005

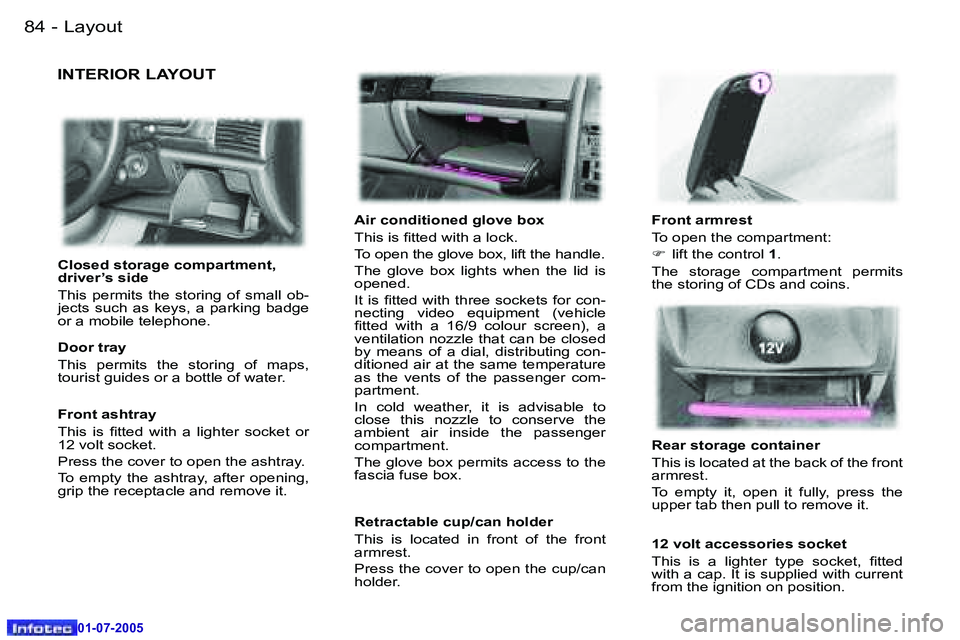

INTERIOR LAYOUT
Air conditioned glove box
This is itted with a lock.
To open the glove box, lift the handle.
The glove box lights when the lid is
opened.
It is itted with three sockets for con-
necting video equipment (vehicle
itted with a 16/9 colour screen), a
ventilation nozzle that can be closed
by means of a dial, distributing con-
ditioned air at the same temperature
as the vents of the passenger com-
partment.
In cold weather, it is advisable to
close this nozzle to conserve the
ambient air inside the passenger
compartment.
The glove box permits access to the
fascia fuse box.Front armrest
To open the compartment:
F
lift the control 1.
The storage compartment permits
the storing of CDs and coins.
Rear storage container
This is located at the back of the front
armrest.
To empty it, open it fully, press the
upper tab then pull to remove it.
Closed storage compartment,
driver’s side
This permits the storing of small ob-
jects such as keys, a parking badge
or a mobile telephone.
Door tray
This permits the storing of maps,
tourist guides or a bottle of water.
Front ashtray
This is itted with a lighter socket or
12 volt socket.
Press the cover to open the ashtray.
To empty the ashtray, after opening,
grip the receptacle and remove it.
Retractable cup/can holder
This is located in front of the front
armrest.
Press the cover to open the cup/can
holder. 12 volt accessories socket
This is a lighter type socket, itted
with a cap. It is supplied with current
from the ignition on position.

Layout84 -
01-07-2005
85Layout-
01-07-2005

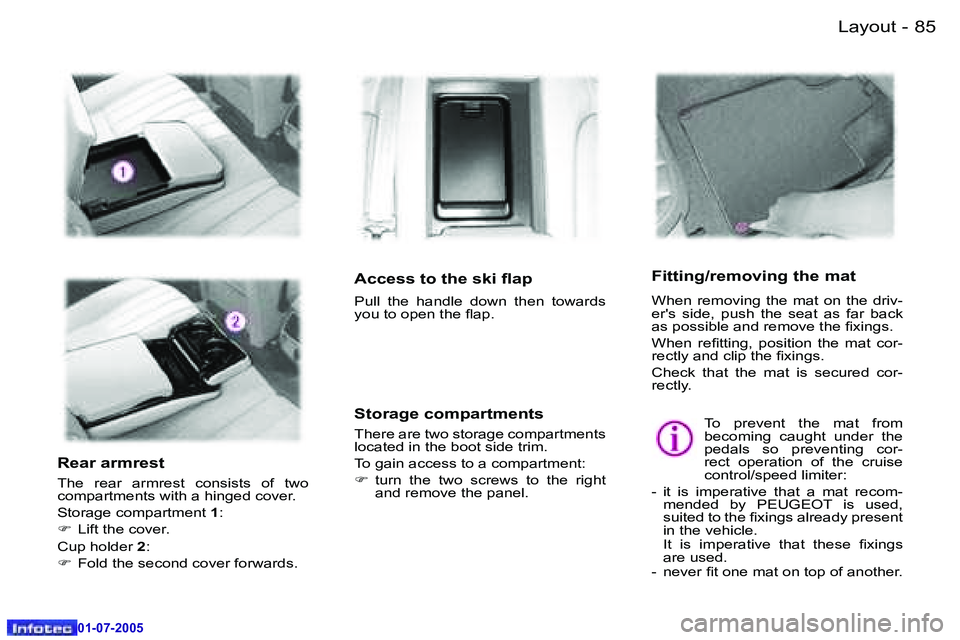

Rear armrest
The rear armrest consists of two
compartments with a hinged cover.
Storage compartment 1:
F Lift the cover.
Cup holder 2:
F Fold the second cover forwards.
Fitting/removing the mat
When removing the mat on the driv-
er's side, push the seat as far back
as possible and remove the ixings.
When reitting, position the mat cor-
rectly and clip the ixings.
Check that the mat is secured cor-
rectly.
Storage compartments
There are two storage compartments
located in the boot side trim.
To gain access to a compartment:
F turn the two screws to the right
and remove the panel.
Access to the ski lap
Pull the handle down then towards
you to open the lap.
To prevent the mat from
becoming caught under the
pedals so preventing cor-
rect operation of the cruise
control/speed limiter:
- it is imperative that a mat recom- mended by PEUGEOT is used,
suited to the ixings already present
in the vehicle.
It is imperative that these ixings are used.
- never it one mat on top of another.

Layout86 -
01-07-2005
87Layout-
01-07-2005

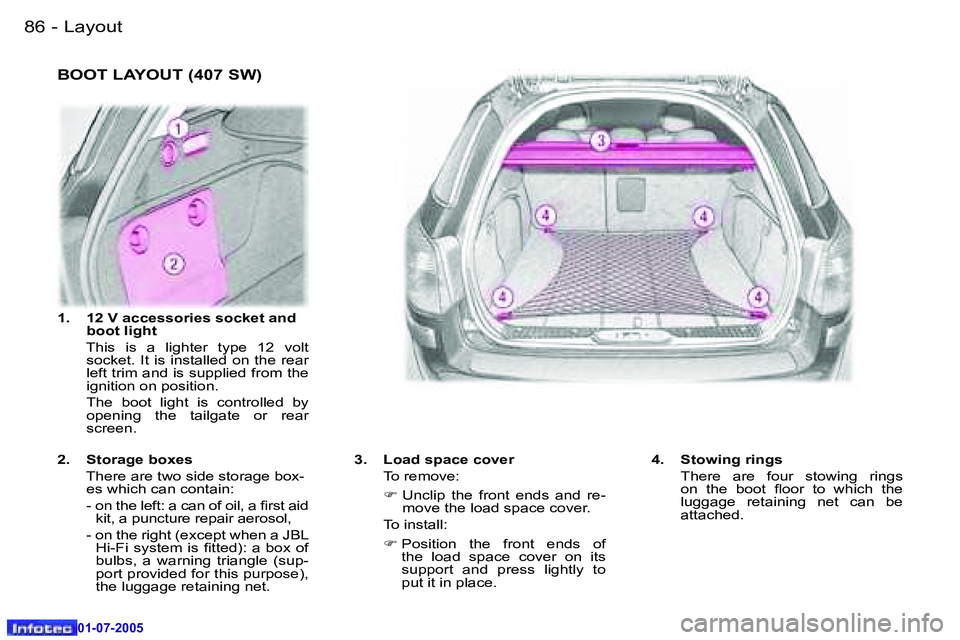

BOOT LAYOUT (407 SW)
3. Load space cover
To remove:
F Unclip the front ends and re-
move the load space cover.
To install:
F
Position the front ends of
the load space cover on its
support and press lightly to
put it in place.
1. 12 V accessories socket and
boot light
This is a lighter type 12 volt socket. It is installed on the rear
left trim and is supplied from the
ignition on position.
The boot light is controlled by
opening the tailgate or rear
screen.
4. Stowing rings
There are four stowing rings
on the boot loor to which the
luggage retaining net can be
attached.
2. Storage boxes
There are two side storage box-
es which can contain:
- on the left: a can of oil, a irst aid kit, a puncture repair aerosol,
- on the right (except when a JBL Hi-Fi system is itted): a box of
bulbs, a warning triangle (sup-
port provided for this purpose),
the luggage retaining net.

Layout86 -
01-07-2005
87Layout-
01-07-2005

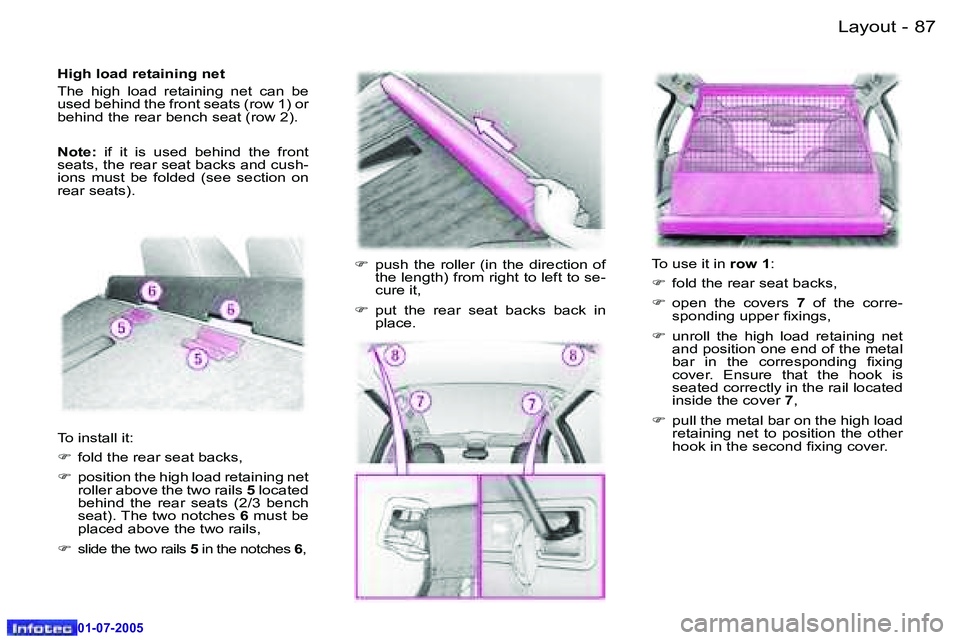

High load retaining net
The high load retaining net can be
used behind the front seats (row 1) or
behind the rear bench seat (row 2).
Note: if it is used behind the front
seats, the rear seat backs and cush-
ions must be folded (see section on
rear seats).
To install it:
F fold the rear seat backs,
F position the high load retaining net
roller above the two rails 5 located
behind the rear seats (2/3 bench
seat). The two notches 6 must be
placed above the two rails,
F slide the two rails 5 in the notches 6, F
push the roller (in the direction of
the length) from right to left to se-
cure it,
F put the rear seat backs back in
place. To use it in
row 1:
F fold the rear seat backs,
F open the covers 7 of the corre-
sponding upper ixings,
F unroll the high load retaining net
and position one end of the metal
bar in the corresponding ixing
cover. Ensure that the hook is
seated correctly in the rail located
inside the cover 7,
F pull the metal bar on the high load
retaining net to position the other
hook in the second ixing cover.

Layout88 -
01-07-2005

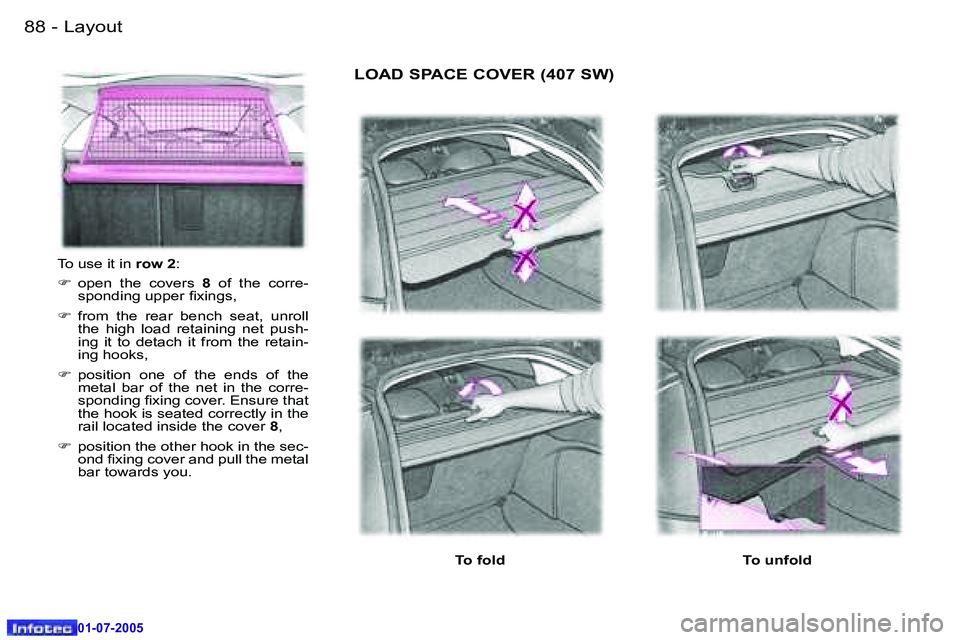

To use it in row 2:
F open the covers 8 of the corre-
sponding upper ixings,
F from the rear bench seat, unroll
the high load retaining net push-
ing it to detach it from the retain-
ing hooks,
F position one of the ends of the
metal bar of the net in the corre-
sponding ixing cover. Ensure that
the hook is seated correctly in the
rail located inside the cover 8,
F position the other hook in the sec-
ond ixing cover and pull the metal
bar towards you.
To unfold
To fold
LOAD SPACE COVER (407 SW)
