2005.5 Peugeot 307 CC Dag Owner's Manual

Accesses60 -
01-10-2005
61Accesses-
01-10-2005

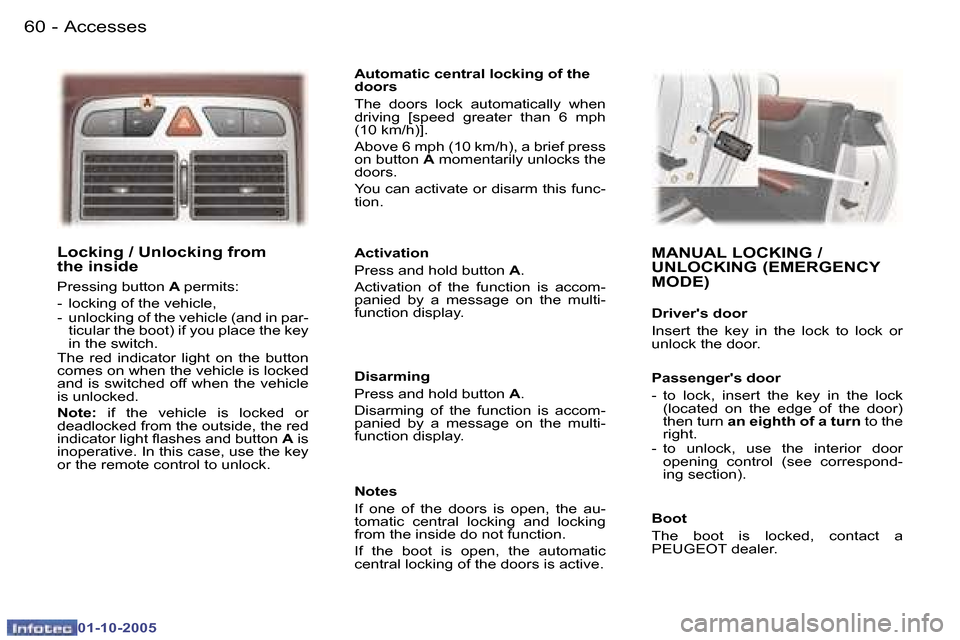

Locking / Unlocking from
the inside
Pressing button A permits:
- locking of the vehicle,
- unlocking of the vehicle (and in par- ticular the boot) if you place the key
in the switch.
The red indicator light on the button
comes on when the vehicle is locked
and is switched off when the vehicle
is unlocked.
Note: if the vehicle is locked or
deadlocked from the outside, the red
indicator light lashes and button A is
inoperative. In this case, use the key
or the remote control to unlock. Automatic central locking of the
doors
The doors lock automatically when
driving [speed greater than 6 mph
(10 km/h)].
Above 6 mph (10 km/h), a brief press
on button
A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.
Activation
Press and hold button A.
Activation of the function is accom-
panied by a message on the multi-
function display.
Disarming
Press and hold button A.
Disarming of the function is accom-
panied by a message on the multi-
function display.
Notes
If one of the doors is open, the au-
tomatic central locking and locking
from the inside do not function.
If the boot is open, the automatic
central locking of the doors is active.
MANUAL LOCKING /
UNLOCKING (EMERGENCY
MODE)
Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger's door
- to lock, insert the key in the lock (located on the edge of the door)
then turn an eighth of a turn to the
right.
- to unlock, use the interior door opening control (see correspond-
ing section).
Boot
The boot is locked, contact a
PEUGEOT dealer.

Accesses58 -
01-10-2005
59Accesses-
01-10-2005
Vehicle unlocked
F Press button D on the remote
control to partially open the boot,
or press button E on the boot.
Note : if you have unlocked the ve-
hicle using the key, pressing the re-
mote control deactivates the alarm. The boot locks automatically when
driving above 6 mph (10 km/h). It
unlocks when one of the doors is
opened or when the interior central
locking/unlocking button is pressed,
with the key in the switch (speed be-
low 6 mph [10 km/h]).
To protect the boot against theft, but-
ton
E can be disarmed. Turn the lock
F a quarter of a turn to the right using
the key.
The boot can only be opened using
the remote control.
BOOT
Opening the boot
Vehicle locked / deadlocked
F Press button D on the remote
control to unlock and partially
open the boot.
This action will also unlock the
doors. "Boot open" warning
If the tailgate is not properly closed:
-
with the engine running , you are
warned by a diagram and a mes-
sage on the multifunction display
for a few seconds,
- when the vehicle is moving
(speed above 6mph (10 km/h)), the
service warning light comes on. It is
accompanied by an audible signal,
a diagram and a message on the
multifunction display for a few se-
conds.
Closing the boot
F Use the interior grab handles to
close the boot.
F Press the centre of the boot with
both hands until it locks.

Accesses60 -
01-10-2005
61Accesses-
01-10-2005
Locking / Unlocking from
the inside
Pressing button A permits:
- locking of the vehicle,
- unlocking of the vehicle (and in par- ticular the boot) if you place the key
in the switch.
The red indicator light on the button
comes on when the vehicle is locked
and is switched off when the vehicle
is unlocked.
Note: if the vehicle is locked or
deadlocked from the outside, the red
indicator light lashes and button A is
inoperative. In this case, use the key
or the remote control to unlock. Automatic central locking of the
doors
The doors lock automatically when
driving [speed greater than 6 mph
(10 km/h)].
Above 6 mph (10 km/h), a brief press
on button
A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.
Activation
Press and hold button A.
Activation of the function is accom-
panied by a message on the multi-
function display.
Disarming
Press and hold button A.
Disarming of the function is accom-
panied by a message on the multi-
function display.
Notes
If one of the doors is open, the au-
tomatic central locking and locking
from the inside do not function.
If the boot is open, the automatic
central locking of the doors is active.
MANUAL LOCKING /
UNLOCKING (EMERGENCY
MODE)
Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger's door
- to lock, insert the key in the lock (located on the edge of the door)
then turn an eighth of a turn to the
right.
- to unlock, use the interior door opening control (see correspond-
ing section).
Boot
The boot is locked, contact a
PEUGEOT dealer.

Accesses60 -
01-10-2005
61Accesses-
01-10-2005

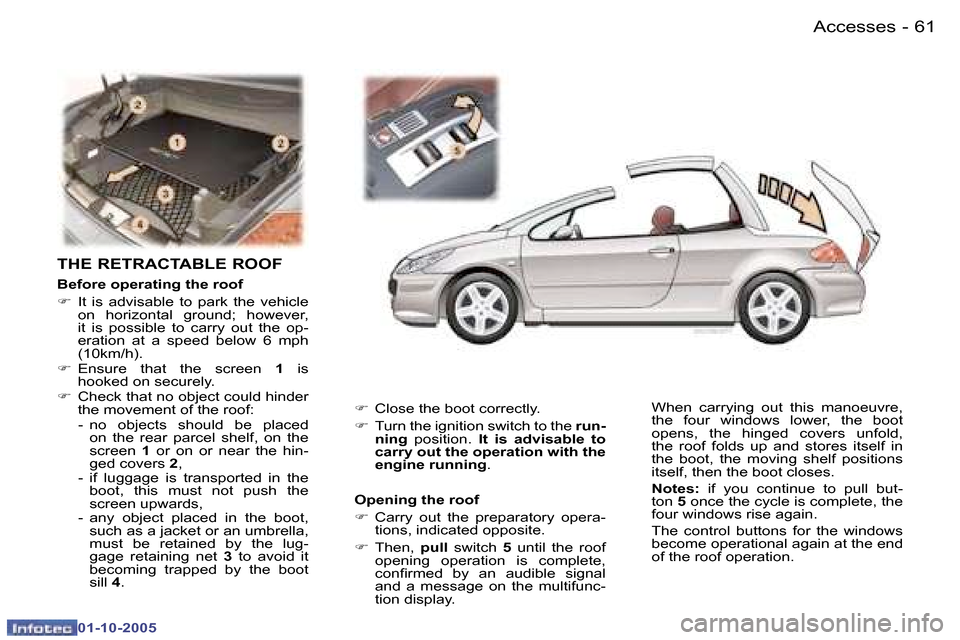

THE RETRACTABLE ROOF
Before operating the roof
F It is advisable to park the vehicle
on horizontal ground; however,
it is possible to carry out the op-
eration at a speed below 6 mph
(10km/h).
F Ensure that the screen 1 is
hooked on securely.
F Check that no object could hinder
the movement of the roof:
- no objects should be placed on the rear parcel shelf, on the
screen 1 or on or near the hin-
ged covers 2,
- if luggage is transported in the boot, this must not push the
screen upwards,
- any object placed in the boot, such as a jacket or an umbrella,
must be retained by the lug-
gage retaining net 3 to avoid it
becoming trapped by the boot
sill 4. F
Close the boot correctly.
F Turn the ignition switch to the run-
ning position. It is advisable to
carry out the operation with the
engine running . When carrying out this manoeuvre,
the four windows lower, the boot
opens, the hinged covers unfold,
the roof folds up and stores itself in
the boot, the moving shelf positions
itself, then the boot closes.
Notes:
if you continue to pull but-
ton 5 once the cycle is complete, the
four windows rise again.
The control buttons for the windows
become operational again at the end
of the roof operation.
Opening the roof
F
Carry out the preparatory opera-
tions, indicated opposite.
F Then, pull switch 5 until the roof
opening operation is complete,
conirmed by an audible signal
and a message on the multifunc-
tion display.

Accesses62 -
01-10-2005
63Accesses-
01-10-2005

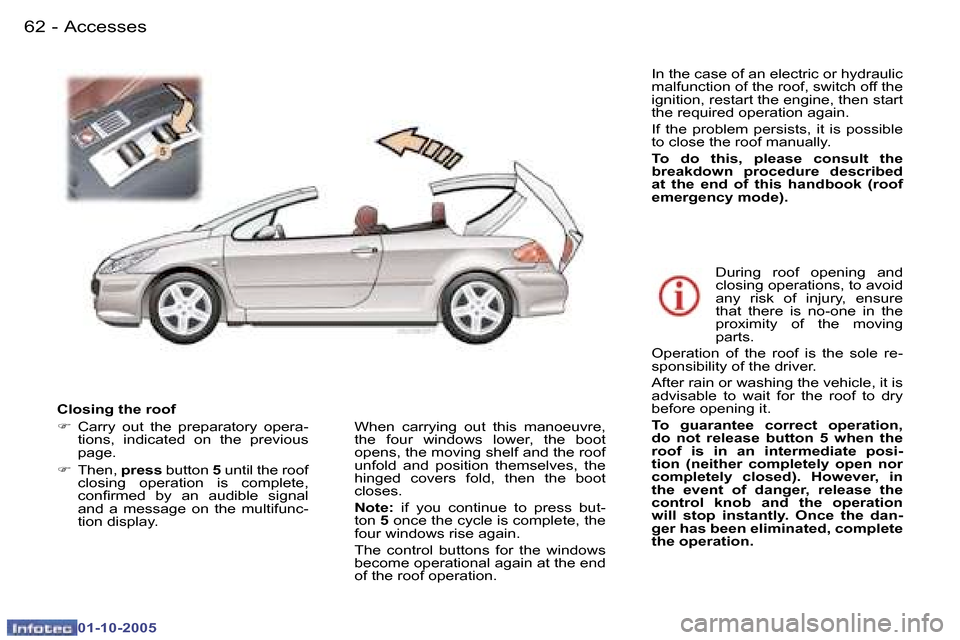

Closing the roof
F Carry out the preparatory opera-
tions, indicated on the previous
page.
F Then, press button 5 until the roof
closing operation is complete,
conirmed by an audible signal
and a message on the multifunc-
tion display. When carrying out this manoeuvre,
the four windows lower, the boot
opens, the moving shelf and the roof
unfold and position themselves, the
hinged covers fold, then the boot
closes.
Note:
if you continue to press but-
ton 5 once the cycle is complete, the
four windows rise again.
The control buttons for the windows
become operational again at the end
of the roof operation. In the case of an electric or hydraulic
malfunction of the roof, switch off the
ignition, restart the engine, then start
the required operation again.
If the problem persists, it is possible
to close the roof manually.
To do this, please consult the
breakdown procedure described
at the end of this handbook (roof
emergency mode).
During roof opening and
closing operations, to avoid
any risk of injury, ensure
that there is no-one in the
proximity of the moving
parts.
Operation of the roof is the sole re-
sponsibility of the driver.
After rain or washing the vehicle, it is
advisable to wait for the roof to dry
before opening it.
To guarantee correct operation,
do not release button 5 when the
roof is in an intermediate posi-
tion (neither completely open nor
completely closed). However, in
the event of danger, release the
control knob and the operation
will stop instantly. Once the dan-
ger has been eliminated, complete
the operation.

Accesses62 -
01-10-2005
63Accesses-
01-10-2005

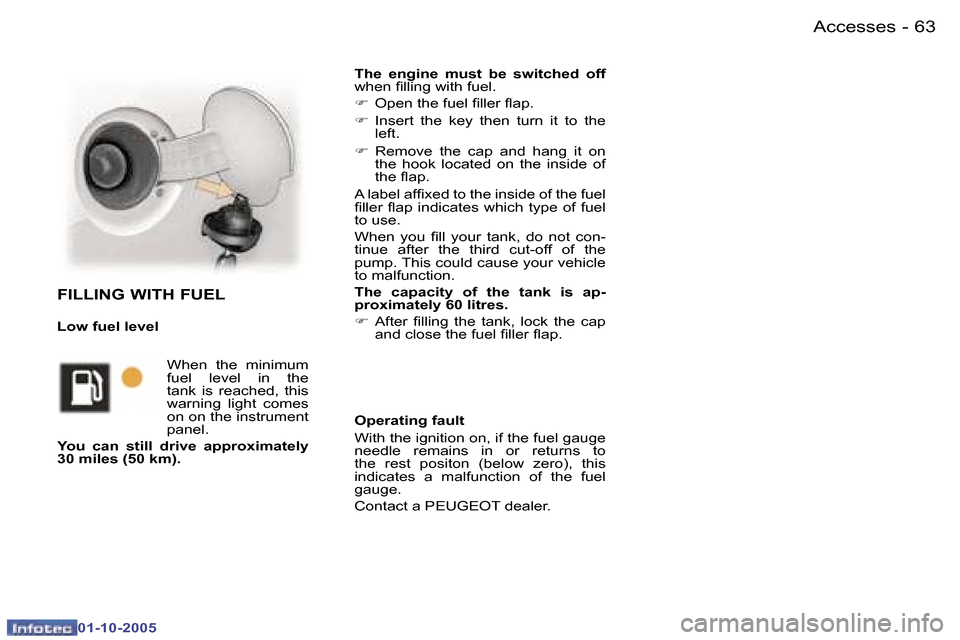

The engine must be switched off
when illing with fuel.
F Open the fuel iller lap.
F Insert the key then turn it to the
left.
F Remove the cap and hang it on
the hook located on the inside of
the lap.
A label afixed to the inside of the fuel
iller lap indicates which type of fuel
to use.
When you ill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is ap-
proximately 60 litres.
F After illing the tank, lock the cap
and close the fuel iller lap.
FILLING WITH FUEL
Low fuel level
When the minimum
fuel level in the
tank is reached, this
warning light comes
on on the instrument
panel.
You can still drive approximately
30 miles (50 km). Operating fault
With the ignition on, if the fuel gauge
needle remains in or returns to
the rest positon (below zero), this
indicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.

Visibility64 -
01-10-2005
65Visibility-
01-10-2005

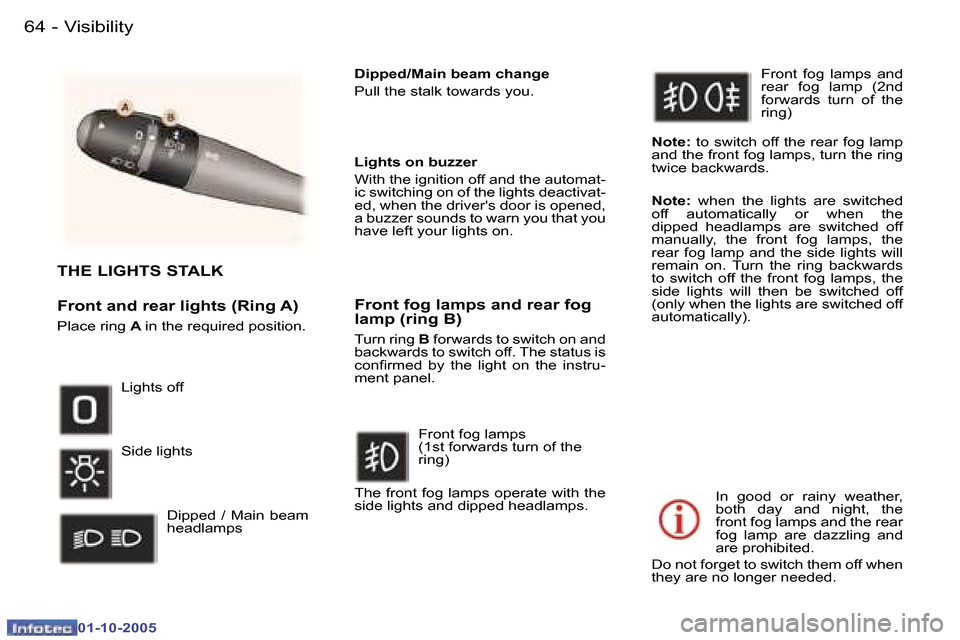

THE LIGHTS STALK
Front and rear lights (Ring A)
Place ring A in the required position. Dipped/Main beam change
Pull the stalk towards you.
Lights off
Side lights Dipped / Main beam
headlamps Front fog lamps
(1st forwards turn of the
ring)
The front fog lamps operate with the
side lights and dipped headlamps. Front fog lamps and
rear fog lamp (2nd
forwards turn of the
ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
twice backwards.
Note: when the lights are switched
off automatically or when the
dipped headlamps are switched off
manually, the front fog lamps, the
rear fog lamp and the side lights will
remain on. Turn the ring backwards
to switch off the front fog lamps, the
side lights will then be switched off
(only when the lights are switched off
automatically).
Front fog lamps and rear fog
lamp (ring B)
Turn ring B forwards to switch on and
backwards to switch off. The status is
conirmed by the light on the instru-
ment panel.
Lights on buzzer
With the ignition off and the automat-
ic switching on of the lights deactivat-
ed, when the driver's door is opened,
a buzzer sounds to warn you that you
have left your lights on.
In good or rainy weather,
both day and night, the
front fog lamps and the rear
fog lamp are dazzling and
are prohibited.
Do not forget to switch them off when
they are no longer needed.

Visibility64 -
01-10-2005
65Visibility-
01-10-2005

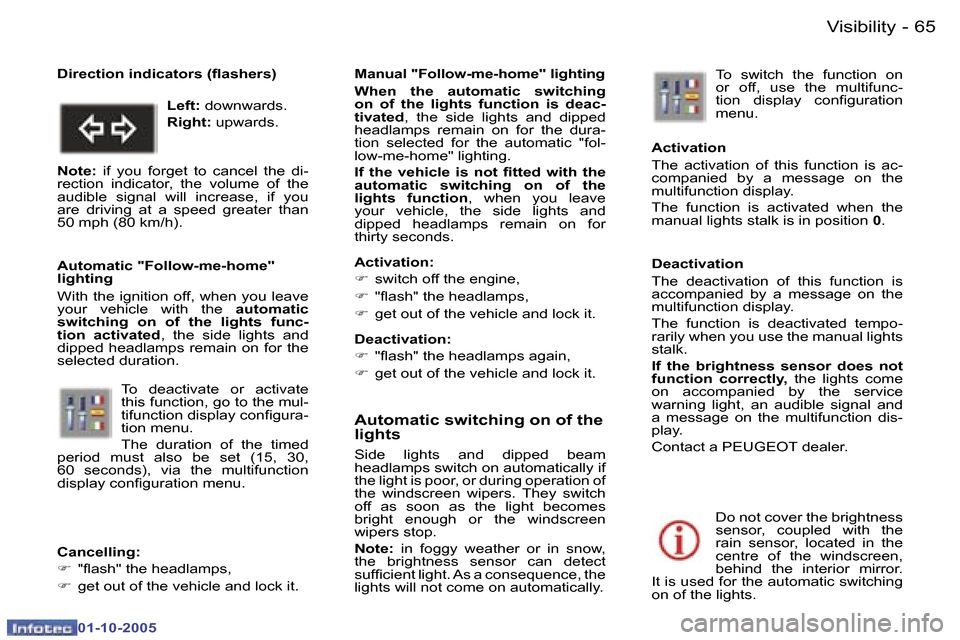

Automatic switching on of the
lights
Side lights and dipped beam
headlamps switch on automatically if
the light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomes
bright enough or the windscreen
wipers stop.
Note: in foggy weather or in snow,
the brightness sensor can detect
suficient light. As a consequence, the
lights will not come on automatically. Deactivation
The deactivation of this function is
accompanied by a message on the
multifunction display.
The function is deactivated tempo-
rarily when you use the manual lights
stalk.
If the brightness sensor does not
function correctly,
the lights come
on accompanied by the service
warning light, an audible signal and
a message on the multifunction dis-
play.
Contact a PEUGEOT dealer.
Manual "Follow-me-home" lighting
When the automatic switching
on of the lights function is deac-
tivated
, the side lights and dipped
headlamps remain on for the dura-
tion selected for the automatic "fol-
low-me-home" lighting.
If the vehicle is not itted with the
automatic switching on of the
lights function , when you leave
your vehicle, the side lights and
dipped headlamps remain on for
thirty seconds.
Direction indicators (lashers)
Left: downwards.
Right: upwards.
Note: if you forget to cancel the di-
rection indicator, the volume of the
audible signal will increase, if you
are driving at a speed greater than
50 mph (80 km/h).
Automatic "Follow-me-home"
lighting
With the ignition off, when you leave
your vehicle with the automatic
switching on of the lights func-
tion activated , the side lights and
dipped headlamps remain on for the
selected duration. Activation:
F
switch off the engine,
F "lash" the headlamps,
F get out of the vehicle and lock it.
Deactivation:
F "lash" the headlamps again,
F get out of the vehicle and lock it.
To deactivate or activate
this function, go to the mul-
tifunction display conigura-
tion menu.
The duration of the timed
period must also be set (15, 30,
60 seconds), via the multifunction
display coniguration menu.
Cancelling:
F "lash" the headlamps,
F get out of the vehicle and lock it. To switch the function on
or off, use the multifunc-
tion display coniguration
menu.
Activation
The activation of this function is ac-
companied by a message on the
multifunction display.
The function is activated when the
manual lights stalk is in position 0.
Do not cover the brightness
sensor, coupled with the
rain sensor, located in the
centre of the windscreen,
behind the interior mirror.
It is used for the automatic switching
on of the lights.
