2005.5 PEUGEOT 207 Owners Manual

2COMFORT
62
BOOT LAYOUT
1. Rear shelf
(see details on following page)
2. Hooks
(see details on following page)
3. Luggage retaining strap
4. Stowing rings
5. Luggage retaining net
(see details on following page)

2
i
COMFORT
63
Hooks
Hooked onto the stowing rings, this en-
ables you to secure your luggage.
Rear shelf
To remove the shelf:
 unhook the two cords,
 raise the shelf slightly, then remove it.
You have two storage options:
- either upright behind the front seats,
- or upright behind the rear seats. The hooks permit the securing of shop-
ping bags.
Luggage retaining net
When changing a wheel
The hooks permit easy access to
the spare wheel by retaining the
boot carpet by means of its cord.

3
!
i
64

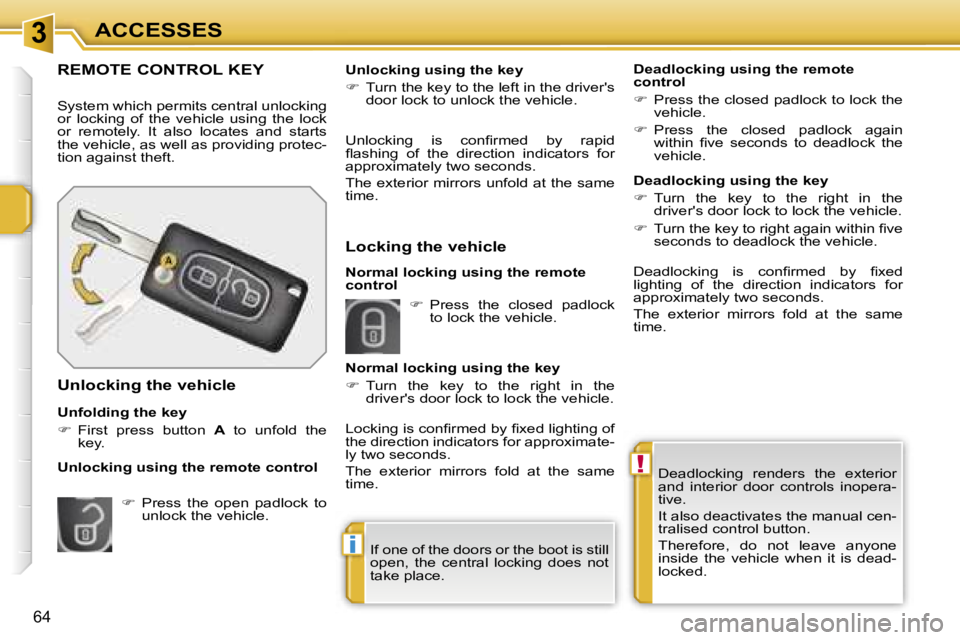

Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tralised control button.
Therefore, do not leave anyone
inside the vehicle when it is dead-
locked.
If one of the doors or the boot is still
open, the central locking does not
take place.
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft.
Unfolding the key

First press button A to unfold the
key.
Unlocking the vehicle
Unlocking is confirmed by rapid
flashing of the direction indicators for
approximately two seconds.
The exterior mirrors unfold at the same
time.
Normal locking using the remote
control
Locking the vehicle
Deadlocking using the remote
control
 Press the closed padlock to lock the
vehicle.
 Press the closed padlock again
within five seconds to deadlock the
vehicle.
 Press the open padlock to
unlock the vehicle. Unlocking using the key

Turn the key to the left in the driver's
door lock to unlock the vehicle.
 Press the closed padlock
to lock the vehicle.
Normal locking using the key
 Turn the key to the right in the
driver's door lock to lock the vehicle.
Locking is confirmed by fixed lighting of
the direction indicators for approximate-
ly two seconds.
The exterior mirrors fold at the same
time.
Unlocking using the remote control Deadlocking using the key

Turn the key to the right in the
driver's door lock to lock the vehicle.
 Turn the key to right again within five
seconds to deadlock the vehicle.
Deadlocking is confirmed by fixed
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the same
time.
ACCESSES

3
!i
65

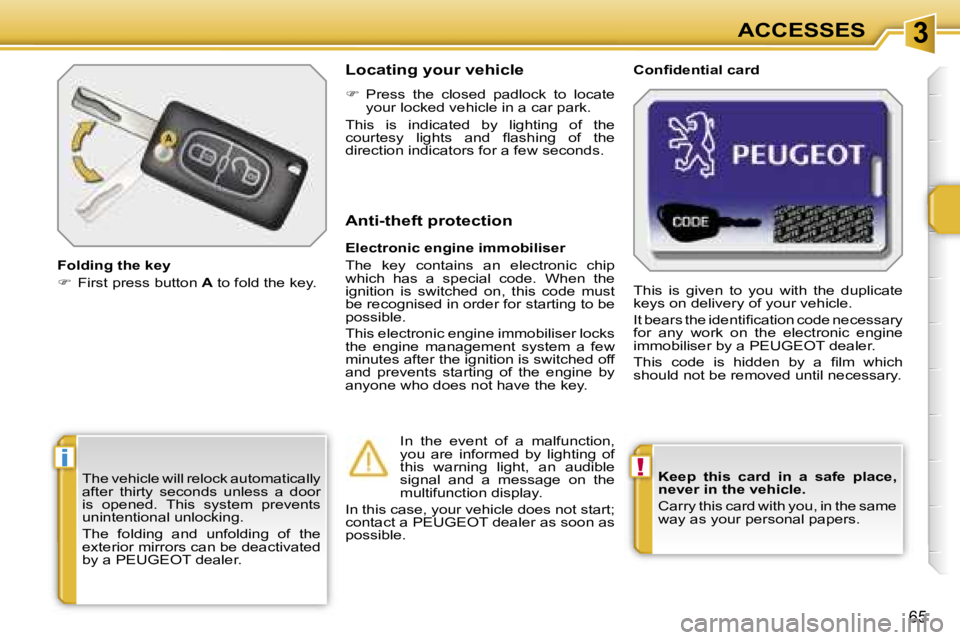

Keep this card in a safe place,
never in the vehicle.
Carry this card with you, in the same
way as your personal papers.
The vehicle will relock automatically
after thirty seconds unless a door
is opened. This system prevents
unintentional unlocking.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Folding the key

First press button A to fold the key.
Locating your vehicleConfidential card
 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
courtesy lights and flashing of the
direction indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate
keys on delivery of your vehicle.
It bears the identification code necessary
for any work on the electronic engine
immobiliser by a PEUGEOT dealer.
This code is hidden by a film which
should not be removed until necessary.
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
ACCESSES

3
i
66

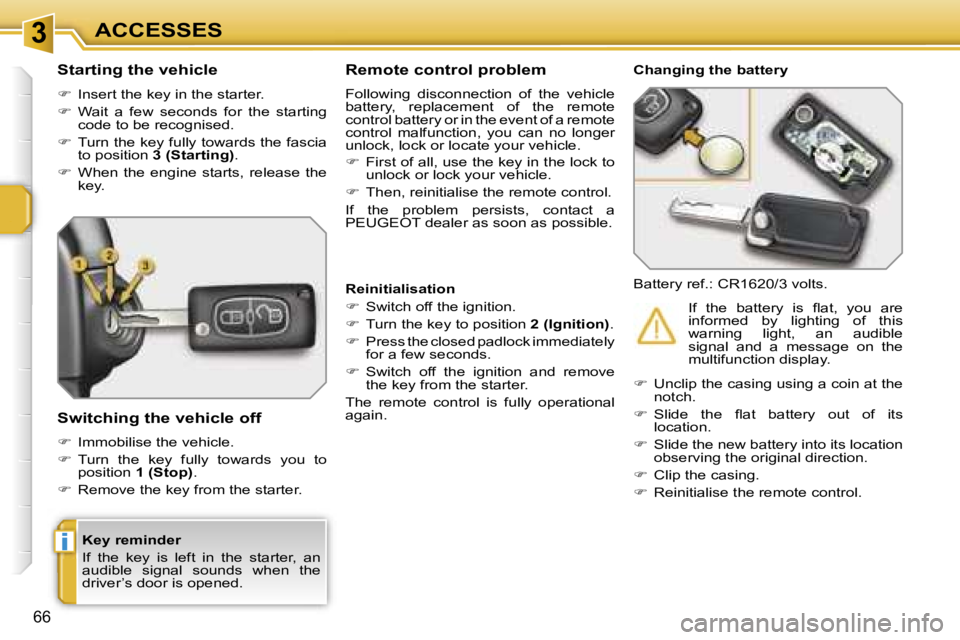

Key reminder
If the key is left in the starter, an
audible signal sounds when the
driver’s door is opened.
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting
code to be recognised.
 Turn the key fully towards the fascia
to position 3 (Starting) .
 When the engine starts, release the
key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to
position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
 First of all, use the key in the lock to
unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immediately
for a few seconds.
 Switch off the ignition and remove
the key from the starter.
The remote control is fully operational
again. 
Unclip the casing using a coin at the
notch.
 Slide the flat battery out of its
location.
 Slide the new battery into its location
observing the original direction.
 Clip the casing.
 Reinitialise the remote control. If the battery is flat, you are
informed by lighting of this
warning light, an audible
signal and a message on the
multifunction display.
ACCESSES

3
!
67

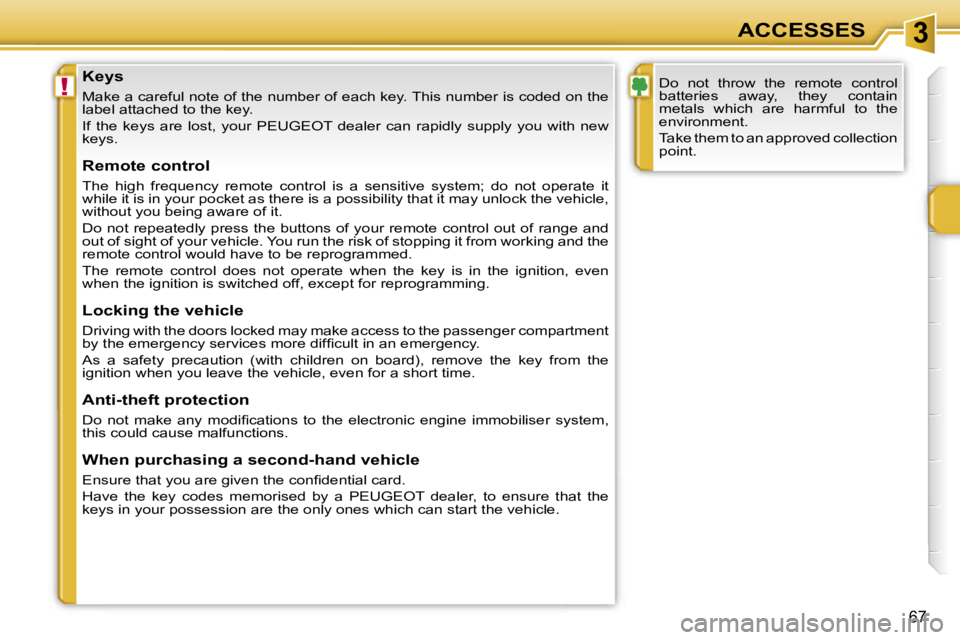

Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you wi th new
keys.
Remote control
The high frequency remote control is a sensitive system; do not op erate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reprogrammed.
The remote control does not operate when the key is in the i gnition, even
when the ignition is switched off, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartme nt
by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifications to the electronic engine immobilise r system,
this could cause malfunctions.
When purchasing a second-hand vehicle
Ensure that you are given the confidential card.
Have the key codes memorised by a PEUGEOT dealer, to ensure that t he
keys in your possession are the only ones which can start the vehicle .Do not throw the remote control
batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.
ACCESSES

3
!i
65
Keep this card in a safe place,
never in the vehicle.
Carry this card with you, in the same
way as your personal papers.
The vehicle will relock automatically
after thirty seconds unless a door
is opened. This system prevents
unintentional unlocking.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Folding the key

First press button A to fold the key.
Locating your vehicleConfidential card
 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
courtesy lights and flashing of the
direction indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate
keys on delivery of your vehicle.
It bears the identification code necessary
for any work on the electronic engine
immobiliser by a PEUGEOT dealer.
This code is hidden by a film which
should not be removed until necessary.
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
ACCESSES

3
i
66
Key reminder
If the key is left in the starter, an
audible signal sounds when the
driver’s door is opened.
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting
code to be recognised.
 Turn the key fully towards the fascia
to position 3 (Starting) .
 When the engine starts, release the
key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to
position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
 First of all, use the key in the lock to
unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immediately
for a few seconds.
 Switch off the ignition and remove
the key from the starter.
The remote control is fully operational
again. 
Unclip the casing using a coin at the
notch.
 Slide the flat battery out of its
location.
 Slide the new battery into its location
observing the original direction.
 Clip the casing.
 Reinitialise the remote control. If the battery is flat, you are
informed by lighting of this
warning light, an audible
signal and a message on the
multifunction display.
ACCESSES
