2005.5 PEUGEOT 207 Owners Manual

180
RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
Selection of the previous item.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous track.
Continuous press: fast backwards play.
Selection of the next item. Volume increase.
Volume decrease.

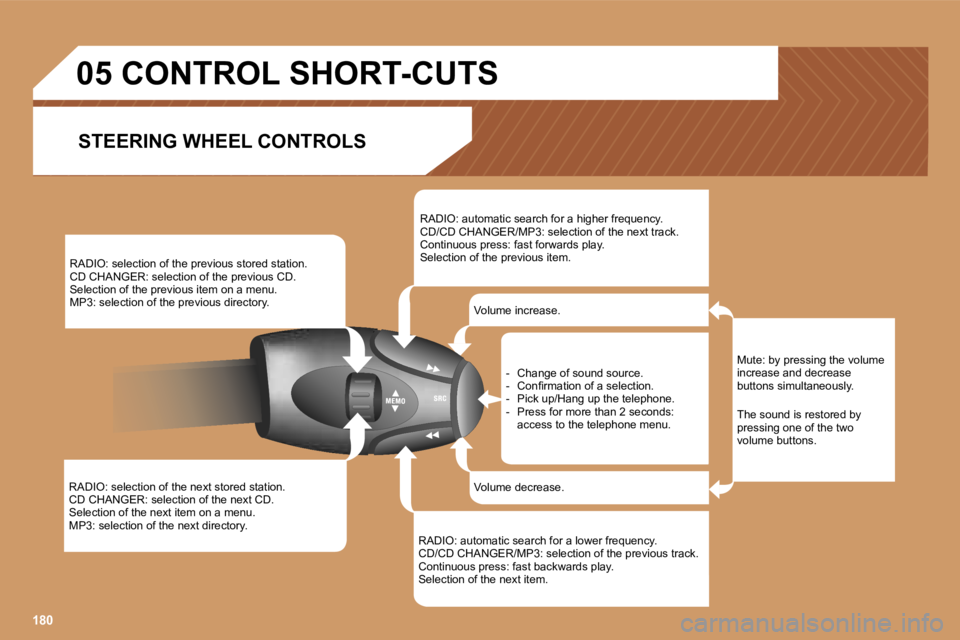

05 CONTROL SHORT-CUTS
Mute: by pressing the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
- Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
STEERING WHEEL CONTROLS

5
6
7
8
181
1
2
3
4

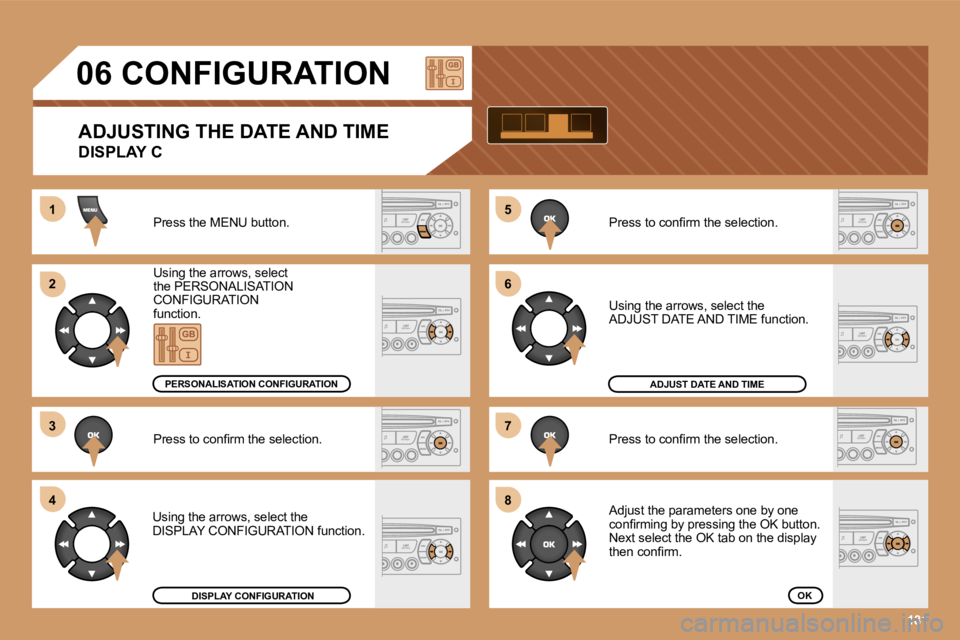

06 CONFIGURATIONADJUSTING THE DATE AND TIME
DISPLAY C
Press the MENU button.
Using the arrows, select
the PERSONALISATION
CONFIGURATION
function.
Press to confirm the selection.
Using the arrows, select the
DISPLAY CONFIGURATION function. Press to confirm the selection.
Press to confirm the selection.
Using the arrows, select the
ADJUST DATE AND TIME function.
Adjust the parameters one by one
confirming by pressing the OK button.
Next select the OK tab on the display
then confirm.
DISPLAY CONFIGURATION
ADJUST DATE AND TIME
OK
PERSONALISATION CONFIGURATION

182
123
23
122
4
34
4
4
34
4
4
34
123434
423434
1232323
1234343444234343423334233333333
3
AUDIO FUNCTIONS
FM BAND PREFERENCES alternative frequencies (RDS)activate/deactivate
regional mode (REG)
activate/deactivate
radio-text information (RDTXT) activate/deactivate
AUDIO CD PREFERENCES cd changer repeat (RPT)activate/deactivate
track random play (RDM)
activate/deactivate TELEPHONE
CONSULTING DIRECTORIES telephone directory
directory list
call log call list
services directory customer contact centre
breakdown call
emergency call
CONFIGURATION deletion of a matchlist of matches
consulting matches list of matches
choice of a mobile to connect
list of mobiles
MANAGEMENT OF A COMMUNICATION switch
terminate the current call
secret modeactivate/deactivate

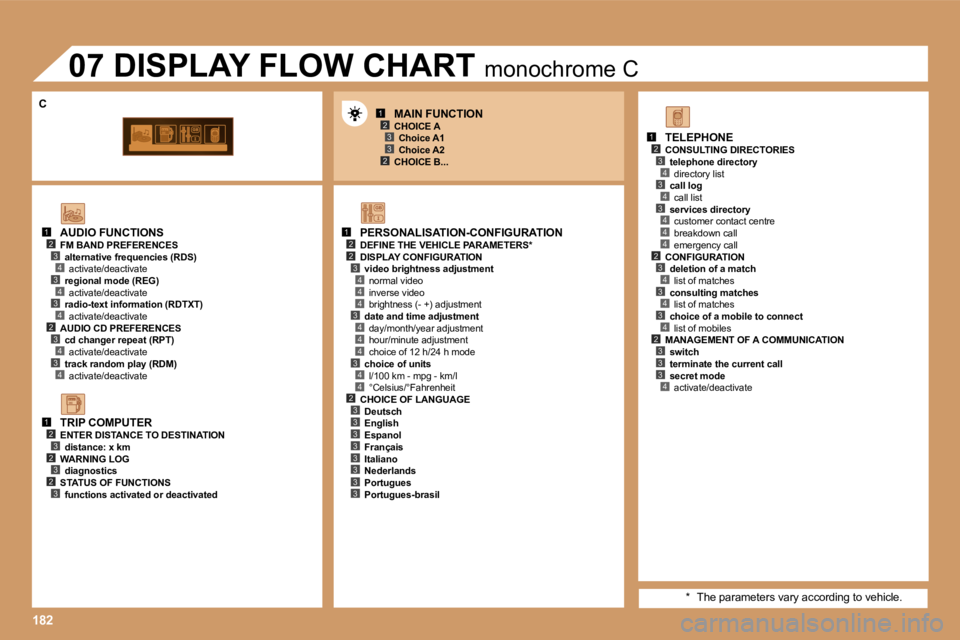

07 DISPLAY FLOW CHART
monochrome C
PERSONALISATION-CONFIGURATION
DEFINE THE VEHICLE PARAMETERS*
DISPLAY CONFIGURATION video brightness adjustmentnormal video
inverse video
brightness (- +) adjustment
date and time adjustment
day/month/year adjustment
hour/minute adjustment
choice of 12 h/24 h mode
choice of units
l/100 km - mpg - km/l
°Celsius/°Fahrenheit
CHOICE OF LANGUAGE
Deutsch
English
Espanol
Français
Italiano
Nederlands
Portugues
Portugues-brasil MAIN FUNCTION
CHOICE A Choice A1
Choice A2
CHOICE B...
TRIP COMPUTER
ENTER DISTANCE TO DESTINATION distance: x km
WARNING LOG diagnostics
STATUS OF FUNCTIONS
functions activated or deactivated
* The parameters vary according to vehicle.
C

1233233233233233
1233233
1233
1222222
12
2
2
22
22
2
122
123
23183
RADIO-CD
RDS SEARCH active
inactive
REG MODE active
inactive
INTROSCAN active
inactive
CD REPEAT
active
inactive
RANDOM PLAY
active
inactive VEHICLE CONFIG
REV WIPE ACT active
inactive
GUIDE LAMPS active
inactive LANGUAGES
FRANCAIS
ITALIANO
NEDERLANDS
PORTUGUES
PORTUGUES-BRASIL
DEUTSCH
ENGLISH
ESPANOL
OPTIONS
ABANDON/CONSULT LIST OF FAULTS functions activated (or not)
warning messages
DISPLAY ADJUST
YEAR
MONTH
DAY
HOUR
MINUTES
12 H/24 H MODE UNITS
TEMPERATURE: °CELSIUS/°FAHRENHEIT
FUEL CONSUMPTION: KM/L - L/100 - MPG

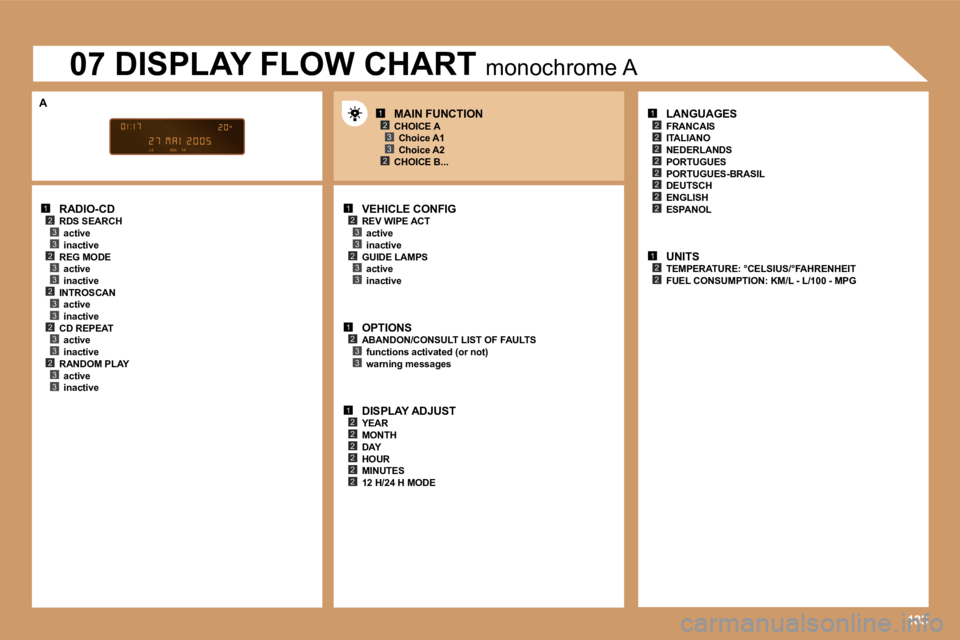

07 DISPLAY FLOW CHART
monochrome A
MAIN FUNCTION
CHOICE A
Choice A1
Choice A2
CHOICE B...
A

8
!

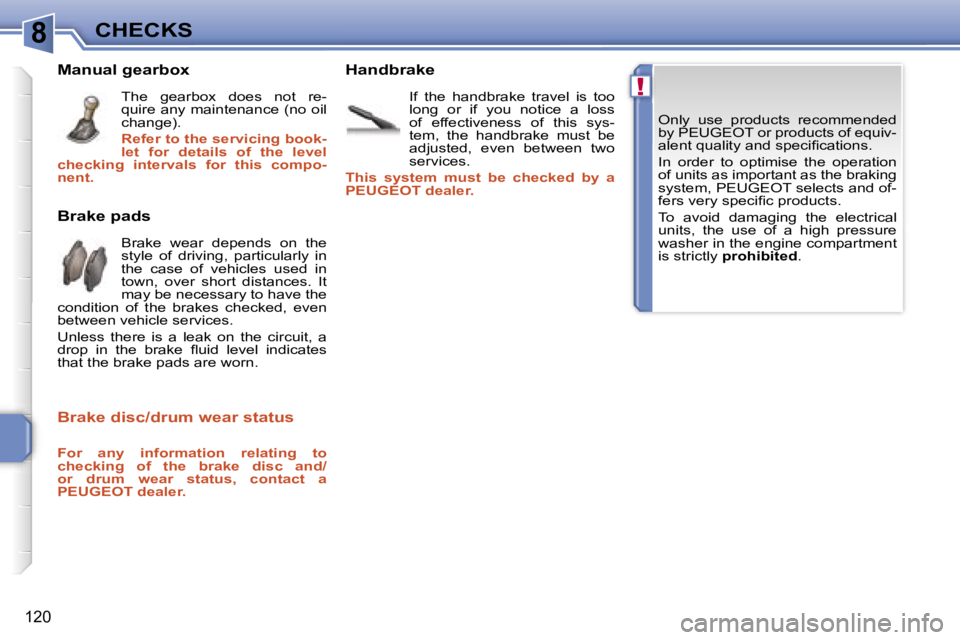

CHECKS
120
Only use products recommended
by PEUGEOT or products of equiv-
alent quality and specifications.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specific products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fluid level indicates
that the brake pads are worn.
Handbrake
If the handbrake travel is too
long or if you notice a loss
of effectiveness of this sys-
tem, the handbrake must be
adjusted, even between two
services.
This system must be checked by a
PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing book-
let for details of the level
checking intervals for this compo-
nent.
Brake disc/drum wear status
For any information relating to
checking of the brake disc and/
or drum wear status, contact a
PEUGEOT dealer.

9
!
i
i
PRACTICAL INFORMATION
125

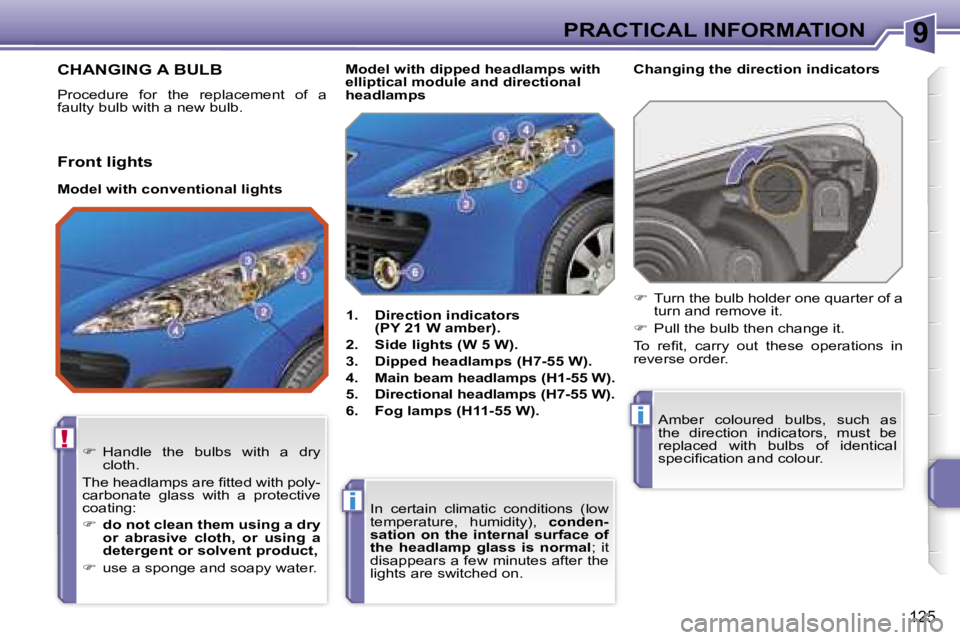

CHANGING A BULB
Procedure for the replacement of a
faulty bulb with a new bulb.1. Direction indicators (PY 21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4. Main beam headlamps (H1-55 W).
5. Directional headlamps (H7-55 W).
6. Fog lamps (H11-55 W). Changing the direction indicators
 Handle the bulbs with a dry
cloth.
The headlamps are fitted with poly-
carbonate glass with a protective
coating:
 do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,
 use a sponge and soapy water. In certain climatic conditions (low
temperature, humidity),
conden-
sation on the internal surface of
the headlamp glass is normal ; it
disappears a few minutes after the
lights are switched on.
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specification and colour.

Turn the bulb holder one quarter of a
turn and remove it.
 Pull the bulb then change it.
To refit, carry out these operations in
reverse order.
Front lights
Model with conventional lights

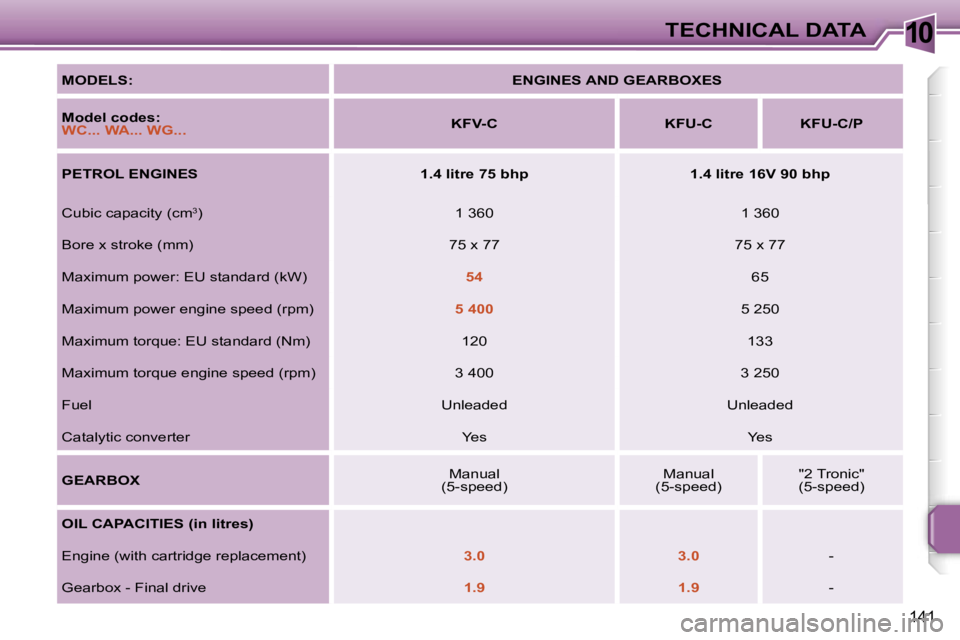

10TECHNICAL DATA
141
MODELS:ENGINES AND GEARBOXES
Model codes:
WC... WA... WG...KFV-C KFU-C KFU-C/P
PETROL ENGINES 1.4 litre 75 bhp 1.4 litre 16V 90 bhp
Cubic capacity (cm
3) 1 360 1 360
Bore x stroke (mm) 75 x 77 75 x 77
Maximum power: EU standard (kW)
5465
Maximum power engine speed (rpm)
5 4005 250
Maximum torque: EU standard (Nm) 120 133
Maximum torque engine speed (rpm) 3 400 3 250
Fuel Unleaded Unleaded
Catalytic converter YesYes
GEARBOX Manual
(5-speed) Manual
(5-speed) "2 Tronic"
(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement)
3.0 3.0-
Gearbox - Final drive
1.9 1.9-

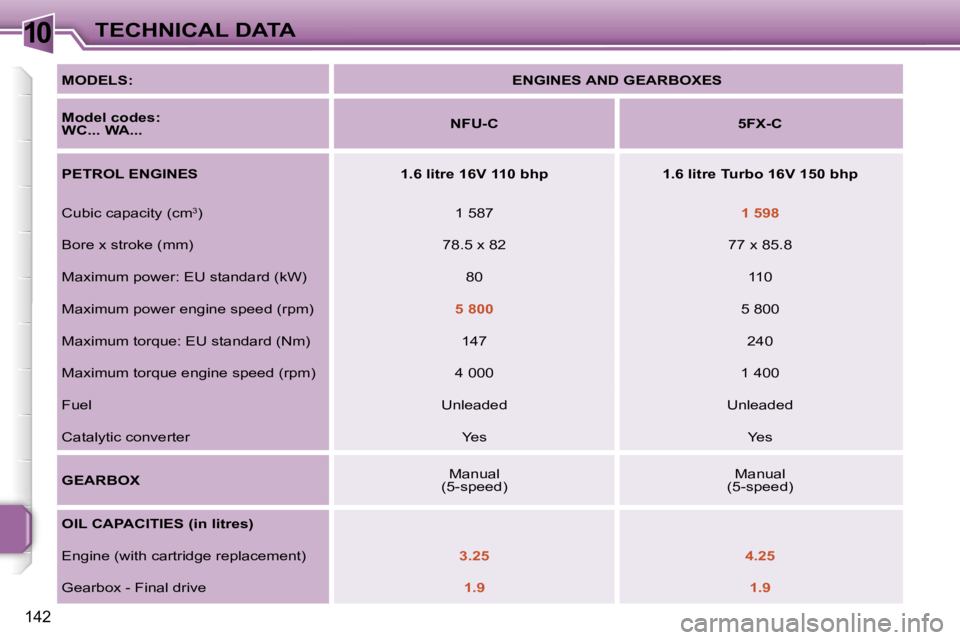

10TECHNICAL DATA
142
MODELS:ENGINES AND GEARBOXES
Model codes:
WC... WA... NFU-C 5FX-C
PETROL ENGINES 1.6 litre 16V 110 bhp 1.6 litre Turbo 16V 150 bhp
Cubic capacity (cm
3) 1 5871 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8
Maximum power: EU standard (kW) 80 110
Maximum power engine speed (rpm)
5 8005 800
Maximum torque: EU standard (Nm) 147 240
Maximum torque engine speed (rpm) 4 000 1 400
Fuel Unleaded Unleaded
Catalytic converter YesYes
GEARBOX Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement)
3.25 4.25
Gearbox - Final drive1.91.9
